Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building
Specifications
Place of Origin :
CHINA
MOQ :
6 Units
Supply Ability :
1500-2000 Units/Month
Model Number :
YGDG02
Delivery Time :
25-45 Days
Steel frame :
Q235 galvanized steel profile with powder coating
Payment Terms :
T/T,L/C
Brand Name :
YAGO
Certification :
ISO, CE
Packaging Details :
By Pallet or As Request
Product Service :
Support Customization
Description

Kitchen and Dining hall Flatpack Container Modular Building Mining Camp

Our flatpack modular buildings offer a fast, flexible, and durable solution for remote camps, worker accommodation, and dining facilities. Engineered for rapid on-site installation, easy transport, and long-term use, these modular units are ideal for mining camps, construction sites, and industrial projects.

The system is fully customizable, supporting layouts for restaurants, kitchens, dormitories, offices, and sanitary facilities, with options for insulation, utilities, and interior finishes. Stackable and expandable, the units can create multi-story or multi-unit configurations, maximizing space efficiency while reducing construction time and logistics costs.

Designed for harsh climates and remote locations, our flatpack buildings combine durability, thermal comfort, and operational efficiency, providing turnkey solutions for temporary or semi-permanent site facilities.

Key Features

  • Galvanized steel structure with powder coating
  • Fireproof rock wool sandwich panel wall system
  • Thermal insulation with aluminum foil fiberglass
  • Quick installation and modular combination
  • Suitable for harsh environments (mining & remote sites)

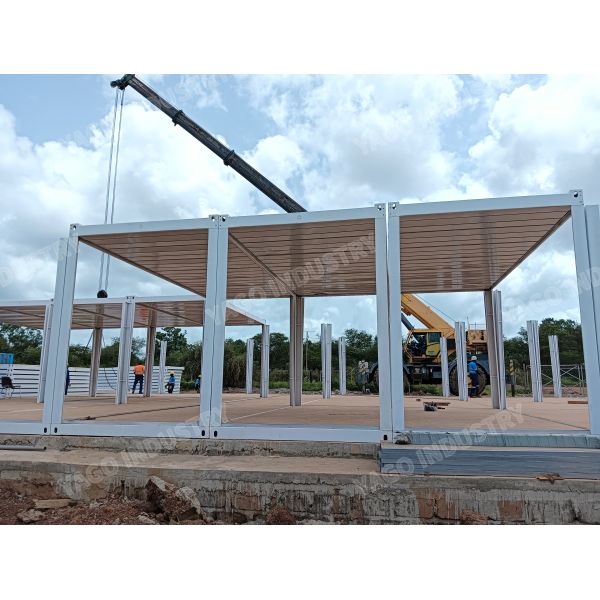

Reference Photos

Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building

Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building

Flatpack Mobile 20 Foot Shipping Container House Modular On Site Building

Product Specification

Steel Frame System System
Roof structure Main roof frame: Q235 galvanized Steel profile, with Automatic Powder Coated paint Roof purlin: C Section Steel, galvanized. Q235B steel
Floor structure Main floor frame: Q235 galvanized Steel profile,with Automatic Powder Coated paint Floor purlin:C Section Steel, galvanized. Q235B steel
Corner pillar Q235 galvanized Steel profile, Galvanized with Automatic Powder Coated paint
Container roof System
Roof covering Galvanized Powder Coated color painting steel Sheet.
Insulation Fiber glass with aluminum foil
Ceiling board Galvanized Powder Coated color painting steel Sheet.
Container floor System
PVC flooring Vinly floor leather with glue
Floor board 18mm fiber cement board
ContainerWall System
Wall panel 50mm /75mm fireproof Mineral Rockwool Sandwich panel
Door Insulated Steel Door
Window PVC sliding window, double glass, with fly screen
Container Electrical System
Power distribution cabinet Circuits with air-break switch, leakage protector,
Light LED light, 24W
AC Socket 16A universal, with socket box
Common Socket 10A, Universal type, with socket box
Switch 10A , with switch box
Plumbing system(Optional as per drawing)
washbasin including the accessory
Closetool including the accessory
shower shower base, shower head, water mixture
Exhaust Fan 6 Inch
water pipe input and output water pipe
Stair case and Corridor. (Optional as per drawing)
Stair Case and Corridor Fabricated with C channel steel, square tube, Round Steel, And checkered Steel Plate
Additional Traingle Roof on Top of Each Block. (Optional as per drawing)
Roof Structure Fabricated with C section steel, Galvanized Q235 Steel.
Roof Covering Corrugated Galvanized Powder Coated Roof Tile

Advantages

Fast Installation
All components are prefabricated, allowing quick assembly on site and saving labor time.

Easy Transportation
Flatpack design reduces shipping volume and cost significantly.

Durable Structure
Galvanized steel frame with powder coating ensures corrosion resistance and long lifespan.

Good Insulation Performance
Rock wool sandwich panels provide thermal insulation and fire resistance.

Flexible Layout
Can be combined into different layouts such as dormitories, offices, kitchens, and sanitary units.

Suitable for Harsh Environments
Widely used in mining and construction projects across Africa and remote areas.

Turnkey Solution
Support from design, production, delivery to installation guidance.

Applications

Mining camp accommodation

Construction site camp

Office & dormitory

Toilet & shower units

Why Choose Us

We provide full support from design, engineering, fabrication to site installation, with strong experience in global mining and construction projects.

FAQ

1.Can flatpack containers be stacked or combined?

Yes. Flatpack units can be stacked vertically (often up to 2–3 stories) or combined horizontally for larger spaces, making them suitable for multi‑level camps or offices.

2. What kind of insulation is used?
We use fiberglass insulation for the roof and rock wool sandwich panels for the walls, which provide good thermal and fireproof performance.
3. Is the container suitable for hot or humid climates?
Yes, the materials used are resistant to heat, humidity, and corrosion, making them suitable for Africa and other tropical regions. The sandwich panels can be customized with thicknesses of 50 /75 /100 /150 mm to meet different insulation requirements.
4. Can you provide electrical and plumbing systems?
Yes, we can provide pre-installed or optional electrical and plumbing systems, including lighting, sockets, toilets, showers, and piping.
5. Do you provide installation support?
Yes, we can provide installation drawings, video guidance, and remote support. On-site supervision can also be arranged if needed.
6. Can the layout be customized?
Yes, we can customize the layout based on your requirements, including accommodation, office, kitchen, and sanitary units.
