galvanized steel forged electric line hardwares eye bolts eye bolt
galvanized steel forged electric line hardwares eye bolts eye bolt
galvanized steel forged electric line hardwares eye bolts eye bolt
galvanized steel forged electric line hardwares eye bolts eye bolt
galvanized steel forged electric line hardwares eye bolts eye bolt
galvanized steel forged electric line hardwares eye bolts eye bolt
Specifications
Brand Name :
NTS
Model Number :
NTS54
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
2000 pcs
Price :
as discussed
Supply Ability :
50000per month
Delivery Time :
35 days
Packaging Details :
boxes ,100pcs/box with a plastic bag
Material :
Q235
Surface :
hot dip galvanized
Size :
5/8 3/4
Rod Diameter :
14.2 17.2mm
Process :
forged
Length :
6" 8" 10" 12" 14"
Assembly :
Square nut fitted
Eye Type :
oval eye bolt thimble eye bolt
Description

galvanized steel forged electric line hardwares eye bolts eye bolt

Product Description

Name: Thimble Eye Bolt used for overhead power line hardwares ,line fittings,electric line fittings

Material: Forged Carbon steel

Finish: Hot Dip Galvanized per ASTM A153

Size: 5/8”

Length: 8",10",12",14",16"

Feature:

there are many kinds of eye bolt made by forging ,welding .Eye bolt can be used on power line hardware, lifting hardware ,car trawling ,and metal hardware fasteners

Commodity Name Forged Oval Eyebolt
Usage Electric Power Fitting
Material Carbon steel
Surface treatment Hot galvanized,zinc plated, self color
Size Different size available
Packing Bags and steel pallets/by customer'requirements
Delivery time 50 days after the contact confirmed
Certifications ISO9001,CE
Notes

Special specifications and marks can be made according to customers

requirment
Main products

Shackle,Turnbuckle,Wire rope clips,Link chain,Thimble,Quick link,

Snap hook,Load binder,Forged hooks,Links,Pole line hardware, ETC

Size Specification:

oval eye bolts 5/8 Diameter ,Minium Tensile Strength is 13550 LBS

3/4" Minimum tensile strength is 20050 lbs

Type Dimensions in inches and millimeters
C D L T
OEB01 1 1/2"(38) 5/8"(16) 6"(150) 4"(100)
OEB02 1 1/2"(38) 5/8"(16) 8"(200) 4"(100)
OEB03 1 1/2"(38) 5/8"(16) 9"(230) 4"(100)
OEB04 1 1/2"(38) 5/8"(16) 10"(250) 6"(150)
OEB05 1 1/2"(38) 5/8"(16) 12"(300) 6"(150)
OEB06 1 1/2"(38) 5/8"(16) 14"(350) 6"(150)
OEB07 1 1/2"(38) 5/8"(16) 16"(400) 6"(150)
OEB08 1 1/2"(38) 5/8"(16) 18"(450) 6"(150)
OEB09 1 1/2"(38) 5/8"(16) 20"(500) 6"(150)
OEB10 1 1/2"(38) 5/8"(16) 22"(550) 6"(150)
OEB11 1 1/2"(38) 5/8"(16) 24"(600) 6"(150)
OEB12 1 1/2"(38) 5/8"(16) 6"(150) 6"(150)
OEB13 1 1/2"(38) 3/4"(20) 8"(200) 6"(150)
OEB14 1 1/2"(38) 3/4"(20) 9"(230) 6"(150)
OEB15 1 1/2"(38) 3/4"(20) 10"(250) 6"(150)
OEB16 1 1/2"(38) 3/4"(20) 12"(300) 6"(150)
OEB17 1 1/2"(38) 3/4"(20) 14"(350) 6"(150)
OEB18 1 1/2"(38) 3/4"(20) 16"(400) 6"(150)
OEB19 1 1/2"(38) 3/4"(20) 18"(450) 6"(150)
OEB20 1 1/2"(38) 3/4"(20) 20"(500) 6"(150)
OEB21 1 1/2"(38) 3/4"(20) 22"(550) 6"(150)
OEB22 1 1/2"(38) 3/4"(20) 24"(600) 6"(150)

We are manufacturer, we will provide high quality products, competitive price and professional service
Main Product: Electrical power fitting ,such as eye bolt ,eye nut ,strain clamp ,shackle ,U bolt ,D-iron and so on ,our product have export all over the world

If you are interesting in our product ,welcome contact with me for the detail .

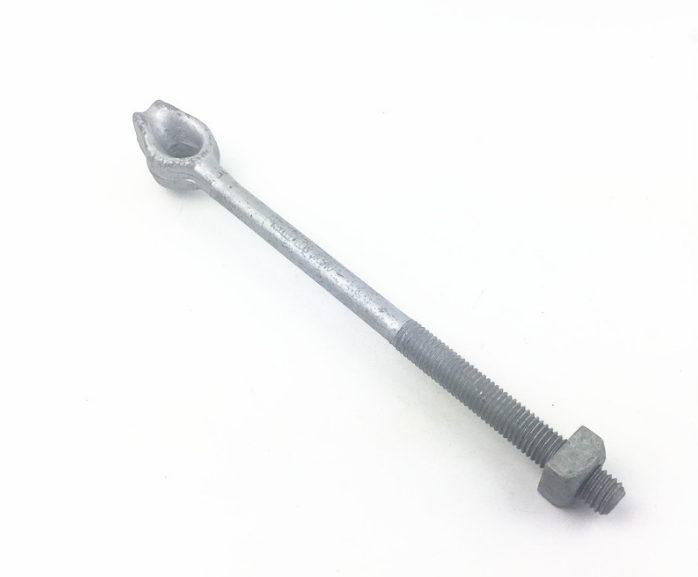

Pictures for forged oval eyebolts thimble eyebolts

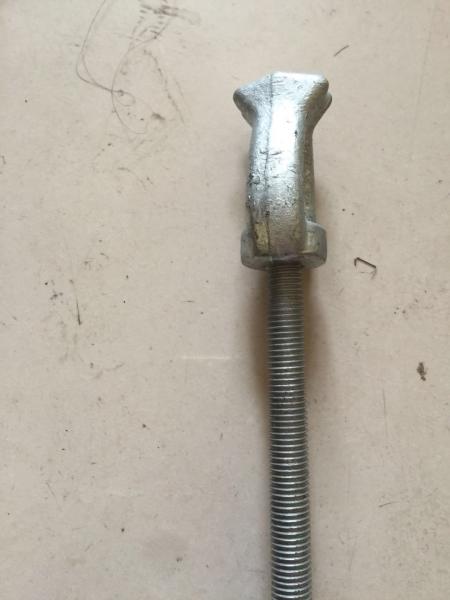

Here are the thread point of the eye bolt

galvanized steel forged electric line hardwares eye bolts eye bolt

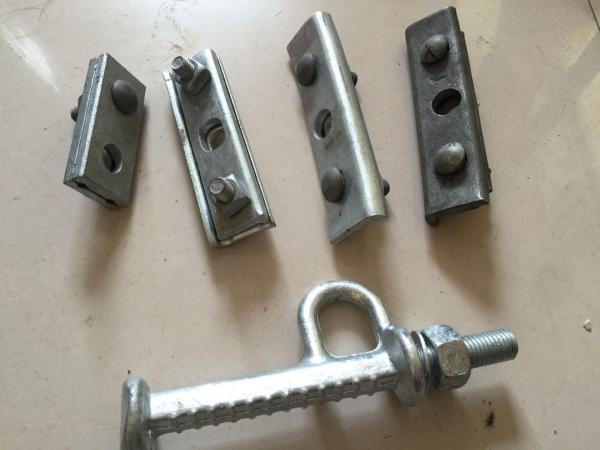

Other types of oval eye bolt thimble eye bolts are available:

galvanized steel forged electric line hardwares eye bolts eye bolt

Forging process of oval eye bolts ,thimble eye bolts, slusher eye bolts are same production line and same process:

galvanized steel forged electric line hardwares eye bolts eye boltgalvanized steel forged electric line hardwares eye bolts eye bolt
galvanized steel forged electric line hardwares eye bolts eye bolt
Testing strength for anchor rods made in our testing machine

galvanized steel forged electric line hardwares eye bolts eye bolt

Packaging & Shipping

1. Packaging: 25kg per carton box, 900kgs per pallet

Each eye bolt will fix with one square nut
2. Shipping: 30 days after confirming your order.
