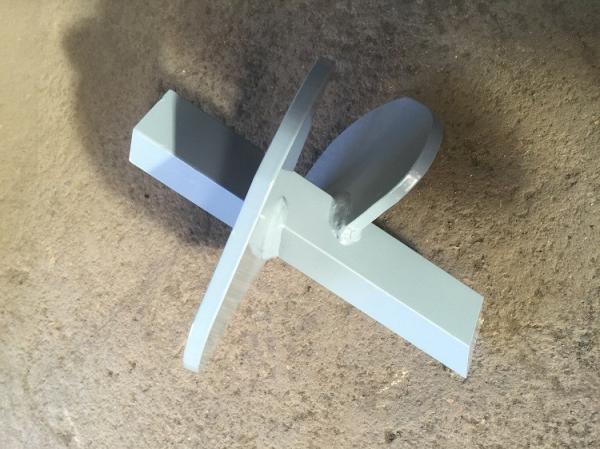

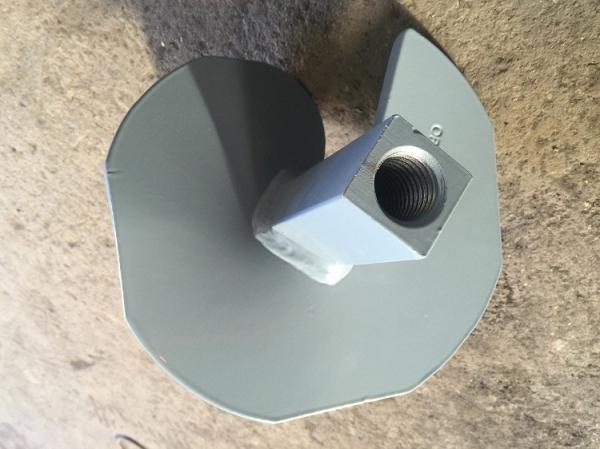

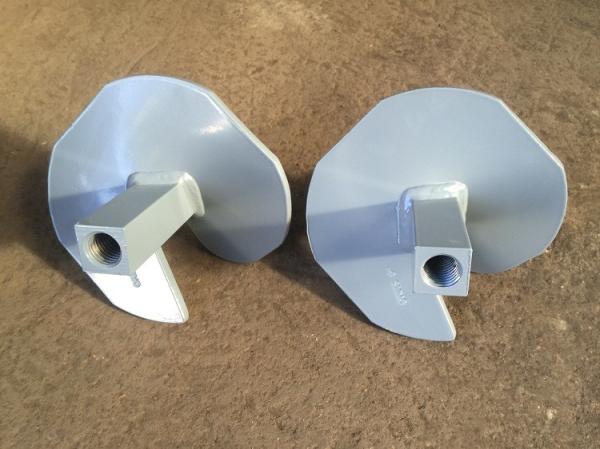

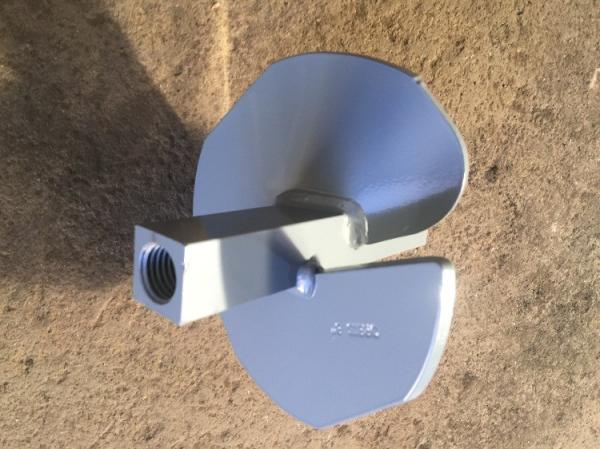

14 Inch Galvanized Steel Pipe Underpinning Helical Piling
14 Inch Galvanized Steel Pipe Underpinning Helical Piling
14 Inch Galvanized Steel Pipe Underpinning Helical Piling
14 Inch Galvanized Steel Pipe Underpinning Helical Piling
14 Inch Galvanized Steel Pipe Underpinning Helical Piling
14 Inch Galvanized Steel Pipe Underpinning Helical Piling
14 Inch Galvanized Steel Pipe Underpinning Helical Piling
14 Inch Galvanized Steel Pipe Underpinning Helical Piling
Specifications
Brand Name :
NTS
Model Number :
NTS016
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
500pcs
Payment Terms :
T/T, L/C
Supply Ability :
50000
Packaging Details :
Pallet / Carton
MATRIAL :
C1045 STEEL
SIZE :
1 3/8 2"
SURFACE :
Galvanized
Description

underpinning helical piling Steel Pipe Ground Screw Pier Foundation

Product Description

Helical piles are hollow steel tubes that are used to stabilize structures by anchoring the load to the surrounding ground, much like a driven pile. However, helical piles are screwed deeply into the earth, section by section if necessary. They are screwed into the ground until it’s proven that the area can properly hold the required bearing capacity of the structure.

Helical piles can be used to create new foundations, to underpin weakening foundations, and to better stabilize existing foundations in preparation for heavier loads.

What is the benefit of using helical piles versus driven piles?

According to the Helical Pile Association, a foundation created using helical piles is preferred over driven piles, drilled shafts, grouted tendons, auger-cast piles, belled piers and other deep foundation systems for a number of reasons:

14 Inch Galvanized Steel Pipe Underpinning Helical Piling

1. Quicker, cleaner installation

2. Can be loaded immediately

3. Elimination of high-mobilization costs associated with driven piles, drilled shafts or auger cast piles

4. Instant torque-to-capacity feedback for production control

5. Easier modification while in the field

6. Higher efficiency in limited access sites, high water tables, and weak surface soils

7. Equipment can be easily fitted with hydraulically-driven torque motors with helical pile installation

2" RCSB Helical Anchors for many applications including:

  • 200,000# Capacity
  • Guy Anchors
  • Tower Support
  • Shoring
  • Tiebacks
  • Shoring
  • Tiedowns
  • Substation Platforms
Specification
size Tube Thicknes(inch) Lead Length (ft) Helix Size (inch) Extension Length(ft)
2" 5/16" 3ft/5ft/7ft 8/10/12/14 3ft/5ft/7ft/10ft
2.5" 5/16" or 3/8" 3ft/5ft/7ft 8/10/12/14 3ft/5ft/7ft/10ft
3" 5/16" or 3/8" 3ft/5ft/7ft/10ft 8/10/12/15 3ft/5ft/7ft/10ft
4" 5/16" or 3/8" or 7/16” 3ft/5ft/7ft/10ft 8/10/12/14 3ft/5ft/7ft/10ft
note:Other sizes are available upon request

14 Inch Galvanized Steel Pipe Underpinning Helical Piling

Torque Anchor™ Extensions
Part Number
36"
60"
84"
120"

14 Inch Galvanized Steel Pipe Underpinning Helical Piling

14 Inch Galvanized Steel Pipe Underpinning Helical Piling

14 Inch Galvanized Steel Pipe Underpinning Helical Piling

Our Services

1. Professional staffs reply your inquiry in 24 working hours.

2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.

3. Good quality, competitive pricing and timely service.

4. OEM and ODM service are available here.

5. Sample: Available.

Qingdao New TaoSheng also manufactures hooks, s hackles, turnbuckles, wire rope clips, load binders ,auto parts,electric powder fitting and other rigging hardware accessories.

Packing with Film and pallet

14 Inch Galvanized Steel Pipe Underpinning Helical Piling

Equipment

14 Inch Galvanized Steel Pipe Underpinning Helical Piling
