Specifications
Brand Name :
NTS
Model Number :
169
Certification :
ISO
Place of Origin :
China
MOQ :
50000pcs
Supply Ability :
1500000
Delivery Time :
30days
Packaging Details :
box
Surface :
galvanized steel or staninless steel
size :
wire size :2.5mm 3.0mm 4mm
Packing :
500kg 5000meter per bundle or roller
Material :
Metal
certification :
ISO
name :
Agricultural Anti Hail System Accessory
Description
Product DescriptionGood quality cable galvanized rope galvanized pc steel strand wire
superior quality cable galvanised rope galvanized pc steel strand
Characteristic High Tensile, Low Relaxation
wire diameter 5.5-16mm
Standard ASTMA416; EN10138; BS5896
Tensile Strengh 1860MPa
Useage mainly for the use of prestressed concrete structure reinforced
Surface Black or galvanized
Packing Export anti-rust packing

Product Details

BS5896
Type Standard 7wire Super 7wire
Mm Nominal Diameter 9.3/11/12.5/15.2 9.6/11.3/12.9/15.7
Mm Diameter Tolerance +0.3/-0.15/+0.4/-0.2 +0.3/-0.15/+0.4/-0.2
Mm2 Nominal Area 52/71/93/139 55/75/100/150
Kg/1000m Nominal Weight 408/557/730/1090 432/590/785/1180
KN Strength Grade 1770/1770/1770/1670 1860/1860/1860/1770
KN Minbreaking Strength 92/125/164/232 102/139/186/265
KN Min.yield Strength 85% Min.brea king strength
L0>500mm Min. Elongation 3.5%

L0>500mm Min.

Elongation

Initial Load of Min Nominal Breaking Strength 60%/70%/80%

1000h Value

No More Than

1.0%/2.5%/4.5%
JISG3536
Type SWPR7AN SWPR7AL SWPR7BN SWPR7BL

Mm Nominal

Diameter

9.3/10.8 12.4/15.2 9.5/11.1 12.7/15.2

Mm Diameter

Tolerance

+0.4/-0.2

mm2 Nominal

Area

51.61/69.68 92.9/138.7 54.84/74.19 98.71/138.7

Kg/1000m Nominal

Weight

405/546 729/1101 432/580 774/1101

KN Min.breaking

Strength

88.8/120 160/240 102/138 183/261

KN Min.yiled

Strength

75.5/102 136/204 86.8/118 156/222

L0>500mm Min.

Elongation

3.5%
Relaxation

Initial Load of

Min Nominal

Breaking Strength

7.0%

1000h Value

No More Than

2.5%

High Tensile Agricultural Anti Hail System Accessory Galvanized Pc Steel Strand WireHigh Tensile Agricultural Anti Hail System Accessory Galvanized Pc Steel Strand WireHigh Tensile Agricultural Anti Hail System Accessory Galvanized Pc Steel Strand Wire

Product Details
(1) Steel raw material suppliers from the big steel factory of China
(2) 10 Welded machine import from Germany
(3) Qualified and trained technical and workers
(4) Strictly Quality Control Processing
Packaging & Shipping


PROMOTIONAL PRODUCTS OF ANTI HAIL ACCESSORIES WE MADE FOR EUROP

High Tensile Agricultural Anti Hail System Accessory Galvanized Pc Steel Strand Wire

High Tensile Agricultural Anti Hail System Accessory Galvanized Pc Steel Strand Wire

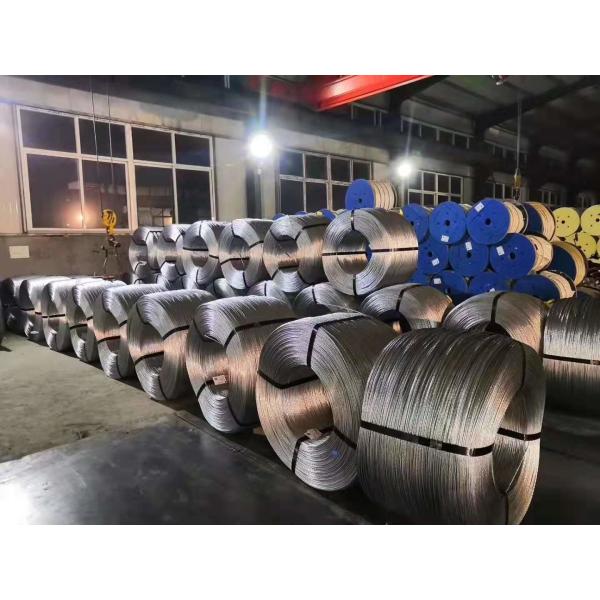

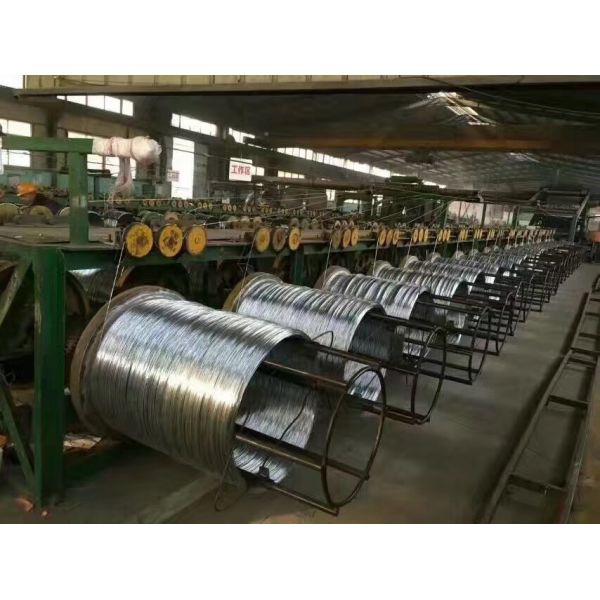

OUR WORKSHOP

High Tensile Agricultural Anti Hail System Accessory Galvanized Pc Steel Strand Wire

1. Q: Can we visit your factory?

A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.

2.Q: Are you trading company or manufacturer?

A: We are factory.

3.Q: How long is your delivery time?

A: Generally it is 7-10 days if goods are in stock. Or it is 30 days if the goods are not in stock, it is according to your quantity.

4.Q: Do you provide samples?

A: Yes, We could offer free samples.

5.Q: What is your terms of payment?

A: LC, TT .

6.Q: Why choose us?

A: 1. Strength: Our own factory and professional sales team.

2. Experience: 23 years focus on quality.

3. Price: Competitive.

4. Service: Professional before & after sales service.

5. 100% inspection.
