Specifications
Brand Name :
HuanCheer
Place of Origin :
Zhenjiang, Jiangsu, China
MOQ :
1000pic
Price :
RMB 10000
Supply Ability :
10000 pcs per week
Delivery Time :
5-8 work days
Packaging Details :
Carton / Stretch Film + Pallet
Product Name :
Honeycomb Paper Stretching Machine
Model :
HC20
Roll Length (Honeycomb Paper) :
5 – 250 m
Roll Length (Liner Paper) :
5 – 420 m
Power :
100‑230V, 50W
Weight :
22 kg
Dimensions (L×W×H) (bare machine) :
620 × 430 × 150 mm
Packing Dimensions (L×W×H) :
690 × 500 × 220 mm
Description
Electric Honeycomb Paper Stretcher HC20 – Foot Pedal Dispenser 8‑10m/min for High‑Volume Packing
Product Overview

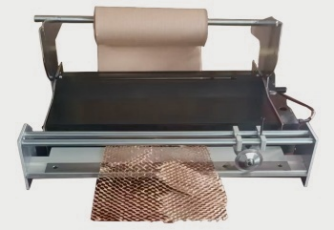

The HC20 electric honeycomb paper stretching machine is a high-efficiency, pedal-operated dispenser designed for busy packing stations. Unlike manual models, the HC20 uses a motorized roller system to feed and stretch honeycomb paper (≤500mm) or liner paper (≤300mm) at a speed of 8-10 meters per minute, significantly increasing throughput.

The foot pedal allows hands-free control of paper length, while the built-in manual cutter ensures clean, straight cuts every time. You can load a single roll or two rolls simultaneously (honeycomb + liner) for layered wrapping. Perfect for e-commerce fulfillment centers, logistics hubs, large retail stores, and product packaging lines.

Technical Specifications
Specification Details
Product Name Honeycomb Paper Stretching Machine
Model HC20
Operation Electric, foot pedal control
Speed 8-10 m/min (motor speed 150 rpm)
Effective Width (Honeycomb Paper) ≤ 500 mm
Effective Width (Liner Paper) ≤ 300 mm
Roll Length (Honeycomb Paper) 5 - 250 m
Roll Length (Liner Paper) 5 - 420 m
Power 100-230V, 50W
Weight 22 kg
Dimensions (L×W×H) 620 × 430 × 150 mm
Packing Dimensions (L×W×H) 690 × 500 × 220 mm
Cutter Integrated manual cutter (smooth cut)
Compatible Materials Honeycomb paper (≤500mm), liner paper (≤300mm)
Electric Honeycomb Paper Stretcher HC20 – Foot Pedal Dispenser 8‑10m/min for High‑Volume Packing
Manufacturer Profile

HUANCHEER is a leading manufacturer of eco-friendly packaging machinery. The HC20 electric stretcher is the result of years of research into packing line efficiency. We combined a high-torque motor, precision rollers, and a heavy-duty cutter into a compact footprint.

Our machines are used by major online retailers, moving companies, and industrial packers worldwide. We provide CE certification, a 12-month warranty, and global spare parts support. For businesses that pack hundreds of parcels daily, the HC20 is the fastest way to go plastic-free.

Key Features
  • Electric motorized stretching - 8-10 m/min, consistent and effortless
  • Foot pedal control - hands-free operation, variable paper length
  • Dual-roll compatible - load honeycomb paper and liner paper together (or single roll)
  • Built-in manual cutter - clean, smooth cuts without extra tools
  • Wide material range - honeycomb paper ≤500mm, liner paper ≤300mm
  • High capacity - handles rolls up to 250m (honeycomb) / 420m (liner)
  • Energy efficient - only 50W power consumption
  • Compact & robust - 620×430×150mm, 22kg, fits on any workbench
  • Ideal for large e-commerce warehouses, logistics centers, high-volume packaging lines
Business & Trade Terms
  • Price: Contact for latest pricing (MOQ based)
  • MOQ: 10 units (sample order available)
  • Payment: T/T, L/C, PayPal for small orders
  • Supply ability: 500 units per week
  • Sample: Available (shipping fee applies)
  • Lead time: 5-8 working days
Shipping Information
  • Packing: Individual carton box (69×50×22 cm)
  • Delivery: 5-8 working days after order confirmation
  • Ports: Shenzhen, Guangzhou
  • Shipping terms: EXW, FOB, CIF, DDP available
  • Container loading: ~360 units per 20GP
  • Sea freight for bulk; air express for single units
Frequently Asked Questions
What is the maximum paper width the HC20 can handle?

Honeycomb paper up to 500mm; liner paper (e.g., kraft tissue) up to 300mm.

Can I use the HC20 without the foot pedal?

The foot pedal is the primary control. You can also configure a manual switch (contact us for custom orders).

How do I change between single and dual-roll mode?

The machine has two independent spindles. Load one or both rolls as needed.

Is the cutter safe?

Yes, the cutter is recessed and manually operated - you pull the paper across the blade, not a moving blade.

What maintenance does the HC20 require?

Periodic cleaning of rollers and checking belt tension. A maintenance guide is included.

Can the speed be adjusted?

Standard model runs at fixed speed 8-10 m/min. Speed-adjustable version is available on request.

Does it work with recycled honeycomb paper?

Yes, it is compatible with all standard honeycomb paper rolls.

What is the warranty period?

12 months for manufacturing defects, excluding wear parts like blades.
