Specifications
Brand Name :
DINUO
Certification :
ISO9001:2015
Place of Origin :
Guangdong, China
MOQ :
5000PCS
Price :
USD1-1.5/PC
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs per day
Delivery Time :
15-20Days
Packaging Details :
Customizable as customer's request
Product Name :
Liquid Ton Bag
Material Structure :
PA/PE/PE; VMPET/PE/PE; PE/PE/PE; VMPE/PE/PE
Feature :
High tensile strength, puncture resistance, clear appearance, high barrier, leakproof, anti-rubbing, easy to recycle
Industrial Application :
Syrup, dairy products, daily chemicals, non-hazardous chemicals, liquid sugar, jam, egg liquid, concentrated juice, edible oil, lubricant, binder, latex, detergent
Customization :
Support Size customization, thickness adjustment, port number customization
Environmental Performance :
Compliant with industrial environmental standards, food grade safety certified
Product Type :
Normal PE bag; High barrier transparent PE bag
Description

Food Grade Industrial Liquid Ton Bag High Barrier Flexible Bag for Liquid Storage Transportation

We independently research and development of domestic automatic ton bag machine line, the width of the machine is 2.5 meters, and has the patent of single and double mouth and large diameter filling mouth cover, the ton bag has advantages of high tensile strength, puncture resistance, clean storage and transportation, low cost, it mainly used for packing and storing syrup, dairy products, daily chemicals, non-hazardous chemicals, it can effectively reduce the costs of product packaging and transportation.

Product Type Liquid Ton Bag/High barrier transparent PE bag
Material Structure PA/PE/PE; VMPET/PE/PE; PE/PE/PE; VMPE/PE/PE
Core Features High tensile strength, anti-rubbing, high barrier, leakproof, clean storage and transportation, oxygen/moisture/chemical resistance, soft texture, easy to recycle
Structural Patent Single/double port design, large-caliber filling port cover patent, stable oxygen permeability structure
Application Syrup, dairy products, daily chemicals, non-hazardous chemicals, liquid sugar, jam, egg liquid, concentrated juice, edible oil, lubricant, binder, latex, detergent
Capacity Advantage Large-volume storage, reduce packaging and transportation costs

No Inspection item Standard requirement
Aluminized PET bag Aluminium foil bag Nylon bag Normal PE bag Aluminized PE bag High barrier transparent PE bag
1

Oxygen permeability

cm³/(m²·24 h)

≤1.0 ≤0.5 ≤100 - ≤1.0 ≤0.5
2 Water vapor permeabilityg/(m²·24 h) ≤0.5 ≤0.5 ≤10 ≤15 ≤0.5 ≤0.5
3 Light transmittance% ≤0.2 ≤0.2 - - ≤0.2 -
4 Tensile strength (vertical/horizontal)MPa ≥30 ≥30 ≥30 ≥20 ≥20 ≥20
5

Breakage nominal strain(vertical/horizontal)

%

≥45 ≥45 ≥45 ≥200 ≥200 ≥200
6 Peel strength N/15 mm ≥3.0 ≥3.0 ≥3.0 - ≥3.0 ≥3.0
7 Thermal bonding strength N/15 mm ≥40 ≥40 ≥40 ≥15 ≥15 ≥15

1. Excellent Chemical Resistance
The PE liquid ton bag is made of high-quality polyethylene material, which exhibits strong resistance to most non-hazadous acids, alkalis, and organic solvents. This ensures the bag remains intact and does not react with the stored liquid substances, making it suitable for transporting a wide range of chemical liquids.

2. Superior Leakproof Performance

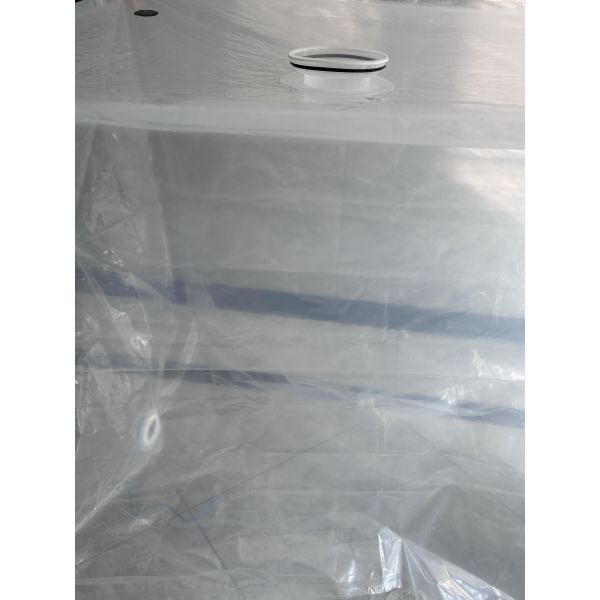

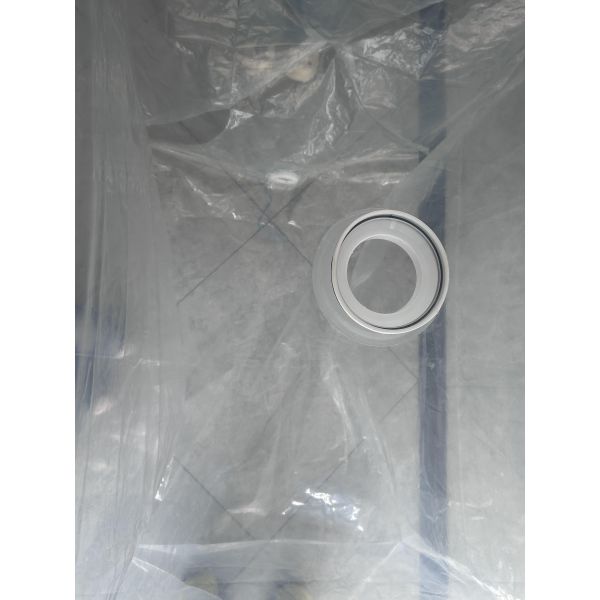

Equipped with a precision-molded liquid outlet valve and sealed with a tight-fitting ring structure (as shown in the picture), the bag effectively prevents liquid leakage during transportation and storage. The seamless heat-sealed edges further enhance its leakproof ability, even for high-viscosity liquids.

3. High Load-Bearing Capacity
Designed with a reinforced structure and high-strength PE fabric, this liquid ton bag can bear a large weight of liquid (up to 1 ton as standard). The sturdy lifting loops and reinforced corners ensure safe handling and hoisting during logistics.

4. Lightweight and Space-Saving
Compared with traditional rigid liquid storage containers like metal drums or plastic barrels, the PE liquid ton bag is lightweight and foldable. When not in use, it can be folded into a small volume, greatly reducing storage and transportation space costs.

5. Good Durability
The PE material used for the bag has excellent tensile strength and wear resistance, able to withstand friction, extrusion, and slight impacts during transportation and loading/unloading. It is also resistant to UV rays to a certain extent, suitable for both indoor and outdoor short-term storage.

6. Easy to Operate and Dispose
The integrated liquid inlet and outlet valves enable quick filling and discharging of liquids, improving operational efficiency. Moreover, the PE material is recyclable and can be properly disposed of after use, in line with environmental protection requirements.
