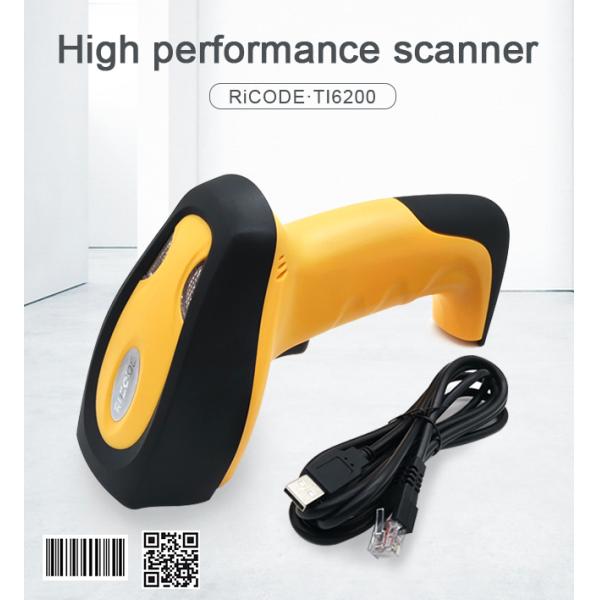

Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Specifications
private mold :
Yes
products status :
Stock
type :
Barcode Scanner
scan element type :
2D
colour depth :
32 Bit
interface type :
usb, COM, RS232
max paper size :
A4
optical resolution :
≥ 3 mil
scan speed :
200
Brand Name :
RiCODE
Place of Origin :
Guangzhou, Guangdong China
warranty(year) :
1-Year
after-sales service :
Repair, Free spare parts, Call Center and on-line Technical Support
software development kit (sdk) :
Yes
color :
Yellow
Application :
Industry
Product name :
2D Wired Barcode Scanner
Interface :
USB, USB-COM, RS232
Light source :
2D Imager
Color :
Yellow+Black
Scan Mode :
Manual trigger, Auto-detective
Model Number :
RiCODE TI6200HP
Resolution :
3 mil
Decode Capabilities :
1D + 2D + QR Code
Material :
dual-color ABS/PC+TPU; single-color ABS+PC; transparent: PC;
Description
Applications
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
* Automobile industry, Heavy Machinery, Electronics industry;

* Large warehouses, sea port and cargo terminals;

* Large logistics enterprises;

* Other place require higher scanning performance or higher scanning intensity.
Product Paramenters
Model
TI6200HP
Input Voltage
5V DC, ±0.25V
DC Current
360mA(working); 72mA(standby)
Scan Module
2D Imager
Lighting Source
White LED
Aiming line
Red LED
Resolution
≥ 3 mil
Angle Tolerance
Skew ±72°, Pitch ±72°, Roll 360°
Trigger Mode
Manual trigger, Auto-detective
Cable Length
2 meters
2D Code types
QR Code, Data Matrix, PDF417, HANXIN, MicroQR, Aztec etc.
1D Code types
UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of
5,Codabar, Code 128, Code 93, Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code, GS1 Data Bar (formerly RSS) etc.
Interfaces
USB, RS232, USB-COM
Shock proof
withstand multiple drops from 2.0 m to concrete surface
Dust & Water proof
IP54
Features
1. Outstanding scanning sensitivity and decoding ability;
2. good at reading worn code, DPM, high reflecting, high density, small size etc.;
3. IP54 proof level, competent for harsh environment;
4. Good ergonomic design for long working time;
5. Capable for monitor-displayed code;
6. Auto-sensing(Optional stand)
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Product Description
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Company profile
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
Packing & Shipping
Factory Supply Rugged Corded 1D 2D Imager Barcode Scanner With High Performance Barcod Scanner Handheld
FAQ
1. Why choose us?
* Passionate, experienced and highly-educated R & D and sales team;
* Reasonable price and reliable products, skillful and careful assembly;
* Strict quality assurance and quick aftersales service;
* Lifetime technical support, can come with customized setting.

2. Are OEM and ODM available?
* Yes, they are. As a professional manufacturer, we offer OEM and ODM service.

3. How about your product warranty?
* We offer one-year warranty upon delivery.

4. How about the aftersales support?
* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.

5. Payment method?
* Now T/T and PayPal are available, more is coming.
