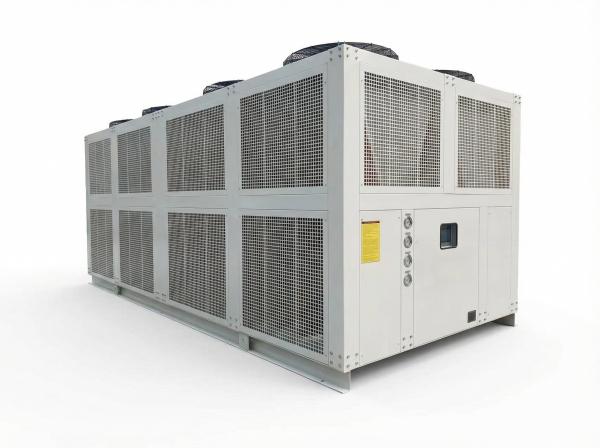

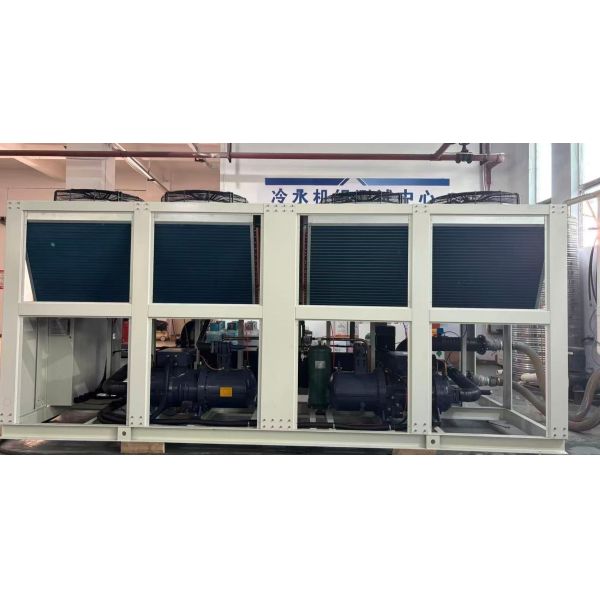

Air-Cooled Twin Screw Industrial Chiller
Air-Cooled Twin Screw Industrial Chiller
Air-Cooled Twin Screw Industrial Chiller
Air-Cooled Twin Screw Industrial Chiller
Specifications
Operating Temperature Range :
Up to 55°C ambient temperature
Certification :
ISO
Compressor Type :
Screw compressors
Brand Name :
Bosikar
Control System :
Microprocessor-based controller with digital display
Payment Terms :
L/C,T/T
Pump Included :
Optional integrated water pump available
Delivery Time :
45days
Protection Features :
Overload protection, high/low pressure protection, phase failure protection
Supply Ability :
400pcs/month
Packaging Details :
wooden box
Refrigerant Type :
R134a
Place of Origin :
China
Condenser Type :
Air-cooled condenser with enhanced fin design
MOQ :
1
Description

Reliable Cooling Solution for Large-Scale Continuous Production


BOSIKAR Air-Cooled Twin Screw Industrial Chillers are engineered for demanding industrial applications requiring large cooling capacities and continuous operation. With dual refrigeration circuits and intelligent control technology, the units ensure maximum efficiency and reliability.



Dual Compressors Working Together


  • Independent Dual Refrigeration Circuits
  • Automatic Load Matching
  • Step-by-Step Starting
  • Backup Operation



Air-Cooled Design, Easy Installation


  • No Cooling Tower Required
  • Save Installation Space
  • Water Saving
  • Easy Maintenance
  • Ideal for Water-Scarce Regions


Intelligent Energy Management


  • Automatic Capacity Control
  • Compressor Rotation
  • Real-Time Monitoring
  • Operating Status Analysis


BOSIKAR Industrial Cooling Solutions



BOSIKAR is committed to providing advanced industrial cooling solutions for customers worldwide.


Our air-cooled twin screw chillers are designed to deliver powerful cooling performance, intelligent energy management and long-term reliability for demanding industrial applications.



Technical data sheet


Model Parameter BSKS-100AD BSKS-120AD BSKS-140AD BSKS-160AD BSKS-180AD BSKS-200AD BSKS-240AD
Nominal cooling capacity Kcal/h 228,760 245,960 320,780 387,000 448,920 498,800 543,520
kW 266 286 373 450 522 580 632
TR 76 81 106 128 148 165 180
Total input power kW 66.6 80.6 91.0 113.6 133.4 166.0 183.6
Max.runing current A 152 184 207 259 304 378 418
Nominal power supply 3Ph / 380V / 60Hz, 440V / 60Hz, 460V / 60Hz, 480V / 60Hz
Refrigerant Type R134a
Control mode Thermal expansion valve
Compressor Type Semi-Hermetic screw
Power(kW) 57.0 71.0 80.2 102.8 120.8 150.0 167.6
Start-up mode Y-△
Capacity control(%) 0-25-50-75-100
Evaporator Type Shell and tube(Plate)
Chilled water flow(m³/h) 46 49 64 77 90 100 109
Condenser Type Enlarged Air-Cooled Condenser with Inner-Grooved Copper Tubes and Hydrophilic Aluminum Fins
Fan Type High Efficiency Axial Fan
Power(kW) 9.6 9.6 10.8 10.8 12.6 16 16
Air flow(m³/h) 106,000 134,000 155,000 185,000 210,000 240,000 280,000
Inlet/Outlet pipes 4" 5" 5" 5" 5" 6" 6"
Dimension Length(mm) 4400 4400 5800 6500 6800 7500 8600
Width(mm) 2070 2070 2100 2200 2200 2060 2200
Height(mm) 2300 2300 2400 2400 2400 2400 2400
Net weight kg 3200 3600 4000 4500 4900 5200 5800
