Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Specifications
Warranty :
1 years
Customized support :
OEM, ODM
Place of Origin :
China
Brand Name :
BINGSHENG
Product name :
Blue-Green Algae Sensors /Chlorophyll-Sensor
Working principle :
Fluorescence method
Response time :
≤ 3s
Linearity :
R²>0.999
Communication interface :
Supports RS-485 Modbus protocol
Measuring temperature :
0~50 ° C(Non-freezing)
Resolution :
1 cells/mL;0.1 μ G/L or 0.1% RFU
Measurement range :
0-270000 cells/mL;0-400ug/L or 0-100RFU
Power supply :
DC5-12V, current < 50mA
Packaging Details :
carton box
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
5 pieces
Price :
Discussion
Description
Specification
Product name
Blue Green Algae Online RS485 modbus Optical Water Meter Chlorophyll Probe Sensor for River Lake
Technical indicators

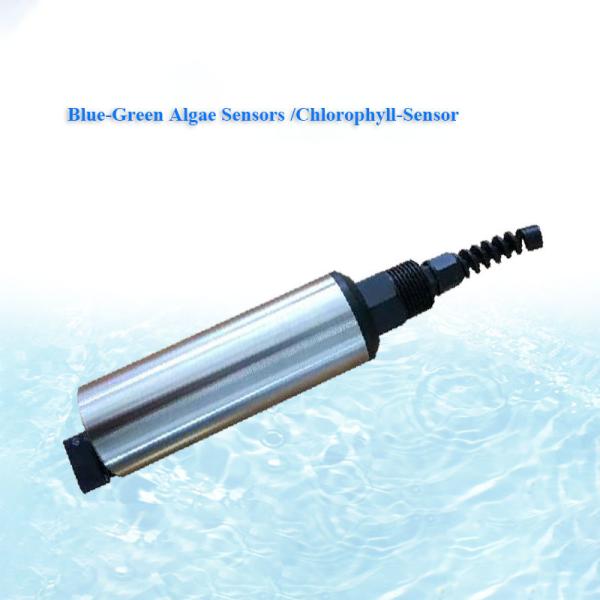

Blue-Green Algae Sensors
Chlorophyll-Sensor
Measurement parameters
Chlorophyll parameters
Ca²⁺
Measurement range
0-400ug/L or 0-100RFU
0-270000 cells/mL
Resolution
0.1 μ G/L or 0.1% RFU
1 cells/mL
Linearity
R²＞0.999
Working principle
Fluorescence method
Response time
≤ 3s
Communication interface
Supports RS-485 and Modbus protocols
Working environment
0~50 ° C (non freezing)
Working voltage
DC5-12V, current ＜ 50mA
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Product Description
Features: The BSK-Y100 online blue-green algae sensor adopts the principle of fluorescence method, which is more efficient and fast than the traditional manual calculation method, and can be monitored online in real time. Can eliminate bubbles, reduce the impact of contamination on the measurement, is a longer maintenance cycle, long-term online use can also maintain excellent stability. It can play an early warning role in algal reproduction. The fiber optic chlorophyll sensor adopts the principle of fluorescence method, according to the spectral absorption characteristics of chlorophyll a, irradiates the water body by high-energy LED light source, stimulates the chlorophyll a in the water body to produce specific wavelength fluorescence, and measures the concentration of chlorophyll a in the water. The sensor adopts a fiber optic structure, which has excellent repeatability and stability, and is not easily affected by ambient light.
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Company Profile
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Certifications
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Exhibition
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Shipping&payment
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
Fluorescence Method Blue Green Algae Chlorophyll Probe Sensor for Continuous Monitoring
