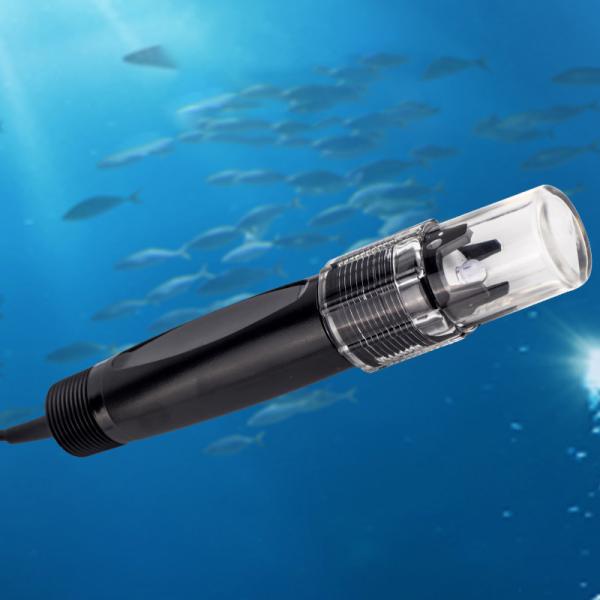

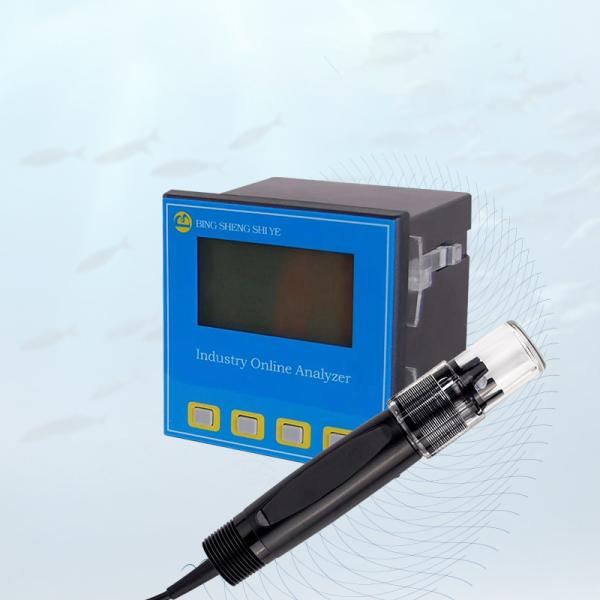

Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Specifications
Warranty :
1 year
Customized support :
OEM, ODM
Place of Origin :
Henan, China
Brand Name :
BINGSHENG
Model Number :
BSK-ORP-100
Product name :
Digital ORP sensor
Resolution :
1mV
Data communication :
Rs485(MODBUS-RTU)
Temp measure range :
0.0~60.0℃,≤ 85% RH
Power consumption :
≤ 0.5W
Applicable scope :
Environmental protection, Sewage, Online detection
Accuracy :
±0.02pH
Type :
ORP Sensor
Packaging Details :
A5 standard export carbon
Supply Ability :
10000 Piece/Pieces per Month
Price :
Discussion
Description
Product Description
FEATURES: 1.Adopt solid electrolyte, 0.4MPa pressure.
2.Easy to use without adding electrolyte.
3.Solid electrolyte salt bridge can prevent electrode poisoning effectively, such as S²ˉ,CNˉ.
4.Adopt antifouling annular Teflon liquid junction, hard to clog, long-term online detection.
5.Adopt different sensitive membrane electrode for PH measurement under various conditions. Low inner resistance electrode, fast response and high stability.
6.Adopt standard Pg13.5 screw thread, suitable for piping erection.

Working principle: Electrochemical sensor Applicable scenarios: sewage, river water, secondary water supply, lake water monitoring
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Specification
Product name
Digital sensor
Resolution
±0.01 pH
Accuracy
±0.02pH
Waterproof Rate
IP68


Measurement range
A: Voltage signal (choose one from 0-2V, 0-5V, 0-10V)
B: 4-20mA (current loop)
C: RS485 (standard Modbus RTU protocol, device default address: 01)
Power supply voltage: 7-24V DC (when the output signal is 0-2V, RS485) 12-24V DC (when the output signal is 0-5V, 0-10V, 4-20mA) (Customizable 3.3-5V DC)
Temperature range
Temperature: 0~60℃; Humidity ≤ 85% RH
Power consumption
≤ 0.5W
Cable Length
5m standard cable, other length can be optional;
Guarantee Period
12 months
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Company Profile
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Certifications
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Exhibition
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Shipping&payment
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
