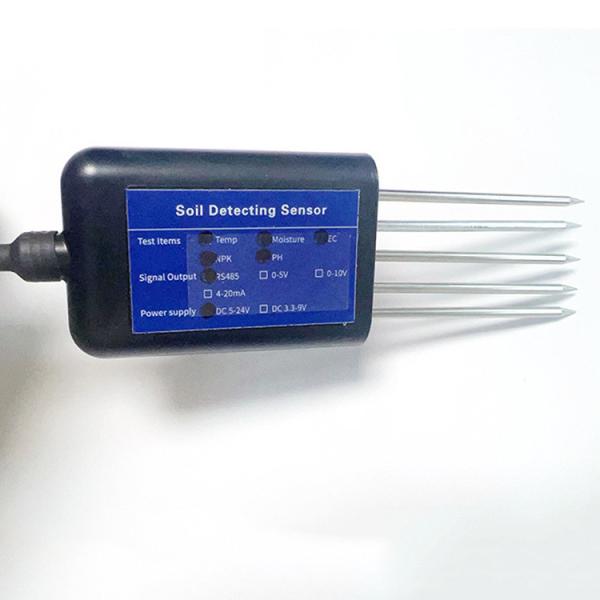

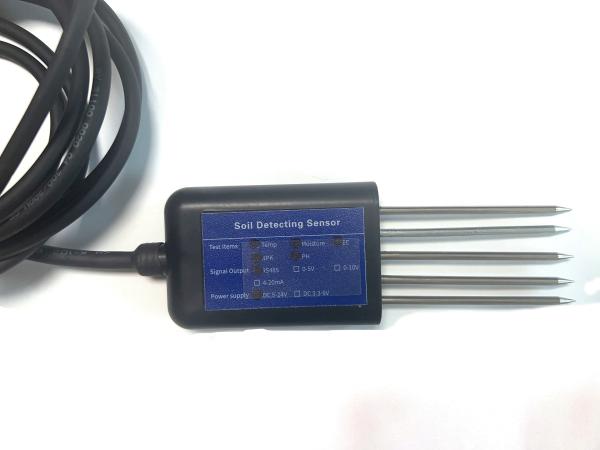

7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
Specifications
Warranty :
1 years
Type :
7 in1 soil sensor
Customized support :
OEM, ODM
Place of Origin :
Henan, China
Brand Name :
OEM
Model Number :
BSK-7 in 1 soil sensor
Product name :
soil NPK PH EC Temperature Moisture sensor
Output :
RS485/NB-IoT/WiFi
Voltage - Supply :
DC3.3-9V/DC5-24V
Resolution (Bits) :
0.1℃ ±3%RH ±5% ±2%F.s 0.01PH
Measuring Range :
-40-80℃ 0-100%RH 0-20000us/cm 0-1999mg/kg 0-14PH
Application :
Electrical Appliance
Material :
Aluminum Metal Case
OEM :
ACCEPT
MOQ :
5 pieces
Price :
Discussion
Description
Product Description
OEM ODM Customized Smart Farming soil moisture ph ec temperature sensor 7 in 1 integrated soil sensor ec ph npk moisture: 1.1 Introduction
soil 7 in 1 sensor integrates sensing, acquisition and output. Compared with traditional IoT
sensors, it has the advantages of high precision and easy installation.
1.2 Product Description
It is suitable for the measurement of soil temperature, moisture, EC,NPK and PH. It is compared with the original German high-precision sensor and calibrated by the actual soil drying weighing method. It has high precision, fast response and stable output. It is less affected by soil salinity and is suitable for various soil types. It can be buried in the soil for a long time, resistant to long-term electrolysis, corrosion resistance, vacuum potting, and completely waterproof. 1.3 Applicable scenarios It is widely used in scientific
experiments, water-saving irrigation, greenhouses, flowers and vegetables, grassland and pastures, soil rapid testing, plant cultivation, sewage treatment, grain storage and the measurement of water content and temperature of various particulate matter.
1.4 Sensor Features
This product adopts high-sensitivity digital probe with stable signal and high precision. Provide a variety of
probes to meet the use of different environments. The equipment is beautiful and easy to install. The upper computer is simple to operate and easy to use.
1.5 Precautions for use
The steel needle must be fully inserted into the soil when measuring . Avoid
strong sunlight directly on the sensor and cause the temperature to be too high. Pay attention to lightning protection when using in the field.
Do not bend the steel needle violently, do not pull the sensor lead wire forcibly, and do not drop or violently hit the sensor. The sensor protection grade is IP68, and the whole sensor can be immersed in water. Due to the existence of radio frequency electromagnetic radiation in the air, it is not suitable to be energized in the air for a long time .

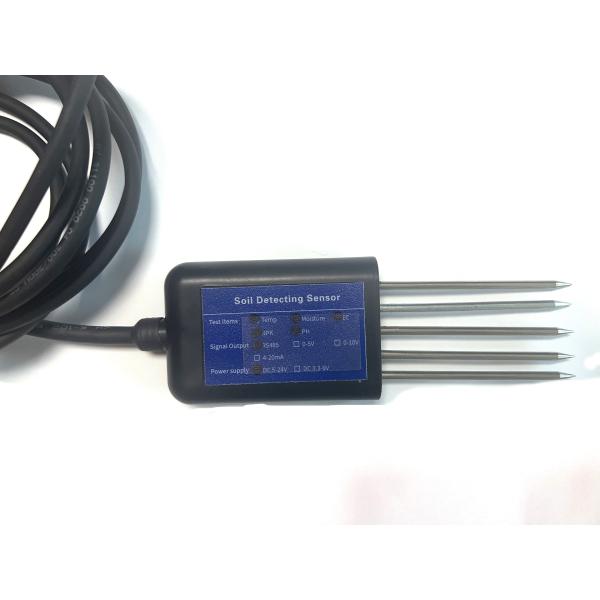

7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
The user provides the soil sensor with a DC power supply with an input of 5 to 24v, either using the 220VAC to DC power supply provided by Crystal Hopper, or using a 12V solar panel and battery power supply to meet the needs of different occasions.





High Accuracy

High Accuracy, fast testing, can reach within 2% accuracy, increase the stability

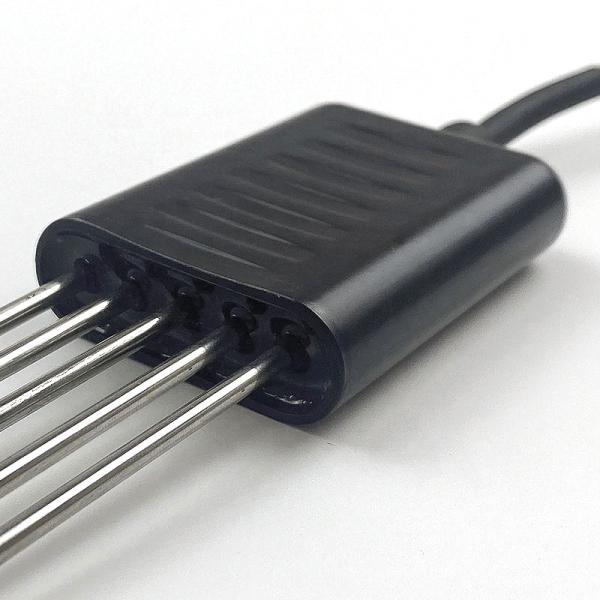

7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output





Low Measurement Cost

Compared with traditional laboratory measurement, this producr has low cost, few steps, no re-agent, and no limited monitoring
times
7 in1 Soil Sensor for Measuring EC Conductivity PH NPK Temperature Moisture 5 Pin Output
Specifications
Product name
Soil integrated sensor 7 in 1
Power supply
DC3.3-9V/DC5-24V
Accuracy
0.1℃ ±3%RH ±5% ±2%F.s 0.01PH
Measuring range
Temperature: -40 ℃ ~ 80 ℃
Humidity : 0 ~ 100% ( non-condensing )
PH : 0-14PH
NPK : 0-1999mg/kg
Conductivity: 0-2000us/cm
Response time
≤10s
precision
Temperature: ± 0.5 ℃
Humidity: ±3% (when measuring frozen ice soil, the moisture value will be low and inaccurate)
PH : 0.01PH
NPK : ±2%Fs
Conductivity : ±3% in the range of 0-1000us/cm; ±5% in the range of 1000-2000us/cm
Resolution
Temperature : 0.1 ℃ _
Humidity: ± 1 % (when measuring frozen ice soil, the moisture value will be low and inaccurate)
NPK : ±2%Fs
Conductivity : 1 us/cm
Size
Length (72+70) mm width 45mm thickness 15mm
Operating temperature
-40℃~85℃
Working humidity
15%RH~90%RH (relative humidity), non-condensing
