Specifications

Model :

P3.9

Pixel Pitch(mm) :

3.91

LED Configuration :

SMD1921

Module Resolution(dot) (H x V) :

64*64

Module Size(mm) (H x V) :

250x250

Module Maintenance Method :

Front and Rear

Scan Mode :

1/16

Cabinet Resolution(dot) (H x V) :

128x128

Cabinet Size(mm) (H x V) :

500x500/500x1000

Cabinet Material :

Die-cast Aluminum

Cabinet Weight (kg/pcs) :

7.5kg/pcs & 14kg/pcs

IP Standard (Front / Back) :

IP65

Density(Pixels / sqm) :

65536

Brightness Range(nits) :

≥4500

Brightness Adjustment(Levels) :

256

Working voltage :

110V / 220V

Grey Scale(bits) :

13-16

Refresh Rate(Hz) :

7680

Frame Rate(Hz) :

50 / 60

Max. Consumption (w/sqm) :

700

Ave. Consumption(w/sqm) :

220

Working Humidity :

10% - 95%

Working Temperature :

-20℃ ~ 55℃

Signal Available :

DVI,HDMI,SDI,DP and so on

Life Span(Hours) :

100000

Running Files :

Text , Animation, Image, Video and so on

Description

High-Performance LED Display Solutions

Experience unparalleled visual clarity and operational efficiency with our advanced LED display cabinets. Engineered for superior performance and user convenience, these solutions are designed to elevate your digital signage and large-scale display projects.

Higher Utilisation: Maximize your display's impact with versatile application support.
Lightweight Design: Over 20% lighter than typical products, facilitating easier handling.
One-Man Installation: Streamlined setup process reduces labor and time.
Quick Serviceability: Easily accessible power boxes ensure rapid maintenance.

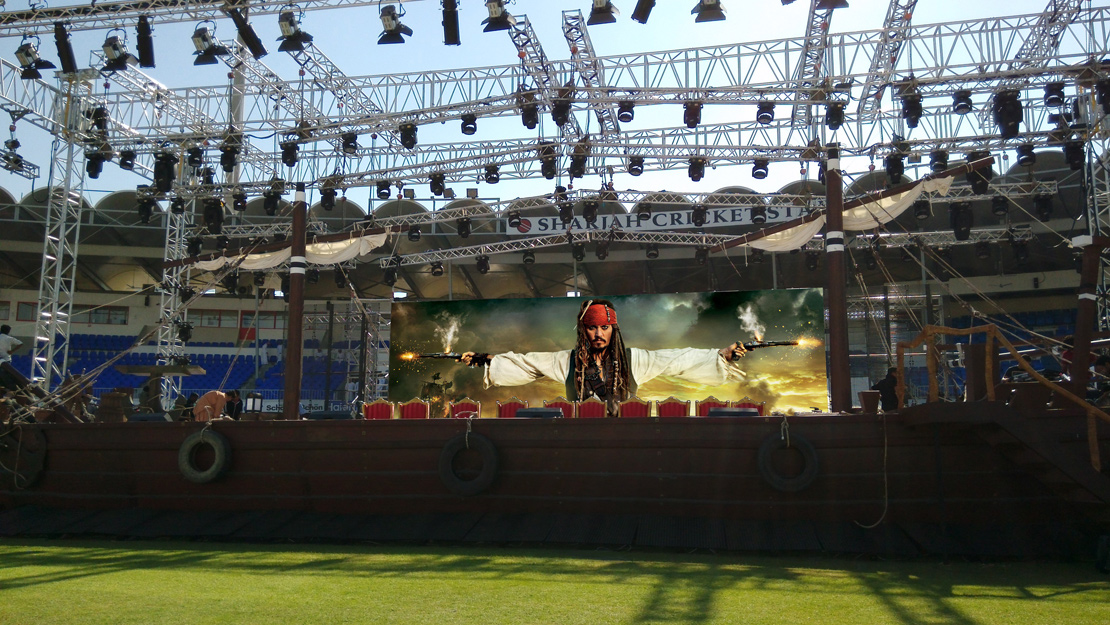

Target Industries & Applications: Ideal for retail advertising, event staging, corporate presentations, public information displays, and more.

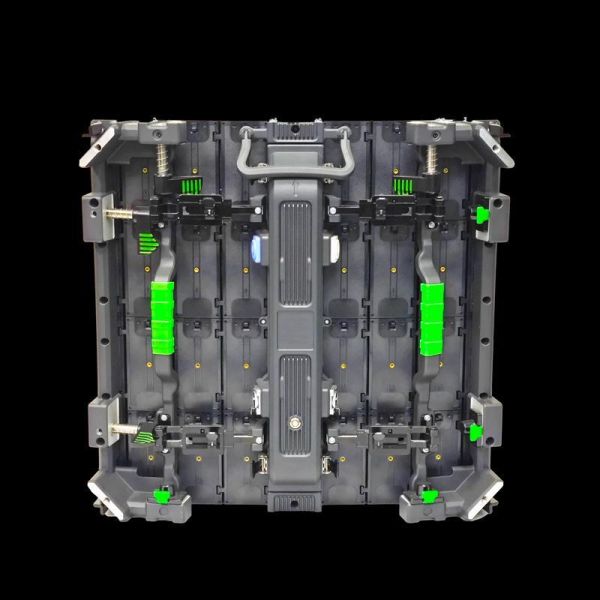

BSR-outdoor

Technical Specifications

Model	P2.6	P2.9	P3.9
Pixel Pitch(mm)	2.604	2.976	3.91
LED Configuration	SMD1415	SMD1516	SMD1921
Module Resolution(dot) (H x V)	96*96	84*84	64*64
Module Size(mm) (H x V)	250x250	250x250	250x250
Module Maintenance Method	Front and Rear	Front and Rear	Front and Rear
Scan Mode	1/24	1/21	1/16
Cabinet Resolution(dot) (H x V)	128x128	128x128	128x128
Cabinet Size(mm) (H x V)	500x500/500x1000	500x500/500x1000	500x500/500x1000
Cabinet Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Cabinet Weight (kg/pcs)	7.5kg/pcs & 14kg/pcs	7.5kg/pcs & 14kg/pcs	7.5kg/pcs & 14kg/pcs
IP Standard (Front / Back)	IP65	IP65	IP65
Density(Pixels / sqm)	147456	112896	65536
Brightness Range(nits)	≥4500	≥4500	≥4500
Brightness Adjustment(Levels)	256	256	256
Working voltage	110V / 220V	110V / 220V	110V / 220V
Grey Scale(bits)	13-16	13-16	13-16
Refresh Rate(Hz)	7680	7680	7680
Frame Rate(Hz)	50 / 60	50 / 60	50 / 60
Max. Consumption (w/sqm)	700	700	700
Ave. Consumption(w/sqm)	220	220	220
Working Humidity	10% - 95%	10% - 95%	10% - 95%
Working Temperature	-20℃ ~ 55℃	-20℃ ~ 55℃	-20℃ ~ 55℃
Signal Available	DVI,HDMI,SDI,DP and so on	DVI,HDMI,SDI,DP and so on	DVI,HDMI,SDI,DP and so on
Life Span(Hours)	100000	100000	100000
Running Files	Text , Animation, Image, Video and so on	Text , Animation, Image, Video and so on	Text , Animation, Image, Video and so on
