Specifications

Model :

PX3.9Indoor

Pixel Pitch :

3.9 *7.8mm

Weight :

5.35kg/panel

Pixel Density :

32768 /㎡

Resolution :

128*64（W*H）

Maximum Brightness :

600（cd/㎡）

Gray Scale :

15bit

Refresh Rate :

7680(Hz)

Contrast Ratio :

3000:1

Scan Mode :

1/16

Color Temperature :

3600-12000K

Viewing Angle :

H 160°/V 160°

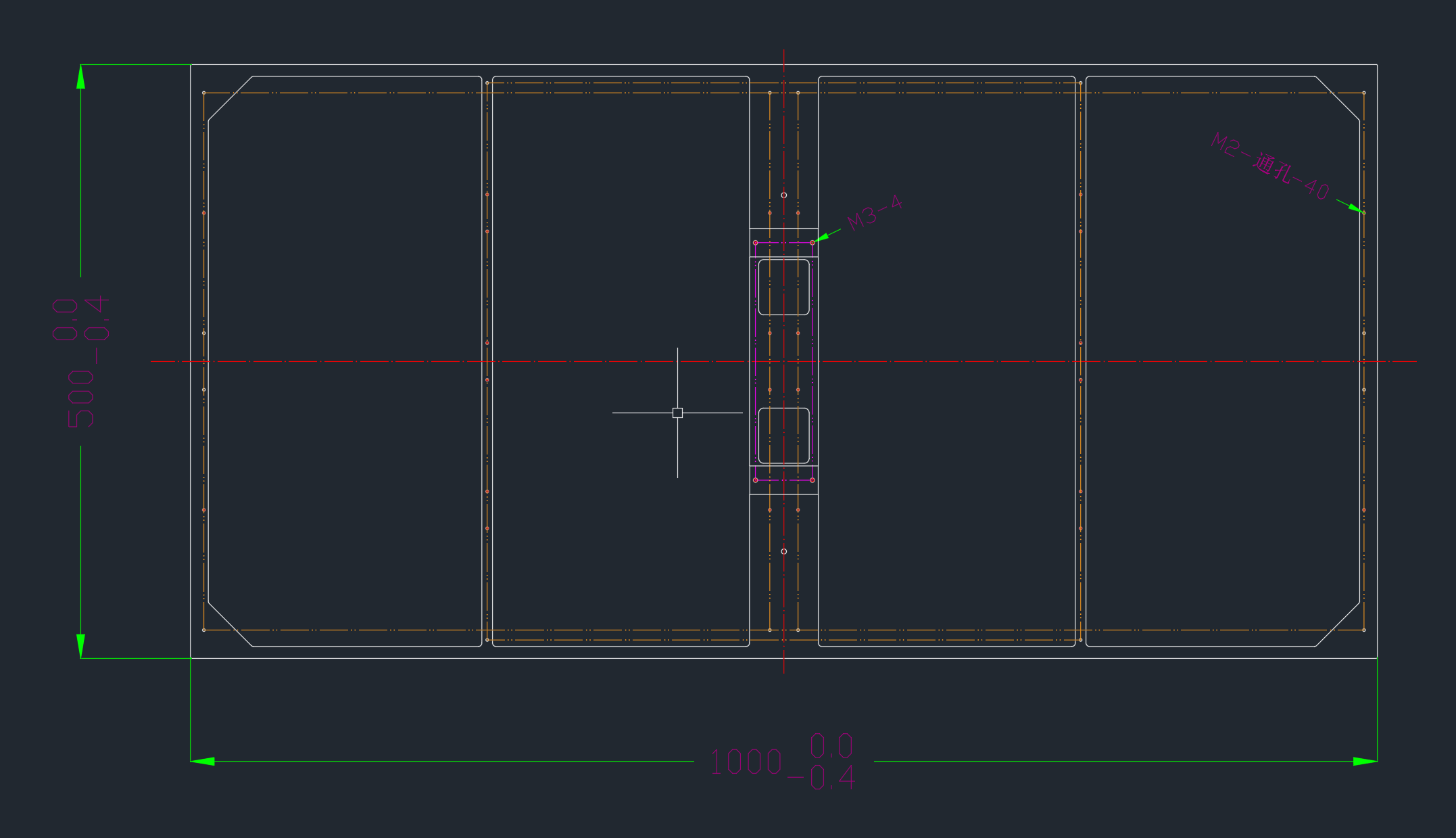

Panel Size :

1000*500*75mm（W*H*D）

Module Size :

500*250mm（W*H）

Operating Temperature :

-20°/45°

Average Power Consumption :

120W/㎡

Maximum Power Consumption :

400W/㎡

Input Voltage :

AC100-240V

Protection Level :

IP45

Description

BrightSource High-Performance LED Display Solutions

Experience unparalleled visual clarity and robust performance with BrightSource's advanced LED strip and curtain screens. Engineered for demanding environments, our solutions deliver exceptional image quality, energy efficiency, and long-lasting reliability.

Key Benefits:

Superior Cooling System
Lightweight & Ultra-Slim Design
High Contrast & Excellent Image Quality
Superb Energy Efficiency
High IP Rated Design (IP65/IP45)

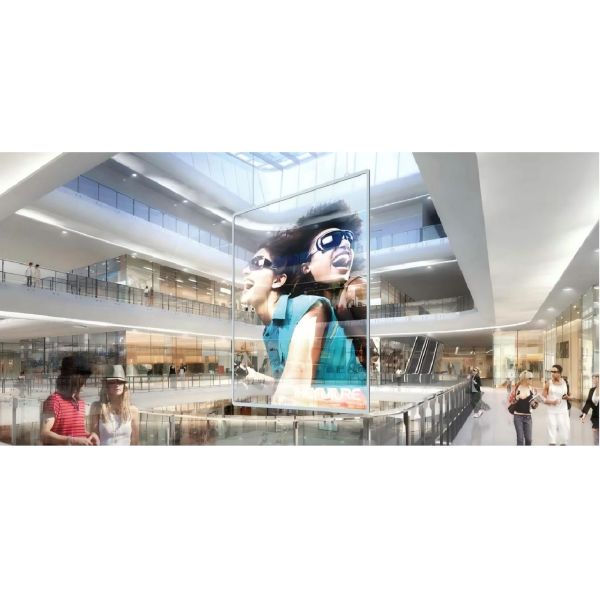

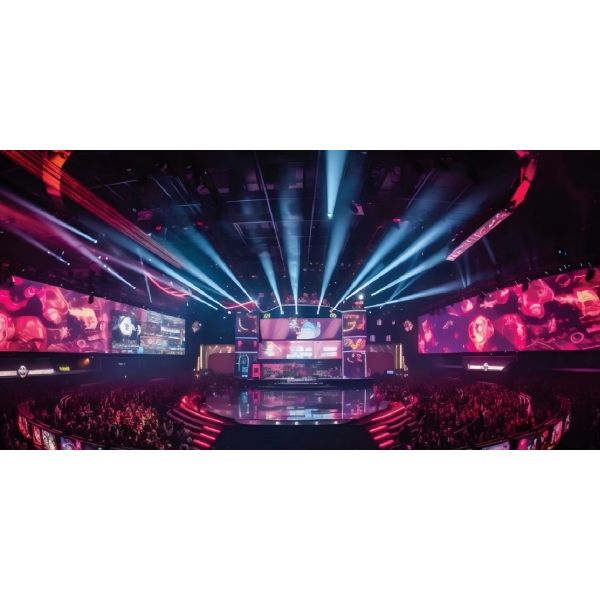

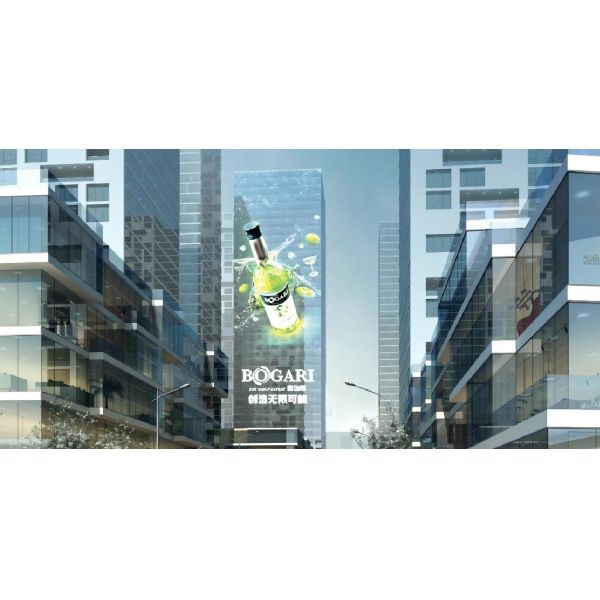

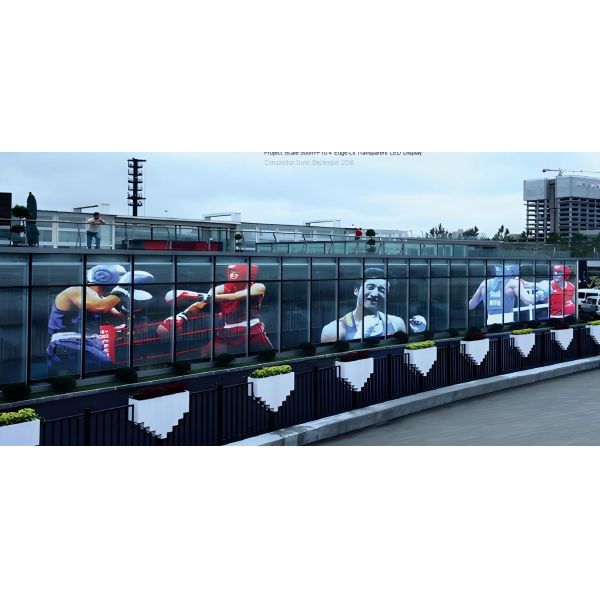

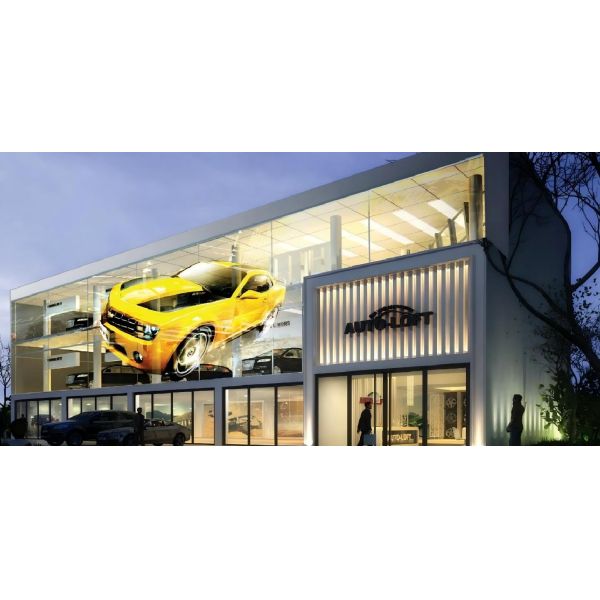

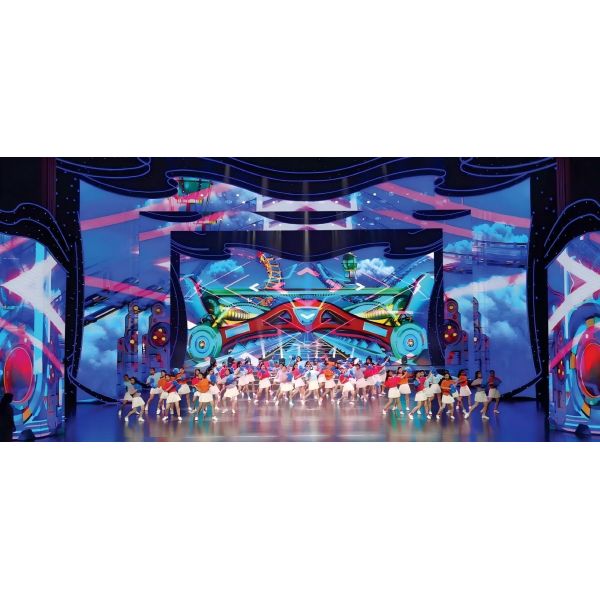

Ideal for Advertising, Events, Stage Productions, Retail Displays, and Outdoor Signage.

Product Attributes

Brand BrightSource

Origin China

Color Black/Customizable

Material Aluminum Alloy

Packaging Customizable

Technical Specifications

Model	PM3.9Outdoor	PM7.8Outdoor	PX3.9Indoor
Pixel Pitch	3.9*7.8mm	7.8*7.8mm	3.9 *7.8mm
Weight	8.5kg/panel	8.5kg/panel	5.35kg/panel
Pixel Density	32768/㎡	16384/㎡	32768 /㎡
Resolution	25664(WH)	12864(WH)	25664(WH)
Maximum Brightness	4500(cd/㎡)	4500(cd/㎡)	600(cd/㎡)
Gray Scale	16bit	16bit	15bit
Refresh Rate	7680(Hz)	7680(Hz)	7680(Hz)
Contrast Ratio	3000:1	3000:1	3000:1
Scan Mode	1/8	1/4	1/16
Color Temperature	3600-12000K	3600-12000K	3600-12000K
Viewing Angle	H 160°/V 120°	H 160°/V 120°	H 160°/V 160°
Panel Size	100050075mm(WHD)	100050075mm(WHD)	100050075mm(WHD)
Module Size	500250mm(WH)	500250mm(WH)	500250mm(WH)
Operating Temperature	-20°/45°	-20°/45°	-20°/45°
Average Power Consumption	200W/㎡	200W/㎡	120W/㎡
Maximum Power Consumption	650W/㎡	650W/㎡	400W/㎡
Input Voltage	AC100-240V	AC100-240V	AC100-240V
Protection Level	IP65	IP65	IP45
