Specifications

Model :

P3.9

Pixel Pitch(mm) :

3.91

LED Configuration :

SMD2121

Module Resolution(dot) (H x V) :

64*64

Module Size(mm) (H x V) :

250x250

Module Maintenance Method :

Front and Rear

Scan Mode :

1/42

Cabinet Resolution(dot) (H x V) :

128x128

Cabinet Size(mm) (H x V) :

500x500/500x1000

Cabinet Material :

Die-cast Aluminum

Cabinet Weight (kg/pcs) :

7.5kg/pcs & 14kg/pcs

IP Standard (Front / Back) :

IP30

Density(Pixels / sqm) :

65536

Brightness Range(nits) :

≥600

Brightness Adjustment(Levels) :

256

Working voltage :

110V / 220V

Grey Scale(bits) :

13-16

Refresh Rate(Hz) :

7680

Frame Rate(Hz) :

50 / 60

Max. Consumption (w/sqm) :

700

Ave. Consumption(w/sqm) :

220

Working Humidity :

10% - 95%

Working Temperature :

-20℃ ~ 55℃

Signal Available :

DVI,HDMI,SDI,DP and so on

Life Span(Hours) :

100000

Running Files :

Text , Animation, Image, Video and so on

Description

Revolutionary LED Display Solutions for Enhanced Utilization

Experience unparalleled performance with our advanced LED display technology, designed to support a wider range of applications and deliver exceptional visual experiences. Engineered for efficiency and ease of use, our solutions are setting new standards in the industry.

Higher Utilisation
Support More Applications

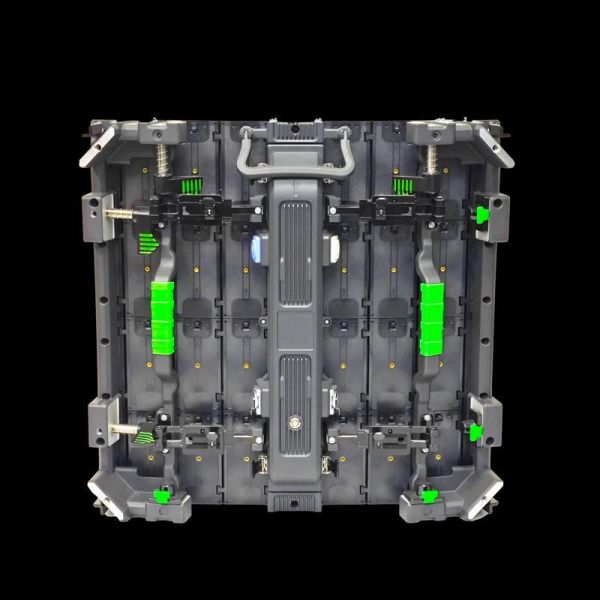

Significantly Lighter Cabinets (7.5Kg/pcs & 14Kg/pcs for 500x500 & 500x1000 sizes)
Over 20% Lighter Than Typical Products
One-Man Installation Capability
Quick Service Power Box Design

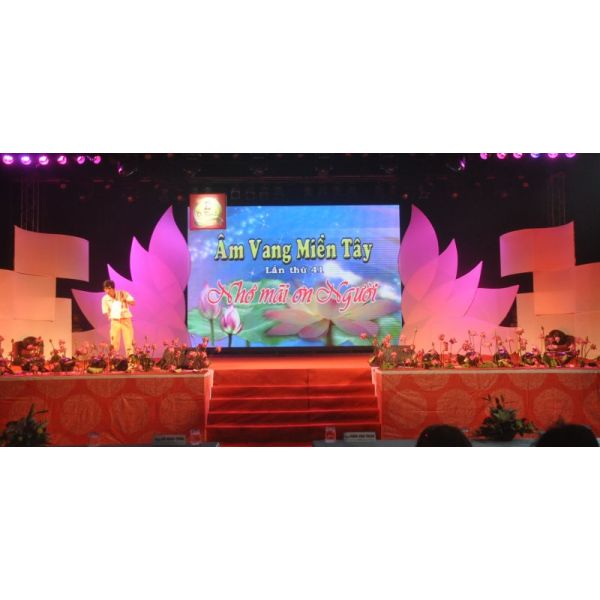

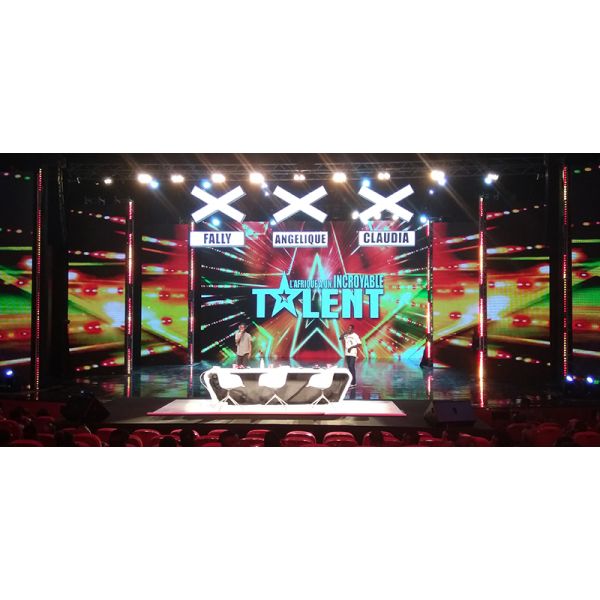

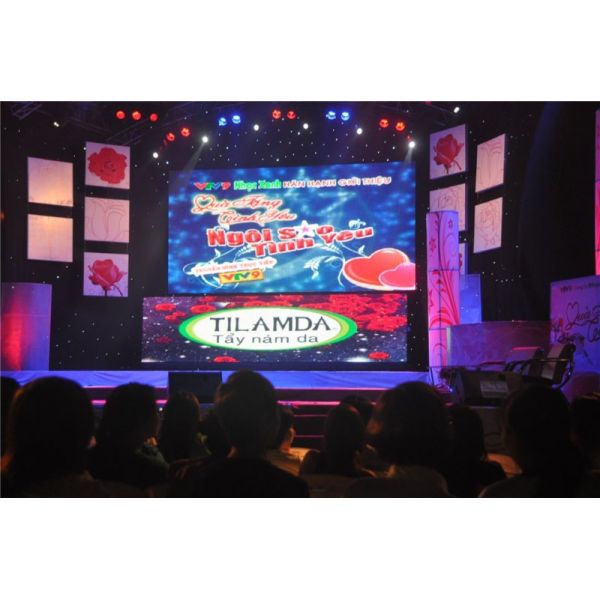

Ideal for: Retail, Advertising, Live Events, Broadcast Studios, Corporate Presentations, and more.

Product Showcase

Key Product Attributes

Brand BrightSource

Origin China

Material Die-cast Aluminum

Color Black (Standard)

MOQ 0 Pieces

FOB Price N/A

Packaging & Delivery N/A

Technical Specifications

Model	P2.6	P2.9	P3.9
Pixel Pitch(mm)	2.604	2.976	3.91
LED Configuration	SMD1515	SMD2121	SMD2121
Module Resolution(dot) (H x V)	96*96	84*84	64*64
Module Size(mm) (H x V)	250x250	250x250	250x250
Module Maintenance Method	Front and Rear	Front and Rear	Front and Rear
Scan Mode	1/32	1/42	1/32
Cabinet Resolution(dot) (H x V)	128x128	128x128	128x128

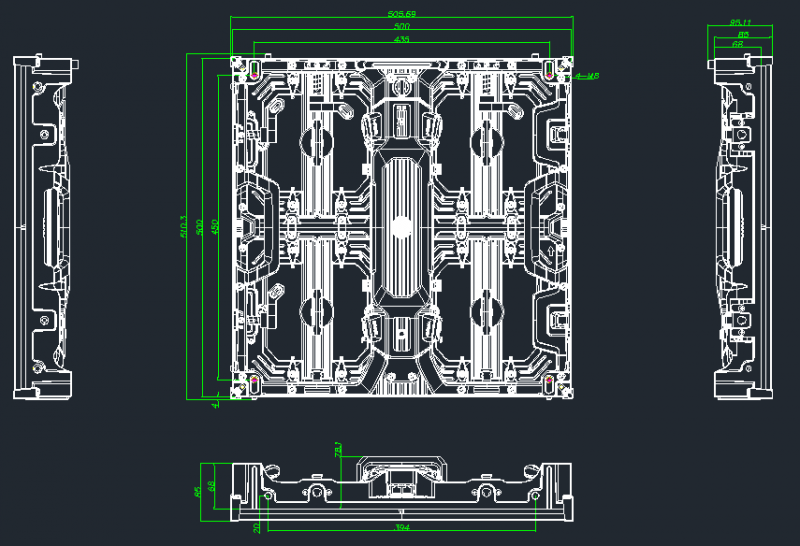

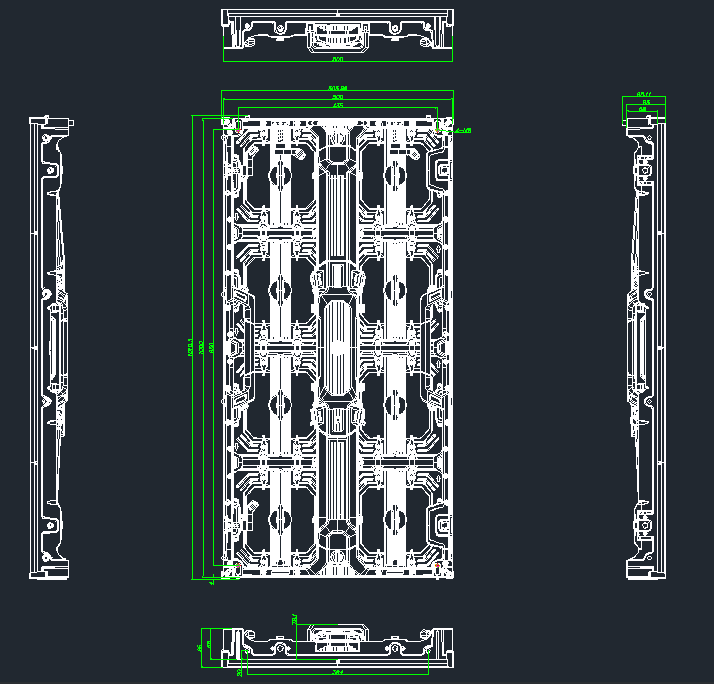

Cabinet Size(mm) (H x V)	500x500/500x1000	500x500/500x1000	500x500/500x1000
Cabinet Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Cabinet Weight (kg/pcs)	7.5kg/pcs & 14kg/pcs	7.5kg/pcs & 14kg/pcs	7.5kg/pcs & 14kg/pcs
IP Standard (Front / Back)	IP30	IP30	IP30
Density(Pixels / sqm)	147456	112896	65536
Brightness Range(nits)	≥600	≥600	≥600
Brightness Adjustment(Levels)	256	256	256
Working voltage	110V / 220V	110V / 220V	110V / 220V
Grey Scale(bits)	13-16	13-16	13-16
Refresh Rate(Hz)	7680	7680	7680
Frame Rate(Hz)	50 / 60	50 / 60	50 / 60
Max. Consumption (w/sqm)	700	700	700
Ave. Consumption(w/sqm)	220	220	220
Working Humidity	10% - 95%	10% - 95%	10% - 95%
Working Temperature	-20℃ ~ 55℃	-20℃ ~ 55℃	-20℃ ~ 55℃
Signal Available	DVI,HDMI,SDI,DP and so on	DVI,HDMI,SDI,DP and so on	DVI,HDMI,SDI,DP and so on
Life Span(Hours)	100000	100000	100000
Running Files	Text , Animation, Image, Video and so on	Text , Animation, Image, Video and so on	Text , Animation, Image, Video and so on
