Specifications

Pixel Pitch(mm) :

1.56

LED Configuration :

SMD1212

Module Resolution(dot) (H x V) :

160x160

Module Size(mm) (H x V) :

250 x 250

Module Maintenance Method :

Front

Cabinet Material :

Steel or Aluminum

Cabinet Weight (kg/pcs) :

28kg/sqm

IP Standard (Front / Back) :

IP45

Brightness Range(nits) :

≥600

Brightness Adjustment(Levels) :

256

Working voltage :

110V / 220V

Grey Scale(bits) :

13-16

Refresh Rate(Hz) :

3840

Frame Rate(Hz) :

50 / 60

View Angle(H/V) :

110/110

Max. Consumption (w/sqm) :

600

Ave. Consumption(w/sqm) :

200

Working Humidity :

10% - 95%

Working Temperature :

-20℃ ~ 55℃

Signal Available :

DVI,HDMI,SDI,DP and so on

Life Span(Hours) :

100000

Running Files :

Text , Animation, Image, Video and so on

Description

Technical Specifications

Pixel Pitch(mm)	P1.56	1.953	2.604
LED Configuration	SMD1212	SMD1515	SMD2121
Module Resolution(dot) (H x V)	160x160	128x128	96 x 96
Module Size(mm) (H x V)	250 x 250
Module Maintenance Method	Front

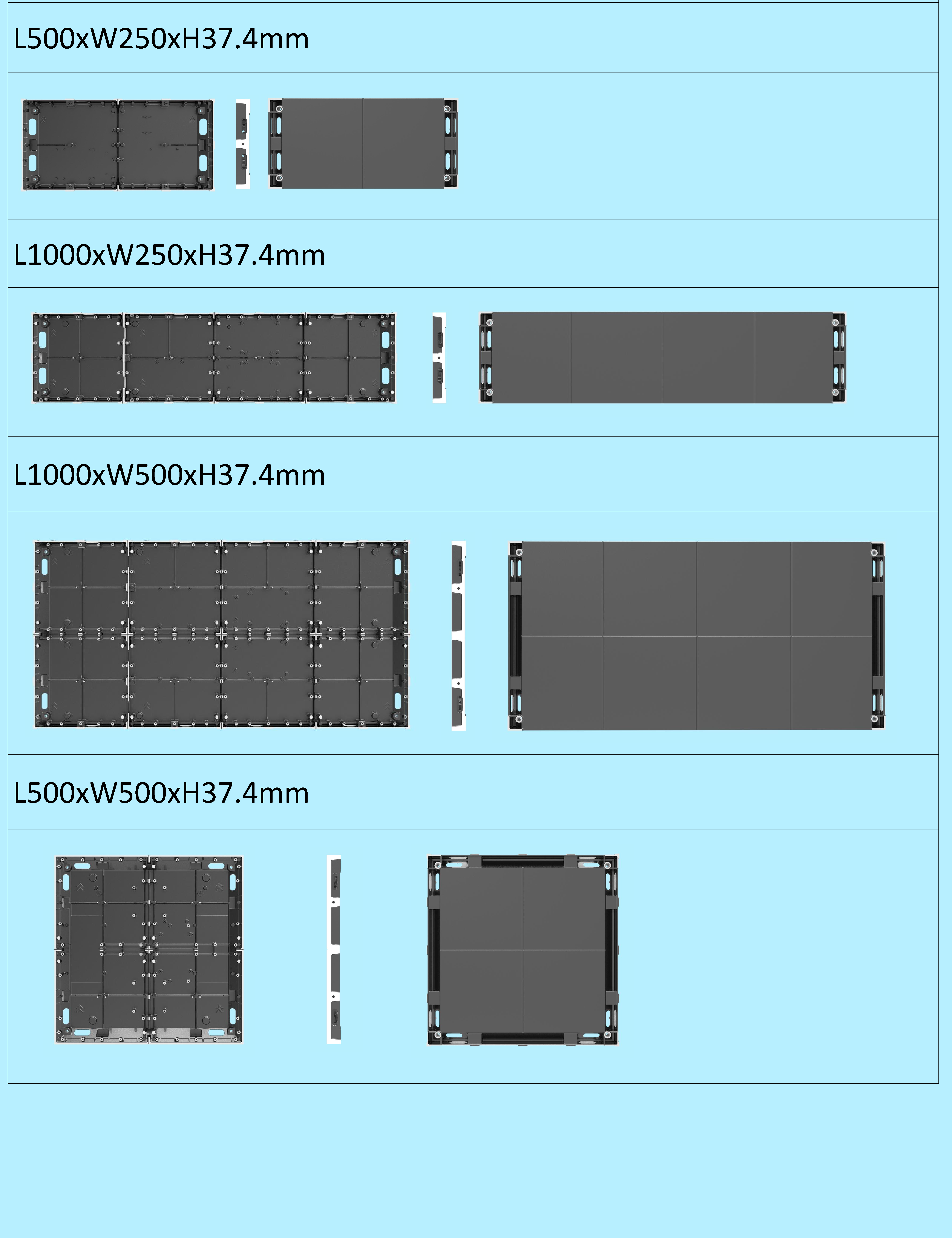

Cabinet Size(mm) (H x V)	500x500 / 500x1000 / 250x500 / 500x750
Cabinet Material	Steel or Aluminum
Cabinet Weight (kg/pcs)	28kg/sqm
IP Standard (Front / Back)	IP45
Brightness Range(nits)	≥600	≥600	≥600
Brightness Adjustment(Levels)	256
Best View Distance(m)	1.5	2	2.6
Working voltage	110V / 220V
Grey Scale(bits)	13-16
Refresh Rate(Hz)	3840
Frame Rate(Hz)	50 / 60
View Angle(H/V)	110/110
Max. Consumption (w/sqm)	600	600	600
Ave. Consumption(w/sqm)	200	200	200
Working Humidity	10% - 95%	10% - 95%	10% - 95%
Working Temperature	-20℃ ~ 55℃
Signal Available	DVI,HDMI,SDI,DP and so on
Life Span(Hours)	100000
Running Files	Text , Animation, Image, Video and so on

Aging test

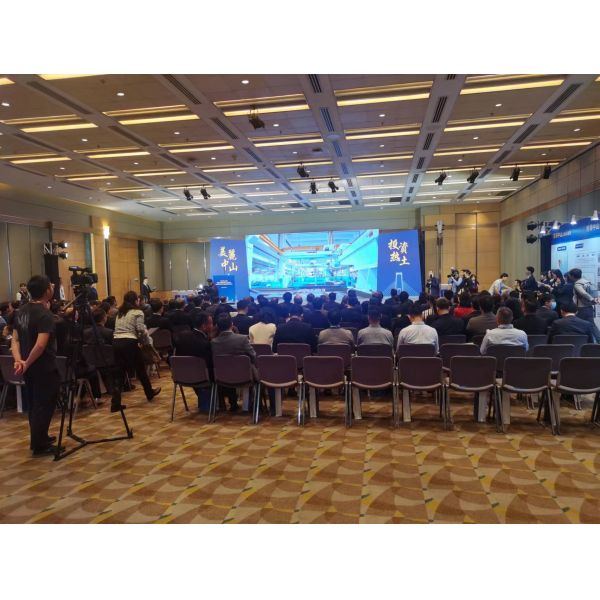

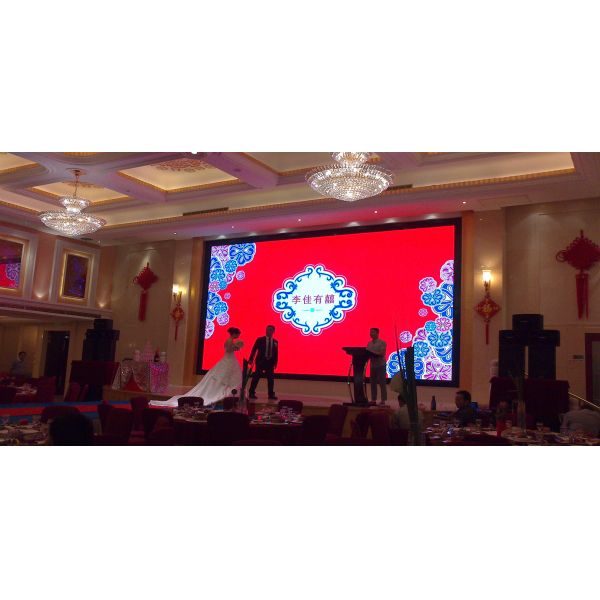

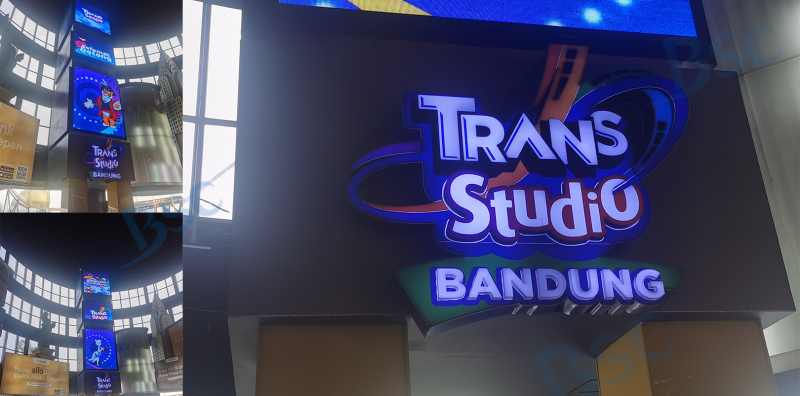

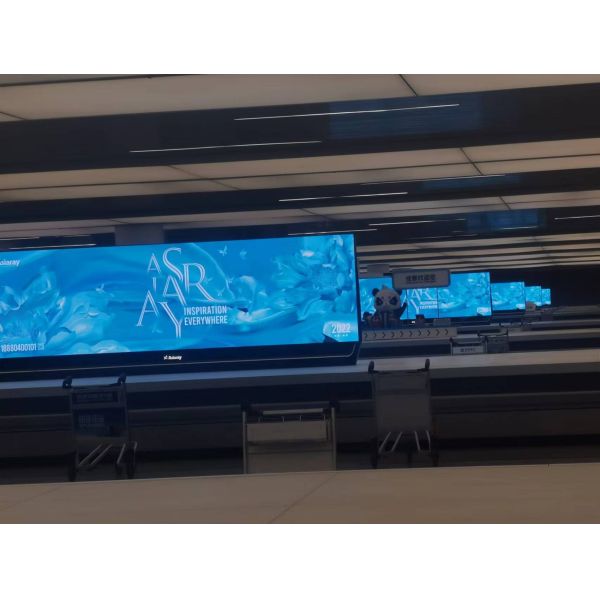

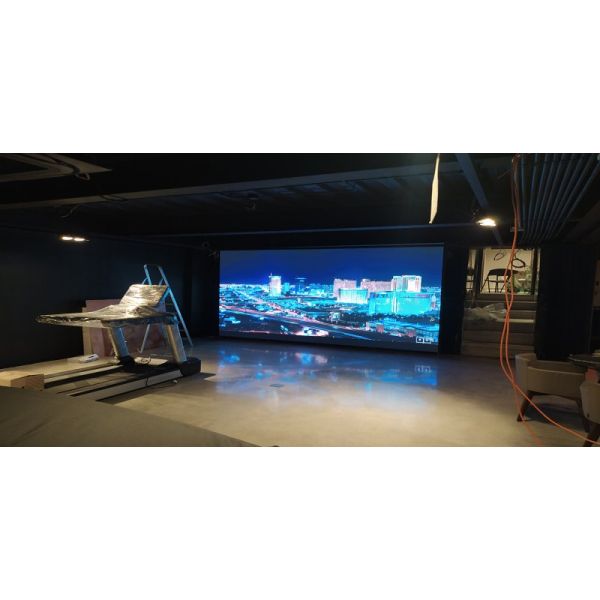

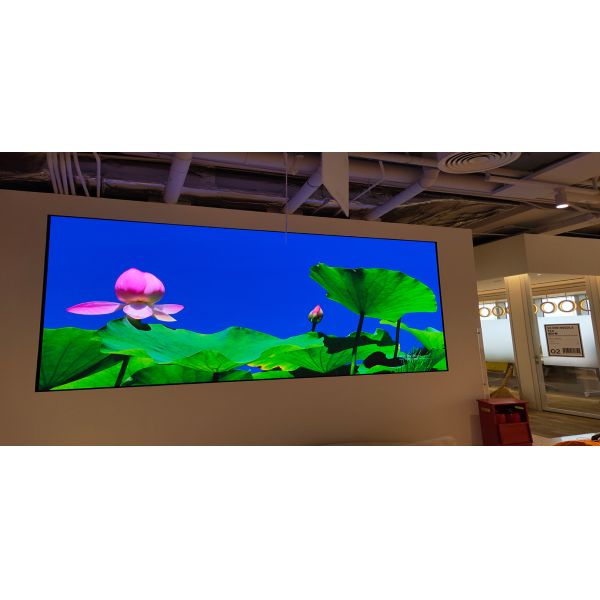

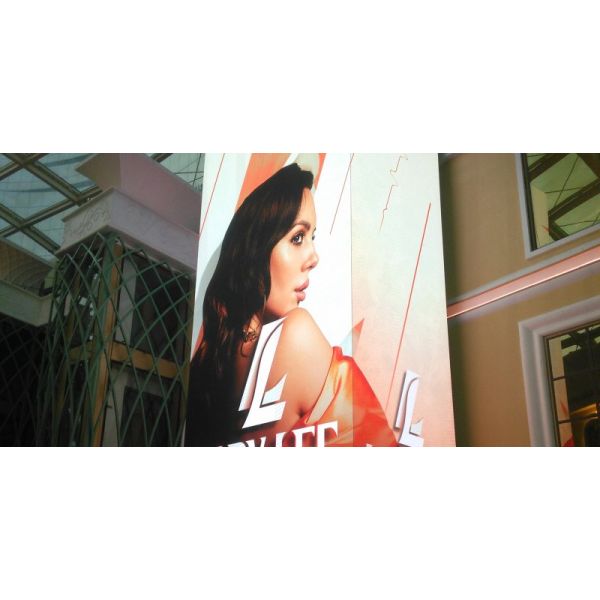

References 1

References 2

References 3

References 4
