BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
BSC Standard All-In-One
Specifications
Viewing Angle(H/V) :
165°/165°
Size(inch) :
135
Overall Dimension(mm) :
3030.8x1812.9x31'
Average power consumption(kw) :
700W
Input and output interface :
Input：HDMI2.0 *1、HDMI1.4 *3、USB2.0 *1、USB3.0 *2、Type-C *1、POE *1、RJ45 *1、3.5mm Audio in *1、RS232 *1
Output：HDMI2.0 *1、3.5mm Audio out *2、USB *1
Cabinet material :
Die-casting magnalium
Product Type :
GOB
Grayscale :
13~16bit
Net weight(kg) :
110
Installation method :
Mobile Stand , Wall mounting, Ceiling-hanging
Refresh Rate :
3840Hz
Resolution :
1920x1080
Operating system :
Android13.0，8G + 64G，Cortex-A76 ×4 + Cortex-A55 ×4
Optional Windows System
Maximum power consumption(kw) :
1.46
Audio frequency domain :
60Hz~20kHz
Contrast :
15000:1
Brightness :
≥400 nits
Max. sound pressure level :
95dB
Product model :
135"
Speaker unit :
4 full range units + 2 low frequency units
Pixel Pitch(mm) :
1.5
Description
Integrated All-in-One Design

BSC Standard All-In-One

Easy Installation & Quick Setup

BSC Standard All-In-One

BSC Standard All-In-One

BSC Standard All-In-One

CustomizedSolutions Available

BSC Standard All-In-One



Technical Specifications

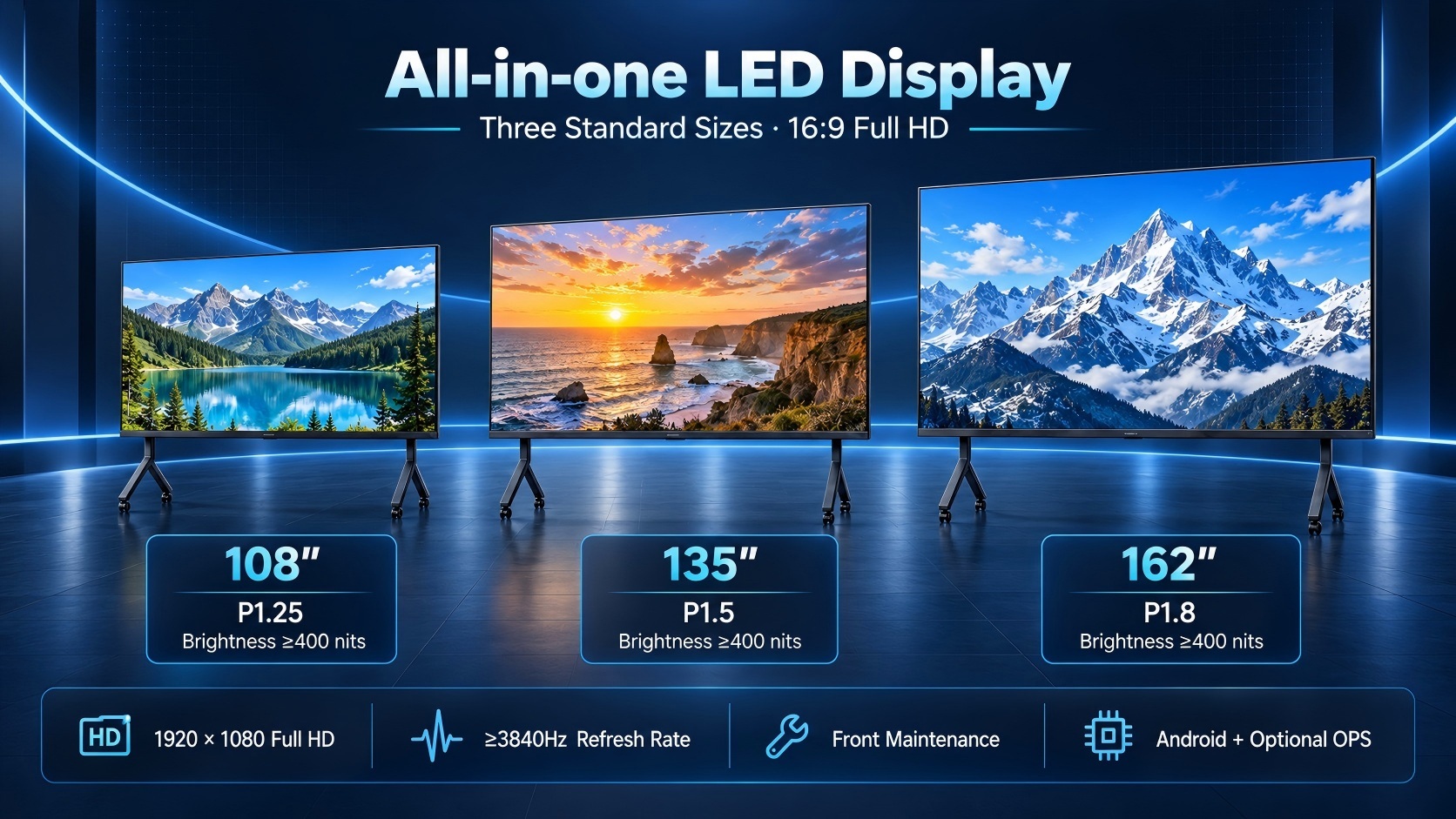

Model 108‘’ 135‘’ 162‘’
Screen Size 108 inches 135 inches 162 inches
Pixel Pitch 1.25mm 1.5625mm 1.875mm
Dimensions 2.4m(W)×1.35m(H) 3m(W)×1.6875m(H) 3.6m(W)×2.025m(H)
Display Area 3.24m2 5.0625m2 7.29m2
Resolution(2K Full HD) 1920(W)×1080(H) 1920(W)×1080(H) 1920(W)×1080(H)
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160°
Brightness ≥400 nits ≥400 nits ≥400 nits
Meeting Room Area 60m2 90m2 120m2
Number of People 20-50 40-70 60-90
Operating System Android 11, Optional OPS Android 11, Optional OPS Android 11, Optional OPS
Input Voltage 100~240V @50/60Hz 100~240V @50/60Hz 100~240V @50/60Hz
Operational Temp / Humidity -20°C~ 45°C. 10%~80% RH, Non-condensing -20°C~ 45°C. 10%~80% RH, Non-condensing -20°C~ 45°C. 10%~80% RH, Non-condensing
Avg. Power Consumption 500W 700W 970W
Installation Methods Floor-standing, Wall-mounted Floor-standing, Wall-mounted Floor-standing, Wall-mounted
Weight ≈140 kg (Floor-standing All-in-one LED display)
≈98kg (Wall-mounted All-in-one LED display)		 ≈170kg (Floor-standing All-in-one LED display)
≈150kg (Wall-mounted All-in-one LED display)		 ≈210kg (Floor-standing All-in-one LED display)
≈190kg (Wall-mounted All-in-one LED display)
Interface(Sansi System) HDMI IN*1, HDMI OUT*1, USB 2.0*2, SPDIF OUT*1, RJ45*1, 3.5MM*1


Aging test

BSC Standard All-In-One

BSC Standard All-In-One

References 1

BSC Standard All-In-One

References 2

BSC Standard All-In-One

References 3

BSC Standard All-In-One

References 4

BSC Standard All-In-One

Send your message to this supplier
Send Now

BSC Standard All-In-One

Ask Latest Price
Product Detail
Viewing Angle(H/V) :
165°/165°
Size(inch) :
135
Overall Dimension(mm) :
3030.8x1812.9x31'
Average power consumption(kw) :
700W
Input and output interface :
Input：HDMI2.0 *1、HDMI1.4 *3、USB2.0 *1、USB3.0 *2、Type-C *1、POE *1、RJ45 *1、3.5mm Audio in *1、RS232 *1
Output：HDMI2.0 *1、3.5mm Audio out *2、USB *1
Cabinet material :
Die-casting magnalium
