Specifications

Color Temperature (K) :

3000~10000

Storage Temperature :

Temperature -20℃~60℃

Brightness (cd/m²) :

≥1000 (Black Body)

Power Box Weight (kg/pcs) :

Type B and D is 1.1kg

Working Temperature :

Temperature -20℃~50℃

Transparency Rate :

85%

Pixel Configuration :

16bit

Installation Method :

PCB Side Glued

Weight (kg/pcs) :

0.2

Protection Degree :

IP 20

LED Specification :

1515

Working Humidity :

Humidity: 20%~85% (Without Condensation)

Average Power Consumption (w/m²) :

244

Maximum Power Consumption (w/m²) :

608

Display Dimension (mm) (w*h) :

125x1000

Resolution (dot) (w*h) :

50x400

Scanning Mode :

Light & Driver Integrated, Static Driving

Pixel Pitch (mm) (horizontal / vertical) :

2.5

Profile Dimension (mm) (w*h) :

125x1025

rame Rate (Hz) :

60~120

Installation Environment :

Indoor

Working Voltage for Module :

DC 4.2V ± 0.2V

Pixel Density (dot/m²) :

160000

Lifespan :

≥100,000.00 hours

Input Voltage :

AC100~240V 50/60 Hz

Storage Humidity :

Humidity: 10%~85% (Without Condensation)

Description

BSC – LED Screen Panels

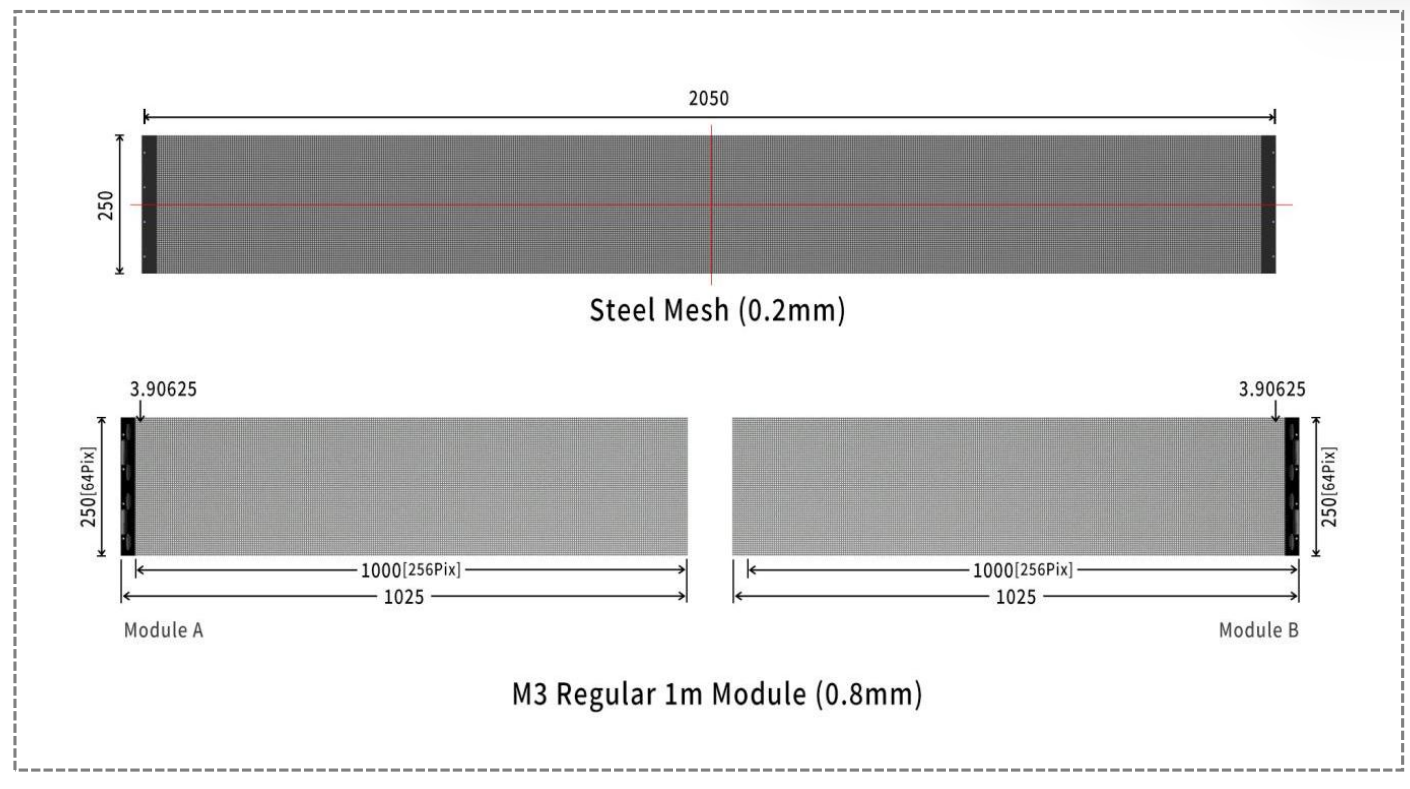

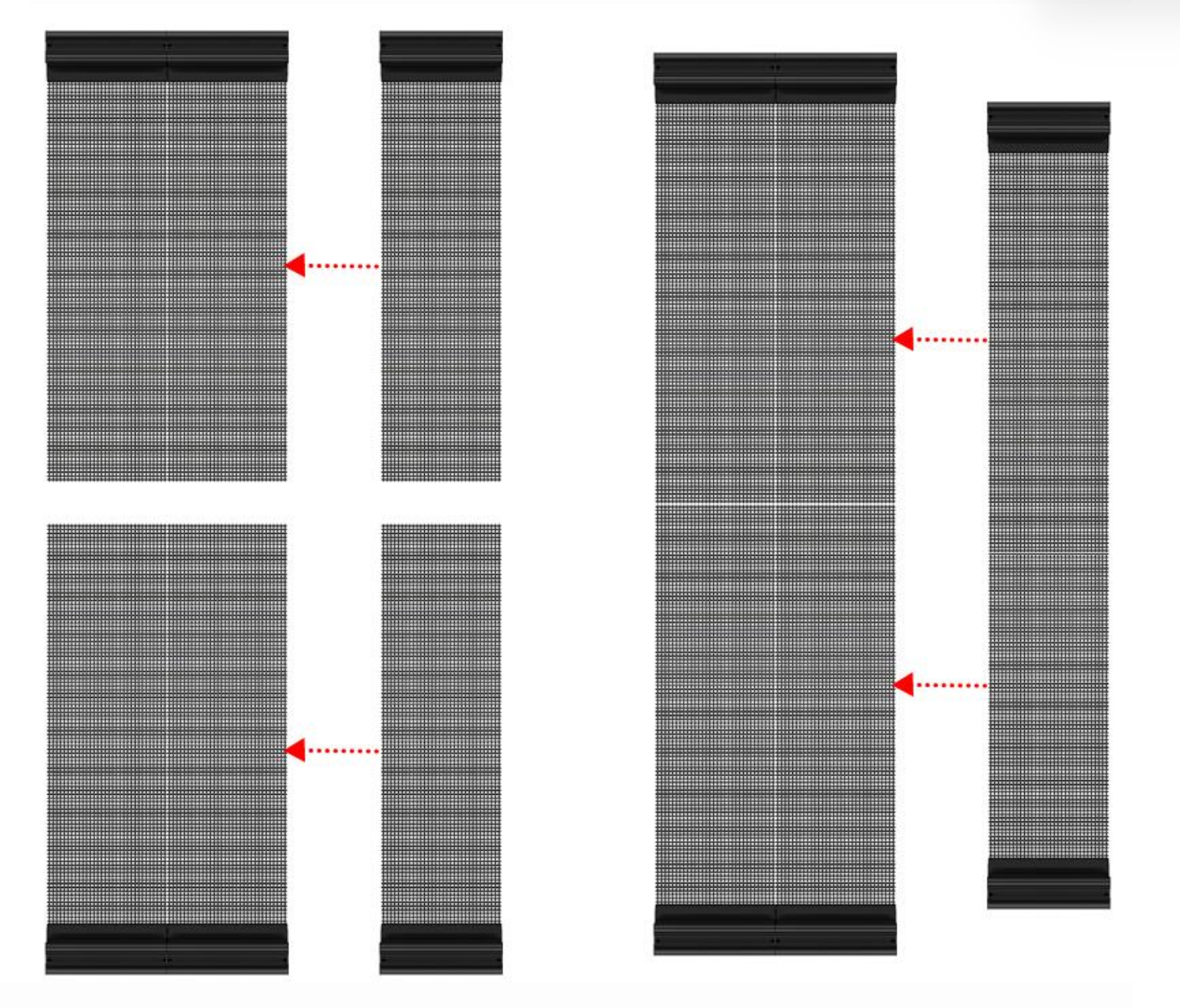

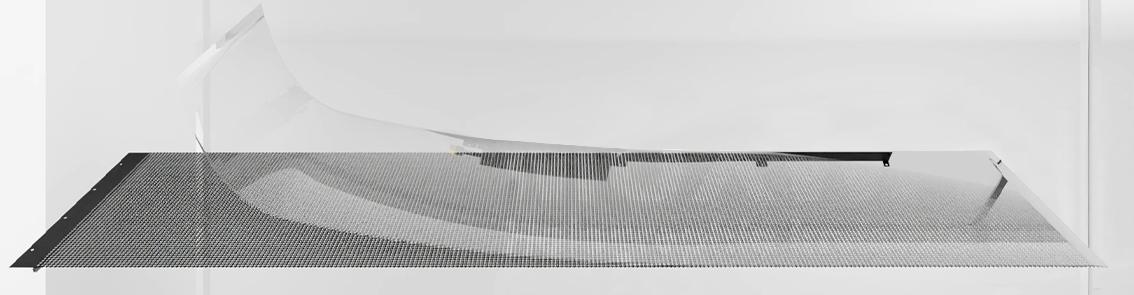

The module weighs only 6 kg/m² with a slim 1.8 mm profile. Standard modules support flexible size combinations for seamless splicing and are the preferred choice for direct glass mounting, suitable for both single-sided and double-sided display applications.

BSC – LED Screen Panels

Holographic Invisible Screen

BSC – LED Screen Panels

Transparent and invisiblewhole screen Holographic 3D suspension images

The whole screen is transparent without frame; Display effect of 3D holographic and spatialsuspension images.

itis seamlessly spliced in a large area;

the back side is invisible without floodlight.

BSC – LED Screen Panels

Transparent and excellent image quality High brightness & high contrast

Equally spaced pixel layout for high-definitionimage quality; 9,000:1 (high contrast),

static scanning with combineddiver board for table images; 5,000cd/m 2 (high brightness),

16bit gray scale with exquisite colors. dazzling and eye-catching.

Installation Solution

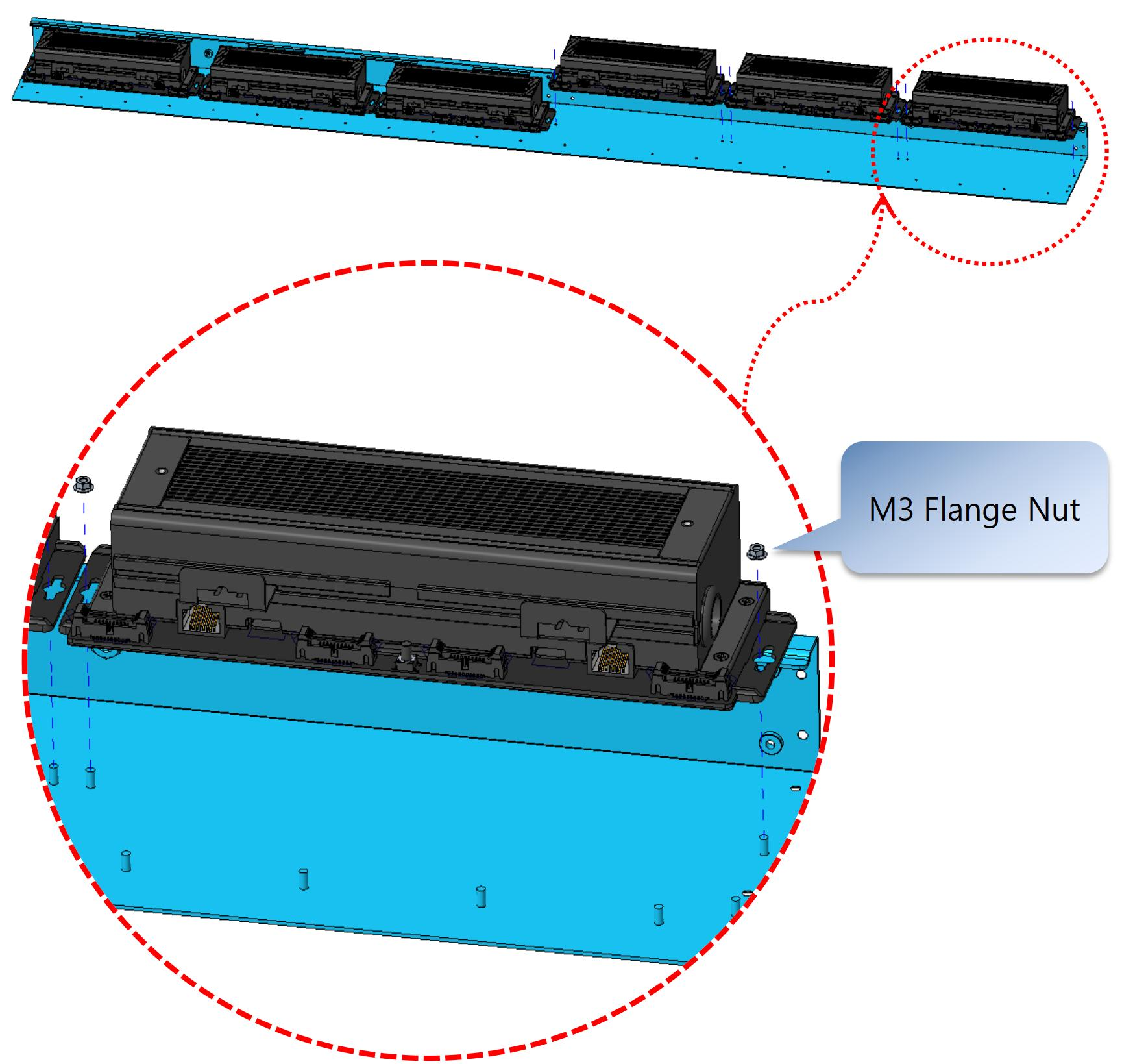

Sheet Metal Structure Hoisting

BSC – LED Screen Panels

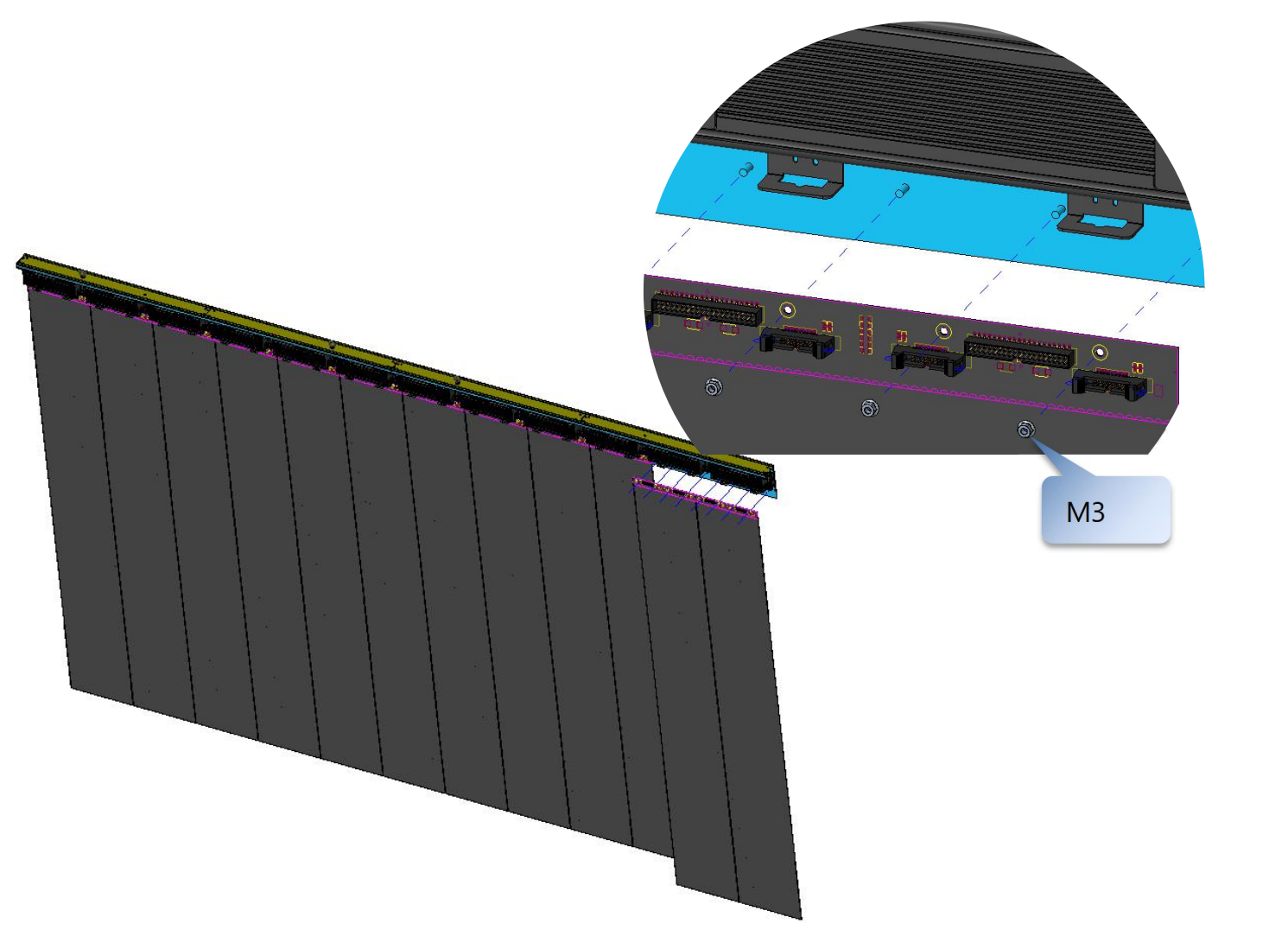

Hanging Up

BSC – LED Screen Panels

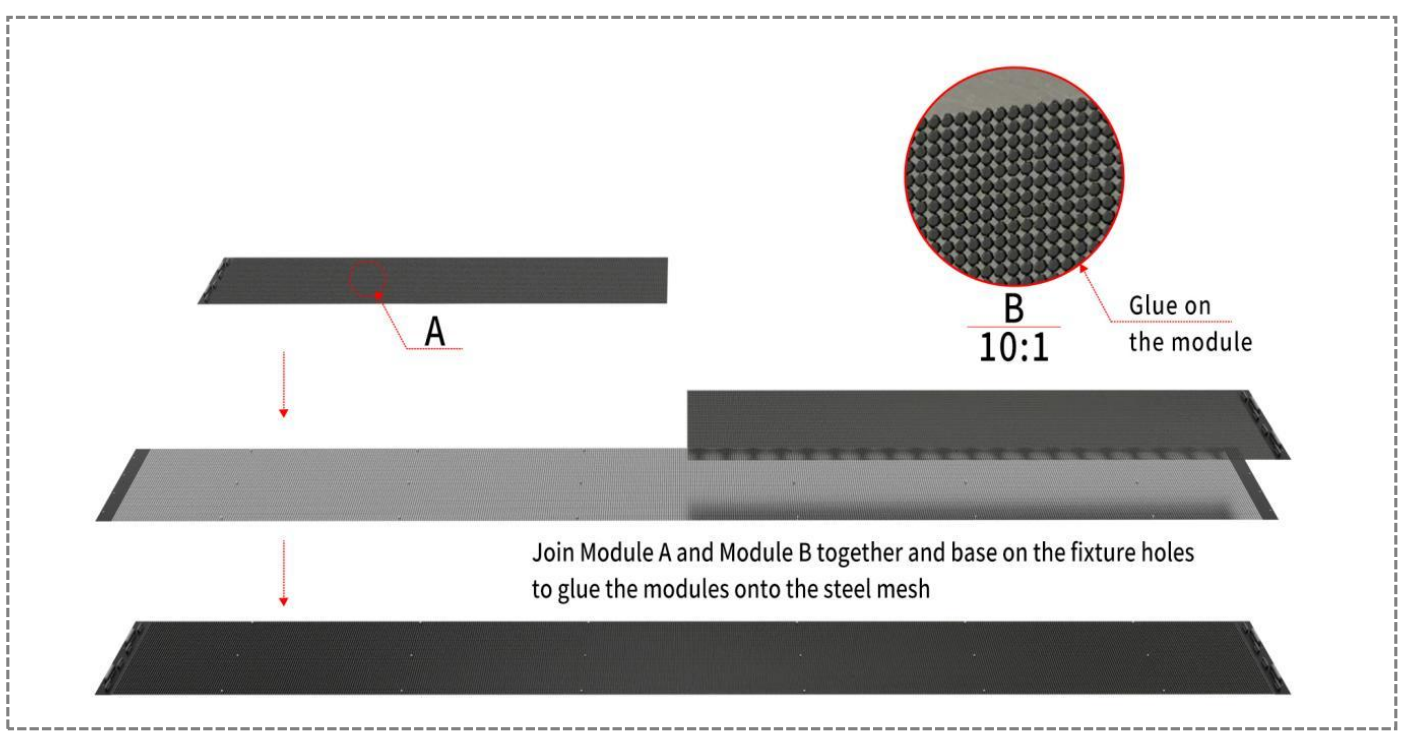

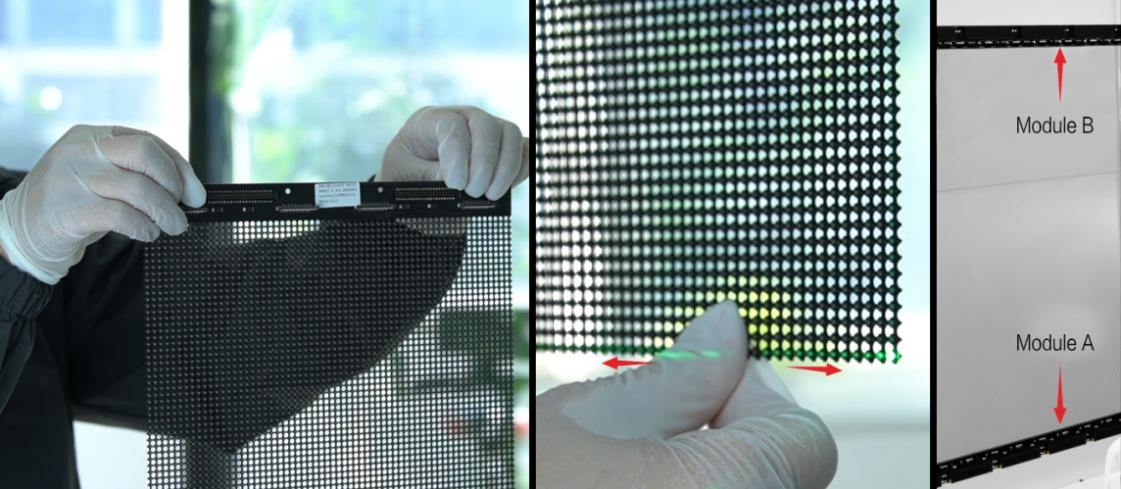

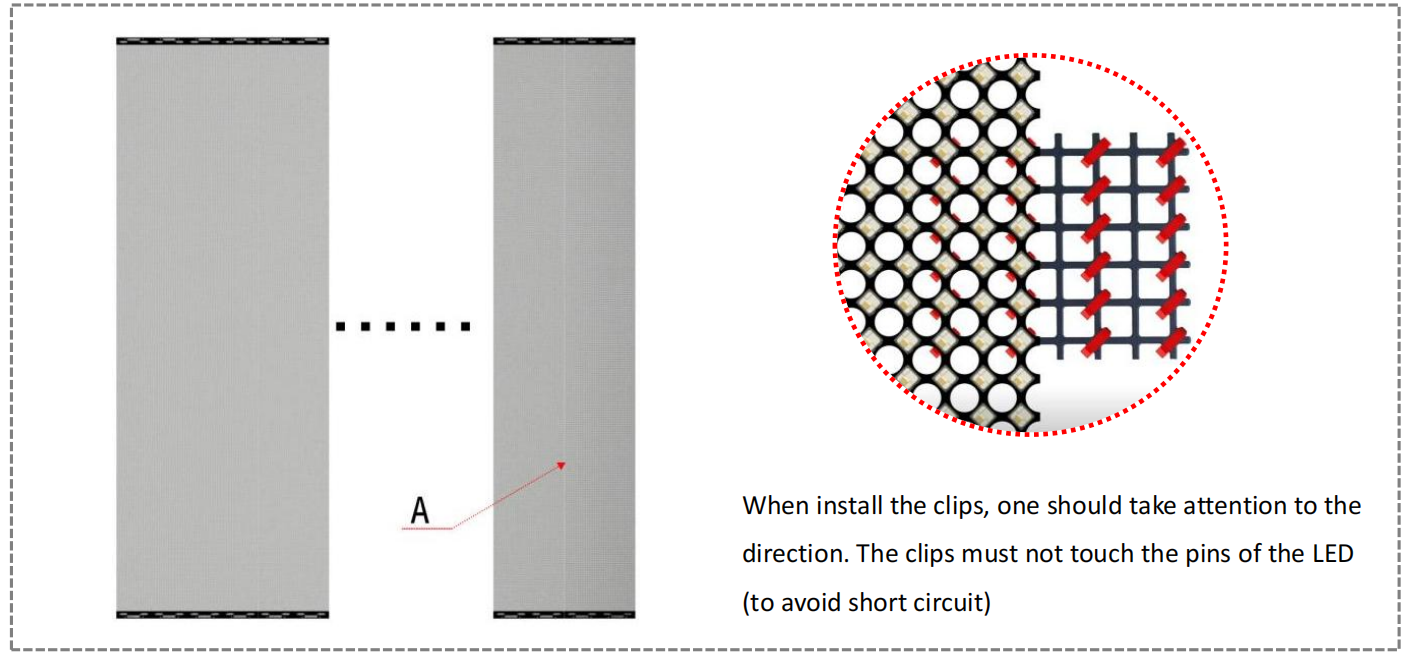

Mounting On Glass

BSC – LED Screen Panels

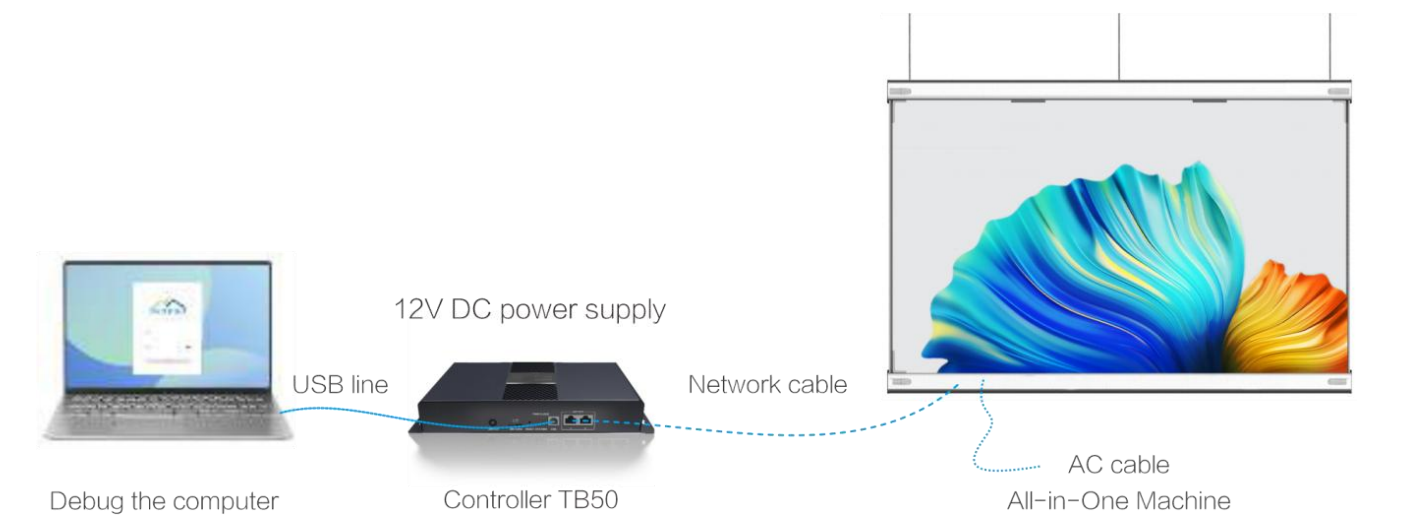

System connection method

BSC – LED Screen Panels

LED Screen Panael for clothes store

BSC – LED Screen Panels

LED Screen Panael for company reception

LED Screen Panael for POP MART

BSC – LED Screen Panels

LED Screen Panale for company lobby

LED screen panael aging test in manufacutre

BSC – LED Screen Panels

Product Attributes

Parameter	125x1000/125x1175/125x1475	250x1000/250x1172250x1469/250x1969	250x1000/250x1175/250x1475/250x1975
Display Dimension (mm) (w*h)	125x1000/125x1175/125x1475	250x1000/250x1172/250x1469/250x1969	250x1000/250x1175/250x1475/250x1975
Profile Dimension (mm) (w*h)	125x1025/125x1200/125x1500	250x1025/250x1197/250x1500/250x2000	250x1025/250x1200/250x1500/250x2000
Resolution (dot) (w*h)	50x400/50x470/50x590	64x256/64x300/64x376/64x504	40x160/40x188/40x236/40x316
LED Specification	1515	2121	2121
Pixel Pitch (mm) (horizontal / vertical)	2.5-2.5	3.91-3.91	6.25-6.25
Pixel Density (dot/m²)	160000	65536	25600
Transparency Rate	85%	92%	95%
Brightness (cd/m²)	≥1000(Black Body)	≥4500/≥4500≥3000≥2550(White Body)	≥5000/≥5000/≥4500/≥3000
Maximum Power Consumption (w/m²)	608	684/684 /526 /520 (Black Body)	552/552/502/440
Average Power Consumption (w/m²)	244	274 /274 211 /211 (Black Body)	221/221/201/176
Weight (kg/pcs)	0.2/0.25/0.3	0.4/0.5/0.6/0/8	0.4/0/5/0/6/1
Power Box Weight (kg/pcs)	Type B and D is 1.1kg	Type B and D is 1.1kg	Type B and D is 1.1kg
Color Temperature (K)	3000~10000	3000~10000	3000~10000
Scanning Mode	Light & Driver Integrated, Static Driving	Light & Driver Integrated, Static Driving	Light & Driver Integrated, Static Driving
Frame Rate (Hz)	60~120	60~120	60~120
Lifespan	≥100,000.00 hours	≥100,000.00 hours	≥100,000.00 hours
Pixel Configuration	16bit	16bit	16bit
Input Voltage	AC100~240V 50/60 Hz	AC100~240V 50/60 Hz	AC100~240V 50/60 Hz
Working Voltage for Module	DC 4.2V ± 0.2V	DC 4.2V ± 0.2V	DC 4.2V ± 0.2V
Working Temperature	Temperature -20℃~50℃	Temperature -20℃~50℃	Temperature -20℃~50℃
Working Humidity	Humidity: 20%~85% (Without Condensation)	Humidity: 20%~85% (Without Condensation)	Humidity: 20%~85% (Without Condensation)
Storage Temperature	Temperature -20℃~60℃	Temperature -20℃~60℃	Temperature -20℃~60℃
Storage Humidity	Humidity: 10%~85% (Without Condensation)	Humidity: 10%~85% (Without Condensation)	Humidity: 10%~85% (Without Condensation)
Protection Degree	IP 20	IP 20	IP 20
Installation Method	PCB Side Glued	LED Side Glued, PCB Side Glued, Hanging Up	LED Side Glued, PCB Side Glued, Hanging Up
Installation Environment	Indoor	Indoor	Indoor
