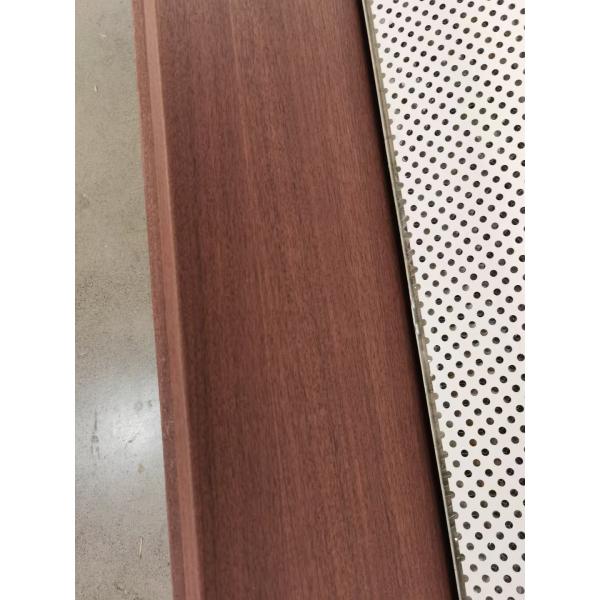

2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board
Specifications
Brand Name :
Brotex Acoustic
Model Number :
Aluminum Micro
Certification :
CE / ISO / SGS / Intertek
Place of Origin :
China
MOQ :
50㎡
Price :
$90.42 -$109.98 /㎡
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 ㎡/ month
Delivery Time :
2-3 weeks
Packaging Details :
Carton / Pallet
Pattern :
Aluminum micro hole
Finish :
Veneer / PVDF Powder coating
Color :
RAL or Customized woodgrain
Core :
Aluminum
Fireproof :
Non-combustible
Fleece :
Soundtex / Standard
Standard panel size :
1200*600mm / 2400*1200mm / TBC
Standard core thick :
25mm / 50mm / TBC
Hole design :
Standard
Edge option :
For wall or ceiling
Woodgrain :
Along length / Along width
Application :
Auditorium / Conference hall / School / Office
Description

Aluminum perforated has been punched with a wide variety of hole sizes and patterns providing an aesthetic appeal.

Perforated aluminum offers savings in weight , sound while providing a decorative or ornamental effect .

It is corrosive resistand and commonly used in interior and exterior design along with many applications .

Characteritics :

Weldability / machinablity = very good

Bending / Forming = very good

Corrosion resistance = very good

Magnetism = not magnetic

Product Aluminum micro perforated acoustic panel
Pattern Standard micro-hole
Finish RAL color / Woodgrain / Stone color / Brass / TBD
Coating PVDF
Coating brand PPG / AKZO / NIPPON / DNT / TBD
Core Non-combustible aluminum
Panel size Standard 1200*600mm / 2400*1200mm / TBD
Panel thickness 25mm / 50mm / TBD
Hole options Standard micro hole
Edge options For wall / ceiling
Woodgrain Along length / width
Border

Standard / non-perforated / TBD

2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board

Features :

Smooth surface finish
Excellent NRC rating 1 when used as a lay-in ceiling tile , no acoustical liner needed
Cost - effective Tegular of flat lay-in ceiling tiles easily installa standard grid
Tested and proven to achieve are avaliable after delivery
Woodgrain Available in anodized or custom printing finish

Sound Absorption Coefficient :

Based on ISO 354:2003 Acoustics - Measurement of Sound Absorption in a Reverberation Room the NRC = 1

2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board

Fireproof performance :

Available Test based on EN13501-1:2018

Fire classification of construction products and building elements -

Part 1 : Classification using data from reaction to fire tests result fire classification A1

2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board

Color finish options :

2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board 2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board

Ceiling installation info :

2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board

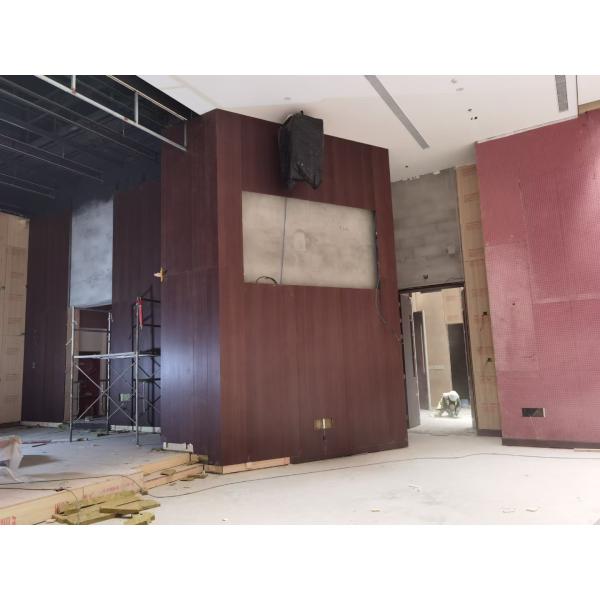

Aluminum micro perforated acoustic panel job reference :

2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board 2/2/0.5mm Veneer Oak Aluminium Panels Microperforated Metal Wall Soundproofing Board

FAQ :

Q: How do you clean aluminum perforated panels?

Cleaning aluminum perforated panels is a simple process. You can use a mild detergent solution and a soft-bristled brush or a soft cloth to remove dirt and stains. Avoid using abrasive cleaners or wire brushes as they can scratch the surface of the panel.

Q: Can aluminum perforated panels be recycled?

Yes, aluminum perforated panels are recyclable. Aluminum is a highly recyclable material, and it can be melted down and used to make new products.

More acoustic panel project inspire ideas please kindly contact Brotex Acoustic for details , thank you !
