14/2mm School Classroom Linear Wooden Wall Soundproof Board Perforated Acoustic Panel

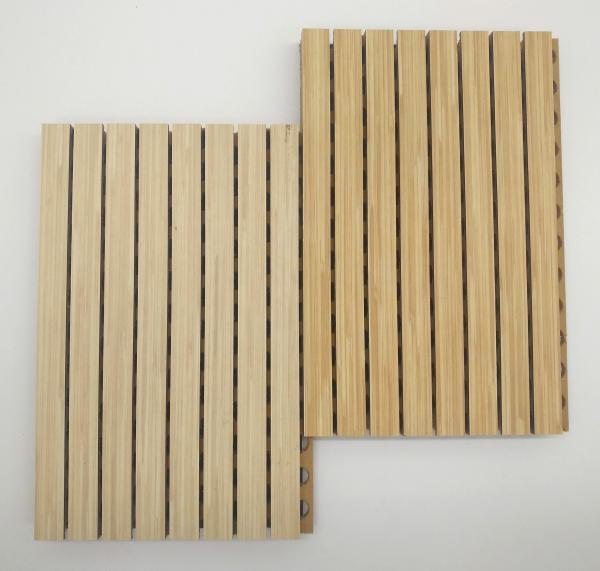

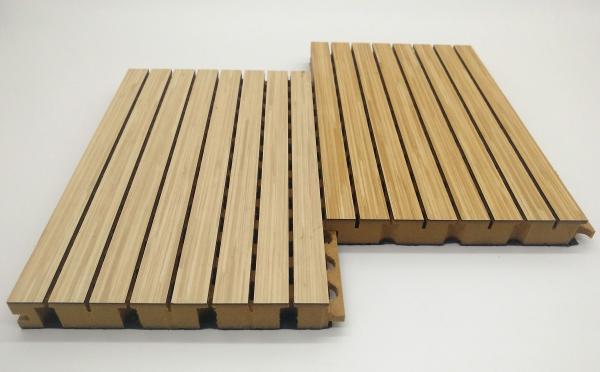

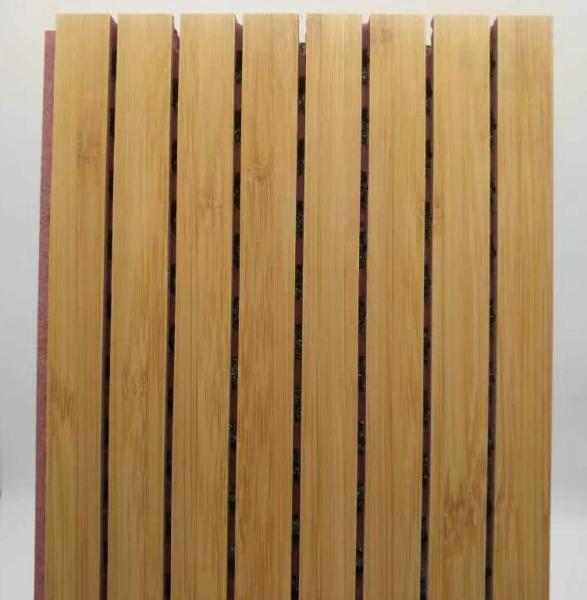

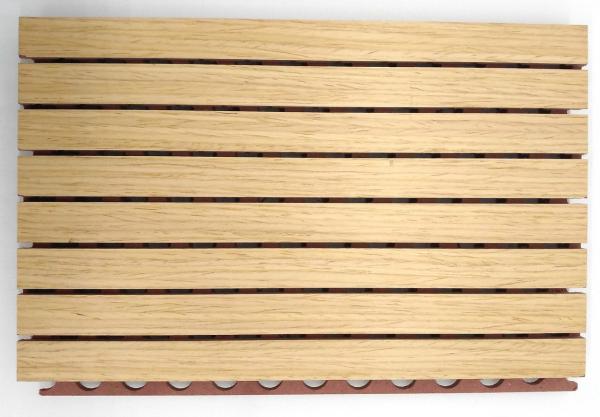

Grooved acoustic panel solutions , a clean , linear approach to acoustics .

Profiles are created with 2mm , 3mm and 4mm grooves with different spacing options .

The grooved wood panels are suitable for both wall and ceiling , it have natural wood veneer laminate onto the perforated fire-rate MDF core with a variety of surface grooving options on the face , and an acoustical black fleece on the rear of the panel as the whole structure .

Dimensions :

The panels can be manufactured to the desired size with approval shop drawings ,

thereby requiring no filed cutting for faster installation .

Brotex Acoustic leading production capabilities make the largest panels in the industry 3000*128/197mm as customized .

Sustainability :

FSC certified 70.8% pre-consumer recycled content

Acoustic Performance :

NRC = 0.80 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

Indoor Air Quality :

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

Fire performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

Wood veneer :

The panel can be customized in a variety of wood veneers.

Brotex Acoustic lays up its own veneer in 12 units as the standard items .

More slip-matched , custom lay-up options and a control sample match all are avaliable .

Note : These color samples are reproduced by a printing process so the colors represented may not match the wood's actual color , in addition since no two trees are identical , wood can be expected to differ both in color and graining .

This is what makes wood so beautiful. Stained sample will be provided for approval before project goes into production .

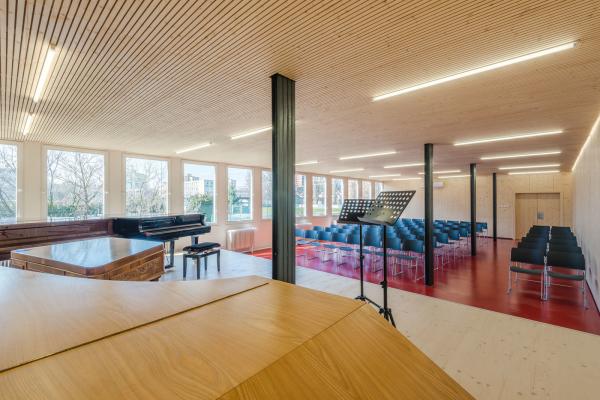

Ceiling job reference :

Please kindly contact us for more acoustic panel project inspire ideas .
