Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
Specifications
Brand Name :
N/M
Model Number :
UH-5075-HA
Place of Origin :
China
MOQ :
According to requirements
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000m/month
Delivery Time :
3-7 workdays
Packaging Details :
wooden box
Tensile Strength :
3000kgf
Chain's Catastrophic Pull Force :
5500kgf
Working temperature ( ≤ °C) :
300℃
Min hanging distance :
150mm
Run speed :
0-12m/min
Material :
Iron, Carbon steel
Single-span Weight :
50kg
Usage :
Workshop continual conveying, industrial powder coating etc
Description

Heavy Duty Enclosed Overhead Conveyor Chain For Powder Coating Oven Line

Description

We produce UH-5075 overhead conveyor chain, which is also called 5-Ton Enclosed Track Conveyor Chain.

It's mianly used for powder coating line, spray painting system, garment/clothes drying, surface treatment system, and other material handling conveyor system.

We also have all spare parts for whole system, such as driver device, take-up deivc/tensioner, straight track, curve track, up-down track/vertical track, check track, flange, oil sprayer, electric cabinet.

According to customers' drawing, we can calculate all need parts for whole system.

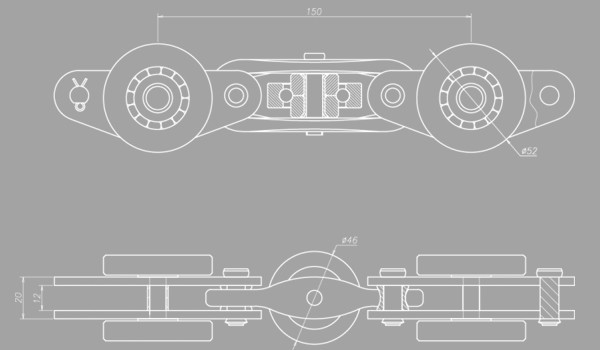

Specification

MODEL

ITEM

UH-5075-S

Standard chain

UH-5075-HH

Heavy-duty chain

UH-5075-HV

Heavy-duty chain

UH-5075-HA

Heavy-duty chain

Suspension Spacing

(mm)

 150+(150× N) 150+(150 × N) 150+(150 × N) 150+(150 × N)

Chain's Weight

(kg/m)

4.2 4.58 4.83 5.3

Single-span Weight

(≤kg)

35 40 45 50

Chain's Allowed

Pull Force (≤kgf)

3000 3000 3000 3000

Chain's Catastrophic

Pull Force (≥kgf)

5500 5500 5500 5500

Working temperature

(≤°C)

250 300 300 400
Applicable Equipment General conditions

Large bending;

High temperature;

High temperature;

Heavy work piece;

Frequently lifted;

High temperature;

Heavy work piece;

Complicated route;
Material 16# Medium-carbon steel, Steel A3
Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements.
Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line

Why choose us?

1.Low noise

2.Less power consumption

3.Stable operate performance

4.User-friendly and safe use

5.Excellent extensity

6.Make full use of space

7.Large angle bending space

8.High mechanization & automatization

9.Close -up continual conveying equipment

10.Work perfectly together with the ground facilities

11.Make any turns on both horizontal plane and vertical planes

Other related items

Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line

Caterpillar Driver Device

Limit-load Caterpillar Driver Device, Caterpillar Driver Device, Sprocket Driver; from 1.5KW-4KW for your choice;

Track

Straight track, Bush track, Vertical track, Horizontal Track

Take up Device

Heavy Bob type take up device

Hanger:Cross type disk hanger, sprocket wheel hanger, Y type hanger, Cross type hanger, electroplating hanger,

U type Hanger,Bearing hanger

Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line

Other Accessories: hanger turner, track flange, track install hanger,check track, Manual /automatic oil feeding cup

Automatic oil sprayer

Remark: The above technical data is for our usual hanging type conveyors. We can customize design and manufacture the products based customers particular requirements.

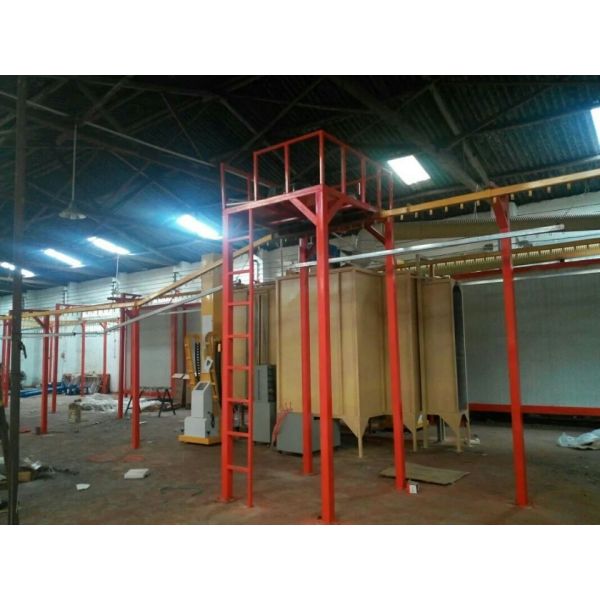

Application

Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line

Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven LineEnclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven LineEnclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line

Manual conveyor line

Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line

Enclosed Heavy Duty Conveyor Chain Overhead For Powder Coating Oven Line
