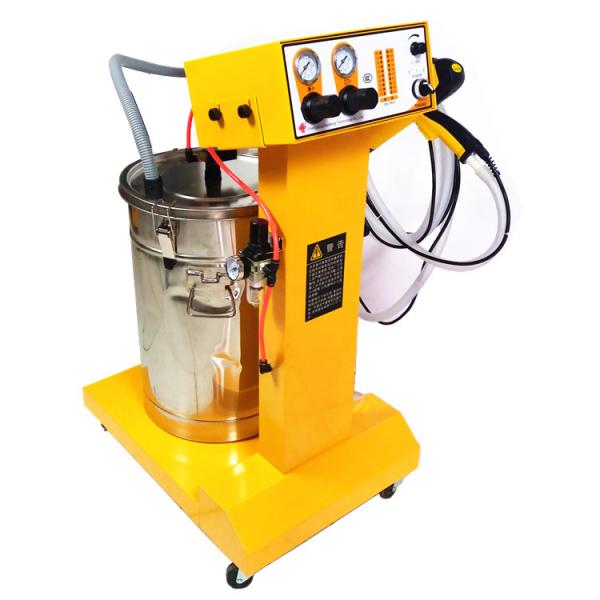

110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
Specifications
Brand Name :
Purple Horn
Place of Origin :
China
MOQ :
2 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs each week
Delivery Time :
2-7 days
Packaging Details :
carton
Name :
Powder Spraying Machine
USe :
powder coating line
type :
manual and electric
capacity :
55L
Description

Powder Coating Machine Powder Spraying Machine Industrial

electrostatic spray machine, using, advanced technology, imported original, reasonable design, powder flow, special high-pressure automatic tracking, suitable for difficult, complex groove spray. In the spraying process, the voltage and current are adjusted automatically to form the best static electricity and form a uniform coating film on the surface of the sprayed object, which is more suitable for advanced coating.

ELECTRICAL DATA
GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST)
Nominal input voltage 110V 240VAC
Frequency 50 - 60Hz
Connected load (without vibrator) 140 VA
Nominal output voltage (to the gun) eff.10 V
Nominal output current (to the gun) max. 1.2 A
Connection and output for vibrator (on Aux output) 110/230 VAC max. 100 W
Connection for rinsing function (valve) 24 VDC max. 3 W
Temperature range 0°C - +40°(+32°F - +104°F)
Max. surface temperature 120 °C (+248 °F)
Approvals II 3 D IP54 120 °C



PNEUMATICAL DATA
GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST)
MAX.input pressure 10bar / 145psi
MIN.input pressure 6bar / 87psi
Max.water vapor content of the compressed air 1.3g/Nm³
Max.oil vapor content of the compressed air 0.1mg/Nm³
Max.compressed air consumption 8Nm³/h

AVAILABLE POWDER
GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST)
Epoxy Powder: √
Teflon Powder: √
Metal Powder: √
Enamel Powder: ×

110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
