C83800 Bronze Bearing Sand Casting Sliding Valve
C83800 Bronze Bearing Sand Casting Sliding Valve
Specifications
Brand Name :
VIIPLUS
Model Number :
C83800 Bronze Bearing Casting
Certification :
ISO 9001
Place of Origin :
made in china
MOQ :
negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Sand Casting
Delivery Time :
10-25 work days
Packaging Details :
EXPORT CARTON WOOD PALLET WOODEN CASE
Type :
C83800 Alloy Cast Bronze
Application :
Sliding Valve, valve Bushings
Technical :
Cast Bronze Parts
Bushing :
Material: C83800 bronze bushing
Features :
Bronze Bearing Bushings
Size :
metric size and inch size
Tech :
Sand Casting
Shape :
Cast different shape
Bearing Bushing Factory Price :
tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
High Light: :
Self-Lubricating Sintered Bronze Bushing
characteristic :
Bronze bushings with grease reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

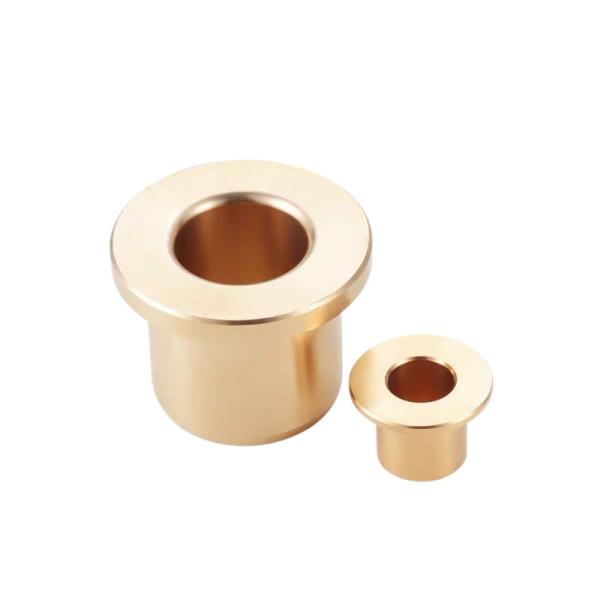

The C83800 Bronze Bearing, produced through sand casting, is a high-performance component designed for use in sliding valve applications. The bronze alloy C83800 offers excellent mechanical properties, including high strength, wear resistance, and corrosion resistance, making it suitable for use in demanding industrial environments.

The sand casting process ensures precise and reliable dimensions, ensuring a perfect fit within the sliding valve assembly. This bearing is designed to provide smooth and efficient operation, even under high loads and pressures.

Wh used in machinery, pumps, or other industrial equipment, the C83800 Bronze Bearing Sand Casting Sliding Valve offers a robust and dependable solution for ensuring reliable and long-lasting performance. Its precision-manufactured design ensures a tight fit and optimal performance, minimizing the risk of wear and tear and extending the overall lifespan of the sliding valve.

C83800 Bronze Bearing Sand Casting Sliding Valve
Best value C83800 Bronze Bearing Casting Bush

– Great deals on Cast Bronze Bearings Bush

Casting bronze with graphite plugs oilless bearings

C83800 Alloy, C838 Brass, C83800 Bronze Bearing Sand Casting Sliding Valve

Self-Lubricating Bearing Bronze Bearing Bushings

Cast Bronze Bearing Direct from ChinaC83800 Bronze Bearing Sand Casting Sliding Valve

Machinability

Copper Alloy UNS No. Machinability Rating Density (lb/in3 at 68 °F)
C83800 90 0.312

Mechanical Properties

Mechanical Properties according to ASTM B505/B505M-18
Tensile Strength, min Yield Strength, at 0.5% Extension Under Load, min Elongation, in 2 in. or 50 mm min Brinell Hardness (500 kg load) Remarks
ksi MPa ksi MPa % typical BHN
30 207 15 97 16 60
