When it comes to precision mold and die components, aluminum bronze bushings and wear plates are a trusted choice for both metal stamping and plastic injection molding applications. Aluminum bronze, also known as aluminum-based bronze alloy, possesses a unique combination of properties that make it an ideal material for demanding mold and die applications.
The rugged nature of aluminum bronze ensures exceptional durability and wear resistance. This material can withstand the high pressures, temperatures, and repetitive cycling encountered in metal stamping and plastic injection molding processes. As a result, aluminum bronze bushings and wear plates maintain their dimensional stability and precision over extended periods of use.
In addition to its durability, aluminum bronze also offers excellent corrosion resistance. This is crucial in applications where mold and die components are exposed to corrosive environments, such as chemicals or moisture. The corrosion-resistant properties of aluminum bronze ensure that bushings and wear plates remain in good condition, reducing the need for frequent replacement or repair.
Precision mold and die bushings and wear plates made from aluminum bronze are also noted for their high machinability. This allows for the creation of complex geometries and tight tolerances, ensuring a precise fit and optimal performance within the mold or die.
Overall, aluminum bronze bushings and wear plates are a reliable choice for precision mold and die applications in metal stamping and plastic injection molding. Their rugged nature, durability, corrosion resistance, and machinability ensure consistent performance and longevity, reducing downtime and maintenance costs.
China precision mold parts manufacturer and supplier for Oilless Plate.
Injection molding machine stamping bronze bushings
Delivers Superior Quality Casting Bronze Plate That Are Customized To Meet All Of Your Requirements. Machined.cheap prices Made in china. Types: Aluminum Bronze Castings wear plate, C86300 Manganese Bronze Casting wear plate, Tin Bronze Casting wear plate.
Slide Plate Thickness 10mm-Slide Plate Thickness 20mm-Bronze Type, SESW,SESWT Oilless technology · Advantages of oilless
Bronze Wear Plate,Get Latest Price
Manufacturer of Bronze Wear Plates, Custom Wear Plate Solutions. Features: graphite plugged Plate,self-lubricating, Customized material Process.Quote and Order Bronze Wear Plate with graphite lubricating online ordering.discovery the range of standard inch and metric sizes and are available in bronze ,brass,tin bronze,or aluminum bronze, either with or without graphite.
Introduction Our china slide bronze components include bronze wear plate ,bronze bushes ,pillar ,steel plate,etc. We make according to VW standard ,DIN standard ,NAAMS standard ,illess standard ,etc.and we also accept customs items , and obtains the good word of mouth in the market. met the popular standard Dayton ,Moeller,Punch Bronze Bushing.
We Manufacture A Wide Range Of C86300 & C95400 aluminum Bronze Grease Groove Wear Plates ,Bushings, Wear Strips, Gibs, Blocks& Related Sliding Bearings In China in standard sizes also inch Dimensions for customize precision Bushings.Typical applications include machinery, heavy equipment, and complex tools such as metal stamping and plastic injection molds.
Bronze Wear Plate Choice Mold Compoments
Details include grooves, plugs, drill holes and graphite slding bearings.C95400 Self Lube Wear Plates With Graphite Plugs , Self Lubricating Copper Plate C95400 Wear Plates with graphite plugs
Cam Stroke Plate Hood.Oilless plate Solid Oilless Bearing: Bronze Bushing #500 SP 101 102 JDB JFB SPB SOB SPF SOBF
self-lubricating copper plate 2/4bolt type copper alloy.
self-lubricating oilless bronze thrust washers with graphite.
VIIPLUS international is an authorized, full line, stocking distributor for the manufacturers of wear plate and wear products:
Graphite Infused Wear Products,Graphite Infused V Gibs,Graphite Infused L Gibs

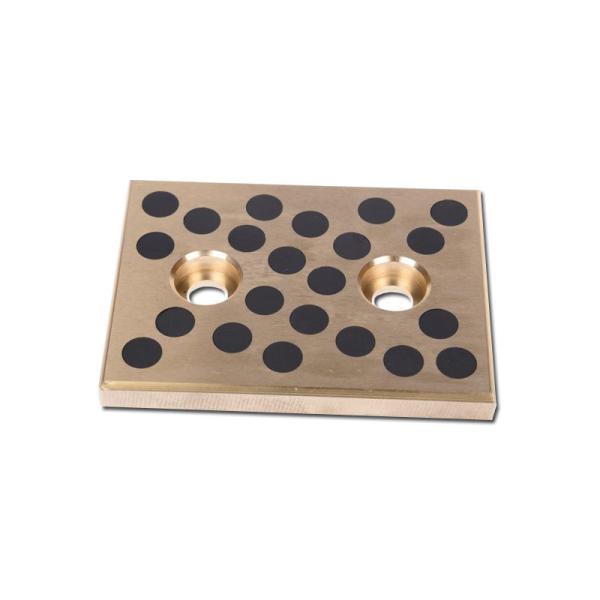

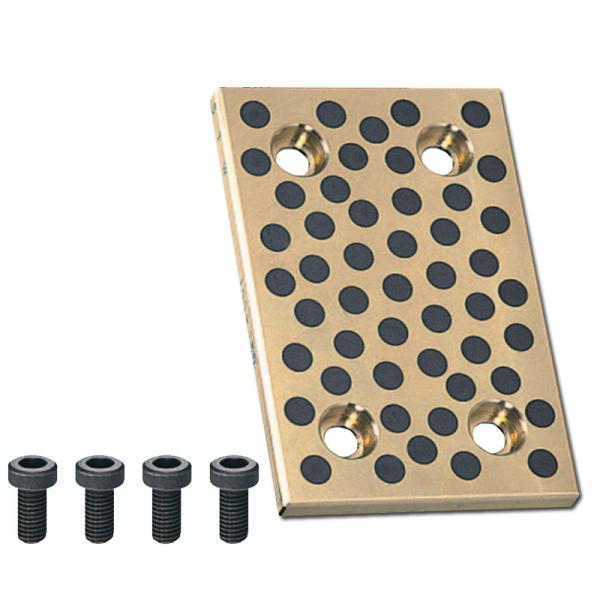

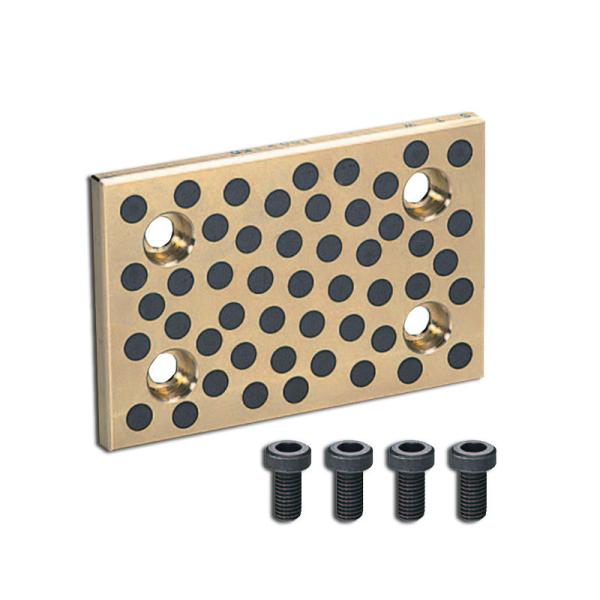

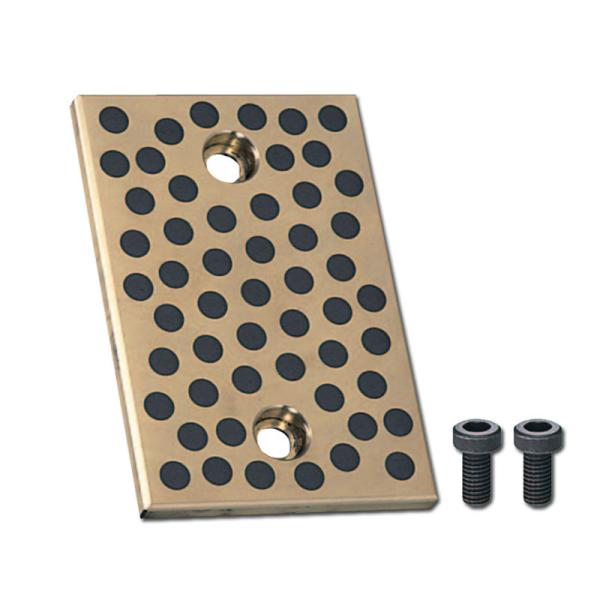

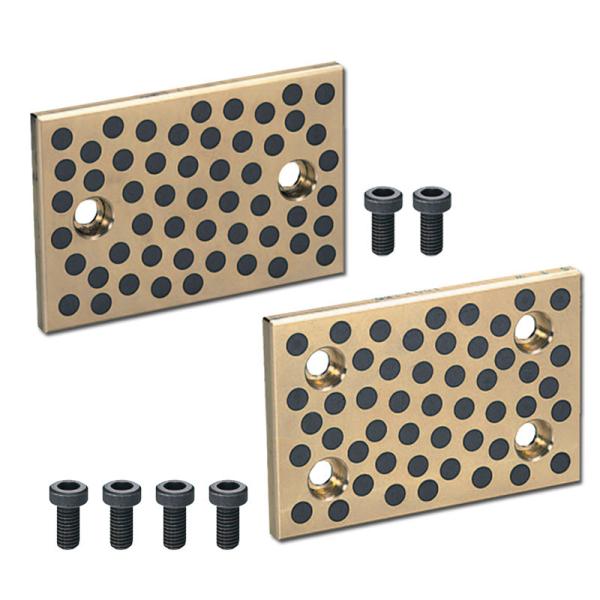

Self Lubricating Bronze Wear Plate
Wear Plate and Wear Products are available from stock catalog or can be manufactured to your specific print or dimensions.
Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block
Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.
CHARACTERISTICS
VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings
Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity
Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine
Cast Bronze Bearing with Graphite Plugs
VSB-50P Sliding BlockCopper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
STRUSTURE
VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Grade | 50# | 50S1 | 50S2 | 50S3 | 650S5 |
Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | CuZn25AI5Mn4Fe3 |
Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
Hardness | ≥210 | ≥70 | ≥150 | ≥75 | ≥235 |
Tensile strength | ≥750 | ≥250 | ≥500 | ≥270 | ≥800 |
Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | ≥450 |
Elongation | ≥12 | ≥13 | ≥10 | ≥5 | ≥8 |
Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+400℃ | -40~+300℃ |
Max.dynamic load | 100 | 60 | 50 | 70 | 120 |
Max.speed(Dry) | 15 | 10 | 20 | 10 | 15 |
N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 80 | 200 |
Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm | < 0.005mm |
Chemical Compositions
| Product NO. | Chemical Compositions |
| VSB-50 | Cu | Zn | Al | Fe | Mn | Si | Ni | Sn | Pb |
| 60~66 | 22~28 | 5.0~8.0 | 2.0~4.0 | 2.5~5.0 | <0.1 | <0.5 | <0.2 | <0.2 |
Bearing forms available in standard dimensions
·Cylindrical bushes
·Flanged bushes
·Sliding plates
·Wear Plate
Bearing forms made to order
standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
TYPICAL APPLICATIONS
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
Self-lubricating Bushes use high grade copper alloys as their base material and have finely finished surface with holes in which a specially formulated solid lubricant is embedded.The lubricant cover up to 25-30% of the working surface. During operation the lubricant film is deposited automatically over the completemoving surface.Solid Bronze Metallic Self-lubricating customer size Dimensions and Tolerances.
Self Lubricating Graphite Plugged Wear Strips
Wear Plate and Wear Products are available in Self Lubricating | Ear Strip / Wear Strips | Graphite Impregnated Plugs | Self Lubricating Bronze | U&V Blocks | Aluminum Bronze Wear Plate | Gib Assemblies | L Gibs | V Gibs |Steel with Graphite Plugs | Base Plate | Bronze with Graphite Plugs | Special Wear Plate |Custom Wear Plates | Automotive Wear Plates | Keeper Block Wear Plates | Aerial Cam | Die Mount Cam | Cam unit | Guide Post | Guide Post Set | Sintered Wear Plate | Die Components | Bushings | Pins | Mold Components | Blank Die | Die Ace.
| JDB · Solid Self-Lubricating Inlaid Bearing · L tol. -0.10/-0.30 · Unit: mm |
| No. | Part No. | Unique Key | d Bore (mm) | D OD (mm) | L Length (mm) | L Tol. | d Tol. (F7) | D Tol. (m6) | Remarks |
| 1 | 81208 | JDB-08-12-8 | 8 | 12 | 8 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 2 | 81210 | JDB-08-12-10 | 8 | 12 | 10 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 3 | 81212 | JDB-08-12-12 | 8 | 12 | 12 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 4 | 81215 | JDB-08-12-15 | 8 | 12 | 15 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 5 | 101408 | JDB-10-14-8 | 10 | 14 | 8 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 6 | 101410 | JDB-10-14-10 | 10 | 14 | 10 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 7 | 101412 | JDB-10-14-12 | 10 | 14 | 12 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 8 | 101415 | JDB-10-14-15 | 10 | 14 | 15 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 9 | 101416 | JDB-10-14-16 | 10 | 14 | 16 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 10 | 101420 | JDB-10-14-20 | 10 | 14 | 20 | -0.10/-0.30 | +0.028/+0.013 | +0.018/+0.007 | |
| 11 | 121810 | JDB-12-18-10 | 12 | 18 | 10 | -0.10/-0.30 | +0.034/+0.016 | +0.018/+0.007 | |
| 12 | 121812 | JDB-12-18-12 | 12 | 18 | 12 | -0.10/-0.30 | +0.034/+0.016 | +0.018/+0.007 | |
| 13 | 121815 | JDB-12-18-15 | 12 | 18 | 15 | -0.10/-0.30 | +0.034/+0.016 | +0.018/+0.007 | |
| 14 | 121816 | JDB-12-18-16 | 12 | 18 | 16 | -0.10/-0.30 | +0.034/+0.016 | +0.018/+0.007 | |
| 15 | 121820 | JDB-12-18-20 | 12 | 18 | 20 | -0.10/-0.30 | +0.034/+0.016 | +0.018/+0.007 | |
| 16 | 121825 | JDB-12-18-25 | 12 | 18 | 25 | -0.10/-0.30 | +0.034/+0.016 | +0.018/+0.007 | |
| 17 | 121830 | JDB-12-18-30 | 12 | 18 | 30 | -0.10/-0.30 | +0.034/+0.016 | +0.018/+0.007 | |
| 18 | 131910 | JDB-13-19-10 | 13 | 19 | 10 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 19 | 131912 | JDB-13-19-12 | 13 | 19 | 12 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 20 | 131915 | JDB-13-19-15 | 13 | 19 | 15 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 21 | 131916 | JDB-13-19-16 | 13 | 19 | 16 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 22 | 131920 | JDB-13-19-20 | 13 | 19 | 20 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 23 | 131925 | JDB-13-19-25 | 13 | 19 | 25 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 24 | 131930 | JDB-13-19-30 | 13 | 19 | 30 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 25 | 142010 | JDB-14-20-10 | 14 | 20 | 10 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 26 | 142012 | JDB-14-20-12 | 14 | 20 | 12 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 27 | 142015 | JDB-14-20-15 | 14 | 20 | 15 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 28 | 142016 | JDB-14-20-16 | 14 | 20 | 16 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 29 | 142020 | JDB-14-20-20 | 14 | 20 | 20 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 30 | 142025 | JDB-14-20-25 | 14 | 20 | 25 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 31 | 142030 | JDB-14-20-30 | 14 | 20 | 30 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 32 | 152110 | JDB-15-21-10 | 15 | 21 | 10 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 33 | 152112 | JDB-15-21-12 | 15 | 21 | 12 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 34 | 152115 | JDB-15-21-15 | 15 | 21 | 15 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 35 | 152116 | JDB-15-21-16 | 15 | 21 | 16 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 36 | 152120 | JDB-15-21-20 | 15 | 21 | 20 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 37 | 152125 | JDB-15-21-25 | 15 | 21 | 25 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 38 | 152130 | JDB-15-21-30 | 15 | 21 | 30 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 39 | 152135 | JDB-15-21-35 | 15 | 21 | 35 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 40 | 162210 | JDB-16-22-10 | 16 | 22 | 10 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 41 | 162212 | JDB-16-22-12 | 16 | 22 | 12 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 42 | 162215 | JDB-16-22-15 | 16 | 22 | 15 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 43 | 162216 | JDB-16-22-16 | 16 | 22 | 16 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 44 | 162220 | JDB-16-22-20 | 16 | 22 | 20 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 45 | 162225 | JDB-16-22-25 | 16 | 22 | 25 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 46 | 162230 | JDB-16-22-30 | 16 | 22 | 30 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 47 | 162235 | JDB-16-22-35 | 16 | 22 | 35 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 48 | 162240 | JDB-16-22-40 | 16 | 22 | 40 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 49 | 182410 | JDB-18-24-10 | 18 | 24 | 10 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 50 | 182412 | JDB-18-24-12 | 18 | 24 | 12 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 51 | 182415 | JDB-18-24-15 | 18 | 24 | 15 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 52 | 182416 | JDB-18-24-16 | 18 | 24 | 16 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 53 | 182420 | JDB-18-24-20 | 18 | 24 | 20 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 54 | 182425 | JDB-18-24-25 | 18 | 24 | 25 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 55 | 182430 | JDB-18-24-30 | 18 | 24 | 30 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 56 | 182435 | JDB-18-24-35 | 18 | 24 | 35 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 57 | 182440 | JDB-18-24-40 | 18 | 24 | 40 | -0.10/-0.30 | +0.034/+0.016 | +0.021/+0.008 | |
| 58 | 202810 | JDB-20-28-10 | 20 | 28 | 10 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 59 | 202812 | JDB-20-28-12 | 20 | 28 | 12 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 60 | 202815 | JDB-20-28-15 | 20 | 28 | 15 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 61 | 202816 | JDB-20-28-16 | 20 | 28 | 16 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 62 | 202820 | JDB-20-28-20 | 20 | 28 | 20 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 63 | 202825 | JDB-20-28-25 | 20 | 28 | 25 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 64 | 202830 | JDB-20-28-30 | 20 | 28 | 30 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 65 | 202835 | JDB-20-28-35 | 20 | 28 | 35 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 66 | 202840 | JDB-20-28-40 | 20 | 28 | 40 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 67 | 202850 | JDB-20-28-50 | 20 | 28 | 50 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 68 | 223212 | JDB-22-32-12 | 22 | 32 | 12 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 69 | 223215 | JDB-22-32-15 | 22 | 32 | 15 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 70 | 223216 | JDB-22-32-16 | 22 | 32 | 16 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 71 | 223220 | JDB-22-32-20 | 22 | 32 | 20 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 72 | 223225 | JDB-22-32-25 | 22 | 32 | 25 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 73 | 223230 | JDB-22-32-30 | 22 | 32 | 30 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 74 | 223235 | JDB-22-32-35 | 22 | 32 | 35 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 75 | 223240 | JDB-22-32-40 | 22 | 32 | 40 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 76 | 223250 | JDB-22-32-50 | 22 | 32 | 50 | -0.10/-0.30 | +0.041/+0.020 | +0.021/+0.008 | |
| 77 | 253312 | JDB-25-33-12 | 25 | 33 | 12 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 78 | 253315 | JDB-25-33-15 | 25 | 33 | 15 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 79 | 253316 | JDB-25-33-16 | 25 | 33 | 16 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 80 | 253320 | JDB-25-33-20 | 25 | 33 | 20 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 81 | 253325 | JDB-25-33-25 | 25 | 33 | 25 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 82 | 253330 | JDB-25-33-30 | 25 | 33 | 30 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 83 | 253335 | JDB-25-33-35 | 25 | 33 | 35 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 84 | 253340 | JDB-25-33-40 | 25 | 33 | 40 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 85 | 253350 | JDB-25-33-50 | 25 | 33 | 50 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 86 | 253360 | JDB-25-33-60 | 25 | 33 | 60 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 87 | 303812 | JDB-30-38-12 | 30 | 38 | 12 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 88 | 303815 | JDB-30-38-15 | 30 | 38 | 15 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 89 | 303816 | JDB-30-38-16 | 30 | 38 | 16 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 90 | 303820 | JDB-30-38-20 | 30 | 38 | 20 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 91 | 303825 | JDB-30-38-25 | 30 | 38 | 25 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 92 | 303830 | JDB-30-38-30 | 30 | 38 | 30 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 93 | 303835 | JDB-30-38-35 | 30 | 38 | 35 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 94 | 303840 | JDB-30-38-40 | 30 | 38 | 40 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 95 | 303850 | JDB-30-38-50 | 30 | 38 | 50 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 96 | 303860 | JDB-30-38-60 | 30 | 38 | 60 | -0.10/-0.30 | +0.041/+0.020 | +0.025/+0.009 | |
| 97 | 354520 | JDB-35-45-20 | 35 | 45 | 20 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 98 | 354525 | JDB-35-45-25 | 35 | 45 | 25 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 99 | 354530 | JDB-35-45-30 | 35 | 45 | 30 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 100 | 354535 | JDB-35-45-35 | 35 | 45 | 35 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 101 | 354540 | JDB-35-45-40 | 35 | 45 | 40 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 102 | 354550 | JDB-35-45-50 | 35 | 45 | 50 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 103 | 354560 | JDB-35-45-60 | 35 | 45 | 60 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 104 | 354570 | JDB-35-45-70 | 35 | 45 | 70 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 105 | 405020 | JDB-40-50-20 | 40 | 50 | 20 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 106 | 405025 | JDB-40-50-25 | 40 | 50 | 25 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 107 | 405030 | JDB-40-50-30 | 40 | 50 | 30 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 108 | 405035 | JDB-40-50-35 | 40 | 50 | 35 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 109 | 405040 | JDB-40-50-40 | 40 | 50 | 40 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 110 | 405050 | JDB-40-50-50 | 40 | 50 | 50 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 111 | 405060 | JDB-40-50-60 | 40 | 50 | 60 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 112 | 405070 | JDB-40-50-70 | 40 | 50 | 70 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 113 | 405080 | JDB-40-50-80 | 40 | 50 | 80 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 114 | 455530 | JDB-45-55-30 | 45 | 55 | 30 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 115 | 455535 | JDB-45-55-35 | 45 | 55 | 35 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 116 | 455540 | JDB-45-55-40 | 45 | 55 | 40 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 117 | 455550 | JDB-45-55-50 | 45 | 55 | 50 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 118 | 455560 | JDB-45-55-60 | 45 | 55 | 60 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 119 | 455570 | JDB-45-55-70 | 45 | 55 | 70 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 120 | 455580 | JDB-45-55-80 | 45 | 55 | 80 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 121 | 506030 | JDB-50-60-30 | 50 | 60 | 30 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 122 | 506035 | JDB-50-60-35 | 50 | 60 | 35 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 123 | 506040 | JDB-50-60-40 | 50 | 60 | 40 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 124 | 506050 | JDB-50-60-50 | 50 | 60 | 50 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 125 | 506060 | JDB-50-60-60 | 50 | 60 | 60 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 126 | 506070 | JDB-50-60-70 | 50 | 60 | 70 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 127 | 506080 | JDB-50-60-80 | 50 | 60 | 80 | -0.10/-0.30 | +0.050/+0.025 | +0.025/+0.009 | |
| 128 | 506230 | JDB-50-62-30 | 50 | 62 | 30 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 129 | 506235 | JDB-50-62-35 | 50 | 62 | 35 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 130 | 506240 | JDB-50-62-40 | 50 | 62 | 40 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 131 | 506250 | JDB-50-62-50 | 50 | 62 | 50 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 132 | 506260 | JDB-50-62-60 | 50 | 62 | 60 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 133 | 506270 | JDB-50-62-70 | 50 | 62 | 70 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 134 | 506530 | JDB-50-65-30 | 50 | 65 | 30 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 135 | 506535 | JDB-50-65-35 | 50 | 65 | 35 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 136 | 506540 | JDB-50-65-40 | 50 | 65 | 40 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 137 | 506550 | JDB-50-65-50 | 50 | 65 | 50 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 138 | 506560 | JDB-50-65-60 | 50 | 65 | 60 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 139 | 506570 | JDB-50-65-70 | 50 | 65 | 70 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 140 | 506580 | JDB-50-65-80 | 50 | 65 | 80 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 141 | 5065100 | JDB-50-65-100 | 50 | 65 | 100 | -0.10/-0.30 | +0.050/+0.025 | +0.030/+0.011 | |
| 142 | 557030 | JDB-55-70-30 | 55 | 70 | 30 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 143 | 557035 | JDB-55-70-35 | 55 | 70 | 35 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 144 | 557040 | JDB-55-70-40 | 55 | 70 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 145 | 557050 | JDB-55-70-50 | 55 | 70 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 146 | 557060 | JDB-55-70-60 | 55 | 70 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 147 | 557070 | JDB-55-70-70 | 55 | 70 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 148 | 557080 | JDB-55-70-80 | 55 | 70 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 149 | 5570100 | JDB-55-70-100 | 55 | 70 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 150 | 607430 | JDB-60-74-30 | 60 | 74 | 30 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 151 | 607435 | JDB-60-74-35 | 60 | 74 | 35 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 152 | 607440 | JDB-60-74-40 | 60 | 74 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 153 | 607450 | JDB-60-74-50 | 60 | 74 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 154 | 607460 | JDB-60-74-60 | 60 | 74 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 155 | 607470 | JDB-60-74-70 | 60 | 74 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 156 | 607480 | JDB-60-74-80 | 60 | 74 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 157 | 6074100 | JDB-60-74-100 | 60 | 74 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 158 | 607530 | JDB-60-75-30 | 60 | 75 | 30 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 159 | 607535 | JDB-60-75-35 | 60 | 75 | 35 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 160 | 607540 | JDB-60-75-40 | 60 | 75 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 161 | 607550 | JDB-60-75-50 | 60 | 75 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 162 | 607560 | JDB-60-75-60 | 60 | 75 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 163 | 607570 | JDB-60-75-70 | 60 | 75 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 164 | 607580 | JDB-60-75-80 | 60 | 75 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 165 | 6075100 | JDB-60-75-100 | 60 | 75 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 166 | 637535 | JDB-63-75-35 | 63 | 75 | 35 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 167 | 637540 | JDB-63-75-40 | 63 | 75 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 168 | 637550 | JDB-63-75-50 | 63 | 75 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 169 | 637560 | JDB-63-75-60 | 63 | 75 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 170 | 637570 | JDB-63-75-70 | 63 | 75 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 171 | 637580 | JDB-63-75-80 | 63 | 75 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 172 | 6375100 | JDB-63-75-100 | 63 | 75 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 173 | 658035 | JDB-65-80-35 | 65 | 80 | 35 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 174 | 658040 | JDB-65-80-40 | 65 | 80 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 175 | 658050 | JDB-65-80-50 | 65 | 80 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 176 | 658060 | JDB-65-80-60 | 65 | 80 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 177 | 658070 | JDB-65-80-70 | 65 | 80 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 178 | 658080 | JDB-65-80-80 | 65 | 80 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 179 | 6580100 | JDB-65-80-100 | 65 | 80 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.030/+0.011 | |
| 180 | 708535 | JDB-70-85-35 | 70 | 85 | 35 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 181 | 708540 | JDB-70-85-40 | 70 | 85 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 182 | 708550 | JDB-70-85-50 | 70 | 85 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 183 | 708560 | JDB-70-85-60 | 70 | 85 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 184 | 708570 | JDB-70-85-70 | 70 | 85 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 185 | 708580 | JDB-70-85-80 | 70 | 85 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 186 | 7085100 | JDB-70-85-100 | 70 | 85 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 187 | 709035 | JDB-70-90-35 | 70 | 90 | 35 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 188 | 709040 | JDB-70-90-40 | 70 | 90 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 189 | 709050 | JDB-70-90-50 | 70 | 90 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 190 | 709060 | JDB-70-90-60 | 70 | 90 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 191 | 709070 | JDB-70-90-70 | 70 | 90 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 192 | 709080 | JDB-70-90-80 | 70 | 90 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 193 | 7090100 | JDB-70-90-100 | 70 | 90 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 194 | 759040 | JDB-75-90-40 | 75 | 90 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 195 | 759050 | JDB-75-90-50 | 75 | 90 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 196 | 759060 | JDB-75-90-60 | 75 | 90 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 197 | 759070 | JDB-75-90-70 | 75 | 90 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 198 | 759080 | JDB-75-90-80 | 75 | 90 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 199 | 7590100 | JDB-75-90-100 | 75 | 90 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 200 | 759540 | JDB-75-95-40 | 75 | 95 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 201 | 759550 | JDB-75-95-50 | 75 | 95 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 202 | 759560 | JDB-75-95-60 | 75 | 95 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 203 | 759570 | JDB-75-95-70 | 75 | 95 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 204 | 759580 | JDB-75-95-80 | 75 | 95 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 205 | 7595100 | JDB-75-95-100 | 75 | 95 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 206 | 7595120 | JDB-75-95-120 | 75 | 95 | 120 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 207 | 809640 | JDB-80-96-40 | 80 | 96 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 208 | 809650 | JDB-80-96-50 | 80 | 96 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 209 | 809660 | JDB-80-96-60 | 80 | 96 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 210 | 809670 | JDB-80-96-70 | 80 | 96 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 211 | 809680 | JDB-80-96-80 | 80 | 96 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 212 | 8096100 | JDB-80-96-100 | 80 | 96 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 213 | 8096120 | JDB-80-96-120 | 80 | 96 | 120 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 214 | 8096130 | JDB-80-96-130 | 80 | 96 | 130 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 215 | 8010040 | JDB-80-100-40 | 80 | 100 | 40 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 216 | 8010050 | JDB-80-100-50 | 80 | 100 | 50 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 217 | 8010060 | JDB-80-100-60 | 80 | 100 | 60 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 218 | 8010070 | JDB-80-100-70 | 80 | 100 | 70 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 219 | 8010080 | JDB-80-100-80 | 80 | 100 | 80 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 220 | 80100100 | JDB-80-100-100 | 80 | 100 | 100 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 221 | 80100120 | JDB-80-100-120 | 80 | 100 | 120 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 222 | 80100130 | JDB-80-100-130 | 80 | 100 | 130 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 223 | 80100140 | JDB-80-100-140 | 80 | 100 | 140 | -0.10/-0.30 | +0.060/+0.030 | +0.035/+0.013 | |
| 224 | 9011050 | JDB-90-110-50 | 90 | 110 | 50 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 225 | 9011060 | JDB-90-110-60 | 90 | 110 | 60 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 226 | 9011070 | JDB-90-110-70 | 90 | 110 | 70 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 227 | 9011080 | JDB-90-110-80 | 90 | 110 | 80 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 228 | 90110100 | JDB-90-110-100 | 90 | 110 | 100 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 229 | 90110120 | JDB-90-110-120 | 90 | 110 | 120 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 230 | 90110130 | JDB-90-110-130 | 90 | 110 | 130 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 231 | 90110140 | JDB-90-110-140 | 90 | 110 | 140 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 232 | 10012060 | JDB-100-120-60 | 100 | 120 | 60 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 233 | 10012070 | JDB-100-120-70 | 100 | 120 | 70 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 234 | 10012080 | JDB-100-120-80 | 100 | 120 | 80 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 235 | 100120100 | JDB-100-120-100 | 100 | 120 | 100 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 236 | 100120120 | JDB-100-120-120 | 100 | 120 | 120 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 237 | 100120130 | JDB-100-120-130 | 100 | 120 | 130 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 238 | 100120140 | JDB-100-120-140 | 100 | 120 | 140 | -0.10/-0.30 | +0.071/+0.036 | +0.035/+0.013 | |
| 239 | 11013080 | JDB-110-130-80 | 110 | 130 | 80 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 240 | 110130100 | JDB-110-130-100 | 110 | 130 | 100 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 241 | 110130120 | JDB-110-130-120 | 110 | 130 | 120 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 242 | 110130130 | JDB-110-130-130 | 110 | 130 | 130 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 243 | 110130140 | JDB-110-130-140 | 110 | 130 | 140 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 244 | 12014080 | JDB-120-140-80 | 120 | 140 | 80 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 245 | 120140100 | JDB-120-140-100 | 120 | 140 | 100 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 246 | 120140120 | JDB-120-140-120 | 120 | 140 | 120 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 247 | 120140130 | JDB-120-140-130 | 120 | 140 | 130 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 248 | 120140140 | JDB-120-140-140 | 120 | 140 | 140 | -0.10/-0.30 | +0.071/+0.036 | +0.040/+0.015 | |
| 249 | 125145100 | JDB-125-145-100 | 125 | 145 | 100 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 250 | 125145120 | JDB-125-145-120 | 125 | 145 | 120 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 251 | 125145130 | JDB-125-145-130 | 125 | 145 | 130 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 252 | 125145140 | JDB-125-145-140 | 125 | 145 | 140 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 253 | 130150100 | JDB-130-150-100 | 130 | 150 | 100 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 254 | 130150120 | JDB-130-150-120 | 130 | 150 | 120 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 255 | 130150130 | JDB-130-150-130 | 130 | 150 | 130 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 256 | 130150140 | JDB-130-150-140 | 130 | 150 | 140 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 257 | 130150150 | JDB-130-150-150 | 130 | 150 | 150 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 258 | 140160100 | JDB-140-160-100 | 140 | 160 | 100 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 259 | 140160120 | JDB-140-160-120 | 140 | 160 | 120 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 260 | 140160130 | JDB-140-160-130 | 140 | 160 | 130 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 261 | 140160140 | JDB-140-160-140 | 140 | 160 | 140 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 262 | 140160150 | JDB-140-160-150 | 140 | 160 | 150 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 263 | 150170100 | JDB-150-170-100 | 150 | 170 | 100 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 264 | 150170120 | JDB-150-170-120 | 150 | 170 | 120 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 265 | 150170130 | JDB-150-170-130 | 150 | 170 | 130 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 266 | 150170140 | JDB-150-170-140 | 150 | 170 | 140 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 267 | 150170150 | JDB-150-170-150 | 150 | 170 | 150 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 268 | 160180100 | JDB-160-180-100 | 160 | 180 | 100 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 269 | 160180120 | JDB-160-180-120 | 160 | 180 | 120 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 270 | 160180130 | JDB-160-180-130 | 160 | 180 | 130 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 271 | 160180140 | JDB-160-180-140 | 160 | 180 | 140 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
| 272 | 160180150 | JDB-160-180-150 | 160 | 180 | 150 | -0.10/-0.30 | +0.083/+0.043 | +0.040/+0.015 | |
