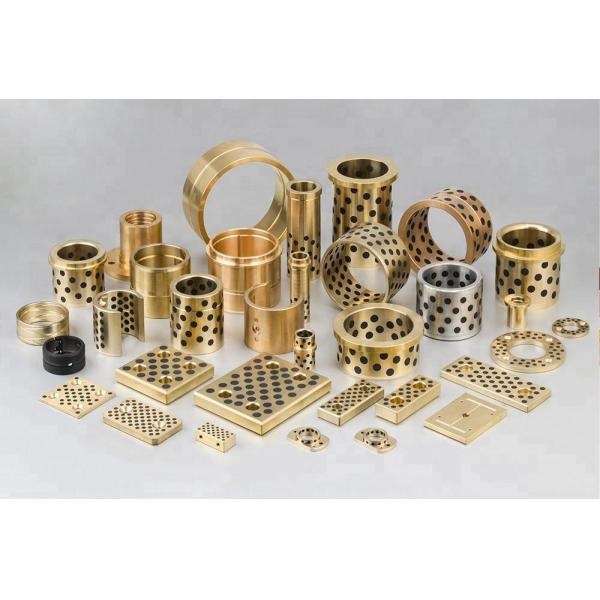

C86300 Manganese Bronze Flange Oilless Bushes with Graphite Plugs are mechanical components that are specifically designed to operate without the need for external lubrication. The C86300 manganese bronze material provides excellent strength, durability, and wear resistance, while the graphite plugs embedded within the bushing's inner lining act as a natural lubricant, reducing friction and ensuring smooth operation.

The flanged design of these bushings allows for easy installation and secure fitment within the application. The graphite plugs further enhance the bushings' performance by providing continuous lubrication and reducing the need for maintenance or replacement.

In applications where lubrication is not possible or desirable, C86300 Manganese Bronze Flange Oilless Bushes with Graphite Plugs offer a reliable and efficient solution. They are commonly used in industries such as steel production, mining, marine, and heavy machinery, where the bushings are subjected to high loads, high temperatures, and harsh environments.

When selecting C86300 Manganese Bronze Flange Oilless Bushes with Graphite Plugs, it is important to consider the specific requirements of your application, including the dimensions, load capacity, and operating conditions. It is also recommended to consult with a manufacturer or supplier to ensure that the bushings you select meet your needs and will perform optimally within your system.

Self lubricant, die components, precision mold components, Oilless Bronze bushing.

Guide bush with collar, Bronze with solid lubricant

Material: Bronze with solid lubricant, oilless lubricating Note: Assembly guide lines / Dimensional requirements and tolerances at the end of chapter D. Attention: Bushes can only be used with axial motion!

Plug graphite bearings are primarily used in applications that need continuallubrication in hard to reach areas. Graphite is mechanically forced

into the holes/grooves under extreme pressure. A film of lubricant is transferred to the shaft as it begins to turn. These bearings offer continuous lubrication over long periods without maintenance.

Characteristics

NAAMS self-lubricating guide sleeve type

At present, NC machining has been realized, and the machining accuracy and production technology have been stabilized and improved
NAAMS self-lubricating guide sleeve bushings, the product accuracy is reliable, the dimension is stable, may reduce the mold guide assembly time, and the mold manufacture expense!

Product features

1. Suitable for mold manufacturing industry, widely used.

2. High-quality brass and graphite are selected to greatly enhance the durability of guide sleeve in guiding performance and have a beautiful metallic luster.

3. After fine-tuning, its toughness, smoothness, and positioning performance are excellent.

4. High dimensional accuracy, stable quality, and complete specifications.

Oiless bush type Bushes | General Machinery | Products | Oilless Replacement Parts

Learn more about self-lubricating plastic plain bearings from www.bronzegleitlager.com, designed for maximum service life in extreme industrial conditions at a very low cost.

C-86200/C-86300 self-lubricating sleeve bearing Machining Casting on centrifugal C86300 Manganese Bronze Cast bronze bearings with solid graphite lubrication

Copper Sleeve and Bearings

Faster

Better

Safer

Manganese Bronze with Graphite Plugs Inch Size C86300

Engineered for a Longer More Reliable Service Life

Material Grade: C-86200 or C-86300
Terms-
· Dimensional inspection report.
· Test certificate for mechanical properties (including hardness and density) of material.

Bronze can operate at high speeds under heavy loads, but require high shaft hardness and nonabrasive operating conditions. This alloy has excellent mechanical qualities and good corrosion resistance. This alloy is compromised of copper, manganese, aluminum and iron. This combination raises the tensile strength.

Self-lubricating sleeve bearing for Hydro Mechanical Equipments

Radial gates, Vertical gates, Stop logs, Penstock steel Liners, Mechanical Hoists, Hydraulic Hoists, Instrumentations, Gantry Cranes, Overhead Cranes, Reservoir Management Services with applications in...
Ware Storage
Flood Control
Hydro Electric Power Generation
Irrigation

Casting Copper Alloy

Type:Lead Free Brass

self-lubricating sleeve bearing Oil-Less Type Bushings

Graphited self-lubricating sleeve bearing should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.

Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

• Inch Sleeves
• Metric Sleeves
• Metric Flanges
• Metric Washers

Solid self-lubricating sleeve bearing with graphite plug insert | Graphite copper sleeve bushings

Graphite Plugged Bronze Bushings are all self-lubricating and maintenance-free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A self-lubricating sleeve bearing and its mating surface should always be separated by a film of lubricant. Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom-thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom-thick sheets are very slippery.

• Wear Plates
• Wear Strips
• Bushings
• Slide Assemblies
• Guide Components

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite self-lubricating sleeve bearing

• Inch Sized Bushings
• Metric Sized Bushings

Technical Data

Applications

Self-Lubricating Sleeve Bearing For Construction Equipment, Boom Link Bushings For Power Shovels, Toggle Link & Guide Bushings For Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire, And Paper Mill Machinery And Many Other Industrial Applications.

Material
C86300 Manganese Bronze

C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat-treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.

self-lubricating sleeve bearing flanged bronze bushings for sale

Performance

Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating sleeve bearing feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

self-lubricating sleeve bearing with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2
