Specifications
Get A Better Quote :
tiffany@viiplus.com
Bushing Manufacturer :
wrapped bronze bushings are particu- larly well suited for applications where high levels of contamination make relubrication necessary .
Bushing Meterial :
Wrapped bushing, Bronze CuSn8P,alternative CuSn6P available
Type :
bushes, collar bushes, washers, strips or special designs
Bushing Type :
The sliding surface of cusn8 wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease .
Bushings Size :
standard size available
Bronze Bushing manufacturers & suppliers :
https://www.viiplus.com/
Characteristic :
Low-maintenance and maintenance-free plain bearings
High Light: :
CuSn8P (DIN 17662) Bronze Bushing Sliding bearing
Brand Name :
viiplus.com
Model Number :
Low Friction Bushing standard split gap Bushes MET
Certification :
Wrapped Bronze Bearings Metric Size
Place of Origin :
OILLESS BUSHES
MOQ :
500 Piece/Pieces (Min. Order)
Price :
Oilless Bushes Factory Price
Payment Terms :
T/T PREPARD, T/T
Supply Ability :
Perforated Bronze Bearing，Plain Bronze Wrapped Bearings
Delivery Time :
2~4 Weeks
Packaging Details :
STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
BUSHINGS TOLERANCE :
Housing ØH7Bushing inner-Ø after mountingH9Shaft tolerancef7 to h8
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
specialty :
Бронзовые втулки
Description

Wrapped Bronze Bearings, featuring a CuSn8P collar and diamond lubrication indents, are precision-engineered components designed to offer exceptional performance in high-load and high-speed applications. Constructed from high-quality bronze material, these bearings exhibit superior wear resistance, corrosion resistance, and mechanical strength.

The wrapped design of these bearings provides additional support and stability, ensuring a secure and stable fit within the housing. This design also enhances the bearings' ability to withstand deformation and damage, even under extreme conditions.

The CuSn8P collar, with its unique composition, offers superior strength and hardness, making it ideal for use in high-stress areas. This collar also contributes to the bearings' overall durability and reliability.

The diamond lubrication indents are a key feature of these bearings. These precision-formed indents act as reservoirs for lubrication oil or grease, ensuring a continuous and even supply of lubrication to the contact surfaces. This lubrication significantly reduces friction and wear, extending the bearings' lifespan and improving their performance.

The combination of the wrapped design, CuSn8P collar, and diamond lubrication indents results in bearings that are not only durable but also highly efficient. These bearings are an excellent choice for reducing friction, wear, and downtime in various industrial applications, including heavy machinery, motor vehicles, and other mechanical systems.

FB090 Wrapped Bronze Bearing CuSn8P with Diamond Oil Grooves

Bronze Wrapped Plain Bearings | Metric Wrapped Bronze Bearing

Wrapped bushes with grease pockets, Wrapped Bronze Bushes at Best Price.

Wrapped Bronze Bushes, Dry Bush, Dry Washer, Manufacturer

Wrapped / Homogeneous Bronze Bushes, Bushes, Wrapped bushes with grease pockets, CuSn 8 bronze material according to DIN 17662

Bronze bushing Flange F090 ID40 OD 44 L40F55.pdf

The wrapped bronze bearings are made entirely of CuSn8 phosphor bronze. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. The wrapped bronze bearings are produced from strips that are then packaged and calibrated.

These wrapped bronze bearings have been developed for low speed, high load applications, particularly suitable for oscillating movement and are perfect for the construction, mining quarry, agriculture, and automotive industries.
Our range of Viiplus bronze wrapped plain bearings is available with lubrication pockets, through holes and grooves. This range is only available in metric sizes.
Our internal processing service is able to produce non-standard sizes to meet the specific needs of customers.
Wrapped Bronze bearings wrapped during assembly should be lubricated with grease or oil. Good quality grease is essential because it will reduce friction and wear, forming a layer between the slide bearing and shaft. For heavily contaminated applications, we recommend sealing the bearing. This protects both the Wrapped Bronze Bearing and the grease.
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents

Wrapped bronze bushes are ideal for applications involving rotation and oscillation. With low wear and excellent corrosion- and water-resistance.

Diamond oil holes CuSn6.5P0.1 or CuSn8P0.3 Bronze Bushings Material Split Gap​ made to order from china FB090 Tinapronssi 200100 Liukulaakeri

Bronze Pivot Bushes 800 series Plain Bushes Split Type with diamond indentation grease pockets

Standard Bushings - Inch Standard Bushings - Metric Made to Order / Custom Bushings

090 Wrapped Bronze Bearing is a standard item of our company. This type wrapped bronze bearing is made of specially formulated high-density bronze alloy.


The wrapped bronze bearing sleeve is made of CuSn6.5P0.1 or cusn8p0.3 bronze, which is an economical Wrapped Bronze Bearing with high bearing capacity and good wear resistance. The working surface of standard FB090 Wrapped Bronze Bearing products is covered with regular diamond oil holes, which can store oil and easily form an oil film

at the beginning of the movement, thus reducing the initial friction coefficient.

Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication IndentsWrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents

Bushings Tolerance

  • Housing ØH7
  • Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8

Mating Material

surface roughness Ra = 0,4 μm
minimum hardness > 200 HB

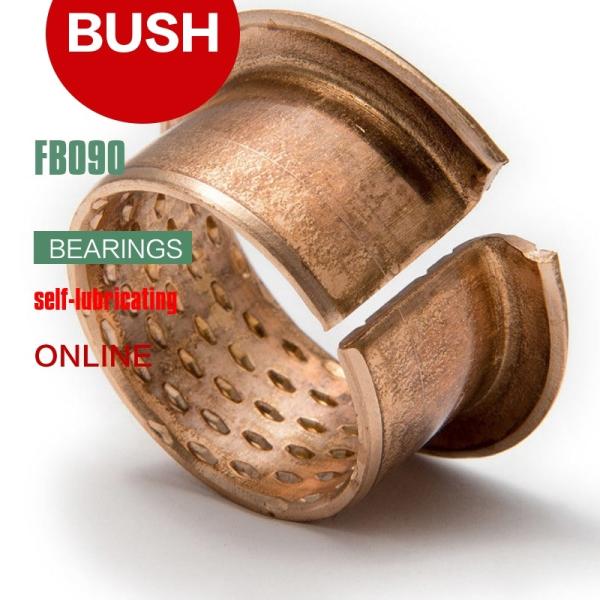

FB090 Wrapped Bronze Bearing Features

090/092 copper rolling Wrapped Bronze Bearing is an economical rolling bearing with high bearing capacity and good wear resistance, which is made of CuSn8 or CuSn6.5P0.1 copper sheet as the base material and rolled. The rhomboid oil holes, which are regularly arranged on the surface of the rolling mill, can be coated with oil during installation and play the role of oil storage. This Wrapped Bronze Bearing product is widely used in agricultural machinery, construction machinery, mining machinery, and so on.

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

material Cu Sn P
CuSn8P0.3 91.3 8.5 0.3

Sliding elements are made of solid tin bronze (CuSn8) with diamond-shaped lubrication pockets that serve as a reservoir for lubrication.

Material: CuSn6.5

Wrapped Bronze Bearings are wrapped with cold-formed homogeneous bronze (CuSn6.5) with exceptional material properties.
Standard sizes are equipped with diamond lubrication grooves on the Wrapped Bronze Bearing surface.
These cavities serve as lubricant reservoirs to quickly form a lubricating film at the beginning of the movement and then reduce operating friction.
The material is suitable for use in construction and agricultural machinery.

090 Material Characteristics

Max. Load Capacity
Static Load N/mm2 120
Dynamic Load N/mm2 40
Max. Speed
090 m/s 2.0
Max. PV Value N/mm2 · m/s 2.8
Tensile Strength N/mm2 · m/s 450
Yield Point N/mm2 · m/s 250
Hardness HB 90-120
Elongation 40%
Coefficient of Friction μ 0.08~0.25
Operation Temperature Range ℃ -100~200
Operation Temperature Range W/(m · k) 60
Coefficient of Thermal Expansion k-1 15×10-6

Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents

Physical and Mechanical Properties

Value Unit
Density 8.9g cm3
Operating Temperature -80~+200 C
Hardness 90-120 HB
Load capacity 75 N/mm2
Maximum Speed 2.5 m/s

Advantages

The main advantages of wrapped bronze bearings include:
·Long maintenance intervals

·Not affected by impurities

·Suitable for corrosive environments

·Suitable for shock loads and vibrations at low speeds

·Good heat dissipation

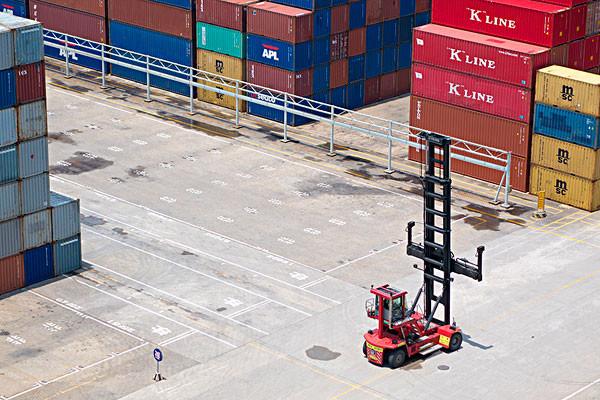

Application

Wrapped bronze bearings are particularly suitable for harsh operating conditions where frequent maintenance is not possible. Typical applications are:
·Agricultural vehicles

·Lifting equipment

·Offshore

·Excavators

Availability

A standard cylindrical bush is available.
Special designs are produced according to your needs.

Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents

Technical Data

Standard Diameter O.D.Size Matching Seat Hole Housing Bore I.D.Size Matching Shaft Diameter
10~18 +0.065
+0.030		 +0.018
0		 +0.046
0		 - 0.016
- 0.043
18~30 +0.075
+0.035		 +0.021
0		 +0.052
0		 - 0.020
- 0.020
30~50 +0.085
+0.045		 +0.025
0		 +0.062
0		 - 0.025
- 0.064
50~80 +0.100
+0.055		 +0.030
0		 +0.074
0		 - 0.030
- 0.076
80~120 +0.120
+0.070		 +0.035
0		 +0.087
0		 - 0.036
- 0.090
120~180 +0.170
+0.100		 +0.400
0		 +0.100
0		 - 0.043
- 0.106
180~250 +0.210
+0.130		 +0.046
0		 +0.115
0		 - 0.050
- 0.122
250~315 +0.260
+0.170		 +0.052
0		 +0.130
0		 - 0.056
- 0.137

FB090 Bronze Bushings Size Table

d
D
f1
f2
L 0
-0.40
10
15
20
25
30
35
40
50
60
70
80
90
100
10
12
0.5
0.3

1010

1015
1020
12
14
1210

1215

1220
14
16

1410

1415

1420

1425
15
17
1510

1515

1520

1525
16
18
1610

1615

1620

1625
18
20
1810

1815

1820

1825
20
23
0.8
0.4
2010

2015

2020

2025
22
25
2210

2215

2220

2225

2230
24
27

2415

2420

2425

2430
25
28

2515
2520

2525
2530
28
31

2815

2820

2825
2830
30
34
1.0
0.6
3015
3020

3025

3030

3035
3040
32
36
3215

3220

3225

3230
3235

3240
35
39

3515

3520

3025

3530

3535

3540
40
44
4020

4025
4030

4035

4040

4050
45
50
1.2
0.8

4520

4525
4530

4535

4540

4550
50
55

5020

5025
5030

5035

5040

5050

5060
55
60

5520

5525

5530
5535

5540

5550
5560
60
65

6025

6030

6035

6040

6050

6060

6070
65
70
6530

6535

6540

6550

6560

6570
70
75
7030

7035

7040

7050

7060

7070

7080
75
80

7530

7535

7540

7550
7560

7570

7580
80
85
1.4
0.8

8030

8035

8040

8050

8060

8070

8080
85
90
8530

8535

8540

8550

8560

8570

8580
8590
90
95
9030
9035

9040

9050

9060

9070

9080

9090
95
100

9540

9550

9560

9570

9580

9590
95100
100
105

10050
10060

10070
10080

10090

100100
105
110

10550
10560

10570

10580

10590

105100
110
115

11050
11060

11070

11080

11090

110100
d
D
f1
f2
L 0
-0.40
25
30
35
40
50
60
70
80
90
100
115
120
1.4
0.8
11550

11560

11570

11580
11590

115110
120
125
12060

12070

12080
12090
120110
125
130
12560
12570
12580
12590
125110
130
135
13060
13070

13080
13090
130110
135
140
13560
13570
13580
13590
135110
140
145
14060
14070
14080
14090

140110
145
150
14560
14570
14580
14590
145110
150
155
15060

15070
15080
15090
150110
155
160

15560

15570

15580
15590
155110
160
165
16060

16070
16080

16090
160110
165
170

16560
16570
16580
16590
165110
170
175
17060
17070
17080

17090

170110
175
180
17560

17570
17580

17590

175110
180
185
18060
18070

18080

18090
180110
185
190
18560
18570
18580

18590
185110
190
195
19060
19070
19080

19090
190110
195
200
19560

19570
19580

19590
195110
200
205
20060
20070
20080

20090
200110

VIIPLUS Provide all types of electronic samples for customers, Metal-Polymer Composite Bearings Catalog!

Bushings, Lubricated Bearings, Composite Bearings, Metal Bearings, Compressor Bearings, Metal-polymer, Filament Wound, Plain Bearings, Flange Bearings, Polymer Bearings, Flange Bushings, Pump Bearings, Flanged Bushes, Thrust Plates, Industrial Bearings

VIIPLUS Wrapped bronze bushes are widely used in all industrial fields

Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery,

etc.

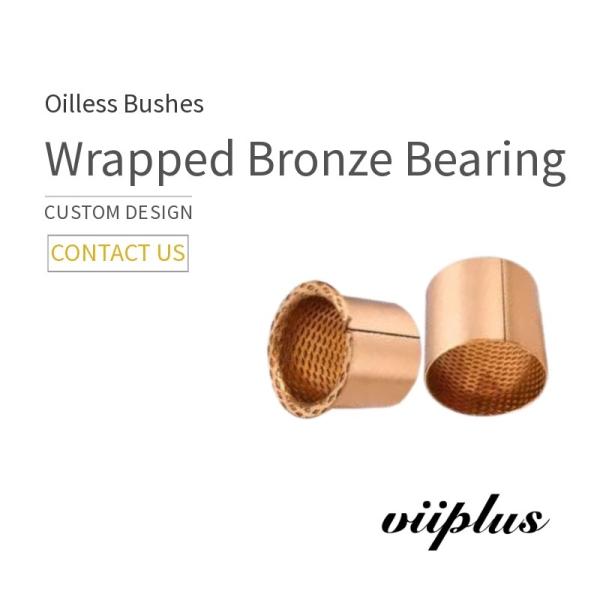

Plain Bushing Wrapped Bronze Sliding Bearing Dimensions Catalog — Part Number (with Flange Bushing Dimensions)
Item FB090 Series Part No. Material FB092 Series Part No. Material Designation (bore×outer) L (mm) Flange Ø (mm)
Plain Bearing FB090-1010 CuSn8 wrapped bush with grease pockets FB092-1010 CuSn8 wrapped bush with lubricating holes 10×12 10
Plain Bearing FB090-1015 CuSn8 wrapped bush with grease pockets FB092-1015 CuSn8 wrapped bush with lubricating holes 10×12 15
Plain Bearing FB090-1020 CuSn8 wrapped bush with grease pockets FB092-1020 CuSn8 wrapped bush with lubricating holes 10×12 20
Plain Bearing FB090-1210 CuSn8 wrapped bush with grease pockets FB092-1210 CuSn8 wrapped bush with lubricating holes 12×14 10
Plain Bearing FB090-1215 CuSn8 wrapped bush with grease pockets FB092-1215 CuSn8 wrapped bush with lubricating holes 12×14 15
Plain Bearing FB090-1220 CuSn8 wrapped bush with grease pockets FB092-1220 CuSn8 wrapped bush with lubricating holes 12×14 20
Plain Bearing FB090-1410 CuSn8 wrapped bush with grease pockets FB092-1410 CuSn8 wrapped bush with lubricating holes 14×16 10
Plain Bearing FB090-1415 CuSn8 wrapped bush with grease pockets FB092-1415 CuSn8 wrapped bush with lubricating holes 14×16 15
Plain Bearing FB090-1420 CuSn8 wrapped bush with grease pockets FB092-1420 CuSn8 wrapped bush with lubricating holes 14×16 20
Plain Bearing FB090-1425 CuSn8 wrapped bush with grease pockets FB092-1425 CuSn8 wrapped bush with lubricating holes 14×16 25
Plain Bearing FB090-1510 CuSn8 wrapped bush with grease pockets FB092-1510 CuSn8 wrapped bush with lubricating holes 15×17 10
Plain Bearing FB090-1515 CuSn8 wrapped bush with grease pockets FB092-1515 CuSn8 wrapped bush with lubricating holes 15×17 15
Plain Bearing FB090-1520 CuSn8 wrapped bush with grease pockets FB092-1520 CuSn8 wrapped bush with lubricating holes 15×17 20
Plain Bearing FB090-1525 CuSn8 wrapped bush with grease pockets FB092-1525 CuSn8 wrapped bush with lubricating holes 15×17 25
Plain Bearing FB090-1610 CuSn8 wrapped bush with grease pockets FB092-1610 CuSn8 wrapped bush with lubricating holes 16×18 10
Plain Bearing FB090-1615 CuSn8 wrapped bush with grease pockets FB092-1615 CuSn8 wrapped bush with lubricating holes 16×18 15
Plain Bearing FB090-1620 CuSn8 wrapped bush with grease pockets FB092-1620 CuSn8 wrapped bush with lubricating holes 16×18 20
Plain Bearing FB090-1625 CuSn8 wrapped bush with grease pockets FB092-1625 CuSn8 wrapped bush with lubricating holes 16×18 25
Plain Bearing FB090-1810 CuSn8 wrapped bush with grease pockets FB092-1810 CuSn8 wrapped bush with lubricating holes 18×20 10
Plain Bearing FB090-1815 CuSn8 wrapped bush with grease pockets FB092-1815 CuSn8 wrapped bush with lubricating holes 18×20 15
Plain Bearing FB090-1820 CuSn8 wrapped bush with grease pockets FB092-1820 CuSn8 wrapped bush with lubricating holes 18×20 20
Plain Bearing FB090-1825 CuSn8 wrapped bush with grease pockets FB092-1825 CuSn8 wrapped bush with lubricating holes 18×20 25
Plain Bearing FB090-2010 CuSn8 wrapped bush with grease pockets FB092-2010 CuSn8 wrapped bush with lubricating holes 20×23 10
Plain Bearing FB090-2015 CuSn8 wrapped bush with grease pockets FB092-2015 CuSn8 wrapped bush with lubricating holes 20×23 15
Plain Bearing FB090-2020 CuSn8 wrapped bush with grease pockets FB092-2020 CuSn8 wrapped bush with lubricating holes 20×23 20
Plain Bearing FB090-2025 CuSn8 wrapped bush with grease pockets FB092-2025 CuSn8 wrapped bush with lubricating holes 20×23 25
Plain Bearing FB090-2210 CuSn8 wrapped bush with grease pockets FB092-2210 CuSn8 wrapped bush with lubricating holes 22×25 10
Plain Bearing FB090-2215 CuSn8 wrapped bush with grease pockets FB092-2215 CuSn8 wrapped bush with lubricating holes 22×25 15
Plain Bearing FB090-2220 CuSn8 wrapped bush with grease pockets FB092-2220 CuSn8 wrapped bush with lubricating holes 22×25 20
Plain Bearing FB090-2225 CuSn8 wrapped bush with grease pockets FB092-2225 CuSn8 wrapped bush with lubricating holes 22×25 25
Plain Bearing FB090-2230 CuSn8 wrapped bush with grease pockets FB092-2230 CuSn8 wrapped bush with lubricating holes 22×25 30
Plain Bearing FB090-2415 CuSn8 wrapped bush with grease pockets FB092-2415 CuSn8 wrapped bush with lubricating holes 24×27 15
Plain Bearing FB090-2420 CuSn8 wrapped bush with grease pockets FB092-2420 CuSn8 wrapped bush with lubricating holes 24×27 20
Plain Bearing FB090-2425 CuSn8 wrapped bush with grease pockets FB092-2425 CuSn8 wrapped bush with lubricating holes 24×27 25
Plain Bearing FB090-2430 CuSn8 wrapped bush with grease pockets FB092-2430 CuSn8 wrapped bush with lubricating holes 24×27 30
Plain Bearing FB090-2515 CuSn8 wrapped bush with grease pockets FB092-2515 CuSn8 wrapped bush with lubricating holes 25×28 15
Plain Bearing FB090-2520 CuSn8 wrapped bush with grease pockets FB092-2520 CuSn8 wrapped bush with lubricating holes 25×28 20
Plain Bearing FB090-2525 CuSn8 wrapped bush with grease pockets FB092-2525 CuSn8 wrapped bush with lubricating holes 25×28 25
Plain Bearing FB090-2530 CuSn8 wrapped bush with grease pockets FB092-2530 CuSn8 wrapped bush with lubricating holes 25×28 30
Plain Bearing FB090-2815 CuSn8 wrapped bush with grease pockets FB092-2815 CuSn8 wrapped bush with lubricating holes 28×31 15
Plain Bearing FB090-2820 CuSn8 wrapped bush with grease pockets FB092-2820 CuSn8 wrapped bush with lubricating holes 28×31 20
Plain Bearing FB090-2825 CuSn8 wrapped bush with grease pockets FB092-2825 CuSn8 wrapped bush with lubricating holes 28×31 25
Plain Bearing FB090-2830 CuSn8 wrapped bush with grease pockets FB092-2830 CuSn8 wrapped bush with lubricating holes 28×31 30
Plain Bearing FB090-3015 CuSn8 wrapped bush with grease pockets FB092-3015 CuSn8 wrapped bush with lubricating holes 30×34 15
Plain Bearing FB090-3020 CuSn8 wrapped bush with grease pockets FB092-3020 CuSn8 wrapped bush with lubricating holes 30×34 20
Plain Bearing FB090-3025 CuSn8 wrapped bush with grease pockets FB092-3025 CuSn8 wrapped bush with lubricating holes 30×34 25
Plain Bearing FB090-3030 CuSn8 wrapped bush with grease pockets FB092-3030 CuSn8 wrapped bush with lubricating holes 30×34 30
Plain Bearing FB090-3035 CuSn8 wrapped bush with grease pockets FB092-3035 CuSn8 wrapped bush with lubricating holes 30×34 35
Plain Bearing FB090-3040 CuSn8 wrapped bush with grease pockets FB092-3040 CuSn8 wrapped bush with lubricating holes 30×34 40
Plain Bearing FB090-3215 CuSn8 wrapped bush with grease pockets FB092-3215 CuSn8 wrapped bush with lubricating holes 32×36 15
Plain Bearing FB090-3220 CuSn8 wrapped bush with grease pockets FB092-3220 CuSn8 wrapped bush with lubricating holes 32×36 20
Plain Bearing FB090-3225 CuSn8 wrapped bush with grease pockets FB092-3225 CuSn8 wrapped bush with lubricating holes 32×36 25
Plain Bearing FB090-3230 CuSn8 wrapped bush with grease pockets FB092-3230 CuSn8 wrapped bush with lubricating holes 32×36 30
Plain Bearing FB090-3235 CuSn8 wrapped bush with grease pockets FB092-3235 CuSn8 wrapped bush with lubricating holes 32×36 35
Plain Bearing FB090-3240 CuSn8 wrapped bush with grease pockets FB092-3240 CuSn8 wrapped bush with lubricating holes 32×36 40
Plain Bearing FB090-3515 CuSn8 wrapped bush with grease pockets FB092-3515 CuSn8 wrapped bush with lubricating holes 35×39 15
Plain Bearing FB090-3520 CuSn8 wrapped bush with grease pockets FB092-3520 CuSn8 wrapped bush with lubricating holes 35×39 20
Plain Bearing FB090-3525 CuSn8 wrapped bush with grease pockets FB092-3525 CuSn8 wrapped bush with lubricating holes 35×39 25
Plain Bearing FB090-3530 CuSn8 wrapped bush with grease pockets FB092-3530 CuSn8 wrapped bush with lubricating holes 35×39 30
Plain Bearing FB090-3535 CuSn8 wrapped bush with grease pockets FB092-3535 CuSn8 wrapped bush with lubricating holes 35×39 35
Plain Bearing FB090-3540 CuSn8 wrapped bush with grease pockets FB092-3540 CuSn8 wrapped bush with lubricating holes 35×39 40
Plain Bearing FB090-4020 CuSn8 wrapped bush with grease pockets FB092-4020 CuSn8 wrapped bush with lubricating holes 40×44 20
Plain Bearing FB090-4025 CuSn8 wrapped bush with grease pockets FB092-4025 CuSn8 wrapped bush with lubricating holes 40×44 25
Plain Bearing FB090-4030 CuSn8 wrapped bush with grease pockets FB092-4030 CuSn8 wrapped bush with lubricating holes 40×44 30
Plain Bearing FB090-4035 CuSn8 wrapped bush with grease pockets FB092-4035 CuSn8 wrapped bush with lubricating holes 40×44 35
Plain Bearing FB090-4040 CuSn8 wrapped bush with grease pockets FB092-4040 CuSn8 wrapped bush with lubricating holes 40×44 40
Plain Bearing FB090-4050 CuSn8 wrapped bush with grease pockets FB092-4050 CuSn8 wrapped bush with lubricating holes 40×44 50
Plain Bearing FB090-4520 CuSn8 wrapped bush with grease pockets FB092-4520 CuSn8 wrapped bush with lubricating holes 45×50 20
Plain Bearing FB090-4525 CuSn8 wrapped bush with grease pockets FB092-4525 CuSn8 wrapped bush with lubricating holes 45×50 25
Plain Bearing FB090-4530 CuSn8 wrapped bush with grease pockets FB092-4530 CuSn8 wrapped bush with lubricating holes 45×50 30
Plain Bearing FB090-4535 CuSn8 wrapped bush with grease pockets FB092-4535 CuSn8 wrapped bush with lubricating holes 45×50 35
Plain Bearing FB090-4540 CuSn8 wrapped bush with grease pockets FB092-4540 CuSn8 wrapped bush with lubricating holes 45×50 40
Plain Bearing FB090-4550 CuSn8 wrapped bush with grease pockets FB092-4550 CuSn8 wrapped bush with lubricating holes 45×50 50
Plain Bearing FB090-5020 CuSn8 wrapped bush with grease pockets FB092-5020 CuSn8 wrapped bush with lubricating holes 50×55 20
Plain Bearing FB090-5025 CuSn8 wrapped bush with grease pockets FB092-5025 CuSn8 wrapped bush with lubricating holes 50×55 25
Plain Bearing FB090-5030 CuSn8 wrapped bush with grease pockets FB092-5030 CuSn8 wrapped bush with lubricating holes 50×55 30
Plain Bearing FB090-5035 CuSn8 wrapped bush with grease pockets FB092-5035 CuSn8 wrapped bush with lubricating holes 50×55 35
Plain Bearing FB090-5040 CuSn8 wrapped bush with grease pockets FB092-5040 CuSn8 wrapped bush with lubricating holes 50×55 40
Plain Bearing FB090-5050 CuSn8 wrapped bush with grease pockets FB092-5050 CuSn8 wrapped bush with lubricating holes 50×55 50
Plain Bearing FB090-5060 CuSn8 wrapped bush with grease pockets FB092-5060 CuSn8 wrapped bush with lubricating holes 50×55 60
Plain Bearing FB090-5520 CuSn8 wrapped bush with grease pockets FB092-5520 CuSn8 wrapped bush with lubricating holes 55×60 20
Plain Bearing FB090-5525 CuSn8 wrapped bush with grease pockets FB092-5525 CuSn8 wrapped bush with lubricating holes 55×60 25
Plain Bearing FB090-5530 CuSn8 wrapped bush with grease pockets FB092-5530 CuSn8 wrapped bush with lubricating holes 55×60 30
Plain Bearing FB090-5535 CuSn8 wrapped bush with grease pockets FB092-5535 CuSn8 wrapped bush with lubricating holes 55×60 35
Plain Bearing FB090-5540 CuSn8 wrapped bush with grease pockets FB092-5540 CuSn8 wrapped bush with lubricating holes 55×60 40
Plain Bearing FB090-5550 CuSn8 wrapped bush with grease pockets FB092-5550 CuSn8 wrapped bush with lubricating holes 55×60 50
Plain Bearing FB090-5560 CuSn8 wrapped bush with grease pockets FB092-5560 CuSn8 wrapped bush with lubricating holes 55×60 60
Plain Bearing FB090-6025 CuSn8 wrapped bush with grease pockets FB092-6025 CuSn8 wrapped bush with lubricating holes 60×65 25
Plain Bearing FB090-6030 CuSn8 wrapped bush with grease pockets FB092-6030 CuSn8 wrapped bush with lubricating holes 60×65 30
Plain Bearing FB090-6035 CuSn8 wrapped bush with grease pockets FB092-6035 CuSn8 wrapped bush with lubricating holes 60×65 35
Plain Bearing FB090-6040 CuSn8 wrapped bush with grease pockets FB092-6040 CuSn8 wrapped bush with lubricating holes 60×65 40
Plain Bearing FB090-6050 CuSn8 wrapped bush with grease pockets FB092-6050 CuSn8 wrapped bush with lubricating holes 60×65 50
Plain Bearing FB090-6060 CuSn8 wrapped bush with grease pockets FB092-6060 CuSn8 wrapped bush with lubricating holes 60×65 60
Plain Bearing FB090-6070 CuSn8 wrapped bush with grease pockets FB092-6070 CuSn8 wrapped bush with lubricating holes 60×65 70
Plain Bearing FB090-6530 CuSn8 wrapped bush with grease pockets FB092-6530 CuSn8 wrapped bush with lubricating holes 65×70 30
Plain Bearing FB090-6535 CuSn8 wrapped bush with grease pockets FB092-6535 CuSn8 wrapped bush with lubricating holes 65×70 35
Plain Bearing FB090-6540 CuSn8 wrapped bush with grease pockets FB092-6540 CuSn8 wrapped bush with lubricating holes 65×70 40
Plain Bearing FB090-6550 CuSn8 wrapped bush with grease pockets FB092-6550 CuSn8 wrapped bush with lubricating holes 65×70 50
Plain Bearing FB090-6560 CuSn8 wrapped bush with grease pockets FB092-6560 CuSn8 wrapped bush with lubricating holes 65×70 60
Plain Bearing FB090-6570 CuSn8 wrapped bush with grease pockets FB092-6570 CuSn8 wrapped bush with lubricating holes 65×70 70
Plain Bearing FB090-7030 CuSn8 wrapped bush with grease pockets FB092-7030 CuSn8 wrapped bush with lubricating holes 70×75 30
Plain Bearing FB090-7035 CuSn8 wrapped bush with grease pockets FB092-7035 CuSn8 wrapped bush with lubricating holes 70×75 35
Plain Bearing FB090-7040 CuSn8 wrapped bush with grease pockets FB092-7040 CuSn8 wrapped bush with lubricating holes 70×75 40
Plain Bearing FB090-7050 CuSn8 wrapped bush with grease pockets FB092-7050 CuSn8 wrapped bush with lubricating holes 70×75 50
Plain Bearing FB090-7060 CuSn8 wrapped bush with grease pockets FB092-7060 CuSn8 wrapped bush with lubricating holes 70×75 60
Plain Bearing FB090-7070 CuSn8 wrapped bush with grease pockets FB092-7070 CuSn8 wrapped bush with lubricating holes 70×75 70
Plain Bearing FB090-7080 CuSn8 wrapped bush with grease pockets FB092-7080 CuSn8 wrapped bush with lubricating holes 70×75 80
Plain Bearing FB090-7530 CuSn8 wrapped bush with grease pockets FB092-7530 CuSn8 wrapped bush with lubricating holes 75×80 30
Plain Bearing FB090-7535 CuSn8 wrapped bush with grease pockets FB092-7535 CuSn8 wrapped bush with lubricating holes 75×80 35
Plain Bearing FB090-7540 CuSn8 wrapped bush with grease pockets FB092-7540 CuSn8 wrapped bush with lubricating holes 75×80 40
Plain Bearing FB090-7550 CuSn8 wrapped bush with grease pockets FB092-7550 CuSn8 wrapped bush with lubricating holes 75×80 50
Plain Bearing FB090-7560 CuSn8 wrapped bush with grease pockets FB092-7560 CuSn8 wrapped bush with lubricating holes 75×80 60
Plain Bearing FB090-7570 CuSn8 wrapped bush with grease pockets FB092-7570 CuSn8 wrapped bush with lubricating holes 75×80 70
Plain Bearing FB090-7580 CuSn8 wrapped bush with grease pockets FB092-7580 CuSn8 wrapped bush with lubricating holes 75×80 80
Plain Bearing FB090-8030 CuSn8 wrapped bush with grease pockets FB092-8030 CuSn8 wrapped bush with lubricating holes 80×85 30
Plain Bearing FB090-8035 CuSn8 wrapped bush with grease pockets FB092-8035 CuSn8 wrapped bush with lubricating holes 80×85 35
Plain Bearing FB090-8040 CuSn8 wrapped bush with grease pockets FB092-8040 CuSn8 wrapped bush with lubricating holes 80×85 40
Plain Bearing FB090-8050 CuSn8 wrapped bush with grease pockets FB092-8050 CuSn8 wrapped bush with lubricating holes 80×85 50
Plain Bearing FB090-8060 CuSn8 wrapped bush with grease pockets FB092-8060 CuSn8 wrapped bush with lubricating holes 80×85 60
Plain Bearing FB090-8070 CuSn8 wrapped bush with grease pockets FB092-8070 CuSn8 wrapped bush with lubricating holes 80×85 70
Plain Bearing FB090-8080 CuSn8 wrapped bush with grease pockets FB092-8080 CuSn8 wrapped bush with lubricating holes 80×85 80
Plain Bearing FB090-8530 CuSn8 wrapped bush with grease pockets FB092-8530 CuSn8 wrapped bush with lubricating holes 85×90 30
Plain Bearing FB090-8535 CuSn8 wrapped bush with grease pockets FB092-8535 CuSn8 wrapped bush with lubricating holes 85×90 35
Plain Bearing FB090-8540 CuSn8 wrapped bush with grease pockets FB092-8540 CuSn8 wrapped bush with lubricating holes 85×90 40
Plain Bearing FB090-8550 CuSn8 wrapped bush with grease pockets FB092-8550 CuSn8 wrapped bush with lubricating holes 85×90 50
Plain Bearing FB090-8560 CuSn8 wrapped bush with grease pockets FB092-8560 CuSn8 wrapped bush with lubricating holes 85×90 60
Plain Bearing FB090-8570 CuSn8 wrapped bush with grease pockets FB092-8570 CuSn8 wrapped bush with lubricating holes 85×90 70
Plain Bearing FB090-8580 CuSn8 wrapped bush with grease pockets FB092-8580 CuSn8 wrapped bush with lubricating holes 85×90 80
Plain Bearing FB090-8590 CuSn8 wrapped bush with grease pockets FB092-8590 CuSn8 wrapped bush with lubricating holes 85×90 90
Plain Bearing FB090-9030 CuSn8 wrapped bush with grease pockets FB092-9030 CuSn8 wrapped bush with lubricating holes 90×95 30
Plain Bearing FB090-9035 CuSn8 wrapped bush with grease pockets FB092-9035 CuSn8 wrapped bush with lubricating holes 90×95 35
Plain Bearing FB090-9040 CuSn8 wrapped bush with grease pockets FB092-9040 CuSn8 wrapped bush with lubricating holes 90×95 40
Plain Bearing FB090-9050 CuSn8 wrapped bush with grease pockets FB092-9050 CuSn8 wrapped bush with lubricating holes 90×95 50
Plain Bearing FB090-9060 CuSn8 wrapped bush with grease pockets FB092-9060 CuSn8 wrapped bush with lubricating holes 90×95 60
Plain Bearing FB090-9070 CuSn8 wrapped bush with grease pockets FB092-9070 CuSn8 wrapped bush with lubricating holes 90×95 70
Plain Bearing FB090-9080 CuSn8 wrapped bush with grease pockets FB092-9080 CuSn8 wrapped bush with lubricating holes 90×95 80
Plain Bearing FB090-9090 CuSn8 wrapped bush with grease pockets FB092-9090 CuSn8 wrapped bush with lubricating holes 90×95 90
Plain Bearing FB090-95100 CuSn8 wrapped bush with grease pockets FB092-95100 CuSn8 wrapped bush with lubricating holes 95×100 100
Plain Bearing FB090-9540 CuSn8 wrapped bush with grease pockets FB092-9540 CuSn8 wrapped bush with lubricating holes 95×100 40
Plain Bearing FB090-9550 CuSn8 wrapped bush with grease pockets FB092-9550 CuSn8 wrapped bush with lubricating holes 95×100 50
Plain Bearing FB090-9560 CuSn8 wrapped bush with grease pockets FB092-9560 CuSn8 wrapped bush with lubricating holes 95×100 60
Plain Bearing FB090-9570 CuSn8 wrapped bush with grease pockets FB092-9570 CuSn8 wrapped bush with lubricating holes 95×100 70
Plain Bearing FB090-9580 CuSn8 wrapped bush with grease pockets FB092-9580 CuSn8 wrapped bush with lubricating holes 95×100 80
Plain Bearing FB090-9590 CuSn8 wrapped bush with grease pockets FB092-9590 CuSn8 wrapped bush with lubricating holes 95×100 90
Plain Bearing FB090-100100 CuSn8 wrapped bush with grease pockets FB092-100100 CuSn8 wrapped bush with lubricating holes 100×105 100
Plain Bearing FB090-10050 CuSn8 wrapped bush with grease pockets FB092-10050 CuSn8 wrapped bush with lubricating holes 100×105 50
Plain Bearing FB090-10060 CuSn8 wrapped bush with grease pockets FB092-10060 CuSn8 wrapped bush with lubricating holes 100×105 60
Plain Bearing FB090-10070 CuSn8 wrapped bush with grease pockets FB092-10070 CuSn8 wrapped bush with lubricating holes 100×105 70
Plain Bearing FB090-10080 CuSn8 wrapped bush with grease pockets FB092-10080 CuSn8 wrapped bush with lubricating holes 100×105 80
Plain Bearing FB090-10090 CuSn8 wrapped bush with grease pockets FB092-10090 CuSn8 wrapped bush with lubricating holes 100×105 90
Plain Bearing FB090-105100 CuSn8 wrapped bush with grease pockets FB092-105100 CuSn8 wrapped bush with lubricating holes 105×110 100
Plain Bearing FB090-10550 CuSn8 wrapped bush with grease pockets FB092-10550 CuSn8 wrapped bush with lubricating holes 105×110 50
Plain Bearing FB090-10560 CuSn8 wrapped bush with grease pockets FB092-10560 CuSn8 wrapped bush with lubricating holes 105×110 60
Plain Bearing FB090-10570 CuSn8 wrapped bush with grease pockets FB092-10570 CuSn8 wrapped bush with lubricating holes 105×110 70
Plain Bearing FB090-10580 CuSn8 wrapped bush with grease pockets FB092-10580 CuSn8 wrapped bush with lubricating holes 105×110 80
Plain Bearing FB090-10590 CuSn8 wrapped bush with grease pockets FB092-10590 CuSn8 wrapped bush with lubricating holes 105×110 90
Plain Bearing FB090-110100 CuSn8 wrapped bush with grease pockets FB092-110100 CuSn8 wrapped bush with lubricating holes 110×115 100
Plain Bearing FB090-11050 CuSn8 wrapped bush with grease pockets FB092-11050 CuSn8 wrapped bush with lubricating holes 110×115 50
Plain Bearing FB090-11060 CuSn8 wrapped bush with grease pockets FB092-11060 CuSn8 wrapped bush with lubricating holes 110×115 60
Plain Bearing FB090-11070 CuSn8 wrapped bush with grease pockets FB092-11070 CuSn8 wrapped bush with lubricating holes 110×115 70
Plain Bearing FB090-11080 CuSn8 wrapped bush with grease pockets FB092-11080 CuSn8 wrapped bush with lubricating holes 110×115 80
Plain Bearing FB090-11090 CuSn8 wrapped bush with grease pockets FB092-11090 CuSn8 wrapped bush with lubricating holes 110×115 90
Plain Bearing FB090-115100 CuSn8 wrapped bush with grease pockets FB092-115100 CuSn8 wrapped bush with lubricating holes 115×120 100
Plain Bearing FB090-11550 CuSn8 wrapped bush with grease pockets FB092-11550 CuSn8 wrapped bush with lubricating holes 115×120 50
Plain Bearing FB090-11560 CuSn8 wrapped bush with grease pockets FB092-11560 CuSn8 wrapped bush with lubricating holes 115×120 60
Plain Bearing FB090-11570 CuSn8 wrapped bush with grease pockets FB092-11570 CuSn8 wrapped bush with lubricating holes 115×120 70
Plain Bearing FB090-11580 CuSn8 wrapped bush with grease pockets FB092-11580 CuSn8 wrapped bush with lubricating holes 115×120 80
Plain Bearing FB090-11590 CuSn8 wrapped bush with grease pockets FB092-11590 CuSn8 wrapped bush with lubricating holes 115×120 90
Plain Bearing FB090-120100 CuSn8 wrapped bush with grease pockets FB092-120100 CuSn8 wrapped bush with lubricating holes 120×125 100
Plain Bearing FB090-12060 CuSn8 wrapped bush with grease pockets FB092-12060 CuSn8 wrapped bush with lubricating holes 120×125 60
Plain Bearing FB090-12070 CuSn8 wrapped bush with grease pockets FB092-12070 CuSn8 wrapped bush with lubricating holes 120×125 70
Plain Bearing FB090-12080 CuSn8 wrapped bush with grease pockets FB092-12080 CuSn8 wrapped bush with lubricating holes 120×125 80
Plain Bearing FB090-12090 CuSn8 wrapped bush with grease pockets FB092-12090 CuSn8 wrapped bush with lubricating holes 120×125 90
Plain Bearing FB090-125100 CuSn8 wrapped bush with grease pockets FB092-125100 CuSn8 wrapped bush with lubricating holes 125×130 100
Plain Bearing FB090-12560 CuSn8 wrapped bush with grease pockets FB092-12560 CuSn8 wrapped bush with lubricating holes 125×130 60
Plain Bearing FB090-12570 CuSn8 wrapped bush with grease pockets FB092-12570 CuSn8 wrapped bush with lubricating holes 125×130 70
Plain Bearing FB090-12580 CuSn8 wrapped bush with grease pockets FB092-12580 CuSn8 wrapped bush with lubricating holes 125×130 80
Plain Bearing FB090-12590 CuSn8 wrapped bush with grease pockets FB092-12590 CuSn8 wrapped bush with lubricating holes 125×130 90
Plain Bearing FB090-130100 CuSn8 wrapped bush with grease pockets FB092-130100 CuSn8 wrapped bush with lubricating holes 130×135 100
Plain Bearing FB090-13060 CuSn8 wrapped bush with grease pockets FB092-13060 CuSn8 wrapped bush with lubricating holes 130×135 60
Plain Bearing FB090-13070 CuSn8 wrapped bush with grease pockets FB092-13070 CuSn8 wrapped bush with lubricating holes 130×135 70
Plain Bearing FB090-13080 CuSn8 wrapped bush with grease pockets FB092-13080 CuSn8 wrapped bush with lubricating holes 130×135 80
Plain Bearing FB090-13090 CuSn8 wrapped bush with grease pockets FB092-13090 CuSn8 wrapped bush with lubricating holes 130×135 90
Plain Bearing FB090-135100 CuSn8 wrapped bush with grease pockets FB092-135100 CuSn8 wrapped bush with lubricating holes 135×140 100
Plain Bearing FB090-13560 CuSn8 wrapped bush with grease pockets FB092-13560 CuSn8 wrapped bush with lubricating holes 135×140 60
Plain Bearing FB090-13570 CuSn8 wrapped bush with grease pockets FB092-13570 CuSn8 wrapped bush with lubricating holes 135×140 70
Plain Bearing FB090-13580 CuSn8 wrapped bush with grease pockets FB092-13580 CuSn8 wrapped bush with lubricating holes 135×140 80
Plain Bearing FB090-13590 CuSn8 wrapped bush with grease pockets FB092-13590 CuSn8 wrapped bush with lubricating holes 135×140 90
Plain Bearing FB090-140100 CuSn8 wrapped bush with grease pockets FB092-140100 CuSn8 wrapped bush with lubricating holes 140×145 100
Plain Bearing FB090-14060 CuSn8 wrapped bush with grease pockets FB092-14060 CuSn8 wrapped bush with lubricating holes 140×145 60
Plain Bearing FB090-14070 CuSn8 wrapped bush with grease pockets FB092-14070 CuSn8 wrapped bush with lubricating holes 140×145 70
Plain Bearing FB090-14080 CuSn8 wrapped bush with grease pockets FB092-14080 CuSn8 wrapped bush with lubricating holes 140×145 80
Plain Bearing FB090-14090 CuSn8 wrapped bush with grease pockets FB092-14090 CuSn8 wrapped bush with lubricating holes 140×145 90
Plain Bearing FB090-145100 CuSn8 wrapped bush with grease pockets FB092-145100 CuSn8 wrapped bush with lubricating holes 145×150 100
Plain Bearing FB090-14560 CuSn8 wrapped bush with grease pockets FB092-14560 CuSn8 wrapped bush with lubricating holes 145×150 60
Plain Bearing FB090-14570 CuSn8 wrapped bush with grease pockets FB092-14570 CuSn8 wrapped bush with lubricating holes 145×150 70
Plain Bearing FB090-14580 CuSn8 wrapped bush with grease pockets FB092-14580 CuSn8 wrapped bush with lubricating holes 145×150 80
Plain Bearing FB090-14590 CuSn8 wrapped bush with grease pockets FB092-14590 CuSn8 wrapped bush with lubricating holes 145×150 90
Plain Bearing FB090-150100 CuSn8 wrapped bush with grease pockets FB092-150100 CuSn8 wrapped bush with lubricating holes 150×155 100
Plain Bearing FB090-15060 CuSn8 wrapped bush with grease pockets FB092-15060 CuSn8 wrapped bush with lubricating holes 150×155 60
Plain Bearing FB090-15070 CuSn8 wrapped bush with grease pockets FB092-15070 CuSn8 wrapped bush with lubricating holes 150×155 70
Plain Bearing FB090-15080 CuSn8 wrapped bush with grease pockets FB092-15080 CuSn8 wrapped bush with lubricating holes 150×155 80
Plain Bearing FB090-15090 CuSn8 wrapped bush with grease pockets FB092-15090 CuSn8 wrapped bush with lubricating holes 150×155 90
Plain Bearing FB090-155100 CuSn8 wrapped bush with grease pockets FB092-155100 CuSn8 wrapped bush with lubricating holes 155×160 100
Plain Bearing FB090-15560 CuSn8 wrapped bush with grease pockets FB092-15560 CuSn8 wrapped bush with lubricating holes 155×160 60
Plain Bearing FB090-15570 CuSn8 wrapped bush with grease pockets FB092-15570 CuSn8 wrapped bush with lubricating holes 155×160 70
Plain Bearing FB090-15580 CuSn8 wrapped bush with grease pockets FB092-15580 CuSn8 wrapped bush with lubricating holes 155×160 80
Plain Bearing FB090-15590 CuSn8 wrapped bush with grease pockets FB092-15590 CuSn8 wrapped bush with lubricating holes 155×160 90
Plain Bearing FB090-160100 CuSn8 wrapped bush with grease pockets FB092-160100 CuSn8 wrapped bush with lubricating holes 160×165 100
Plain Bearing FB090-16060 CuSn8 wrapped bush with grease pockets FB092-16060 CuSn8 wrapped bush with lubricating holes 160×165 60
Plain Bearing FB090-16070 CuSn8 wrapped bush with grease pockets FB092-16070 CuSn8 wrapped bush with lubricating holes 160×165 70
Plain Bearing FB090-16080 CuSn8 wrapped bush with grease pockets FB092-16080 CuSn8 wrapped bush with lubricating holes 160×165 80
Plain Bearing FB090-16090 CuSn8 wrapped bush with grease pockets FB092-16090 CuSn8 wrapped bush with lubricating holes 160×165 90
Plain Bearing FB090-165100 CuSn8 wrapped bush with grease pockets FB092-165100 CuSn8 wrapped bush with lubricating holes 165×170 100
Plain Bearing FB090-16560 CuSn8 wrapped bush with grease pockets FB092-16560 CuSn8 wrapped bush with lubricating holes 165×170 60
Plain Bearing FB090-16570 CuSn8 wrapped bush with grease pockets FB092-16570 CuSn8 wrapped bush with lubricating holes 165×170 70
Plain Bearing FB090-16580 CuSn8 wrapped bush with grease pockets FB092-16580 CuSn8 wrapped bush with lubricating holes 165×170 80
Plain Bearing FB090-16590 CuSn8 wrapped bush with grease pockets FB092-16590 CuSn8 wrapped bush with lubricating holes 165×170 90
Plain Bearing FB090-170100 CuSn8 wrapped bush with grease pockets FB092-170100 CuSn8 wrapped bush with lubricating holes 170×175 100
Plain Bearing FB090-17060 CuSn8 wrapped bush with grease pockets FB092-17060 CuSn8 wrapped bush with lubricating holes 170×175 60
Plain Bearing FB090-17070 CuSn8 wrapped bush with grease pockets FB092-17070 CuSn8 wrapped bush with lubricating holes 170×175 70
Plain Bearing FB090-17080 CuSn8 wrapped bush with grease pockets FB092-17080 CuSn8 wrapped bush with lubricating holes 170×175 80
Plain Bearing FB090-17090 CuSn8 wrapped bush with grease pockets FB092-17090 CuSn8 wrapped bush with lubricating holes 170×175 90
Plain Bearing FB090-175100 CuSn8 wrapped bush with grease pockets FB092-175100 CuSn8 wrapped bush with lubricating holes 175×180 100
Plain Bearing FB090-17560 CuSn8 wrapped bush with grease pockets FB092-17560 CuSn8 wrapped bush with lubricating holes 175×180 60
Plain Bearing FB090-17570 CuSn8 wrapped bush with grease pockets FB092-17570 CuSn8 wrapped bush with lubricating holes 175×180 70
Plain Bearing FB090-17580 CuSn8 wrapped bush with grease pockets FB092-17580 CuSn8 wrapped bush with lubricating holes 175×180 80
Plain Bearing FB090-17590 CuSn8 wrapped bush with grease pockets FB092-17590 CuSn8 wrapped bush with lubricating holes 175×180 90
Plain Bearing FB090-180100 CuSn8 wrapped bush with grease pockets FB092-180100 CuSn8 wrapped bush with lubricating holes 180×185 100
Plain Bearing FB090-18060 CuSn8 wrapped bush with grease pockets FB092-18060 CuSn8 wrapped bush with lubricating holes 180×185 60
Plain Bearing FB090-18070 CuSn8 wrapped bush with grease pockets FB092-18070 CuSn8 wrapped bush with lubricating holes 180×185 70
Plain Bearing FB090-18080 CuSn8 wrapped bush with grease pockets FB092-18080 CuSn8 wrapped bush with lubricating holes 180×185 80
Plain Bearing FB090-18090 CuSn8 wrapped bush with grease pockets FB092-18090 CuSn8 wrapped bush with lubricating holes 180×185 90
Plain Bearing FB090-185100 CuSn8 wrapped bush with grease pockets FB092-185100 CuSn8 wrapped bush with lubricating holes 185×190 100
Plain Bearing FB090-18560 CuSn8 wrapped bush with grease pockets FB092-18560 CuSn8 wrapped bush with lubricating holes 185×190 60
Plain Bearing FB090-18570 CuSn8 wrapped bush with grease pockets FB092-18570 CuSn8 wrapped bush with lubricating holes 185×190 70
Plain Bearing FB090-18580 CuSn8 wrapped bush with grease pockets FB092-18580 CuSn8 wrapped bush with lubricating holes 185×190 80
Plain Bearing FB090-18590 CuSn8 wrapped bush with grease pockets FB092-18590 CuSn8 wrapped bush with lubricating holes 185×190 90
Plain Bearing FB090-190100 CuSn8 wrapped bush with grease pockets FB092-190100 CuSn8 wrapped bush with lubricating holes 190×195 100
Plain Bearing FB090-19060 CuSn8 wrapped bush with grease pockets FB092-19060 CuSn8 wrapped bush with lubricating holes 190×195 60
Plain Bearing FB090-19070 CuSn8 wrapped bush with grease pockets FB092-19070 CuSn8 wrapped bush with lubricating holes 190×195 70
Plain Bearing FB090-19080 CuSn8 wrapped bush with grease pockets FB092-19080 CuSn8 wrapped bush with lubricating holes 190×195 80
Plain Bearing FB090-19090 CuSn8 wrapped bush with grease pockets FB092-19090 CuSn8 wrapped bush with lubricating holes 190×195 90
Plain Bearing FB090-195100 CuSn8 wrapped bush with grease pockets FB092-195100 CuSn8 wrapped bush with lubricating holes 195×200 100
Plain Bearing FB090-19560 CuSn8 wrapped bush with grease pockets FB092-19560 CuSn8 wrapped bush with lubricating holes 195×200 60
Plain Bearing FB090-19570 CuSn8 wrapped bush with grease pockets FB092-19570 CuSn8 wrapped bush with lubricating holes 195×200 70
Plain Bearing FB090-19580 CuSn8 wrapped bush with grease pockets FB092-19580 CuSn8 wrapped bush with lubricating holes 195×200 80
Plain Bearing FB090-19590 CuSn8 wrapped bush with grease pockets FB092-19590 CuSn8 wrapped bush with lubricating holes 195×200 90
Plain Bearing FB090-200100 CuSn8 wrapped bush with grease pockets FB092-200100 CuSn8 wrapped bush with lubricating holes 200×205 100
Plain Bearing FB090-20060 CuSn8 wrapped bush with grease pockets FB092-20060 CuSn8 wrapped bush with lubricating holes 200×205 60
Plain Bearing FB090-20070 CuSn8 wrapped bush with grease pockets FB092-20070 CuSn8 wrapped bush with lubricating holes 200×205 70
Plain Bearing FB090-20080 CuSn8 wrapped bush with grease pockets FB092-20080 CuSn8 wrapped bush with lubricating holes 200×205 80
Plain Bearing FB090-20090 CuSn8 wrapped bush with grease pockets FB092-20090 CuSn8 wrapped bush with lubricating holes 200×205 90
Plain Bearing FB090-205100 CuSn8 wrapped bush with grease pockets FB092-205100 CuSn8 wrapped bush with lubricating holes 205×210 100
Plain Bearing FB090-20560 CuSn8 wrapped bush with grease pockets FB092-20560 CuSn8 wrapped bush with lubricating holes 205×210 60
Plain Bearing FB090-20570 CuSn8 wrapped bush with grease pockets FB092-20570 CuSn8 wrapped bush with lubricating holes 205×210 70
Plain Bearing FB090-20580 CuSn8 wrapped bush with grease pockets FB092-20580 CuSn8 wrapped bush with lubricating holes 205×210 80
Plain Bearing FB090-20590 CuSn8 wrapped bush with grease pockets FB092-20590 CuSn8 wrapped bush with lubricating holes 205×210 90
Plain Bearing FB090-215100 CuSn8 wrapped bush with grease pockets FB092-215100 CuSn8 wrapped bush with lubricating holes 215×220 100
Plain Bearing FB090-21560 CuSn8 wrapped bush with grease pockets FB092-21560 CuSn8 wrapped bush with lubricating holes 215×220 60
Plain Bearing FB090-21570 CuSn8 wrapped bush with grease pockets FB092-21570 CuSn8 wrapped bush with lubricating holes 215×220 70
Plain Bearing FB090-21580 CuSn8 wrapped bush with grease pockets FB092-21580 CuSn8 wrapped bush with lubricating holes 215×220 80
Plain Bearing FB090-21590 CuSn8 wrapped bush with grease pockets FB092-21590 CuSn8 wrapped bush with lubricating holes 215×220 90
Plain Bearing FB090-225100 CuSn8 wrapped bush with grease pockets FB092-225100 CuSn8 wrapped bush with lubricating holes 225×230 100
Plain Bearing FB090-22560 CuSn8 wrapped bush with grease pockets FB092-22560 CuSn8 wrapped bush with lubricating holes 225×230 60
Plain Bearing FB090-22570 CuSn8 wrapped bush with grease pockets FB092-22570 CuSn8 wrapped bush with lubricating holes 225×230 70
Plain Bearing FB090-22580 CuSn8 wrapped bush with grease pockets FB092-22580 CuSn8 wrapped bush with lubricating holes 225×230 80
Plain Bearing FB090-22590 CuSn8 wrapped bush with grease pockets FB092-22590 CuSn8 wrapped bush with lubricating holes 225×230 90
Plain Bearing FB090-230100 CuSn8 wrapped bush with grease pockets FB092-230100 CuSn8 wrapped bush with lubricating holes 230×235 100
Plain Bearing FB090-23060 CuSn8 wrapped bush with grease pockets FB092-23060 CuSn8 wrapped bush with lubricating holes 230×235 60
Plain Bearing FB090-23070 CuSn8 wrapped bush with grease pockets FB092-23070 CuSn8 wrapped bush with lubricating holes 230×235 70
Plain Bearing FB090-23080 CuSn8 wrapped bush with grease pockets FB092-23080 CuSn8 wrapped bush with lubricating holes 230×235 80
Plain Bearing FB090-23090 CuSn8 wrapped bush with grease pockets FB092-23090 CuSn8 wrapped bush with lubricating holes 230×235 90
Plain Bearing FB090-240100 CuSn8 wrapped bush with grease pockets FB092-240100 CuSn8 wrapped bush with lubricating holes 240×245 100
Plain Bearing FB090-24060 CuSn8 wrapped bush with grease pockets FB092-24060 CuSn8 wrapped bush with lubricating holes 240×245 60
Plain Bearing FB090-24070 CuSn8 wrapped bush with grease pockets FB092-24070 CuSn8 wrapped bush with lubricating holes 240×245 70
Plain Bearing FB090-24080 CuSn8 wrapped bush with grease pockets FB092-24080 CuSn8 wrapped bush with lubricating holes 240×245 80
Plain Bearing FB090-24090 CuSn8 wrapped bush with grease pockets FB092-24090 CuSn8 wrapped bush with lubricating holes 240×245 90
Plain Bearing FB090-250100 CuSn8 wrapped bush with grease pockets FB092-250100 CuSn8 wrapped bush with lubricating holes 250×255 100
Plain Bearing FB090-25060 CuSn8 wrapped bush with grease pockets FB092-25060 CuSn8 wrapped bush with lubricating holes 250×255 60
Plain Bearing FB090-25070 CuSn8 wrapped bush with grease pockets FB092-25070 CuSn8 wrapped bush with lubricating holes 250×255 70
Plain Bearing FB090-25080 CuSn8 wrapped bush with grease pockets FB092-25080 CuSn8 wrapped bush with lubricating holes 250×255 80
Plain Bearing FB090-25090 CuSn8 wrapped bush with grease pockets FB092-25090 CuSn8 wrapped bush with lubricating holes 250×255 90
Plain Bearing FB090-260100 CuSn8 wrapped bush with grease pockets FB092-260100 CuSn8 wrapped bush with lubricating holes 260×265 100
Plain Bearing FB090-26060 CuSn8 wrapped bush with grease pockets FB092-26060 CuSn8 wrapped bush with lubricating holes 260×265 60
Plain Bearing FB090-26070 CuSn8 wrapped bush with grease pockets FB092-26070 CuSn8 wrapped bush with lubricating holes 260×265 70
Plain Bearing FB090-26080 CuSn8 wrapped bush with grease pockets FB092-26080 CuSn8 wrapped bush with lubricating holes 260×265 80
Plain Bearing FB090-26090 CuSn8 wrapped bush with grease pockets FB092-26090 CuSn8 wrapped bush with lubricating holes 260×265 90
Plain Bearing FB090-270100 CuSn8 wrapped bush with grease pockets FB092-270100 CuSn8 wrapped bush with lubricating holes 270×275 100
Plain Bearing FB090-27060 CuSn8 wrapped bush with grease pockets FB092-27060 CuSn8 wrapped bush with lubricating holes 270×275 60
Plain Bearing FB090-27070 CuSn8 wrapped bush with grease pockets FB092-27070 CuSn8 wrapped bush with lubricating holes 270×275 70
Plain Bearing FB090-27080 CuSn8 wrapped bush with grease pockets FB092-27080 CuSn8 wrapped bush with lubricating holes 270×275 80
Plain Bearing FB090-27090 CuSn8 wrapped bush with grease pockets FB092-27090 CuSn8 wrapped bush with lubricating holes 270×275 90
Plain Bearing FB090-280100 CuSn8 wrapped bush with grease pockets FB092-280100 CuSn8 wrapped bush with lubricating holes 280×285 100
Plain Bearing FB090-28060 CuSn8 wrapped bush with grease pockets FB092-28060 CuSn8 wrapped bush with lubricating holes 280×285 60
Plain Bearing FB090-28070 CuSn8 wrapped bush with grease pockets FB092-28070 CuSn8 wrapped bush with lubricating holes 280×285 70
Plain Bearing FB090-28080 CuSn8 wrapped bush with grease pockets FB092-28080 CuSn8 wrapped bush with lubricating holes 280×285 80
Plain Bearing FB090-28090 CuSn8 wrapped bush with grease pockets FB092-28090 CuSn8 wrapped bush with lubricating holes 280×285 90
Plain Bearing FB090-290100 CuSn8 wrapped bush with grease pockets FB092-290100 CuSn8 wrapped bush with lubricating holes 290×295 100
Plain Bearing FB090-29060 CuSn8 wrapped bush with grease pockets FB092-29060 CuSn8 wrapped bush with lubricating holes 290×295 60
Plain Bearing FB090-29070 CuSn8 wrapped bush with grease pockets FB092-29070 CuSn8 wrapped bush with lubricating holes 290×295 70
Plain Bearing FB090-29080 CuSn8 wrapped bush with grease pockets FB092-29080 CuSn8 wrapped bush with lubricating holes 290×295 80
Plain Bearing FB090-29090 CuSn8 wrapped bush with grease pockets FB092-29090 CuSn8 wrapped bush with lubricating holes 290×295 90
Plain Bearing FB090-300100 CuSn8 wrapped bush with grease pockets FB092-300100 CuSn8 wrapped bush with lubricating holes 300×305 100
Plain Bearing FB090-30060 CuSn8 wrapped bush with grease pockets FB092-30060 CuSn8 wrapped bush with lubricating holes 300×305 60
Plain Bearing FB090-30070 CuSn8 wrapped bush with grease pockets FB092-30070 CuSn8 wrapped bush with lubricating holes 300×305 70
Plain Bearing FB090-30080 CuSn8 wrapped bush with grease pockets FB092-30080 CuSn8 wrapped bush with lubricating holes 300×305 80
Plain Bearing FB090-30090 CuSn8 wrapped bush with grease pockets FB092-30090 CuSn8 wrapped bush with lubricating holes 300×305 90
Item FB090F Series Part No. Material FB092F Series Part No. Material Designation (bore×outer) L (mm) Flange Ø (mm)
Flange Bushing FB090F-2515 CuSn8 wrapped bush with grease pockets FB092F-2515 CuSn8 wrapped bush with lubricating holes 25×28 15 35
Flange Bushing FB090F-2520 CuSn8 wrapped bush with grease pockets FB092F-2520 CuSn8 wrapped bush with lubricating holes 25×28 20 35
Flange Bushing FB090F-2525 CuSn8 wrapped bush with grease pockets FB092F-2525 CuSn8 wrapped bush with lubricating holes 25×28 25 35
Flange Bushing FB090F-3020 CuSn8 wrapped bush with grease pockets FB092F-3020 CuSn8 wrapped bush with lubricating holes 30×34 20 45
Flange Bushing FB090F-3025 CuSn8 wrapped bush with grease pockets FB092F-3025 CuSn8 wrapped bush with lubricating holes 30×34 25 45
Flange Bushing FB090F-3030 CuSn8 wrapped bush with grease pockets FB092F-3030 CuSn8 wrapped bush with lubricating holes 30×34 30 45
Flange Bushing FB090F-3520 CuSn8 wrapped bush with grease pockets FB092F-3520 CuSn8 wrapped bush with lubricating holes 35×39 20 50
Flange Bushing FB090F-3525 CuSn8 wrapped bush with grease pockets FB092F-3525 CuSn8 wrapped bush with lubricating holes 35×39 25 50
Flange Bushing FB090F-3530 CuSn8 wrapped bush with grease pockets FB092F-3530 CuSn8 wrapped bush with lubricating holes 35×39 30 50
Flange Bushing FB090F-3535 CuSn8 wrapped bush with grease pockets FB092F-3535 CuSn8 wrapped bush with lubricating holes 35×39 35 50
Flange Bushing FB090F-4025 CuSn8 wrapped bush with grease pockets FB092F-4025 CuSn8 wrapped bush with lubricating holes 40×44 25 55
Flange Bushing FB090F-4030 CuSn8 wrapped bush with grease pockets FB092F-4030 CuSn8 wrapped bush with lubricating holes 40×44 30 55
Flange Bushing FB090F-4035 CuSn8 wrapped bush with grease pockets FB092F-4035 CuSn8 wrapped bush with lubricating holes 40×44 35 55
Flange Bushing FB090F-4040 CuSn8 wrapped bush with grease pockets FB092F-4040 CuSn8 wrapped bush with lubricating holes 40×44 40 55
Flange Bushing FB090F-4530 CuSn8 wrapped bush with grease pockets FB092F-4530 CuSn8 wrapped bush with lubricating holes 45×50 30 60
Flange Bushing FB090F-4535 CuSn8 wrapped bush with grease pockets FB092F-4535 CuSn8 wrapped bush with lubricating holes 45×50 35 60
Flange Bushing FB090F-4540 CuSn8 wrapped bush with grease pockets FB092F-4540 CuSn8 wrapped bush with lubricating holes 45×50 40 60
Flange Bushing FB090F-4550 CuSn8 wrapped bush with grease pockets FB092F-4550 CuSn8 wrapped bush with lubricating holes 45×50 50 60
Flange Bushing FB090F-5030 CuSn8 wrapped bush with grease pockets FB092F-5030 CuSn8 wrapped bush with lubricating holes 50×55 30 65
Flange Bushing FB090F-5035 CuSn8 wrapped bush with grease pockets FB092F-5035 CuSn8 wrapped bush with lubricating holes 50×55 35 65
Flange Bushing FB090F-5040 CuSn8 wrapped bush with grease pockets FB092F-5040 CuSn8 wrapped bush with lubricating holes 50×55 40 65
Flange Bushing FB090F-5050 CuSn8 wrapped bush with grease pockets FB092F-5050 CuSn8 wrapped bush with lubricating holes 50×55 50 65
Flange Bushing FB090F-5530 CuSn8 wrapped bush with grease pockets FB092F-5530 CuSn8 wrapped bush with lubricating holes 55×60 30 70
Flange Bushing FB090F-5535 CuSn8 wrapped bush with grease pockets FB092F-5535 CuSn8 wrapped bush with lubricating holes 55×60 35 70
Flange Bushing FB090F-5540 CuSn8 wrapped bush with grease pockets FB092F-5540 CuSn8 wrapped bush with lubricating holes 55×60 40 70
Flange Bushing FB090F-5550 CuSn8 wrapped bush with grease pockets FB092F-5550 CuSn8 wrapped bush with lubricating holes 55×60 50 70
Flange Bushing FB090F-6030 CuSn8 wrapped bush with grease pockets FB092F-6030 CuSn8 wrapped bush with lubricating holes 60×65 30 75
Flange Bushing FB090F-6035 CuSn8 wrapped bush with grease pockets FB092F-6035 CuSn8 wrapped bush with lubricating holes 60×65 35 75
Flange Bushing FB090F-6040 CuSn8 wrapped bush with grease pockets FB092F-6040 CuSn8 wrapped bush with lubricating holes 60×65 40 75
Flange Bushing FB090F-6050 CuSn8 wrapped bush with grease pockets FB092F-6050 CuSn8 wrapped bush with lubricating holes 60×65 50 75
Flange Bushing FB090F-6060 CuSn8 wrapped bush with grease pockets FB092F-6060 CuSn8 wrapped bush with lubricating holes 60×65 60 75
Flange Bushing FB090F-6530 CuSn8 wrapped bush with grease pockets FB092F-6530 CuSn8 wrapped bush with lubricating holes 65×70 30 80
Flange Bushing FB090F-6535 CuSn8 wrapped bush with grease pockets FB092F-6535 CuSn8 wrapped bush with lubricating holes 65×70 35 80
Flange Bushing FB090F-6540 CuSn8 wrapped bush with grease pockets FB092F-6540 CuSn8 wrapped bush with lubricating holes 65×70 40 80
Flange Bushing FB090F-6550 CuSn8 wrapped bush with grease pockets FB092F-6550 CuSn8 wrapped bush with lubricating holes 65×70 50 80
Flange Bushing FB090F-6560 CuSn8 wrapped bush with grease pockets FB092F-6560 CuSn8 wrapped bush with lubricating holes 65×70 60 80
Flange Bushing FB090F-7035 CuSn8 wrapped bush with grease pockets FB092F-7035 CuSn8 wrapped bush with lubricating holes 70×75 35 85
Flange Bushing FB090F-7040 CuSn8 wrapped bush with grease pockets FB092F-7040 CuSn8 wrapped bush with lubricating holes 70×75 40 85
Flange Bushing FB090F-7050 CuSn8 wrapped bush with grease pockets FB092F-7050 CuSn8 wrapped bush with lubricating holes 70×75 50 85
Flange Bushing FB090F-7060 CuSn8 wrapped bush with grease pockets FB092F-7060 CuSn8 wrapped bush with lubricating holes 70×75 60 85
Flange Bushing FB090F-7070 CuSn8 wrapped bush with grease pockets FB092F-7070 CuSn8 wrapped bush with lubricating holes 70×75 70 85
Flange Bushing FB090F-7535 CuSn8 wrapped bush with grease pockets FB092F-7535 CuSn8 wrapped bush with lubricating holes 75×80 35 90
Flange Bushing FB090F-7540 CuSn8 wrapped bush with grease pockets FB092F-7540 CuSn8 wrapped bush with lubricating holes 75×80 40 90
Flange Bushing FB090F-7550 CuSn8 wrapped bush with grease pockets FB092F-7550 CuSn8 wrapped bush with lubricating holes 75×80 50 90
Flange Bushing FB090F-7560 CuSn8 wrapped bush with grease pockets FB092F-7560 CuSn8 wrapped bush with lubricating holes 75×80 60 90
Flange Bushing FB090F-7570 CuSn8 wrapped bush with grease pockets FB092F-7570 CuSn8 wrapped bush with lubricating holes 75×80 70 90
Flange Bushing FB090F-8035 CuSn8 wrapped bush with grease pockets FB092F-8035 CuSn8 wrapped bush with lubricating holes 80×85 35 100
Flange Bushing FB090F-8040 CuSn8 wrapped bush with grease pockets FB092F-8040 CuSn8 wrapped bush with lubricating holes 80×85 40 100
Flange Bushing FB090F-8050 CuSn8 wrapped bush with grease pockets FB092F-8050 CuSn8 wrapped bush with lubricating holes 80×85 50 100
Flange Bushing FB090F-8060 CuSn8 wrapped bush with grease pockets FB092F-8060 CuSn8 wrapped bush with lubricating holes 80×85 60 100
Flange Bushing FB090F-8070 CuSn8 wrapped bush with grease pockets FB092F-8070 CuSn8 wrapped bush with lubricating holes 80×85 70 100
Flange Bushing FB090F-8080 CuSn8 wrapped bush with grease pockets FB092F-8080 CuSn8 wrapped bush with lubricating holes 80×85 80 100
Flange Bushing FB090F-9040 CuSn8 wrapped bush with grease pockets FB092F-9040 CuSn8 wrapped bush with lubricating holes 90×95 40 110
Flange Bushing FB090F-9050 CuSn8 wrapped bush with grease pockets FB092F-9050 CuSn8 wrapped bush with lubricating holes 90×95 50 110
Flange Bushing FB090F-9060 CuSn8 wrapped bush with grease pockets FB092F-9060 CuSn8 wrapped bush with lubricating holes 90×95 60 110
Flange Bushing FB090F-9070 CuSn8 wrapped bush with grease pockets FB092F-9070 CuSn8 wrapped bush with lubricating holes 90×95 70 110
Flange Bushing FB090F-9080 CuSn8 wrapped bush with grease pockets FB092F-9080 CuSn8 wrapped bush with lubricating holes 90×95 80 110
Flange Bushing FB090F-9090 CuSn8 wrapped bush with grease pockets FB092F-9090 CuSn8 wrapped bush with lubricating holes 90×95 90 110
Flange Bushing FB090F-10050 CuSn8 wrapped bush with grease pockets FB092F-10050 CuSn8 wrapped bush with lubricating holes 100×105 50 120
Flange Bushing FB090F-10060 CuSn8 wrapped bush with grease pockets FB092F-10060 CuSn8 wrapped bush with lubricating holes 100×105 60 120
Flange Bushing FB090F-10070 CuSn8 wrapped bush with grease pockets FB092F-10070 CuSn8 wrapped bush with lubricating holes 100×105 70 120
Flange Bushing FB090F-10080 CuSn8 wrapped bush with grease pockets FB092F-10080 CuSn8 wrapped bush with lubricating holes 100×105 80 120
Flange Bushing FB090F-10090 CuSn8 wrapped bush with grease pockets FB092F-10090 CuSn8 wrapped bush with lubricating holes 100×105 90 120
Flange Bushing FB090F-11050 CuSn8 wrapped bush with grease pockets FB092F-11050 CuSn8 wrapped bush with lubricating holes 110×115 50 130
Flange Bushing FB090F-11060 CuSn8 wrapped bush with grease pockets FB092F-11060 CuSn8 wrapped bush with lubricating holes 110×115 60 130
Flange Bushing FB090F-11070 CuSn8 wrapped bush with grease pockets FB092F-11070 CuSn8 wrapped bush with lubricating holes 110×115 70 130
Flange Bushing FB090F-11080 CuSn8 wrapped bush with grease pockets FB092F-11080 CuSn8 wrapped bush with lubricating holes 110×115 80 130
Flange Bushing FB090F-11090 CuSn8 wrapped bush with grease pockets FB092F-11090 CuSn8 wrapped bush with lubricating holes 110×115 90 130
Flange Bushing FB090F-12050 CuSn8 wrapped bush with grease pockets FB092F-12050 CuSn8 wrapped bush with lubricating holes 120×125 50 140
Flange Bushing FB090F-12060 CuSn8 wrapped bush with grease pockets FB092F-12060 CuSn8 wrapped bush with lubricating holes 120×125 60 140
Flange Bushing FB090F-12070 CuSn8 wrapped bush with grease pockets FB092F-12070 CuSn8 wrapped bush with lubricating holes 120×125 70 140
Flange Bushing FB090F-12080 CuSn8 wrapped bush with grease pockets FB092F-12080 CuSn8 wrapped bush with lubricating holes 120×125 80 140
Flange Bushing FB090F-12090 CuSn8 wrapped bush with grease pockets FB092F-12090 CuSn8 wrapped bush with lubricating holes 120×125 90 140
Flange Bushing FB090F-13060 CuSn8 wrapped bush with grease pockets FB092F-13060 CuSn8 wrapped bush with lubricating holes 130×135 60 155
Flange Bushing FB090F-13070 CuSn8 wrapped bush with grease pockets FB092F-13070 CuSn8 wrapped bush with lubricating holes 130×135 70 155
Flange Bushing FB090F-13080 CuSn8 wrapped bush with grease pockets FB092F-13080 CuSn8 wrapped bush with lubricating holes 130×135 80 155
Flange Bushing FB090F-13090 CuSn8 wrapped bush with grease pockets FB092F-13090 CuSn8 wrapped bush with lubricating holes 130×135 90 155
Flange Bushing FB090F-14060 CuSn8 wrapped bush with grease pockets FB092F-14060 CuSn8 wrapped bush with lubricating holes 140×145 60 165
Flange Bushing FB090F-14070 CuSn8 wrapped bush with grease pockets FB092F-14070 CuSn8 wrapped bush with lubricating holes 140×145 70 165
Flange Bushing FB090F-14080 CuSn8 wrapped bush with grease pockets FB092F-14080 CuSn8 wrapped bush with lubricating holes 140×145 80 165
Flange Bushing FB090F-14090 CuSn8 wrapped bush with grease pockets FB092F-14090 CuSn8 wrapped bush with lubricating holes 140×145 90 165
Flange Bushing FB090F-15060 CuSn8 wrapped bush with grease pockets FB092F-15060 CuSn8 wrapped bush with lubricating holes 150×155 60 180
Flange Bushing FB090F-15070 CuSn8 wrapped bush with grease pockets FB092F-15070 CuSn8 wrapped bush with lubricating holes 150×155 70 180
Flange Bushing FB090F-15080 CuSn8 wrapped bush with grease pockets FB092F-15080 CuSn8 wrapped bush with lubricating holes 150×155 80 180
Flange Bushing FB090F-15090 CuSn8 wrapped bush with grease pockets FB092F-15090 CuSn8 wrapped bush with lubricating holes 150×155 90 180
Flange Bushing FB090F-16060 CuSn8 wrapped bush with grease pockets FB092F-16060 CuSn8 wrapped bush with lubricating holes 160×165 60 190
Flange Bushing FB090F-16070 CuSn8 wrapped bush with grease pockets FB092F-16070 CuSn8 wrapped bush with lubricating holes 160×165 70 190
Flange Bushing FB090F-16080 CuSn8 wrapped bush with grease pockets FB092F-16080 CuSn8 wrapped bush with lubricating holes 160×165 80 190
Flange Bushing FB090F-16090 CuSn8 wrapped bush with grease pockets FB092F-16090 CuSn8 wrapped bush with lubricating holes 160×165 90 190
Flange Bushing FB090F-17060 CuSn8 wrapped bush with grease pockets FB092F-17060 CuSn8 wrapped bush with lubricating holes 170×175 60 200
Flange Bushing FB090F-17070 CuSn8 wrapped bush with grease pockets FB092F-17070 CuSn8 wrapped bush with lubricating holes 170×175 70 200
Flange Bushing FB090F-17080 CuSn8 wrapped bush with grease pockets FB092F-17080 CuSn8 wrapped bush with lubricating holes 170×175 80 200
Flange Bushing FB090F-17090 CuSn8 wrapped bush with grease pockets FB092F-17090 CuSn8 wrapped bush with lubricating holes 170×175 90 200
Flange Bushing FB090F-18060 CuSn8 wrapped bush with grease pockets FB092F-18060 CuSn8 wrapped bush with lubricating holes 180×185 60 215
Flange Bushing FB090F-18070 CuSn8 wrapped bush with grease pockets FB092F-18070 CuSn8 wrapped bush with lubricating holes 180×185 70 215
Flange Bushing FB090F-18080 CuSn8 wrapped bush with grease pockets FB092F-18080 CuSn8 wrapped bush with lubricating holes 180×185 80 215
Flange Bushing FB090F-18090 CuSn8 wrapped bush with grease pockets FB092F-18090 CuSn8 wrapped bush with lubricating holes 180×185 90 215
Flange Bushing FB090F-19060 CuSn8 wrapped bush with grease pockets FB092F-19060 CuSn8 wrapped bush with lubricating holes 190×195 60 225
Flange Bushing FB090F-19070 CuSn8 wrapped bush with grease pockets FB092F-19070 CuSn8 wrapped bush with lubricating holes 190×195 70 225
Flange Bushing FB090F-19080 CuSn8 wrapped bush with grease pockets FB092F-19080 CuSn8 wrapped bush with lubricating holes 190×195 80 225
Flange Bushing FB090F-19090 CuSn8 wrapped bush with grease pockets FB092F-19090 CuSn8 wrapped bush with lubricating holes 190×195 90 225
Flange Bushing FB090F-20060 CuSn8 wrapped bush with grease pockets FB092F-20060 CuSn8 wrapped bush with lubricating holes 200×205 60 235
Flange Bushing FB090F-20070 CuSn8 wrapped bush with grease pockets FB092F-20070 CuSn8 wrapped bush with lubricating holes 200×205 70 235
Flange Bushing FB090F-20080 CuSn8 wrapped bush with grease pockets FB092F-20080 CuSn8 wrapped bush with lubricating holes 200×205 80 235
Flange Bushing FB090F-20090 CuSn8 wrapped bush with grease pockets FB092F-20090 CuSn8 wrapped bush with lubricating holes 200×205 90 235
Flange Bushing FB090F-22560 CuSn8 wrapped bush with grease pockets FB092F-22560 CuSn8 wrapped bush with lubricating holes 225×230 60 260
Flange Bushing FB090F-22570 CuSn8 wrapped bush with grease pockets FB092F-22570 CuSn8 wrapped bush with lubricating holes 225×230 70 260
Flange Bushing FB090F-22580 CuSn8 wrapped bush with grease pockets FB092F-22580 CuSn8 wrapped bush with lubricating holes 225×230 80 260
Flange Bushing FB090F-22590 CuSn8 wrapped bush with grease pockets FB092F-22590 CuSn8 wrapped bush with lubricating holes 225×230 90 260
Flange Bushing FB090F-25060 CuSn8 wrapped bush with grease pockets FB092F-25060 CuSn8 wrapped bush with lubricating holes 250×255 60 290
Flange Bushing FB090F-25070 CuSn8 wrapped bush with grease pockets FB092F-25070 CuSn8 wrapped bush with lubricating holes 250×255 70 290
Flange Bushing FB090F-25080 CuSn8 wrapped bush with grease pockets FB092F-25080 CuSn8 wrapped bush with lubricating holes 250×255 80 290
Flange Bushing FB090F-25090 CuSn8 wrapped bush with grease pockets FB092F-25090 CuSn8 wrapped bush with lubricating holes 250×255 90 290
Flange Bushing FB090F-26560 CuSn8 wrapped bush with grease pockets FB092F-26560 CuSn8 wrapped bush with lubricating holes 265×270 60 305
Flange Bushing FB090F-26570 CuSn8 wrapped bush with grease pockets FB092F-26570 CuSn8 wrapped bush with lubricating holes 265×270 70 305
Flange Bushing FB090F-26580 CuSn8 wrapped bush with grease pockets FB092F-26580 CuSn8 wrapped bush with lubricating holes 265×270 80 305
Flange Bushing FB090F-26590 CuSn8 wrapped bush with grease pockets FB092F-26590 CuSn8 wrapped bush with lubricating holes 265×270 90 305
Flange Bushing FB090F-28560 CuSn8 wrapped bush with grease pockets FB092F-28560 CuSn8 wrapped bush with lubricating holes 285×290 60 325
Flange Bushing FB090F-28570 CuSn8 wrapped bush with grease pockets FB092F-28570 CuSn8 wrapped bush with lubricating holes 285×290 70 325
Flange Bushing FB090F-28580 CuSn8 wrapped bush with grease pockets FB092F-28580 CuSn8 wrapped bush with lubricating holes 285×290 80 325
Flange Bushing FB090F-28590 CuSn8 wrapped bush with grease pockets FB092F-28590 CuSn8 wrapped bush with lubricating holes 285×290 90 325
Flange Bushing FB090F-30060 CuSn8 wrapped bush with grease pockets FB092F-30060 CuSn8 wrapped bush with lubricating holes 300×305 60 340
Flange Bushing FB090F-30070 CuSn8 wrapped bush with grease pockets FB092F-30070 CuSn8 wrapped bush with lubricating holes 300×305 70 340
Flange Bushing FB090F-30080 CuSn8 wrapped bush with grease pockets FB092F-30080 CuSn8 wrapped bush with lubricating holes 300×305 80 340
Flange Bushing FB090F-30090 CuSn8 wrapped bush with grease pockets FB092F-30090 CuSn8 wrapped bush with lubricating holes 300×305 90 340

If you Have Any Questions Call Us.

FOLLOW US ON

Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents

https://www.viiplus.com

Send your message to this supplier
Send Now

Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents

Ask Latest Price
Watch Video
Product Detail
Get A Better Quote :
tiffany@viiplus.com
Bushing Manufacturer :
wrapped bronze bushings are particu- larly well suited for applications where high levels of contamination make relubrication necessary .
Bushing Meterial :
Wrapped bushing, Bronze CuSn8P,alternative CuSn6P available
Type :
bushes, collar bushes, washers, strips or special designs
Bushing Type :
The sliding surface of cusn8 wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease .
Bushings Size :
standard size available
Contact Supplier
video
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Site Member
9 Years
zhejiang
Business Type :
Importer, Exporter, Seller, Other
Main Products :
Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Wrapped Bronze Bearings
MachineU China Products Tools & Hardware Tool Parts
Contact Supplier
Submit Requirement
