Flange sleeve bearings, also known as flange bushings or flange-mounted bearings, are a type of mechanical component designed to provide support and reduce friction between two moving parts. These bearings are characterized by their flanged design, which allows for easy installation and secure attachment to various machinery components.
Brass bushings, on the other hand, are bushings made from brass, a copper-zinc alloy known for its excellent conductivity, corrosion resistance, and machinability. Brass bushings are commonly used in applications where precision, durability, and wear resistance are crucial.
The combination of flange sleeve bearings and brass bushings offers a robust and reliable solution for a wide range of industrial applications. The flanged design of the bearings provides secure mounting, while the brass material of the bushings ensures excellent wear resistance and durability. Tog, these components can help improve the performance and efficiency of various machinery and equipment.
When selecting flange sleeve bearings and brass bushings for a specific application, it is important to consider factors such as the load capacity, speed, and operating environment. Additionally, proper installation and maintenance are crucial to ensure the long-term performance of these components.
In conclusion, flange sleeve bearings and brass bushings are essential components for many industrial applications. Their combination of secure mounting, excellent wear resistance, and durability makes them a reliable choice for improving the performance and efficiency of machinery and equipment.

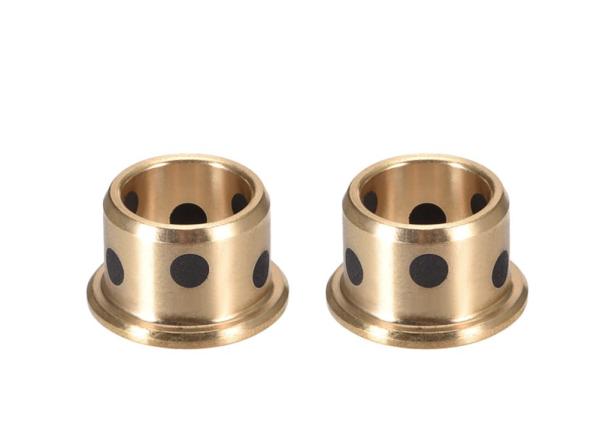

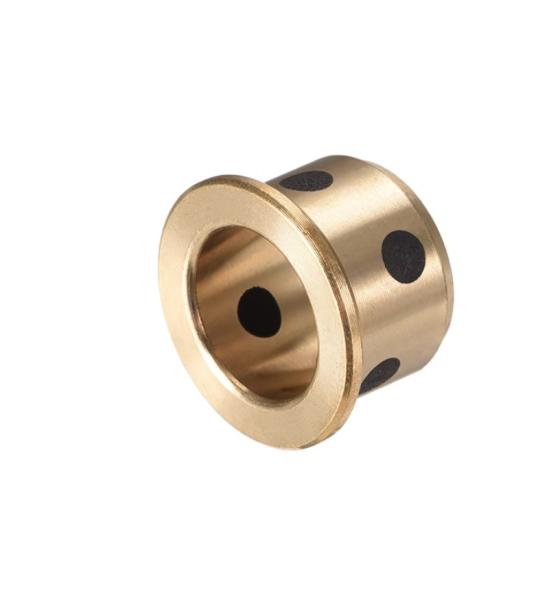

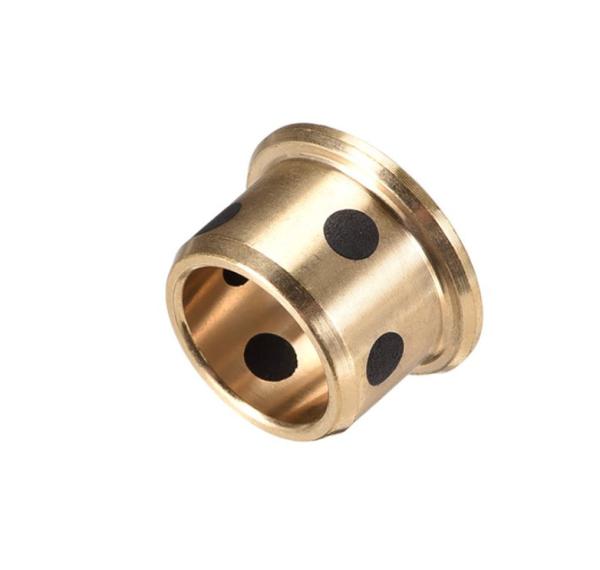

Flange Sleeve Bearings | Brass Bushings
Flange Sleeve Bearings Brass Bushings bearing by viiplus.com n - can be used with every application. Oilless Bearings Metric Flange Bushes.pdf
Lubrication-free✓ maintenance-free✓ ...
Components for Press Dies
Standard Bronze Bushing Parts
Sliding Parts Injection Mold Equipment
Specification:
Material: ZCuZn25Al6Fe3Mn3+Graphite
Select Flange Bushing Type, configure, order. VIIPLUS delivers punctually and offers fair prices.

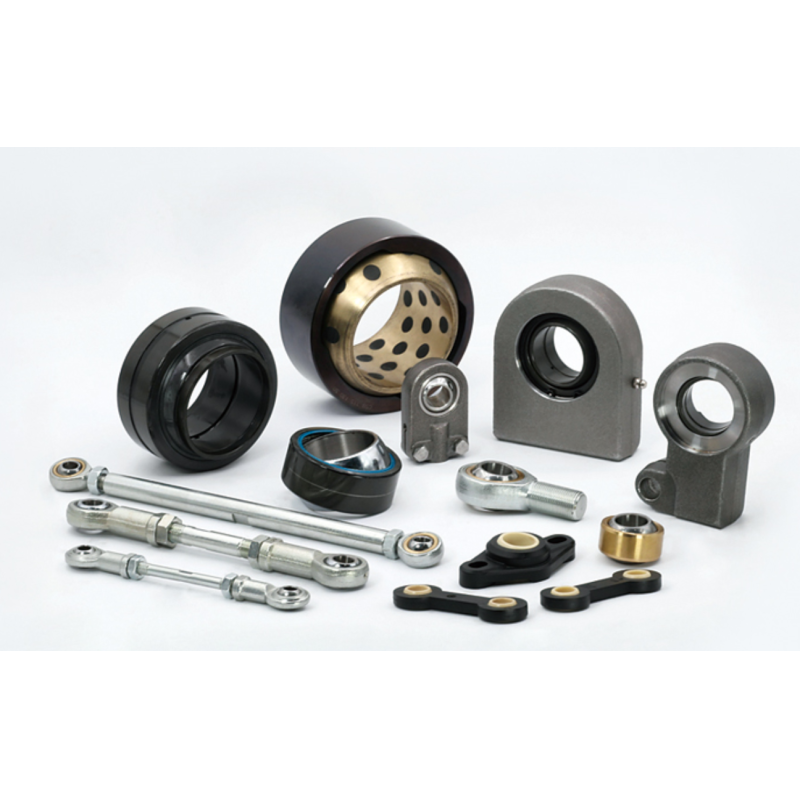

Other self-lubricating bearings and related components
Include the Air Compressor Swash Plate, Sintered Bearings, Steel Sleeves, Spherical Bearings and Solid Bronze Alloy Bearings.
Brass and Bronze Bushings and Bearings
Bronze bushings from Reliable Bronze stand above those from other bushing suppliers. We stand behind our workmanship 100%. We want our customers to come back to us again and again, order after order. Custom bushings made by Reliable Bronze are machined to your exacting specifications. When it comes to bronze or brass bushings for any industry application, Reliable Bronze will exceed your expectations.
Bronze bushings are used in automotive applications, many types of motors, conveyors and a variety of industrial equipment. Reliable Bronze manufactures custom parts for any application. If you supply us your specifications along with a print or a sample so that we can draw up a print, we will be able to machine your parts with your choice of over 50 high quality materials.
Features
The flange sleeve bushing brass material provides mechanical strength and loading capacity of the bearing and the solid lubricants provide a continuous lubricating source to establish a reliable lubricating system. It is suitable for the application conditions of middle to high load and where the frequent restarting operation is needed. The typical applications include the plastic injection machine toggle, tie bar, port machinery, dam gate, and mining machinery.
Structure:
1. Lubricating graphite, provides initial lubricating to reduce the friction.
2. Solid Lubricants, aligned according to the bearing motion direction to form lubricating film
improving the friction coefficients and wear resistance feature.
3. Bronze Material, provides mechanical strength and improve the impact resistance and corrosion resistance.
Main Metal Type
| Type | 650 | 650S5 | 650W1 | 650W3 | 650S1 | 650S2 | 650S3 |
| Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 |
| Density | 7.8 | 8.9 | 7.8 | 8.9 |
| HB Hardness | ≥210 | ≥250 | ≥210 | ≥230 | ≥70 | ≥150 | ≥75 |
| Tensile Strength MPa | ≥750 | ≥800 | ≥755 | ≥755 | ≥250 | ≥500 | ≥270 |
| Yield Strength MPa | ≥450 | ≥450 | ≥400 | ≥400 | ≥90 | ≥260 | ≥150 |
| Elongation % | ≥12 | ≥8 | ≥12 | ≥12 | ≥13 | ≥10 | ≥5 |
| Thermal Expansion Coefficient | 1.9x10*%/°C | 1.8x10*9/°C | 1.6x10^*/°C | 1.8x10*/°C |
| Max. Operation Temp. | -40~+250°C | -40~+400°C |
| Max. load MPa | 50 | 75 | 75 | 100 | 50 |
| Max. speed m/s | Dry | 0.5 | 0.1 | 0.5 | 0.1 | 0.5 |
| Lubricated | 1 | 0.25 | 1 | 0.25 | 2.5 |
| Max. PV (N/mm2*m/s) | Dry | 1.65 | 1 |
| Lubricated | 3.25 | 1.65 |
Solid Lubricants
| Lubricant | Feature | Typical Applications |
SL1
Graphite + Additives | Good Chemical resistance and low friction
coefficients. Operation temperature up to +400oC | Suitable for general industry applications exposed to
the atmosphere. |
SL4
+MoS2+Additives | Low friction coefficients and good water lubricating
feature. Operation temperature up to +300oC | Suitable for water lubrication condition. The applications
include vessels, hydraulic turbines, and steam turbines. |
