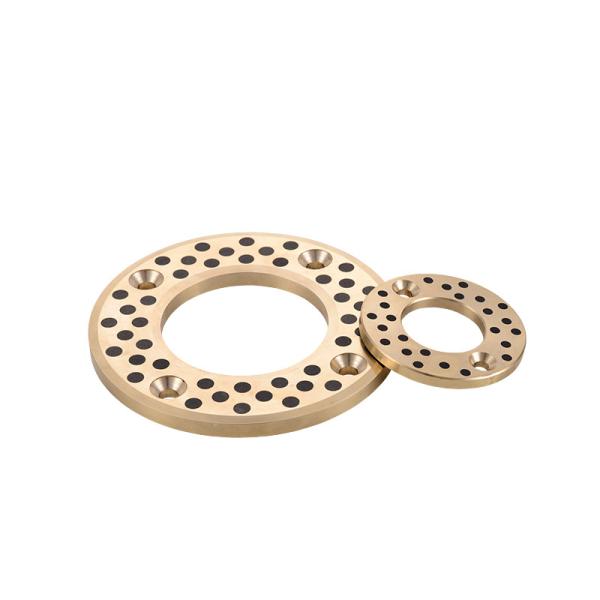

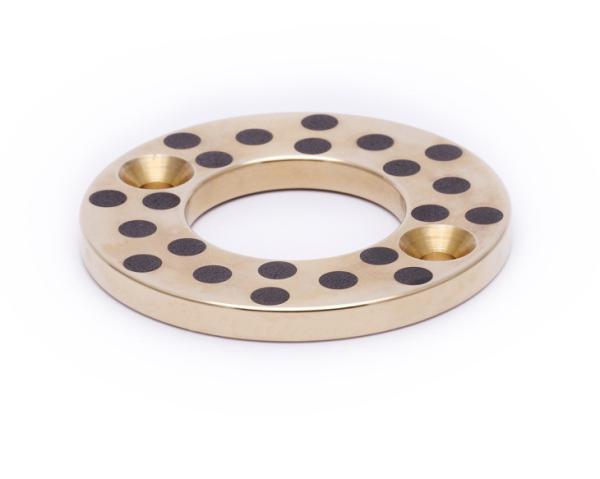

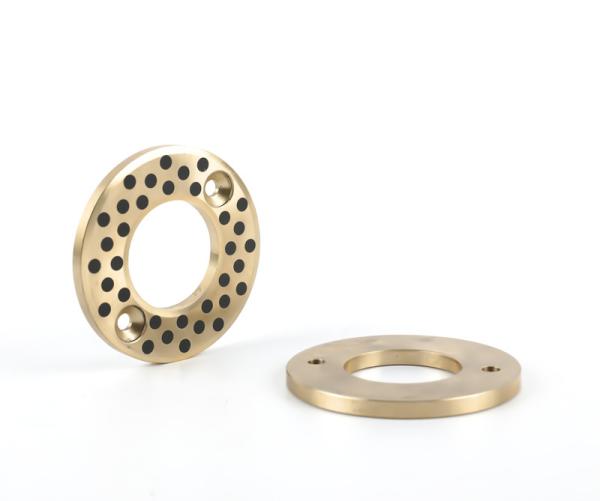

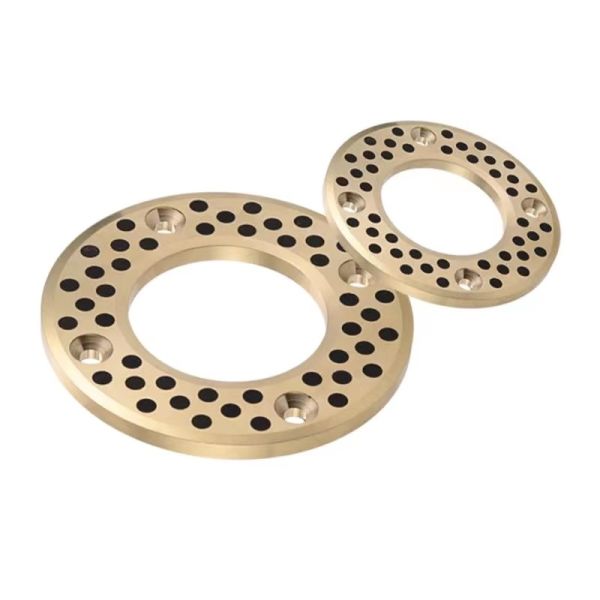

The Self-Lube Bronze Washer is an oilless bearing solution that incorporates a graphite insert for enhanced lubrication and wear resistance. This innovative design eliminates the need for external lubrication, making it an ideal choice for applications where maintenance is limited or lubrication is impractical.

Constructed from high-quality bronze, the washer offers excellent strength and durability. The graphite insert provides a smooth, lubricating surface that reduces friction and wear, ensuring long-lasting performance.

The oilless design of the Self-Lube Bronze Washer simplifies installation and maintenance, reducing operational costs and downtime. It is suitable for use in a wide range of industrial applications, including machinery, pumps, and other rotating equipment.

In summary, the Self-Lube Bronze Washer with Graphite Insert offers a reliable and maintenance-free bearing solution that provides excellent lubrication and wear resistance. Its oilless design and high-quality construction make it a cost-effective and long-lasting choice for various industrial applications.

Selflube Bronze Washer Oilless Washer,
Plate Bearing Bearing Graphite Oil Free Bush Straight Bronze Washer,

oilless slide plate,wear plate, graphite plugged #500 sp oils pad. Slide Plate Thickness 10mm-Steel Type. Slide Plate Thickness 20mm-Bronze Type.

Bearings With Graphite Insert Washer, SelfLube Washer OILLESS WASHER bronze

Oil Free Washer
Oil Free Washer for universal use in many dry application such as die/mold, machinery,
automation, construction, automobile. The Oil Free bush is self lubrication and work without grease.

Material : #500SP
(High Strength Brass / Copper Alloy + Solid Lubricant)

Model
25WSBW/25WSBW-N
Manufacturer Code
WSBW/WSBW-N/SOBW/SPW

Bearings with graphite insert, Self Lubricating Bronze Bushings Wit Ball, Need Assistance? Call Or Email Us.Engineering Support Available
Request a quote, Bearings With Graphite Insert Catalogs and Brochures Available.

Bronze Bearings with graphite insert in High & Low Temps, Graphite Bushings and Bearings. Increased productivity. Reduced costs & downtime. Services: Custom Design, Engineering Support, Short Lead Times.

Metallic, self-lubricating bushings are made up of one of four basic compositions: Strong Cast Bronze, Bronze Bushings

Since bearings usually receive a lot of frictional resistance that generates heat, lubricants such as oil or grease are used to prevent the seizing or abnormal wear that this frictional heat could otherwise cause. Lubrication-free bushings don't need lubricating oil because the bearing body has a lubricating structure made possible by lubricating oil in the bearing body, or by embedded solid lubricant or the like. Since they don't need lubricating oil, lubrication-free bushings are often used for applications such as precision machinery that makes lubricating oil refilling difficult, and equipment with poor affinity to oil. They also greatly reduce maintenance costs by eliminating the need for regular lubrication and enabling stable operation over long periods. Lubrication-free bushings come in a variety of shapes that can be used for different applications as needed. Examples include straight bushings, collar bushings, flange bushings, and housing bushings.

Our bearings have been developed for high load, low speed applications and are made from rotationally cast high strength bronze using a specially formed graphite plug as a lubricant.
Our range of oil free washers are available in metric and imperial sizes. Our in-house machining service can produce non-standard sizes to meet customer's specific needs.

SOBW Bronze Thrust Washer / Oilless bush, copper alloy washer type

Graphite Impregnated Bronze Slide Plate at Best Price

Choose from our selection of bronze thrust washers, including embedded graphite thrust bearings, bronze thrust bearings, and more. Customized Size and brass thrust washer material.

Self-lubricating bearings and sliders embedded with solid lubricants, under the action of friction heat, expand the solid lubricant, automatically transfer to the friction surface, form a layer of lubricating film to prevent metal-to-metal contact, thereby reducing friction factor and wear, and improve The bearing capacity of the bearing. Metal skeleton, according to the needs of gear pump bearing users, bronze, cast iron, cast steel, stainless steel, non-metallic skeleton can be used bakelite, phenolic plastic, nylon and so on.

Second, the characteristics of inlaid bearings and sliders: Self-lubricating bearings and sliders with solid lubricants are made of 10 kinds of lubricating materials with excellent lubricating properties and special lengths, some of which can accept under heavy load. The bearing pressure is on the 2 um thick JDB solid inlaid bearing film, the friction speed of 40m per second can withstand the contact stress of 2800Mpa; some components, low shear force between molecules, low adhesion is easy to form Molecular slip surface, only in the lubrication layer of 2.5um thickness, there are about 40,000 JDB bronze inlaid bearing slip surface, which plays a key role in the lubrication performance of solid lubricant; some components are at 399 °C high temperature, The friction factor is normal; some components have good lubrication properties in normal temperature, normal load, high friction speed, vacuum, and atmosphere. In short, self-lubricating solid lubricants with inlaid bearings and sliders can be adapted to the friction conditions of various working conditions. The friction factor is mostly between 0.006 and 0.09.

Third, the use of inlaid bearings, sliders: Inlaid bearings and sliders are embedded in the skeleton by solid lubricants, self-lubricating friction operation, ideally solve the pollution problems caused by liquid lubricants in the lubrication process, so Widely used in food machinery and other non-polluting environments. The solid lubricant used in the inlaid bearing and the slider has the characteristics of large load bearing, so it is very suitable for the heavy-duty, low-speed, high-temperature, water vapor and other corrosion conditions and the inconvenient and frequently lubricated working conditions of the oil film. Used in mining, metallurgy, petroleum, geology, chemical, paper, bridges, hydraulic hubs, ships, and other industrial sectors. The most outstanding results, such as steel ladle cranes and 1150 roughing mills, are 6-8 times longer than the original bearing pads. Various rolling mills, shearing machines, cold bed sliders (pipe pullers), ptwisting pots, rubber mill bearings, floating crane bearings, textile mill dryers, non-ferrous metal rolling mills, steel plates for heavy-duty vehicles The pin bushing, the twisting mixer of the chemical plant, the roller bearing of the coal mine conveyor, the inner sleeve of the drilling machine deep rod pump, the protective drill sleeve and the guiding bushings, sliders and cam discs on various equipments are all very obvious. .

Fourth, the use of inlaid bearings, sliders:
(1) Inlaid bearings and sliders have been coated with a special layer of grease on the friction surface before leaving the factory. Do not soil the friction table during installation. Do not wipe off the grease! ! ! If it is rubbed off, please replace it with molybdenum disulfide lithium grease, but it must be run at low speed for a period of time before the test run, in order to operate normally. When using heavy load equipment, you must purchase special grease repaint from the seller. .
(2) When installing the inlaid bearing, it must ensure a certain sliding clearance to prevent jamming and damage the bearing and the machine.
(3) When installing the inlaid bearing, it should ensure that the shaft diameter with which it is rubbed has a good cylindricity, so that it has sufficient contact area with the bearing, otherwise it will seriously affect the service life of the bearing or damage immediately.

Five, inlaid bearings, sliders factory specifications: This product is widely used in many industries, so it is difficult to unify specifications.

viiplus is a professional manufacturer on various kind of bearings over 15 years China factory.
We are making all kinds of slide bearings including composit bushing, POM composite bushing,bimetal bushing,wrapped bronze bushing, cast sliding bushings and wear plate bearing pad, sintered bronze bushing and sintering parts, ball transfer bearings, etc.
The shapes of bearings can be in sleeve, flanged, spherical, plate, washer, pad, ring, square etc.
Base materials in carbon steel, harden steel, iron, stainless steel, bronze, brass, copper, bronze-steel alloy.Lubricant materials in , , POM, nylon, plastic, oil, graphite, grease, MoS2, etc.
Export to Poland, Czech Republic, Slovakia, Hungary, Germany, Austria, Switzerland, Liechtenstein,America,Canada,Brazil,Peru,Argentina,Chile,Paraguay,Europe,Poland, Czech Republic, Slovakia, Hungary, Austria, Switzerland, Liechtenstein,Britain,Finland,France,Germany,Italy,Spain,Sweden,,Estonia,Ukraine,Turkey,Austrial,Russia,Korea,Malaysia,Singapore,Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama,Bahamas, Cuba, Jamaica, Haiti, Dominica, Antigua and Barbuda, Saint Kitts and Nevis, Dominica, Saint Lucia, Saint Vincent and the Grenadines, Grenada, Barbados, Trinidad and more Bagh, Puerto Rico, Anguilla,Thailand,Egypt,Kenya,Somali,Congo,Zimbabwe,South Africa,etc.

BRASS WASHER ONLINE SOURCING

Oil Free Washers - Select, configure, order.

Washer, self-lubricating

Plain Thrust Washer, Graphite Plugged Thrust Washer, and Oil / Grease Grooved Thrust Washer.

High hardness impregnated brass solid lubrication bearing is improved upon viiplus.com by further enhance the hardness of high hardness brass, giving rise to higher load-bearing capacity and better wear-resistant property. The products are widely used in continuous casting rolling machines, mining equipment, engineering equipment, injection-molding machines, etc. Because of its high hardness, it's difficult to machining and finish, it's recommended only for really high load applications.

Bronze alloy metallic bearings bronze thrust washer with graphite plugs provides both the good wear resistance and great self-lubricating feature of the bearings.

This designation enables the bearings to be operated without oiling or greasing maintenance.

It is widely used in the field of high load and intermittent movement as well as oscillating movement conditions such as automobile assembling line, Water Turbine, Gate dams, and Plastic Injection Machinery.

Depending on different working conditions, a variety of types of different alloys are available.

The material of the bronze thrust washer is made of a strong cast bronze base metal with built-in special solid lubricants. prelubrication under extremely high / low temperature conditions at low speed. This material provides a maintenance-free bearing solution, especially for high loads, intermittent oscillating motion.

This type of bearing can be applied in dry, high temperature, high pressure, corrosive environment, with water or other chemicals when it is not possible to introduce oil.

It is now widely used in automotive product line, water engineering, dam gates, plastic industries, later casting machines, steel rollers in metallurgical industry, mineral machinery ships, turbo generators , in hydraulic turbines and injection molding machines.

Self-lubricating Thrust Washer Standard Metric Size

The bronze thrust washers are manufactured from a variety of Bronze Alloys, including: C95400 Aluminum Bronze, C93200 Bearing Bronze and C86300 Manganese Bronze.

We provide your desired Thrust Washers according to the specifications you require.

Bronze Thrust Washer Feature

Bronze alloy CuZn25Al5Mn4Fe3 + Graphite plugs

Oilless bearings are designed for high load, low speed applications and are made from rotationally cast high strength bronze using a specially shaped graphite plug as a lubricant.

Our range of oil-free washers are available in metric and imperial sizes. Our in-house machining service can produce custom-made products that meet specific customer requirements.

Bronze Thrust Washer Structures

Bronze thrust washer with solid lubricant plug (graphite)

① Solid lubricant film
② Solid lubricant plug
③ Bronze backing

Material features

1.Provides long-term operation without maintenance;

2.Suitable for high static and dynamic loads;

3.With low and smooth coefficient of friction and no stick-slip effects;

4.Suitable for dirty, corrosive, shock and edge loads;

5.The base material has good shock-absorbing ability;

6.Can be used over a wide temperature range;

7.Suitable for reciprocating, rotating and oscillating motion with an initial frequency

8.The complexity of the formation of an oil film;

9.Low wear and long service life.

Oilless Thrust Washer, Oil Free Copper Alloy Washers - Select, configure, order

Oilless Bearing, Graphite Plugged Bearing, Solid Bronze Bearing, Sliding Bearing, Dry Bearing & Pre-lubrication Plain Bearing and Bushing

High Tensile Brass Alloy, Solid Lubricant Embedded

Various Size, Various Application Available

Bronze Thrust Washer Characteristics

Bronze Thrust Washer With Graphite Insert provides both the good wear resistance and great self-lubricating feature of the bearings. This designation enables the bearings to be operated without oiling or greasing maintenance.

• The bronze thrust washer with graphite plugs provides both good wear resistance and excellent self-lubricating function of this washer.
• This designation allows the thrust washer to be operated without oiling or greasing maintenance.
• It is widely used in the field of high load and intermittent motion as well as oscillating motion condition.

Self-Lubricating Bronze Thrust Washer Technical Data

Bronze Thrust Washer Applications

The Oilless Bronze Thrust Washer is widely used in below:

1. Heavy duty tractor and farm equipment
2. Mining equipment
3. Forestry equipment
4. Mixing tank blade shaft support
5. Foundry, furnace and steel production equipment
6. HVAC applications
7. Heavy duty casters and wheel support bearings
8. Oven kart veneer drying applications, and possibly other applications
