High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved
Specifications
Brand Name :
Brand Cast Bronze Plain Sleeve Bearing
Model Number :
Sleeve bearing type:
Certification :
Bushing Standards Met: 83-7-7-3, ASTM B505, CDA 932, SAE 660
Place of Origin :
China Manufacturer
MOQ :
50 Piece/Pieces (Min. Order)
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Cast Bronze Customized Bearings Manufacturing
Delivery Time :
10-20 work days
Packaging Details :
Standard export packing, or as customer's requirement
Material :
BRONZE METAL POWDER
Type :
Sleeve, flange,ring,split,Bushings
Shipment :
By sea or air
Application :
metal sintered fan bushing
Bearing Bushing Factory Price :
tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
High Light: :
RG7 Cast Bronze Bushings, Premium Cast Bronze Bushings, Tin Bronze Bushings, 2.1090 CuSn7Zn4Pb7, gunmetal bronze bushing
Cast bronze bushing :
Plug Graphite Bushings – This product is a cast bronze bushing that has been milled and plugged with graphite plugs. The graphite acts as the lubrication. These are used in applications were the properties of the oil impregnated bushing would not suffice.
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

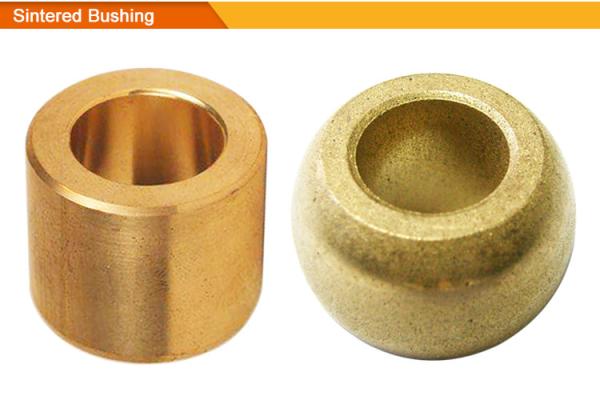

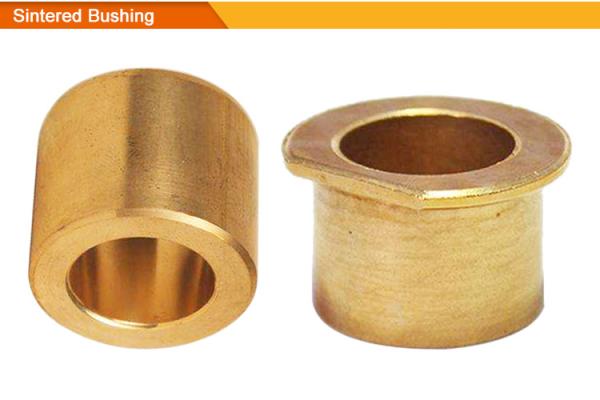

When it comes to high-precision machinery and equipment, having reliable and durable bearings is crucial. For applications requiring spherical bearings with exceptional accuracy and durability, sintered bronze bushings are an excellent choice. These bushings are manufactured using a sintering process that results in a uniform and dense material, ensuring optimal performance.

Sintered bronze bushings are made from a combination of copper and tin, which gives them superior strength, wear resistance, and corrosion resistance. The spherical design of these bearings allows for multi-directional movement, making them suitable for a wide range of applications.

One of the key features of sintered bronze bushings is their high accuracy. The sintering process ensures that the bushings are manufactured to precise dimensions, resulting in a tight and reliable fit. This precision is crucial for ensuring smooth and efficient operation of the machinery or equipment.

In addition to their high accuracy, sintered bronze bushings are also ISO 9001 approved. This international standard ensures that the manufacturing process meets strict quality control requirements, guaranteeing the consistency and reliability of the bushings.

The spherical design of sintered bronze bushings also makes them ideal for applications where misalignment or vibration is a concern. The ability to accommodate multi-directional movement helps to reduce wear and tear on the bearing, extending its lifespan.

Overall, sintered bronze bushings offer a combination of high accuracy, durability, and corrosion resistance that is unmatched by other bearing materials. With ISO 9001 approval, you can trust that these bushings will provide reliable performance for your critical machinery and equipment.

Powdered Metal Products

Bronze Spherical Bearing For Fan Powder Metal Sintered BRONZE METAL POWDER Spherical Bushing Slide Sintered Ring metal sintered fan bushing

products categorization

Industrial Axial Fans bushings

Gravity Shatter Damper bushings

Alkatel Fans bushings

Duct Fans bushings

Avicuture Fans bushings

Centrifugal Fans bushings

Roof Fans bushings

Natural bushings

Description

SAE 841 Powdered Metal Bronze, Sleeve Bearing

Specifications SAE841 SLEEVE Bearing Oil Impregnated Bronze

Material Powdered Metal / Oil Impregnated Bronze

Material Standard SAE 841

Tolerances

Inner Diameter Tolerance +.000 -.001 in

Outside Diameter Tolerance+.000 -.001 in

Overall Length Tolerance .005 in

Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1%

MPIF: CT-1000-K26

ASTM: B438 Grade 1, Type 2 Class A

SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1

Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200

Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest.

After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation.

Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F.

RoHS, REACH, DFARS compliant


Advantages Of Powder Metallurgy Process

· Do not need or only very little machining

· High usage rate of material(more than 95%)

· Parts size consistency is good and stable. The precision can reach 0.01mm.

· The material composition can be adjusted according to the customers’requirement of the parts performance.

· Do the treatment on the surface of the parts according to customers’ requirement to improve the strength and hardness.

· Due to the die forming, we can customize the complex shape or special profiled parts which other machining can not do.

· Because suitable for mass production, the production efficiency is high and the cost is lower than machining.

High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved

High Accuracy Sintered Bronze Bush Bronze Spherical Bearing ISO 9001 Approved

Hot Tags: sae841 bushing, China, suppliers, manufacturers, factory, wholesale, customized

Product Type:
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing
Application :
Domestic electric and electronic machines,electric tools,textile machines,chemical engineering machines,automobiles and official business machines , fan parts,etc.
Material:
Bronze powder
Density:
6.4~6.8g/cm3
Static Load :
200N/mm²
Dynamic Load :
18N/mm²
Max line speed :
7m/s
Volume of oil impregnation:
22%
Hardness:
25HB
Friction coefficient:
0.03μ
Traction resistance:
10~20N
Elongation:
1~2.5%
Max thermal temperature:
-20~+120℃
