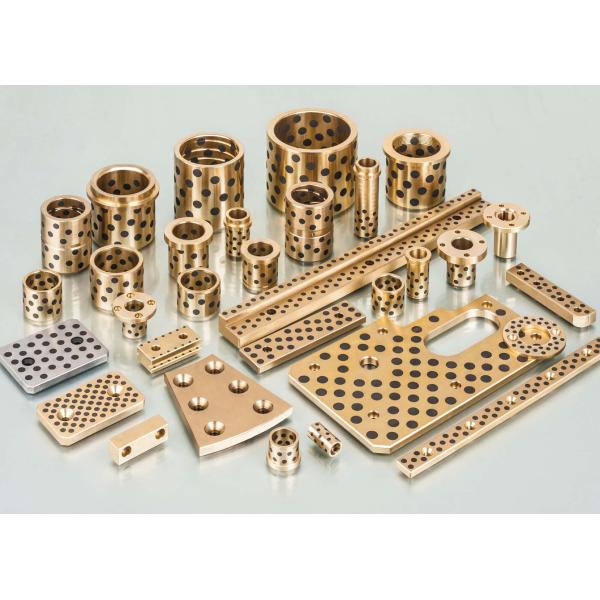

Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Specifications
Standard Material :
CuZn25A16Fe3Mn4
Oilless Bush Supplier :
www.VIIPLUS.com offers oilless bushings on their website [1]. You can visit their website to explore their product range and make inquiries.
Type :
Oil free slide bearings
Manufacturer :
bucha de bronze grafitado
Bushing :
Oilless bushing
Oilless Bearing Manufacturer :
https://www.bronzelube.com/
Bearing Bushing Factory Price :
tiffany@viiplus.com
Oilless Bushes :
Oilless Bush. Copper Alloy. Straight type. SOB. Material Base Copper alloy (SO-2). Solid lubricant
Brand Name :
viiplus
Model Number :
soliding bearings
Certification :
standard bushing size product
Place of Origin :
oilless bushing
MOQ :
NEGOTIABLE
Payment Terms :
T/T, Western Union
Supply Ability :
plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing
Delivery Time :
FAST DELIVERY
Packaging Details :
BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Marerial :
Brass bushings, plugged graphite and MoS2
Feature :
Straight size bushing
Size :
Metric size bushing 28*20*Lengh
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
High Light: :
Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery
Description

The Graphite Bronze Oilless Bearing 2820 is a high-performance, maintenance-free bearing solution that utilizes the unique properties of graphite bronze to provide smooth, friction-free rotation. This bearing is designed for applications where lubrication is difficult or undesirable, such as in vacuum environments or where contamination must be minimized.

Graphite Bushings And Oilless Bearings - Reduced Costs & Downtime‎, Graphite Bronze Oilless Bearing 2820

28*20*10mm

28*20*12mm

28*20*15mm

High tensile brass alloy solid lubricant embedded

High-Quality Solid Bushings Supplier, Straight bushings, Solid Bearings, Brass Bushings, Plugged graphite

Solid Bronze Bushings, Plugged graphite brass bushes.

Graphite Bronze Oilless Bearing 2820

Application fields:

1. Special bearings for construction machinery

2. Special bearings for injection molding machinery

3. Special bearings for molds

4. Automobile: air conditioning compressor, fuel pump, gearbox, shock absorber, starting motor, etc

5. Hydraulic components: gear pump, piston pump, vane pump, compressor, oil cylinder, etc

6. Logistics and port machinery: outdoor logistics machinery such as moving truck, stacker, lifting platform truck, and port machinery

7. Stamping, forging, and pressing machinery

8. Agricultural machinery: combine harvester, seeder, bale baler, grinder, tractor and another cylinder, suspension system, joint parts and other parts that can not be refueled or difficult to form oil film

9. Office equipment: facsimile machine, copier, shredder, scanner, printer and other joint and reciprocating moving parts

10. Food machinery

11. Energy facilities: environmentally friendly new energy such as wind power generation, solar power generation, water conservancy power generation and other convenient use

12. Fitness and entertainment equipment

Bronze Bearings Alloy Material

Model/corresponding brand JDB-1 JDB-2 JDB-3 JDB-4 JDB-5
JDB-2 JDB-22 JDB-23
GB1776-87 ZCuZn25
Al6Fe3Mn3		 ZCuSn6Zn6Pb3 ZCuAl10Fe3 ZCuSu10P1 steel+ ZCuSn6Zn6Pb3 HT250 GCr15
ISO1338 GCuZn25
Al6Fe3Mn3		 GCuSn6Zn6Pb3 GCuAl10Fe3 - steel+ CuSn6Zn6Pb3
Fe3Ni5		 - B1
DIN G-CuZn25
Al5		 GB-CuSn5Zn5Pb5 GB-CuAl10Ni GB-CuSn10 steel+ CuSn6Zn6Pb3Ni - 100Cr6
JIS HBsC4 BC6 AIBC3 BC3 BC6 FC250 SUJ2
ASTM/UNS C86300 C83600 C95500 C90500 C83600 Class40 52100
(BS) HTB2 LG2 AB1 PB4 LG2 - -

Graphite Bronze Oilless Bearing 2820

Bronze Bearings Material composition and properties

chemical composition CuZn25Al5Mn3Fe3 CuZn25Al5Mn3Fe3 CuAl9Fe4Ni4Mn2 CuSn5Pb5Zn5 CuSn12 HT250 Gcr15
density(g/cm³) 8.0 8.0 8.5 8.9 9.05 7.3 7.8
hardness (HB) ＞210 ＞250 ＞150 ＞70 ＞80 ＞190 HRC＞58
Tensile strength (N/mm²) ＞750 ＞800 ＞800 ＞200 ＞260 ＞250 ＞1500
elongation (%) ＞12 ＞8 ＞15 ＞10 ＞8 ＞5 ＞15
Coefficient of linear expansion 1.9 1.9 1.9 1.8 1.8 1.0 1.1
The use of temperature(℃) -40~+300 -40~+150 -40~+400 -40~+400 -40~+400 -40~+400 -40~+400
Maximum dynamic load(N/mm²) 100 120 150 60 70 80 200
Maximum linear velocity(m/min) 15 15 20 10 10 8 5
Maximum PV value lubrication
(N/mm²*m/min)		 200 200 60 60 80 40 150
Amount of permanent compression deformation
(300N/mm²)		 ＜0.01 ＜0.005 ＜0.04 ＜0.05 ＜0.05 ＜0.015 ＜0.002

JDB · Solid Self-Lubricating Inlaid Bearing · L tol. -0.10/-0.30 · Unit: mm
No. Part No. Unique Key d Bore (mm) D OD (mm) L Length (mm) L Tol. d Tol. (F7) D Tol. (m6) Remarks
1 81208 JDB-08-12-8 8 12 8 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
2 81210 JDB-08-12-10 8 12 10 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
3 81212 JDB-08-12-12 8 12 12 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
4 81215 JDB-08-12-15 8 12 15 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
5 101408 JDB-10-14-8 10 14 8 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
6 101410 JDB-10-14-10 10 14 10 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
7 101412 JDB-10-14-12 10 14 12 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
8 101415 JDB-10-14-15 10 14 15 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
9 101416 JDB-10-14-16 10 14 16 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
10 101420 JDB-10-14-20 10 14 20 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
11 121810 JDB-12-18-10 12 18 10 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
12 121812 JDB-12-18-12 12 18 12 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
13 121815 JDB-12-18-15 12 18 15 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
14 121816 JDB-12-18-16 12 18 16 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
15 121820 JDB-12-18-20 12 18 20 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
16 121825 JDB-12-18-25 12 18 25 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
17 121830 JDB-12-18-30 12 18 30 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
18 131910 JDB-13-19-10 13 19 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
19 131912 JDB-13-19-12 13 19 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
20 131915 JDB-13-19-15 13 19 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
21 131916 JDB-13-19-16 13 19 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
22 131920 JDB-13-19-20 13 19 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
23 131925 JDB-13-19-25 13 19 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
24 131930 JDB-13-19-30 13 19 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
25 142010 JDB-14-20-10 14 20 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
26 142012 JDB-14-20-12 14 20 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
27 142015 JDB-14-20-15 14 20 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
28 142016 JDB-14-20-16 14 20 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
29 142020 JDB-14-20-20 14 20 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
30 142025 JDB-14-20-25 14 20 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
31 142030 JDB-14-20-30 14 20 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
32 152110 JDB-15-21-10 15 21 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
33 152112 JDB-15-21-12 15 21 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
34 152115 JDB-15-21-15 15 21 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
35 152116 JDB-15-21-16 15 21 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
36 152120 JDB-15-21-20 15 21 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
37 152125 JDB-15-21-25 15 21 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
38 152130 JDB-15-21-30 15 21 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
39 152135 JDB-15-21-35 15 21 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
40 162210 JDB-16-22-10 16 22 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
41 162212 JDB-16-22-12 16 22 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
42 162215 JDB-16-22-15 16 22 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
43 162216 JDB-16-22-16 16 22 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
44 162220 JDB-16-22-20 16 22 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
45 162225 JDB-16-22-25 16 22 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
46 162230 JDB-16-22-30 16 22 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
47 162235 JDB-16-22-35 16 22 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
48 162240 JDB-16-22-40 16 22 40 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
49 182410 JDB-18-24-10 18 24 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
50 182412 JDB-18-24-12 18 24 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
51 182415 JDB-18-24-15 18 24 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
52 182416 JDB-18-24-16 18 24 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
53 182420 JDB-18-24-20 18 24 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
54 182425 JDB-18-24-25 18 24 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
55 182430 JDB-18-24-30 18 24 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
56 182435 JDB-18-24-35 18 24 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
57 182440 JDB-18-24-40 18 24 40 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
58 202810 JDB-20-28-10 20 28 10 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
59 202812 JDB-20-28-12 20 28 12 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
60 202815 JDB-20-28-15 20 28 15 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
61 202816 JDB-20-28-16 20 28 16 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
62 202820 JDB-20-28-20 20 28 20 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
63 202825 JDB-20-28-25 20 28 25 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
64 202830 JDB-20-28-30 20 28 30 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
65 202835 JDB-20-28-35 20 28 35 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
66 202840 JDB-20-28-40 20 28 40 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
67 202850 JDB-20-28-50 20 28 50 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
68 223212 JDB-22-32-12 22 32 12 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
69 223215 JDB-22-32-15 22 32 15 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
70 223216 JDB-22-32-16 22 32 16 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
71 223220 JDB-22-32-20 22 32 20 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
72 223225 JDB-22-32-25 22 32 25 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
73 223230 JDB-22-32-30 22 32 30 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
74 223235 JDB-22-32-35 22 32 35 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
75 223240 JDB-22-32-40 22 32 40 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
76 223250 JDB-22-32-50 22 32 50 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
77 253312 JDB-25-33-12 25 33 12 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
78 253315 JDB-25-33-15 25 33 15 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
79 253316 JDB-25-33-16 25 33 16 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
80 253320 JDB-25-33-20 25 33 20 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
81 253325 JDB-25-33-25 25 33 25 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
82 253330 JDB-25-33-30 25 33 30 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
83 253335 JDB-25-33-35 25 33 35 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
84 253340 JDB-25-33-40 25 33 40 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
85 253350 JDB-25-33-50 25 33 50 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
86 253360 JDB-25-33-60 25 33 60 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
87 303812 JDB-30-38-12 30 38 12 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
88 303815 JDB-30-38-15 30 38 15 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
89 303816 JDB-30-38-16 30 38 16 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
90 303820 JDB-30-38-20 30 38 20 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
91 303825 JDB-30-38-25 30 38 25 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
92 303830 JDB-30-38-30 30 38 30 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
93 303835 JDB-30-38-35 30 38 35 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
94 303840 JDB-30-38-40 30 38 40 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
95 303850 JDB-30-38-50 30 38 50 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
96 303860 JDB-30-38-60 30 38 60 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
97 354520 JDB-35-45-20 35 45 20 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
98 354525 JDB-35-45-25 35 45 25 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
99 354530 JDB-35-45-30 35 45 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
100 354535 JDB-35-45-35 35 45 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
101 354540 JDB-35-45-40 35 45 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
102 354550 JDB-35-45-50 35 45 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
103 354560 JDB-35-45-60 35 45 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
104 354570 JDB-35-45-70 35 45 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
105 405020 JDB-40-50-20 40 50 20 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
106 405025 JDB-40-50-25 40 50 25 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
107 405030 JDB-40-50-30 40 50 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
108 405035 JDB-40-50-35 40 50 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
109 405040 JDB-40-50-40 40 50 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
110 405050 JDB-40-50-50 40 50 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
111 405060 JDB-40-50-60 40 50 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
112 405070 JDB-40-50-70 40 50 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
113 405080 JDB-40-50-80 40 50 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
114 455530 JDB-45-55-30 45 55 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
115 455535 JDB-45-55-35 45 55 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
116 455540 JDB-45-55-40 45 55 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
117 455550 JDB-45-55-50 45 55 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
118 455560 JDB-45-55-60 45 55 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
119 455570 JDB-45-55-70 45 55 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
120 455580 JDB-45-55-80 45 55 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
121 506030 JDB-50-60-30 50 60 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
122 506035 JDB-50-60-35 50 60 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
123 506040 JDB-50-60-40 50 60 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
124 506050 JDB-50-60-50 50 60 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
125 506060 JDB-50-60-60 50 60 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
126 506070 JDB-50-60-70 50 60 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
127 506080 JDB-50-60-80 50 60 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
128 506230 JDB-50-62-30 50 62 30 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
129 506235 JDB-50-62-35 50 62 35 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
130 506240 JDB-50-62-40 50 62 40 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
131 506250 JDB-50-62-50 50 62 50 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
132 506260 JDB-50-62-60 50 62 60 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
133 506270 JDB-50-62-70 50 62 70 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
134 506530 JDB-50-65-30 50 65 30 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
135 506535 JDB-50-65-35 50 65 35 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
136 506540 JDB-50-65-40 50 65 40 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
137 506550 JDB-50-65-50 50 65 50 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
138 506560 JDB-50-65-60 50 65 60 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
139 506570 JDB-50-65-70 50 65 70 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
140 506580 JDB-50-65-80 50 65 80 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
141 5065100 JDB-50-65-100 50 65 100 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
142 557030 JDB-55-70-30 55 70 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
143 557035 JDB-55-70-35 55 70 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
144 557040 JDB-55-70-40 55 70 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
145 557050 JDB-55-70-50 55 70 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
146 557060 JDB-55-70-60 55 70 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
147 557070 JDB-55-70-70 55 70 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
148 557080 JDB-55-70-80 55 70 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
149 5570100 JDB-55-70-100 55 70 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
150 607430 JDB-60-74-30 60 74 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
151 607435 JDB-60-74-35 60 74 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
152 607440 JDB-60-74-40 60 74 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
153 607450 JDB-60-74-50 60 74 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
154 607460 JDB-60-74-60 60 74 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
155 607470 JDB-60-74-70 60 74 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
156 607480 JDB-60-74-80 60 74 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
157 6074100 JDB-60-74-100 60 74 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
158 607530 JDB-60-75-30 60 75 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
159 607535 JDB-60-75-35 60 75 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
160 607540 JDB-60-75-40 60 75 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
161 607550 JDB-60-75-50 60 75 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
162 607560 JDB-60-75-60 60 75 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
163 607570 JDB-60-75-70 60 75 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
164 607580 JDB-60-75-80 60 75 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
165 6075100 JDB-60-75-100 60 75 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
166 637535 JDB-63-75-35 63 75 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
167 637540 JDB-63-75-40 63 75 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
168 637550 JDB-63-75-50 63 75 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
169 637560 JDB-63-75-60 63 75 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
170 637570 JDB-63-75-70 63 75 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
171 637580 JDB-63-75-80 63 75 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
172 6375100 JDB-63-75-100 63 75 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
173 658035 JDB-65-80-35 65 80 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
174 658040 JDB-65-80-40 65 80 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
175 658050 JDB-65-80-50 65 80 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
176 658060 JDB-65-80-60 65 80 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
177 658070 JDB-65-80-70 65 80 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
178 658080 JDB-65-80-80 65 80 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
179 6580100 JDB-65-80-100 65 80 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
180 708535 JDB-70-85-35 70 85 35 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
181 708540 JDB-70-85-40 70 85 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
182 708550 JDB-70-85-50 70 85 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
183 708560 JDB-70-85-60 70 85 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
184 708570 JDB-70-85-70 70 85 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
185 708580 JDB-70-85-80 70 85 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
186 7085100 JDB-70-85-100 70 85 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
187 709035 JDB-70-90-35 70 90 35 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
188 709040 JDB-70-90-40 70 90 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
189 709050 JDB-70-90-50 70 90 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
190 709060 JDB-70-90-60 70 90 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
191 709070 JDB-70-90-70 70 90 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
192 709080 JDB-70-90-80 70 90 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
193 7090100 JDB-70-90-100 70 90 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
194 759040 JDB-75-90-40 75 90 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
195 759050 JDB-75-90-50 75 90 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
196 759060 JDB-75-90-60 75 90 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
197 759070 JDB-75-90-70 75 90 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
198 759080 JDB-75-90-80 75 90 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
199 7590100 JDB-75-90-100 75 90 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
200 759540 JDB-75-95-40 75 95 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
201 759550 JDB-75-95-50 75 95 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
202 759560 JDB-75-95-60 75 95 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
203 759570 JDB-75-95-70 75 95 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
204 759580 JDB-75-95-80 75 95 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
205 7595100 JDB-75-95-100 75 95 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
206 7595120 JDB-75-95-120 75 95 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
207 809640 JDB-80-96-40 80 96 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
208 809650 JDB-80-96-50 80 96 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
209 809660 JDB-80-96-60 80 96 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
210 809670 JDB-80-96-70 80 96 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
211 809680 JDB-80-96-80 80 96 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
212 8096100 JDB-80-96-100 80 96 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
213 8096120 JDB-80-96-120 80 96 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
214 8096130 JDB-80-96-130 80 96 130 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
215 8010040 JDB-80-100-40 80 100 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
216 8010050 JDB-80-100-50 80 100 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
217 8010060 JDB-80-100-60 80 100 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
218 8010070 JDB-80-100-70 80 100 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
219 8010080 JDB-80-100-80 80 100 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
220 80100100 JDB-80-100-100 80 100 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
221 80100120 JDB-80-100-120 80 100 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
222 80100130 JDB-80-100-130 80 100 130 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
223 80100140 JDB-80-100-140 80 100 140 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
224 9011050 JDB-90-110-50 90 110 50 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
225 9011060 JDB-90-110-60 90 110 60 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
226 9011070 JDB-90-110-70 90 110 70 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
227 9011080 JDB-90-110-80 90 110 80 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
228 90110100 JDB-90-110-100 90 110 100 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
229 90110120 JDB-90-110-120 90 110 120 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
230 90110130 JDB-90-110-130 90 110 130 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
231 90110140 JDB-90-110-140 90 110 140 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
232 10012060 JDB-100-120-60 100 120 60 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
233 10012070 JDB-100-120-70 100 120 70 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
234 10012080 JDB-100-120-80 100 120 80 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
235 100120100 JDB-100-120-100 100 120 100 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
236 100120120 JDB-100-120-120 100 120 120 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
237 100120130 JDB-100-120-130 100 120 130 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
238 100120140 JDB-100-120-140 100 120 140 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
239 11013080 JDB-110-130-80 110 130 80 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
240 110130100 JDB-110-130-100 110 130 100 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
241 110130120 JDB-110-130-120 110 130 120 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
242 110130130 JDB-110-130-130 110 130 130 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
243 110130140 JDB-110-130-140 110 130 140 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
244 12014080 JDB-120-140-80 120 140 80 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
245 120140100 JDB-120-140-100 120 140 100 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
246 120140120 JDB-120-140-120 120 140 120 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
247 120140130 JDB-120-140-130 120 140 130 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
248 120140140 JDB-120-140-140 120 140 140 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
249 125145100 JDB-125-145-100 125 145 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
250 125145120 JDB-125-145-120 125 145 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
251 125145130 JDB-125-145-130 125 145 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
252 125145140 JDB-125-145-140 125 145 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
253 130150100 JDB-130-150-100 130 150 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
254 130150120 JDB-130-150-120 130 150 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
255 130150130 JDB-130-150-130 130 150 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
256 130150140 JDB-130-150-140 130 150 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
257 130150150 JDB-130-150-150 130 150 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
258 140160100 JDB-140-160-100 140 160 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
259 140160120 JDB-140-160-120 140 160 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
260 140160130 JDB-140-160-130 140 160 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
261 140160140 JDB-140-160-140 140 160 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
262 140160150 JDB-140-160-150 140 160 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
263 150170100 JDB-150-170-100 150 170 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
264 150170120 JDB-150-170-120 150 170 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
265 150170130 JDB-150-170-130 150 170 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
266 150170140 JDB-150-170-140 150 170 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
267 150170150 JDB-150-170-150 150 170 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
268 160180100 JDB-160-180-100 160 180 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
269 160180120 JDB-160-180-120 160 180 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
270 160180130 JDB-160-180-130 160 180 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
271 160180140 JDB-160-180-140 160 180 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
272 160180150 JDB-160-180-150 160 180 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015

Send your message to this supplier
Send Now

Graphite Bronze Oilless Bearing 2820

Ask Latest Price
Product Detail
Standard Material :
CuZn25A16Fe3Mn4
Oilless Bush Supplier :
www.VIIPLUS.com offers oilless bushings on their website [1]. You can visit their website to explore their product range and make inquiries.
Type :
Oil free slide bearings
Manufacturer :
bucha de bronze grafitado
Bushing :
Oilless bushing
Oilless Bearing Manufacturer :
https://www.bronzelube.com/
Contact Supplier
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820
Graphite Bronze Oilless Bearing 2820

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Site Member
9 Years
zhejiang
Business Type :
Importer, Exporter, Seller, Other
Main Products :
Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Oilless Bushes
MachineU China Products Chemicals Inorganic Chemicals Graphite Products Other Graphite Products
Contact Supplier
Submit Requirement
