CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
CuZn31Si(H68) Brass Bushing 39*35*30mm
Specifications
Brass Bushing :
39*35*30mm
Brand Name :
VIIPLUS
Model Number :
Bronze Bushings
Certification :
Wrapped Bronze Bearings Metric Size
Place of Origin :
made in china
MOQ :
negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Perforated Bronze Bearing，Plain Bronze Wrapped Bearings
Delivery Time :
7-25 work days
Packaging Details :
EXPORT CARTON WOOD PALLET WOODEN CASE
Type :
Brass Wrapped Bushing
Item :
Split type bushings
High Light: :
CuSn8P (DIN 17662) Bronze Bushing Sliding bearing
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Bushing Manufacturer :
wrapped bronze bushings are particu- larly well suited for applications where high levels of contamination make relubrication necessary .
Get A Better Quote :
tiffany@viiplus.com
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Bronze Bushing manufacturers & suppliers :
https://www.viiplus.com/
Bushing Type :
The sliding surface of cusn8 wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease .
Code :
Metric Size
Material :
Brass bushing
specialty :
Бронзовые втулки
Description

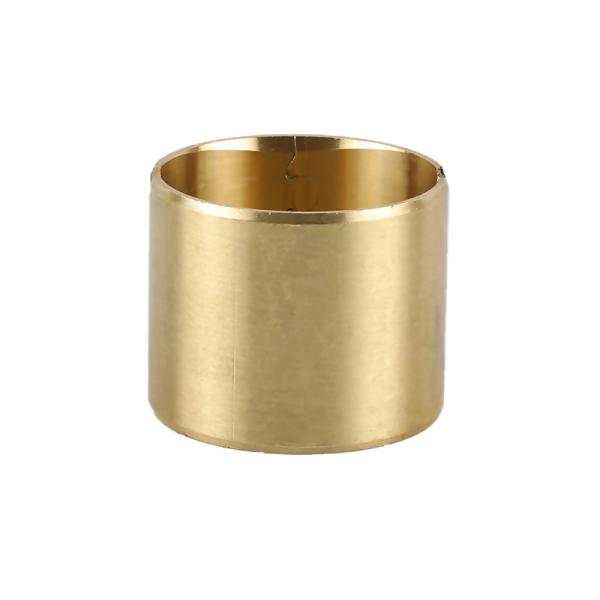

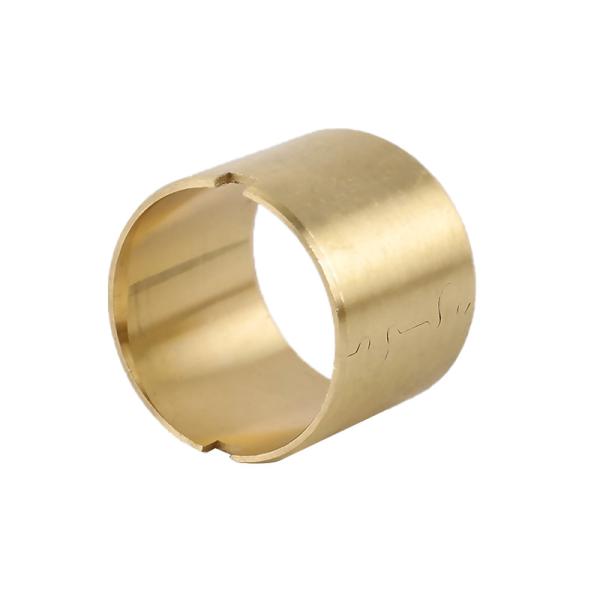

The CuZn31Si (H68) Brass Bushing, with dimensions of 39mm x 35mm x 30mm, is a precision-engineered bearing component made from the H68 brass alloy. This alloy, which contains approximately 31% zinc and a small amount of silicon, is widely used in applications requiring good machinability, corrosion resistance, and strength.

The brass bushing is designed to provide smooth rotation and minimize friction in rotating machinery such as pumps, motors, compressors, and other equipment. Its H68 brass construction ensures durability and reliability, withstanding repeated friction and abrasion without excessive wear or damage.

The 39mm x 35mm x 30mm dimensions allow for precise fitment within specific applications, ensuring compatibility with various machinery. The brass bushing's precise machining also ensures smooth operation and reduced vibration.

Overall, the CuZn31Si (H68) Brass Bushing 393530mm is a high-quality bearing component that offers excellent machinability, corrosion resistance, and strength. Its precision-engineered design ensures smooth rotation, low friction, and long-lasting performance in a wide range of industrial applications.

Brass Bushing, Manufacturer, Exporter, Cheap Price, Grooves Bushings, 39*35*30mm

Enterprise technology relying on Research Institute and colleges and universities and colleges and universities and colleges and universities, constantly develop brass wrapped bushings products adapted to different working conditions and various mechanical fields. The product performance has reached the level of foreign products of the same kind.

Product Description

Size

Customized

Material

CuZn31Si, Customized

Color

Natural

Certification

ISO9001, TS16949

Density

8.4g/cm3

Hardness

80~120HB

Working Temperature Limit

-40~150℃

Max. Dynamic Load

90N/mm²

Max Linear Velocity(Grease)

1.5m/s

Max PV value Grease

1.65N/mm2·m/s

Friction Coefficient

0.06~0.15

Pressure strength

>440N/mm²

Yield Strength

>230 N/mm2

Mating Axis

Hardness≥50, Roughness 0.4~1.0

Coefficient of heat conduction

71W/m·K

Linear Expansion Coefficient

19.2×10-6/K

Application

machine tool,construction machinery,brake system of automobile

Explanation: Brass wrapped bushing, with material CuZn31Si. It has good anti-fatigue, anti-erosion and anti-abrasion and load capacity. It can be produced by different bronze material and the surface can be produced with other type of oil socket and oil groove in different working condition.

CuZn31Si(H68) Brass Bushing 39*35*30mm

Chemical properties

Element

Weight %

Comment

Other

-

Rest Zn

Cu

66 - 70 %

Pb

0.8 %

Si

0.7 - 1.3 %

Ni

0.5 %

Material Structure

Material: CuZn31Si1.

Characteristics

  • Wear resistant bearing made of solid bronze strip with perforation for lubricated applications

  • Improved performance compared with PVB092 bronze bearings : larger grease reservoirs increase maintenance intervals, dirt and debris swept into perforations, thereby reducing wear

  • Optimum performance under relatively high loads and low speeds

Availability

Standard cylindrical bushings are available.

Special designs are produced based on your design.

Application

This type oilless bronze bushing is widely used in construction machinery, machine tooling etc.

the Brass Wrapped Bushing bushing is made of copper alloy CuZn31Si that is of higher density with its surface punched with oil sockets or grooves, which depends on the customer's requirements. This type of bushing has better load capacity, anti-erosion, and anti-abrasion capacity.

Material: CuZn31Si

Hardness: HB90~150

Temperature limit: -100℃~200℃

Load capacity: 90N/mm2

Speed limit: 2m/s

Bearing Properties

GENERAL Unit Value
Maximum load, p

Static

Dynamic

N/mm2

N/mm2

120

40
Operating temperature

Min

Max

°C

°C

- 40

150
