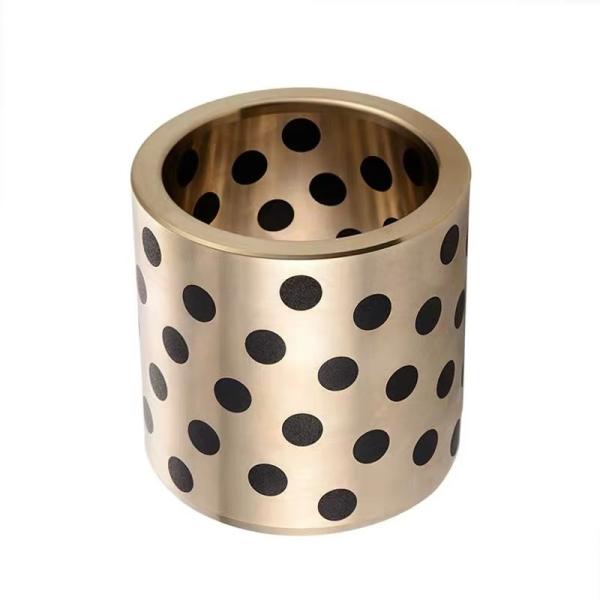

Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Specifications
Shock Resistance :
High
Brand Name :
VIIPLUS.COM
Model Number :
China Solid Bronze Bearing
Place of Origin :
MADE IN CHINA
Temperature Range :
Up To 300°C
Avalibility :
Special Oil Groove Design Can Be Made
Precision :
High
Certification :
standard bushing size product
Maintenance Required :
Low
Model :
JDB
Hardness :
>HB230
Friction Coefficient :
Low
Description

Cone Crusher Head Upper Bushing, customized bronze parts of crushers. Spider Bushing Material: ZCuPb20Sn5, ZCuPb10Sn10 ZCuPb24Sn5
Name: Spider Bushing, cone crusher parts, Bronze parts

Product Description:

Our Solid Bronze Bearings are made of various materials including C86300, SAE430, CuZn25Al6Fe3Mn3, CuAl10Ni5Fe5, CuSn5Pb5Zn5, CuSn7Zn4Pb7, and CuSn12 Tin Cast Bronze Sleeve Bearings. These materials are known for their high strength and durability, making them ideal for heavy-duty applications.

Our CuZn25Al6Fe3Mn3 Solid Bronze Bushing is a popular choice among customers. This material has a high hardness level of >HB230, making it resistant to wear and tear. It is also corrosion-resistant, making it perfect for use in harsh environments.

The CuSn12 Tin Cast Bronze Sleeve Bearings that we offer are also a great option for applications that require anti-wear properties. These bearings are made of a tin-cast bronze material, which is known for its excellent strength and wear resistance.

Our Bearing CuAl10Ni5Fe5 is another popular choice for customers. This material is known for its high strength, corrosion resistance, and anti-wear properties. It is an ideal choice for applications that require a high level of durability and reliability.

Our Solid Bronze Bearings have a temperature range of up to 300°C, making them suitable for use in demanding applications that require high-temperature resistance. They are an excellent choice for applications that require a high level of performance and reliability.

Overall, our Solid Bronze Bearings are a great choice for customers who need a reliable and durable bearing solution. With our wide selection of materials and sizes, we can provide you with the perfect bearing for your specific application. Contact us today to learn more about our Solid Bronze Bearings and how we can help you find the perfect solution for your needs.

Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance

Features:

  • Product Name: Solid Bronze Bearing
  • Shock Resistance: High
  • Friction Coefficient: Low
  • Origin: China
  • Application: High Load, Low Speed
  • Maintenance Required: Low

Introducing the High Leaded Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing For Cone Crusher. This bearing is made of Bearing CuAl10Ni5Fe5 and is a perfect fit for any high load, low speed application. Its shock resistance is high and the friction coefficient is low. Originating from China, this product is durable and requires minimal maintenance. Get your hands on the High Leaded Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing For Cone Crusher today!

Cone Crusher Bushing

Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance

Technical Parameters:

Product Attribute Details
Standard DIN 1850 / ISO 4379
Friction Coefficient Low
Precision High
Material C86300,SAE430 Solid Bronze Bearing, CuZn25Al6Fe3Mn3, CuAl10Ni5Fe5, CuSn5Pb5Zn5, CuSn7Zn4Pb7, CuSn12 Tin Cast Bronze Sleeve Bearings
Lubrication Oil Or Grease
Hardness >HB230
Application High Load, Low Speed
Longevity Long-lasting
Maintenance Required Low
Availability Special Oil Groove Design Can Be Made

Oil Lubricated Brass Bearing Bushing, High Leaded Solid Bronze Bushing CuSn10Pb10 Gunmetal Bearing For Cone Crusher, CuSn12 Tin Cast Bronze Sleeve Bearings Anti Wear Bronze Thrust Bearing

Applications:

VIIPLUS.COM Solid Bronze Bearing is a high-precision bearing made in China and conforms to DIN 1850 and ISO 4379 standards. Made from high-quality C86300, SAE430 Solid Bronze Bearing, CuZn25Al6Fe3Mn3, CuAl10Ni5Fe5, CuSn5Pb5Zn5, CuSn7Zn4Pb7, and CuSn12 Tin Cast Bronze Sleeve Bearings materials, it has high strength and can withstand high temperatures of up to 300°C.

This Oil Lubricated Brass Bearing Bushing has a wide range of applications in various industries. It can be used in heavy machinery, such as construction equipment, cranes, and mining machines, where the bearing needs to withstand high loads and high temperatures. It can also be used in marine equipment, where it can resist corrosion and wear caused by seawater and salt spray.

Another application scenario for the High Strength Solid Bronze Bearing Brass Sleeve Bushing is in the automotive industry. It can be used in engines, transmissions, and suspension systems, where it can provide high precision and durability. It is also suitable for use in pumps and compressors, where it can provide reliable performance and low friction.

The Gunmetal Centrifugal Solid Bronze Bearing CuSn7Zn4Pb7 Cast Bronze Bushing is also ideal for use in agricultural equipment, such as tractors and harvesters, where it can withstand the harsh conditions of the field. In addition, it can be used in food processing equipment, where it can meet the requirements of hygiene and cleanliness.

Overall, VIIPLUS.COM Solid Bronze Bearing is a versatile and reliable product that can be used in a wide range of occasions and scenarios. Whether it is in heavy industry, automotive, marine, agriculture, or food processing, this bearing can provide high precision, durability, and low friction. It can be lubricated with oil or grease to ensure its smooth operation and long service life.

Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance

Customization:

With our customization services, you can choose from a variety of options including brass oil lubricated bronze bearings, oil lubricated brass bearing bushings, and spherical solid bronze bearings. No matter what your application requires, we can tailor our products to meet your specific needs.

Metric Cylindrical Bushes Size:

Maintenance free bearing and guide bushes, bronze with solid lubricant

ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB081208 SOB 8-12-8 8 12 8
JDB061012 SOB 6-10-12 6 10 12
JDB081210 SOB 8-12-10 8 12 10
JDB081212 SOB 8-12-12 8 12 12
JDB081215 SOB 8-12-15 8 12 15
JDB101408 SOB 10-14-8 10 14 8
JDB101410 SOB 10-14-10 10 14 10
JDB101412 SOB 10-14-12 10 14 12
JDB101415 SOB 10-14-15 10 14 15
JDB101420 SOB 10-14-20 10 14 20
JDB101510 SOB 10-15-10 10 15 10
JDB121808 SOB 12-18-8 12 18 8
JDB121810 SOB 12-18-10 12 18 10
JDB121812 SOB 12-18-12 12 18 12
JDB121815 SOB 12-18-15 12 18 15
JDB121816 SOB 12-18-16 12 18 16
JDB121819 SOB 12-18-19 12 18 19
JDB121820 SOB 12-18-20 12 18 20
JDB121825 SOB 12-18-25 12 18 25
JDB121830 SOB 12-18-30 12 18 30
JDB131910 SOB 13-19-10 13 19 10
Metric Cylindrical Bushes
Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB131912 SOB 13-19-12 13 19 12
JDB131915 SOB 13-19-15 13 19 15
JDB131916 SOB 13-19-16 13 19 16
JDB131920 SOB 13-19-20 13 19 20
JDB131925 SOB 13-19-25 13 19 25
JDB142010 SOB 14-20-10 14 20 10
JDB142012 SOB 14-20-12 14 20 12
JDB142015 SOB 14-20-15 14 20 15
JDB142020 SOB 14-20-20 14 20 20
JDB142025 SOB 14-20-25 14 20 25
JDB142030 SOB 14-20-30 14 20 30
JDB152110 SOB 15-21-10 15 21 10
JDB152112 SOB 15-21-12 15 21 12
JDB152115 SOB 15-21-15 15 21 15
JDB152116 SOB 15-21-16 15 21 16
JDB152120 SOB 15-21-20 15 21 20
JDB152125 SOB 15-21-25 15 21 25
JDB152130 SOB 15-21-30 15 21 30
JDB162210 SOB 16-22-10 16 22 10
JDB162212 SOB 16-22-12 16 22 12
JDB162215 SOB 16-22-15 16 22 15
JDB162216 SOB 16-22-16 16 22 16
JDB162219 SOB 16-22-19 16 22 19
JDB162220 SOB 16-22-20 16 22 20
JDB162225 SOB 16-22-25 16 22 25
JDB162230 SOB 16-22-30 16 22 30
JDB162235 SOB 16-22-35 16 22 35
JDB162240 SOB 16-22-40 16 22 40
JDB172315 SOB 17-23-15 17 23 15
JDB182410 SOB 18-24-10 18 24 10
JDB182412 SOB 18-24-12 18 24 12
JDB182415 SOB 18-24-15 18 24 15
JDB182416 SOB 18-24-16 18 24 16
JDB182420 SOB 18-24-20 18 24 20
JDB182425 SOB 18-24-25 18 24 25
JDB182430 SOB 18-24-30 18 24 30
JDB182435 SOB 18-24-35 18 24 35
JDB182440 SOB 18-24-40 18 24 40
JDB192615 SOB 19-26-15 19 26 15
JDB192620 SOB 19-26-20 19 26 20
JDB202810 SOB 20-28-10 20 28 10
JDB202812 SOB 20-28-12 20 28 12
JDB202815 SOB 20-28-15 20 28 15
JDB202816 SOB 20-28-16 20 28 16
JDB202819 SOB 20-28-19 20 28 19
JDB202820 SOB 20-28-20 20 28 20
Metric Cylindrical Bushes
Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB202825 SOB 20-28-25 20 28 25
JDB202830 SOB 20-28-30 20 28 30
JDB202835 SOB 20-28-35 20 28 35
JDB202840 SOB 20-28-40 20 28 40
JDB202850 SOB 20-28-50 20 28 50
JDB203010 SOB 20-30-10 20 30 10
JDB203012 SOB 20-30-12 20 30 12
JDB203015 SOB 20-30-15 20 30 15
JDB203016 SOB 20-30-16 20 30 16
JDB203020 SOB 20-30-20 20 30 20
JDB203025 SOB 20-30-25 20 30 25
JDB203030 SOB 20-30-30 20 30 30
JDB203035 SOB 20-30-35 20 30 35
JDB203040 SOB 20-30-40 20 30 40
JDB203070 SOB 20-30-70 20 30 70
JDB223212 SOB 22-32-12 22 32 12
JDB223215 SOB 22-32-15 22 32 15
JDB223220 SOB 22-32-20 22 32 20
JDB223225 SOB 22-32-25 22 32 25
JDB253312 SOB 25-33-12 25 33 12
JDB253315 SOB 25-33-15 25 33 15
JDB253316 SOB 25-33-16 25 33 16
JDB253320 SOB 25-33-20 25 33 20
JDB253325 SOB 25-33-25 25 33 25
JDB253330 SOB 25-33-30 25 33 30
JDB253335 SOB 25-33-35 25 33 35
JDB253340 SOB 25-33-40 25 33 40
JDB253350 SOB 25-33-50 25 33 50
JDB253360 SOB 25-33-60 25 33 60
JDB253512 SOB 25-35-12 25 35 12
JDB253515 SOB 25-35-15 25 35 15
JDB253516 SOB 25-35-16 25 35 16
JDB253520 SOB 25-35-20 25 35 20
JDB253525 SOB 25-35-25 25 35 25
JDB253530 SOB 25-35-30 25 35 30
JDB253535 SOB 25-35-35 25 35 35
JDB253540 SOB 25-35-40 25 35 40
JDB253550 SOB 25-35-50 25 35 50
JDB283820 SOB 28-38-20 28 38 20
JDB283825 SOB 28-38-25 28 38 25
JDB283830 SOB 28-38-30 28 38 30
JDB283840 SOB 28-38-40 28 38 40
JDB303812 SOB 30-38-12 30 38 12
JDB303815 SOB 30-38-15 30 38 15
JDB303820 SOB 30-38-20 30 38 20
JDB303825 SOB 30-38-25 30 38 25
Metric Cylindrical Bushes
Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB303830 SOB 30-38-30 30 38 30
JDB303835 SOB 30-38-35 30 38 35
JDB303840 SOB 30-38-40 30 38 40
JDB303850 SOB 30-38-50 30 38 50
JDB303860 SOB 30-38-60 30 38 60
JDB304012 SOB 30-40-12 30 40 12
JDB304015 SOB 30-40-15 30 40 15
JDB304020 SOB 30-40-20 30 40 20
JDB304025 SOB 30-40-25 30 40 25
JDB304030 SOB 30-40-30 30 40 30
JDB304035 SOB 30-40-35 30 40 35
JDB304040 SOB 30-40-40 30 40 40
JDB304050 SOB 30-40-50 30 40 50
JDB304060 SOB 30-40-60 30 40 60
JDB3,154030 SOB 31,5-40-30 3,15 40 30
JDB3,154040 SOB 31,5-40-40 3,15 40 40
JDB324215 SOB 32-42-15 32 42 15
JDB324220 SOB 32-42-20 32 42 20
JDB324230 SOB 32-42-30 32 42 30
JDB324240 SOB 32-42-40 32 42 40
JDB354420 SOB 35-44-20 35 44 20
JDB354425 SOB 35-44-25 35 44 25
JDB354430 SOB 35-44-30 35 44 30
JDB354435 SOB 35-44-35 35 44 35
JDB354440 SOB 35-44-40 35 44 40
JDB354450 SOB 35-44-50 35 44 50
JDB354460 SOB 35-44-60 35 44 60
JDB354515 SOB 35-45-15 35 45 15
JDB354520 SOB 35-45-20 35 45 20
JDB354525 SOB 35-45-25 35 45 25
JDB354530 SOB 35-45-30 35 45 30
JDB354535 SOB 35-45-35 35 45 35
JDB354540 SOB 35-45-40 35 45 40
JDB354550 SOB 35-45-50 35 45 50
JDB354560 SOB 35-45-60 35 45 60
JDB384830 SOB 38-48-30 38 48 30
JDB384840 SOB 38-48-40 38 48 40
JDB405015 SOB 40-50-15 40 50 15
JDB405020 SOB 40-50-20 40 50 20
JDB405025 SOB 40-50-25 40 50 25
JDB405030 SOB 40-50-30 40 50 30
JDB405035 SOB 40-50-35 40 50 35
JDB405040 SOB 40-50-40 40 50 40
JDB405050 SOB 40-50-50 40 50 50
JDB405060 SOB 40-50-60 40 50 60
JDB405070 SOB 40-50-70 40 50 70
Metric Cylindrical Bushes
Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB405080 SOB 40-50-80 40 50 80
JDB405515 SOB 40-55-15 40 55 15
JDB405525 SOB 40-55-25 40 55 25
JDB405530 SOB 40-55-30 40 55 30
JDB405535 SOB 40-55-35 40 55 35
JDB405540 SOB 40-55-40 40 55 40
JDB405550 SOB 40-55-50 40 55 50
JDB405560 SOB 40-55-60 40 55 60
JDB455530 SOB 45-55-30 45 55 30
JDB455535 SOB 45-55-35 45 55 35
JDB455540 SOB 45-55-40 45 55 40
JDB455550 SOB 45-55-50 45 55 50
JDB455560 SOB 45-55-60 45 55 60
JDB455630 SOB 45-56-30 45 56 30
JDB455635 SOB 45-56-35 45 56 35
JDB455640 SOB 45-56-40 45 56 40
JDB455650 SOB 45-56-50 45 56 50
JDB455660 SOB 45-56-60 45 56 60
JDB456030 SOB 45-60-30 45 60 30
JDB456035 SOB 45-60-35 45 60 35
JDB456040 SOB 45-60-40 45 60 40
JDB456050 SOB 45-60-50 45 60 50
JDB456060 SOB 45-60-60 45 60 60
JDB456070 SOB 45-60-70 45 60 70
JDB456080 SOB 45-60-80 45 60 80
JDB506020 SOB 50-60-20 50 60 20
JDB506025 SOB 50-60-25 50 60 25
JDB506030 SOB 50-60-30 50 60 30
JDB506035 SOB 50-60-35 50 60 35
JDB506040 SOB 50-60-40 50 60 40
JDB506050 SOB 50-60-50 50 60 50
JDB506060 SOB 50-60-60 50 60 60
JDB506070 SOB 50-60-70 50 60 70
JDB506080 SOB 50-60-80 50 60 80
JDB506230 SOB 50-62-30 50 62 30
JDB506235 SOB 50-62-35 50 62 35
JDB506240 SOB 50-62-40 50 62 40
JDB506250 SOB 50-62-50 50 62 50
JDB506260 SOB 50-62-60 50 62 60
JDB506270 SOB 50-62-70 50 62 70
JDB506280 SOB 50-62-80 50 62 80
JDB506530 SOB 50-65-30 50 65 30
JDB506540 SOB 50-65-40 50 65 40
JDB506550 SOB 50-65-50 50 65 50
JDB506560 SOB 50-65-60 50 65 60
JDB506570 SOB 50-65-70 50 65 70
Metric Cylindrical Bushes
Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB506580 SOB 50-65-80 50 65 80
JDB5065100 SOB 50-65-100 50 65 100
JDB557030 SOB 55-70-30 55 70 30
JDB557035 SOB 55-70-35 55 70 35
JDB557040 SOB 55-70-40 55 70 40
JDB557050 SOB 55-70-50 55 70 50
JDB557060 SOB 55-70-60 55 70 60
JDB557070 SOB 55-70-70 55 70 70
JDB607430 SOB 60-74-30 60 74 30
JDB607435 SOB 60-74-35 60 74 35
JDB607440 SOB 60-74-40 60 74 40
JDB607450 SOB 60-74-50 60 74 50
JDB607460 SOB 60-74-60 60 74 60
JDB607470 SOB 60-74-70 60 74 70
JDB607480 SOB 60-74-80 60 74 80
JDB6074100 SOB 60-74-100 60 74 100
JDB607530 SOB 60-75-30 60 75 30
JDB607535 SOB 60-75-35 60 75 35
JDB607540 SOB 60-75-40 60 75 40
JDB607550 SOB 60-75-50 60 75 50
JDB607560 SOB 60-75-60 60 75 60
JDB607570 SOB 60-75-70 60 75 70
JDB607580 SOB 60-75-80 60 75 80
JDB6075100 SOB 60-75-100 60 75 100
JDB637560 SOB 63-75-60 63 75 60
JDB637570 SOB 63-75-70 63 75 70
JDB637580 SOB 63-75-80 63 75 80
JDB658040 SOB 65-80-40 65 80 40
JDB658050 SOB 65-80-50 65 80 50
JDB658060 SOB 65-80-60 65 80 60
JDB658070 SOB 65-80-70 65 80 70
JDB658080 SOB 65-80-80 65 80 80
JDB708530 SOB 70-85-30 70 85 30
JDB708535 SOB 70-85-35 70 85 35
JDB708540 SOB 70-85-40 70 85 40
JDB708550 SOB 70-85-50 70 85 50
JDB708560 SOB 70-85-60 70 85 60
JDB708570 SOB 70-85-70 70 85 70
JDB708580 SOB 70-85-80 70 85 80
JDB7085100 SOB 70-85-100 70 85 100
JDB709050 SOB 70-90-50 70 90 50
JDB709060 SOB 70-90-60 70 90 60
JDB709070 SOB 70-90-70 70 90 70
JDB709080 SOB 70-90-80 70 90 80
JDB7090100 SOB 70-90-100 70 90 100
JDB759050 SOB 75-90-50 75 90 50
Metric Cylindrical Bushes
Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB759060 SOB 75-90-60 75 90 60
JDB759070 SOB 75-90-70 75 90 70
JDB759080 SOB 75-90-80 75 90 80
JDB7590100 SOB 75-90-100 75 90 100
JDB759560 SOB 75-95-60 75 95 60
JDB759570 SOB 75-95-70 75 95 70
JDB759580 SOB 75-95-80 75 95 80
JDB7595100 SOB 75-95-100 75 95 100
JDB809620 SOB 80-96-20 80 96 20
JDB809640 SOB 80-96-40 80 96 40
JDB809650 SOB 80-96-50 80 96 50
JDB809660 SOB 80-96-60 80 96 60
JDB809670 SOB 80-96-70 80 96 70
JDB809680 SOB 80-96-80 80 96 80
JDB8096100 SOB 80-96-100 80 96 100
JDB8096120 SOB 80-96-120 80 96 120
JDB8010040 SOB 80-100-40 80 100 40
JDB8010050 SOB 80-100-50 80 100 50
JDB8010060 SOB 80-100-60 80 100 60
JDB8010070 SOB 80-100-70 80 100 70
JDB8010080 SOB 80-100-80 80 100 80
JDB80100100 SOB 80-100-100 80 100 100
JDB80100120 SOB 80-100-120 80 100 120
JDB80100140 SOB 80-100-140 80 100 140
JDB8510025 SOB 85-100-25 85 100 25
JDB8510060 SOB 85-100-60 85 100 60
JDB8510080 SOB 85-100-80 85 100 80
JDB9011030 SOB 90-110-30 90 110 30
JDB9011050 SOB 90-110-50 90 110 50
JDB9011060 SOB 90-110-60 90 110 60
JDB9011070 SOB 90-110-70 90 110 70
JDB9011080 SOB 90-110-80 90 110 80
JDB9011090 SOB 90-110-90 90 110 90
JDB90110100 SOB 90-110-100 90 110 100
JDB90110120 SOB 90-110-120 90 110 120
JDB100115100 SOB 100-115-100 100 115 100
JDB10012040 SOB 100-120-40 100 120 40
JDB10012050 SOB 100-120-50 100 120 50
JDB10012060 SOB 100-120-60 100 120 60
JDB10012070 SOB 100-120-70 100 120 70
JDB10012080 SOB 100-120-80 100 120 80
JDB10012090 SOB 100-120-90 100 120 90
JDB100120100 SOB 100-120-100 100 120 100
JDB100120120 SOB 100-120-120 100 120 120
JDB100120140 SOB 100-120-140 100 120 140
JDB11013050 SOB 110-130-50 110 130 50
Metric Cylindrical Bushes
Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L
JDB11013070 SOB 110-130-70 110 130 70
JDB11013080 SOB 110-130-80 110 130 80
JDB110130100 SOB 110-130-100 110 130 100
JDB110130120 SOB 110-130-120 110 130 120
JDB12014070 SOB 120-140-70 120 140 70
JDB12014080 SOB 120-140-80 120 140 80
JDB12014090 SOB 120-140-90 120 140 90
JDB120140100 SOB 120-140-100 120 140 100
JDB120140120 SOB 120-140-120 120 140 120
JDB120140140 SOB 120-140-140 120 140 140
JDB125145100 SOB 125-145-100 125 145 100
JDB125145120 SOB 125-145-120 125 145 120
JDB13015080 SOB 130-150-80 130 150 80
JDB130150100 SOB 130-150-100 130 150 100
JDB130150130 SOB 130-150-130 130 150 130
JDB140160100 SOB 140-160-100 140 160 100
JDB140160140 SOB 140-160-140 140 160 140
JDB150170100 SOB 150-170-100 150 170 100
JDB150170150 SOB 150-170-150 150 170 150
JDB16018080 SOB 160-180-80 160 180 80
JDB160180100 SOB 160-180-100 160 180 100
JDB160180150 SOB 160-180-150 160 180 150
JDB170190100 SOB 170-190-100 170 190 100
JDB170190150 SOB 170-190-150 170 190 150
JDB180200100 SOB 180-200-100 180 200 100
JDB180200150 SOB 180-200-150 180 200 150
JDB190210100 SOB 190-210-100 190 210 100
JDB190210150 SOB 190-210-150 190 210 150
JDB200230150 SOB 200-230-150 200 230 150
JDB200230200 SOB 200-230-200 200 230 200

Support and Services:

Solid Bronze Bearings are designed to provide superior performance in applications requiring high load-carrying capacity and good fatigue properties. They are made of a bronze alloy with solid lubricant plugs, which provide continuous lubrication during operation.

Our technical support team is available to assist with any questions related to the installation, maintenance, and performance of the Solid Bronze Bearings. We also offer a range of services, including bearing analysis, failure analysis, and custom bearing design.

Our goal is to provide our customers with the highest level of support and service, ensuring that their Solid Bronze Bearings perform optimally throughout their lifespan.

JDB · Solid Self-Lubricating Inlaid Bearing · L tol. -0.10/-0.30 · Unit: mm
No. Part No. Unique Key d Bore (mm) D OD (mm) L Length (mm) L Tol. d Tol. (F7) D Tol. (m6) Remarks
1 81208 JDB-08-12-8 8 12 8 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
2 81210 JDB-08-12-10 8 12 10 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
3 81212 JDB-08-12-12 8 12 12 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
4 81215 JDB-08-12-15 8 12 15 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
5 101408 JDB-10-14-8 10 14 8 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
6 101410 JDB-10-14-10 10 14 10 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
7 101412 JDB-10-14-12 10 14 12 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
8 101415 JDB-10-14-15 10 14 15 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
9 101416 JDB-10-14-16 10 14 16 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
10 101420 JDB-10-14-20 10 14 20 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
11 121810 JDB-12-18-10 12 18 10 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
12 121812 JDB-12-18-12 12 18 12 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
13 121815 JDB-12-18-15 12 18 15 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
14 121816 JDB-12-18-16 12 18 16 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
15 121820 JDB-12-18-20 12 18 20 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
16 121825 JDB-12-18-25 12 18 25 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
17 121830 JDB-12-18-30 12 18 30 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
18 131910 JDB-13-19-10 13 19 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
19 131912 JDB-13-19-12 13 19 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
20 131915 JDB-13-19-15 13 19 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
21 131916 JDB-13-19-16 13 19 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
22 131920 JDB-13-19-20 13 19 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
23 131925 JDB-13-19-25 13 19 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
24 131930 JDB-13-19-30 13 19 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
25 142010 JDB-14-20-10 14 20 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
26 142012 JDB-14-20-12 14 20 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
27 142015 JDB-14-20-15 14 20 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
28 142016 JDB-14-20-16 14 20 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
29 142020 JDB-14-20-20 14 20 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
30 142025 JDB-14-20-25 14 20 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
31 142030 JDB-14-20-30 14 20 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
32 152110 JDB-15-21-10 15 21 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
33 152112 JDB-15-21-12 15 21 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
34 152115 JDB-15-21-15 15 21 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
35 152116 JDB-15-21-16 15 21 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
36 152120 JDB-15-21-20 15 21 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
37 152125 JDB-15-21-25 15 21 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
38 152130 JDB-15-21-30 15 21 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
39 152135 JDB-15-21-35 15 21 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
40 162210 JDB-16-22-10 16 22 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
41 162212 JDB-16-22-12 16 22 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
42 162215 JDB-16-22-15 16 22 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
43 162216 JDB-16-22-16 16 22 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
44 162220 JDB-16-22-20 16 22 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
45 162225 JDB-16-22-25 16 22 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
46 162230 JDB-16-22-30 16 22 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
47 162235 JDB-16-22-35 16 22 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
48 162240 JDB-16-22-40 16 22 40 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
49 182410 JDB-18-24-10 18 24 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
50 182412 JDB-18-24-12 18 24 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
51 182415 JDB-18-24-15 18 24 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
52 182416 JDB-18-24-16 18 24 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
53 182420 JDB-18-24-20 18 24 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
54 182425 JDB-18-24-25 18 24 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
55 182430 JDB-18-24-30 18 24 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
56 182435 JDB-18-24-35 18 24 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
57 182440 JDB-18-24-40 18 24 40 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
58 202810 JDB-20-28-10 20 28 10 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
59 202812 JDB-20-28-12 20 28 12 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
60 202815 JDB-20-28-15 20 28 15 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
61 202816 JDB-20-28-16 20 28 16 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
62 202820 JDB-20-28-20 20 28 20 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
63 202825 JDB-20-28-25 20 28 25 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
64 202830 JDB-20-28-30 20 28 30 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
65 202835 JDB-20-28-35 20 28 35 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
66 202840 JDB-20-28-40 20 28 40 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
67 202850 JDB-20-28-50 20 28 50 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
68 223212 JDB-22-32-12 22 32 12 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
69 223215 JDB-22-32-15 22 32 15 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
70 223216 JDB-22-32-16 22 32 16 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
71 223220 JDB-22-32-20 22 32 20 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
72 223225 JDB-22-32-25 22 32 25 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
73 223230 JDB-22-32-30 22 32 30 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
74 223235 JDB-22-32-35 22 32 35 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
75 223240 JDB-22-32-40 22 32 40 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
76 223250 JDB-22-32-50 22 32 50 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
77 253312 JDB-25-33-12 25 33 12 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
78 253315 JDB-25-33-15 25 33 15 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
79 253316 JDB-25-33-16 25 33 16 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
80 253320 JDB-25-33-20 25 33 20 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
81 253325 JDB-25-33-25 25 33 25 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
82 253330 JDB-25-33-30 25 33 30 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
83 253335 JDB-25-33-35 25 33 35 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
84 253340 JDB-25-33-40 25 33 40 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
85 253350 JDB-25-33-50 25 33 50 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
86 253360 JDB-25-33-60 25 33 60 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
87 303812 JDB-30-38-12 30 38 12 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
88 303815 JDB-30-38-15 30 38 15 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
89 303816 JDB-30-38-16 30 38 16 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
90 303820 JDB-30-38-20 30 38 20 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
91 303825 JDB-30-38-25 30 38 25 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
92 303830 JDB-30-38-30 30 38 30 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
93 303835 JDB-30-38-35 30 38 35 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
94 303840 JDB-30-38-40 30 38 40 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
95 303850 JDB-30-38-50 30 38 50 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
96 303860 JDB-30-38-60 30 38 60 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
97 354520 JDB-35-45-20 35 45 20 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
98 354525 JDB-35-45-25 35 45 25 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
99 354530 JDB-35-45-30 35 45 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
100 354535 JDB-35-45-35 35 45 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
101 354540 JDB-35-45-40 35 45 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
102 354550 JDB-35-45-50 35 45 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
103 354560 JDB-35-45-60 35 45 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
104 354570 JDB-35-45-70 35 45 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
105 405020 JDB-40-50-20 40 50 20 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
106 405025 JDB-40-50-25 40 50 25 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
107 405030 JDB-40-50-30 40 50 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
108 405035 JDB-40-50-35 40 50 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
109 405040 JDB-40-50-40 40 50 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
110 405050 JDB-40-50-50 40 50 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
111 405060 JDB-40-50-60 40 50 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
112 405070 JDB-40-50-70 40 50 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
113 405080 JDB-40-50-80 40 50 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
114 455530 JDB-45-55-30 45 55 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
115 455535 JDB-45-55-35 45 55 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
116 455540 JDB-45-55-40 45 55 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
117 455550 JDB-45-55-50 45 55 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
118 455560 JDB-45-55-60 45 55 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
119 455570 JDB-45-55-70 45 55 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
120 455580 JDB-45-55-80 45 55 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
121 506030 JDB-50-60-30 50 60 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
122 506035 JDB-50-60-35 50 60 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
123 506040 JDB-50-60-40 50 60 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
124 506050 JDB-50-60-50 50 60 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
125 506060 JDB-50-60-60 50 60 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
126 506070 JDB-50-60-70 50 60 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
127 506080 JDB-50-60-80 50 60 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
128 506230 JDB-50-62-30 50 62 30 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
129 506235 JDB-50-62-35 50 62 35 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
130 506240 JDB-50-62-40 50 62 40 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
131 506250 JDB-50-62-50 50 62 50 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
132 506260 JDB-50-62-60 50 62 60 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
133 506270 JDB-50-62-70 50 62 70 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
134 506530 JDB-50-65-30 50 65 30 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
135 506535 JDB-50-65-35 50 65 35 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
136 506540 JDB-50-65-40 50 65 40 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
137 506550 JDB-50-65-50 50 65 50 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
138 506560 JDB-50-65-60 50 65 60 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
139 506570 JDB-50-65-70 50 65 70 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
140 506580 JDB-50-65-80 50 65 80 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
141 5065100 JDB-50-65-100 50 65 100 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
142 557030 JDB-55-70-30 55 70 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
143 557035 JDB-55-70-35 55 70 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
144 557040 JDB-55-70-40 55 70 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
145 557050 JDB-55-70-50 55 70 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
146 557060 JDB-55-70-60 55 70 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
147 557070 JDB-55-70-70 55 70 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
148 557080 JDB-55-70-80 55 70 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
149 5570100 JDB-55-70-100 55 70 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
150 607430 JDB-60-74-30 60 74 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
151 607435 JDB-60-74-35 60 74 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
152 607440 JDB-60-74-40 60 74 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
153 607450 JDB-60-74-50 60 74 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
154 607460 JDB-60-74-60 60 74 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
155 607470 JDB-60-74-70 60 74 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
156 607480 JDB-60-74-80 60 74 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
157 6074100 JDB-60-74-100 60 74 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
158 607530 JDB-60-75-30 60 75 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
159 607535 JDB-60-75-35 60 75 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
160 607540 JDB-60-75-40 60 75 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
161 607550 JDB-60-75-50 60 75 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
162 607560 JDB-60-75-60 60 75 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
163 607570 JDB-60-75-70 60 75 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
164 607580 JDB-60-75-80 60 75 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
165 6075100 JDB-60-75-100 60 75 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
166 637535 JDB-63-75-35 63 75 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
167 637540 JDB-63-75-40 63 75 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
168 637550 JDB-63-75-50 63 75 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
169 637560 JDB-63-75-60 63 75 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
170 637570 JDB-63-75-70 63 75 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
171 637580 JDB-63-75-80 63 75 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
172 6375100 JDB-63-75-100 63 75 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
173 658035 JDB-65-80-35 65 80 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
174 658040 JDB-65-80-40 65 80 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
175 658050 JDB-65-80-50 65 80 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
176 658060 JDB-65-80-60 65 80 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
177 658070 JDB-65-80-70 65 80 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
178 658080 JDB-65-80-80 65 80 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
179 6580100 JDB-65-80-100 65 80 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
180 708535 JDB-70-85-35 70 85 35 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
181 708540 JDB-70-85-40 70 85 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
182 708550 JDB-70-85-50 70 85 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
183 708560 JDB-70-85-60 70 85 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
184 708570 JDB-70-85-70 70 85 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
185 708580 JDB-70-85-80 70 85 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
186 7085100 JDB-70-85-100 70 85 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
187 709035 JDB-70-90-35 70 90 35 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
188 709040 JDB-70-90-40 70 90 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
189 709050 JDB-70-90-50 70 90 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
190 709060 JDB-70-90-60 70 90 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
191 709070 JDB-70-90-70 70 90 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
192 709080 JDB-70-90-80 70 90 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
193 7090100 JDB-70-90-100 70 90 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
194 759040 JDB-75-90-40 75 90 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
195 759050 JDB-75-90-50 75 90 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
196 759060 JDB-75-90-60 75 90 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
197 759070 JDB-75-90-70 75 90 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
198 759080 JDB-75-90-80 75 90 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
199 7590100 JDB-75-90-100 75 90 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
200 759540 JDB-75-95-40 75 95 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
201 759550 JDB-75-95-50 75 95 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
202 759560 JDB-75-95-60 75 95 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
203 759570 JDB-75-95-70 75 95 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
204 759580 JDB-75-95-80 75 95 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
205 7595100 JDB-75-95-100 75 95 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
206 7595120 JDB-75-95-120 75 95 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
207 809640 JDB-80-96-40 80 96 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
208 809650 JDB-80-96-50 80 96 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
209 809660 JDB-80-96-60 80 96 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
210 809670 JDB-80-96-70 80 96 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
211 809680 JDB-80-96-80 80 96 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
212 8096100 JDB-80-96-100 80 96 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
213 8096120 JDB-80-96-120 80 96 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
214 8096130 JDB-80-96-130 80 96 130 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
215 8010040 JDB-80-100-40 80 100 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
216 8010050 JDB-80-100-50 80 100 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
217 8010060 JDB-80-100-60 80 100 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
218 8010070 JDB-80-100-70 80 100 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
219 8010080 JDB-80-100-80 80 100 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
220 80100100 JDB-80-100-100 80 100 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
221 80100120 JDB-80-100-120 80 100 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
222 80100130 JDB-80-100-130 80 100 130 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
223 80100140 JDB-80-100-140 80 100 140 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
224 9011050 JDB-90-110-50 90 110 50 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
225 9011060 JDB-90-110-60 90 110 60 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
226 9011070 JDB-90-110-70 90 110 70 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
227 9011080 JDB-90-110-80 90 110 80 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
228 90110100 JDB-90-110-100 90 110 100 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
229 90110120 JDB-90-110-120 90 110 120 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
230 90110130 JDB-90-110-130 90 110 130 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
231 90110140 JDB-90-110-140 90 110 140 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
232 10012060 JDB-100-120-60 100 120 60 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
233 10012070 JDB-100-120-70 100 120 70 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
234 10012080 JDB-100-120-80 100 120 80 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
235 100120100 JDB-100-120-100 100 120 100 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
236 100120120 JDB-100-120-120 100 120 120 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
237 100120130 JDB-100-120-130 100 120 130 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
238 100120140 JDB-100-120-140 100 120 140 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
239 11013080 JDB-110-130-80 110 130 80 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
240 110130100 JDB-110-130-100 110 130 100 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
241 110130120 JDB-110-130-120 110 130 120 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
242 110130130 JDB-110-130-130 110 130 130 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
243 110130140 JDB-110-130-140 110 130 140 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
244 12014080 JDB-120-140-80 120 140 80 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
245 120140100 JDB-120-140-100 120 140 100 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
246 120140120 JDB-120-140-120 120 140 120 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
247 120140130 JDB-120-140-130 120 140 130 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
248 120140140 JDB-120-140-140 120 140 140 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
249 125145100 JDB-125-145-100 125 145 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
250 125145120 JDB-125-145-120 125 145 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
251 125145130 JDB-125-145-130 125 145 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
252 125145140 JDB-125-145-140 125 145 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
253 130150100 JDB-130-150-100 130 150 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
254 130150120 JDB-130-150-120 130 150 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
255 130150130 JDB-130-150-130 130 150 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
256 130150140 JDB-130-150-140 130 150 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
257 130150150 JDB-130-150-150 130 150 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
258 140160100 JDB-140-160-100 140 160 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
259 140160120 JDB-140-160-120 140 160 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
260 140160130 JDB-140-160-130 140 160 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
261 140160140 JDB-140-160-140 140 160 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
262 140160150 JDB-140-160-150 140 160 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
263 150170100 JDB-150-170-100 150 170 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
264 150170120 JDB-150-170-120 150 170 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
265 150170130 JDB-150-170-130 150 170 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
266 150170140 JDB-150-170-140 150 170 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
267 150170150 JDB-150-170-150 150 170 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
268 160180100 JDB-160-180-100 160 180 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
269 160180120 JDB-160-180-120 160 180 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
270 160180130 JDB-160-180-130 160 180 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
271 160180140 JDB-160-180-140 160 180 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
272 160180150 JDB-160-180-150 160 180 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015

FAQ:

A: The brand name of the solid bronze bearing is VIIPLUS.COM.

Q: What is the model number of the solid bronze bearing?

A: The model number of the solid bronze bearing is China Solid Bronze Bearing.

Q: Where is the solid bronze bearing made?

A: The solid bronze bearing is made in China.

Q: What are the material properties of the solid bronze bearing?

A: The solid bronze bearing is made of high-quality bronze material with excellent wear resistance and high load capacity.

Q: What is the recommended application for the solid bronze bearing?

A: The solid bronze bearing is recommended for use in heavy-duty industrial applications such as mining, construction, and agriculture.

Product tags

browning mounted bearings

,

metric bronze bearings

,

sintered bronze bearing
Send your message to this supplier
Send Now

Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance

Ask Latest Price
Product Detail
Shock Resistance :
High
Brand Name :
VIIPLUS.COM
Model Number :
China Solid Bronze Bearing
Place of Origin :
MADE IN CHINA
Temperature Range :
Up To 300°C
Avalibility :
Special Oil Groove Design Can Be Made
Contact Supplier
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance
Precision JDB Solid Bronze Bearing with Temp. Range Low Maintenance and Shock Resistance

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Site Member
9 Years
zhejiang
Business Type :
Importer, Exporter, Seller, Other
Main Products :
Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Solid Bronze Bearing
MachineU China Products Minerals & Metallurgy Alloy Steel Bearing Steel
Contact Supplier
Submit Requirement
