Bronze Powder Plain Bearing Pom Carbon Steel
Bronze Powder Plain Bearing Pom Carbon Steel
Bronze Powder Plain Bearing Pom Carbon Steel
Bronze Powder Plain Bearing Pom Carbon Steel
Bronze Powder Plain Bearing Pom Carbon Steel
Bronze Powder Plain Bearing Pom Carbon Steel
Bronze Powder Plain Bearing Pom Carbon Steel
Bronze Powder Plain Bearing Pom Carbon Steel
Specifications
Lubrication :
POM self-lubricating,oil,grease
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
MATERIAL :
Steel + Bronze powder + POM
Type :
Sleeve
FEATURE :
No oil, self-lubricating
Style :
POM the same style
Brand Name :
viiplus Self-lubricating composite bearing
Model Number :
High performance pom oil-free self-lubricating bearings
Certification :
standard metric bushing size product
Place of Origin :
CHINA
MOQ :
negotiate
Price :
Competitively Priced Provides Lubricating Bush
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
L/C, T/T, Western Union
Delivery Time :
5-25 works day
Packaging Details :
Export Carton Wood Pallet Wooden Case
Finishing :
Copper-plating/tin-plating
High Light: :
Coated Self Lubricating Plain Bearing, ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing
Country of origin :
China
Size :
Customized
Bearing Bushing Factory Price :
tiffany@viiplus.com
characteristic :
Втулки скольжения (биметаллические подшипники скольжения)
Dry slide bearing :
Self Lubricating Plain Bearing Work in High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced costs & downtime. Non-galling. Increased reliability. Run dry & keeps running.
Description

Agricultural Machinery Bushing Bronze Bearing For Combine Harvester Planters Strapping Machines

Agricultural Machinery Bushing Bronze Bearing For Combine Harvester Planters Strapping Machines
Material:steel+bronze+POM layer

Combine Harvester POM bushing

Agricultural machinery bushing bronze bearing for combine harvester planters balers

Pang Steel bronze powder composite bearing POM oil-free bushing split plastic bushing is made of high quality low carbon steel with sintered porous bronze as its interlayer and a compound of POM as its surface.


POM steel bronze powder composite bearing POM oil-free bushing split plastic bushing has good load capacity and wear resistance.

It is suitable for automobile chassis, forming machine tools, steel and metallurgical machinery, mining machinery, hydraulic industry and steel rolling industry, etc.

Material:
Low-Carbon Steel + Porous Bronze + POM
Types:
Wrapped Bushes, Thrust Washer
Working Temperature:
-40~+120℃
Hardness:
>270 HB
Max. Load:
Static 250N/mm², Dynamic 140N/mm²
Application:
Agricultural Machinery, Vehicle Chassis, Forming Machine Tools, Steel Metallurgical Machinery, Mineral Mountain Machinery, Hydraulic Industry And Rolling
Steel Industry, Etc.

Bronze Powder Plain Bearing Pom Carbon Steel

  • POM bush Application Feature

1. Good carrying capacity, good wear resistance.
2. Applied for high load low-speed rotation and rocking motion, often used in frequent opening and closing under load and hard to
form hydrodynamic lubrication occasions.
3. Don’t have to refuel and maintain under the long-term boundary lubrication conditions, and refueling in the bearing layer
made a longer service life.
4. A certain margin was kept on the surface of the plastic layer during molding, and self-processes after assembly was pushed into holes
to achieve a better assembly size.
5. Mainly used in auto chassis, metallurgical machinery, mining machinery, irrigation machinery, construction machinery,
agricultural machinery, and steel rolling equipment.
6. Widely used in lead-free fields for no lead-containing.

Standard sliding materials with high performance. They are designed for low-maintenance grease or liquid-lubricated bearings.

Composite Material


Cylindrical Pom Composite Self-Lubricating Bearing mos2 bushing, Oil-Free Bearing Bushings(Embedded lubricant: MoS2)

Copper Bearing Manufacturer | POM bush, Polymer bushings

Select high-quality POM Bushing products in best price from viiplus. POM coated bush-based steel backing with POM inner layer, oilless bushing, POM bushing and POM lined plain dry bush.

Bronze Powder Plain Bearing Pom Carbon Steel

POM bushing size chart

METRIC BEARING POM BUSHES WITH OIL HOLES.pdf

View POM style composite bushing and self-lubricating bearings from bronzegleitlager.com

All sizes are in stock & ready for reliable shipment.

Cylindrical Pom Composite Self-Lubricating Bearing

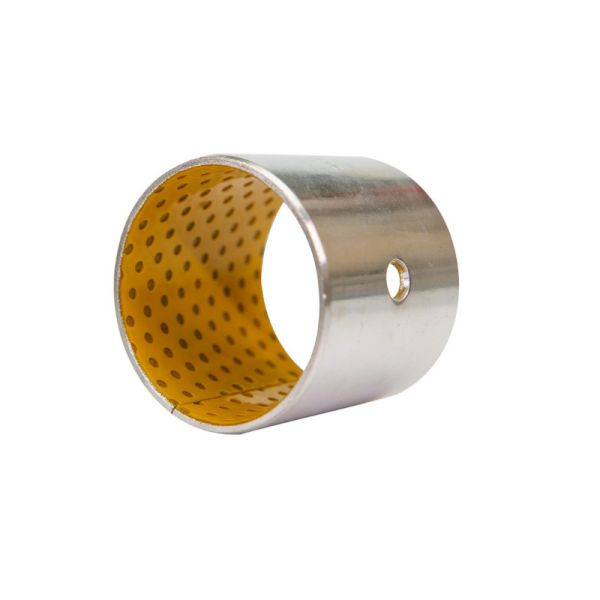

The POM-based sleeve bearing, also called POM bushing, boundary lubricated bearing, oil-free bearing, dry bearing, POM bearing and POM coated dry sleeve. It has a similar material structure to dowels. The difference lies in the POM coated layer.

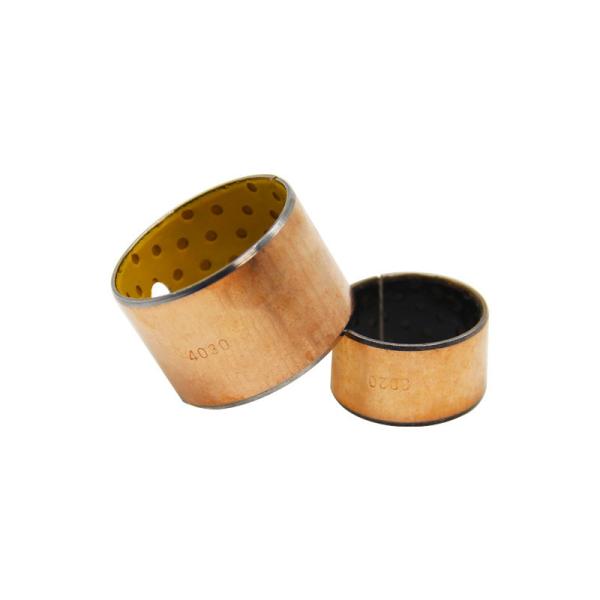

Yellow POM composite bushing is a standard item of our company. This type of self-lubricating bearing has the same material structure with other POM bushings.

1. POM 0.3~0.5mm.
2. Porous bronze 0.2~0.3mm.
3. Steel backing 0.4~2.2mm.
4. Copper plating 0.008mm.

Bronze Powder Plain Bearing Pom Carbon Steel

• Environmental protection composite bushing multi-layer material without lead

• Custom 14*12*15 Composite POM Oilless POM Steel Split Bearing Bush

• Composite Steel Backed Bronze Self Lubricating PTFE Bushing Bearing with

POM SPLIT BUSH BEARING - POM TYPE

Specifications for POM Split Bush Bearing - POM Type
Reference POM bush
Brand Viiplus
Inside Diameter 20mm
Outside Diameter 23mm
Width 15mm
Type Bearing
Weight (KG) 0.0001

POM marginally lubricated bushings Characteristics


· Good load-bearing capacity and wear resistance
· Suitable for linear, oscillating, and rotating movements
· Optimal performance at relatively high loads and low speeds
· Lead-free sockets can meet environmental protection requirements

Yellow pom composite self-lubricating bearing is widely used in machines where lead-free is unacceptable, such as textile machinery, self-acting parts, car chassis, forging machine, metallurgy and so on.


Bronze Powder Plain Bearing Pom Carbon Steel

RELATED POM SELF-LUBRICATING BEARING BUSHES

Bronze Powder Plain Bearing Pom Carbon SteelBronze Powder Plain Bearing Pom Carbon Steel Bronze Powder Plain Bearing Pom Carbon Steel

Yellow Pom composite self-lubricating Bearing Technical Date

Load capacity 70N/mm2
Friction value 0.05 to 0.25 µ
Temperature -40 to +130 [ °C ]
Max. Pv (oil condition) 22N/mm2 .m/s
Max. speed 2.5m/s

Metal-Polymer Plain Bearings Grease Lubricated POM Bush

POM bush - Oil or grease-lubricated bearings - Metric Size

  • Marginally lubricated POM bushings for grease or oil lubricated applications
  • Standard parts contain grease notches on the sliding layer; flat sliding layer available upon request
  • Optimal performance under relatively high loads and low speeds
  • Suitable for linear, oscillating, and rotating movements
  • Wide range of parts available from stock

Structure & Composition

  • Metal-Polymer Composite Bushing Material
  • Steel Back + Porous Bronze Sinter +
    POM with Lubrication Indents

Microsection

1.Sliding layer POM with or without lubricant indents for machining

2.Porous Bronze Sinter

3.Steel Back

OPERATING PERFORMANCE
Dry Poor
Oil lubricated Good
Grease lubricated Very Good
Water lubricated Poor
Process fluid lubricated Poor

Self-lubricating bearing POM bush Properties

GENERAL Unit Value
Maximum load, p

Static
Dynamic

N/mm2
N/mm2

140

140
Operating temperature

Min
Max

°C
°C

- 40

130
Coefficient of linear thermal expansion Parallel to the surface 10-6/K 11
Normal to the surface 10-6/K 29

GREASE LUBRICATED
Maximum sliding speed, U m/s 2.5
Maximum pU factor N/mm2 x m/s 2.8
Coefficient of friction 0.06 – 0.12


RECOMMENDATIONS
Shaft surface roughness, Ra µm ≤ 0.4
Shaft surface hardness

Normal
For longer service life

HB
HB

> 200

> 350

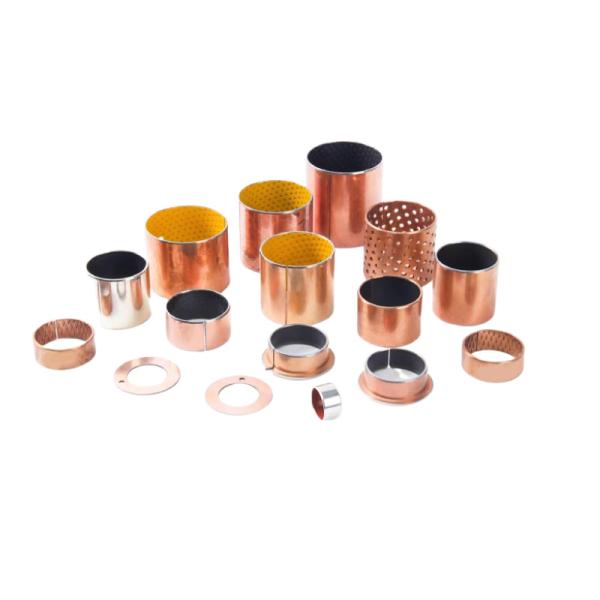

Availability

Bearing forms available in standard dimensions

  • Standard cylindrical POM bushing
  • POM thrust washers
  • POM strips are availabe
  • Customzied POM bushing


Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs

POM bushing Typical applications

  • Agricultural equipment
  • Off-highway, truck, and automotive
  • Handling and lifting equipment
  • Machine tool building industry
  • Hydraulics
  • Engineering and general applications


Bronze Powder Plain Bearing Pom Carbon Steel
