Specifications
Features :
low-maintenance, lubricated applications
Plating :
Tin or copper
Application :
Printing And Dyeing Machines, And Machines Used In The Ocean Industry, Etc.
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Special Use: :
High-strength Steel Plate
High Light :
Bronze Bushing
Bearing Bushing Factory Price :
tiffany@viiplus.com
Dry slide Bushings Bearing :
The Dry slide Bushings trademark identifies a whole range of self-lubricated dry sliding bushings and bearings.
Finishing :
Tin plated, Brass plated
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Meterial :
Steel + Porous Bronze + strips
High Light: :
Self Lubricating Bronze Bushings, Dry Bearing
Type :
Wrapped Bushes, Flanged Bearing, Thrust Washer
Description

Dry Sliding Bearings | Coiled Steel Backing Bushing

Plain Bearings,Sleeve bearings,Flanged sleeve bearings & Thrust bearings made to order from china.For Shaft Diameter,Length,Dynamic Radial Load Capacity,ID,For Housing ID,OD,Maximum Temperature,Find a sleeve bushings.

VIIPLUS plain bearings is the complete source for your Sleeve Bushing & Self -Lubricating Bearings products. Order online for stock size and custom sizes.With no moving parts, plain bearings are the simplest type of bearing. Compared to ball and roller bearings, they generally handle higher temperatures and perform better in dirty environments.

Port and terminal cranes sleeve bushing for high winds, UV rays, saltwater and extreme temperatures

Characteristics


Characteristics of VSB-10 strips material

  • Very low stick-slip tendency
  • Low wear
  • Good chemical resistance
  • Low friction value
  • No tendency to weld to metal
  • Extremely swell-resistant
  • Does not absorb water

Preferred areas of application

  • Maintenance-free operation under dry-running conditions
  • Rotating or oscillating movements
  • Up to a velocity of 2 m/s
  • Linear movements
  • Temperature range -200 °C to 280 °C

Material composition

Strips Material composition

Layer system 10 srtips

1. Running-in layer

matrix with bulking agent¹
Layer thickness [mm]: max. 0.03

2. Sliding layer

Tin-lead-bronze
Layer thickness [mm]: 0.20–0.35
Pore volume [%]: approx. 30

3. Bearing back

Steel
Steel thickness [mm]: Variable
Steel hardness [HB]: 100–180

1 The pores of the sliding layer are also filled with this lubricant mass.

Models and tables of dimensions

with steel back, maintenance-free

Material For Port And Terminal Cranes Bushes

If these material sections are used to create slide paths, they have the following main functions:

  • Absorbing and transferring forces acting vertically to the running surface
  • Fixing moving components to each other
  • Ensuring guidance accuracy for axial movements over the entire service life
Strips are available in two material groups:
  • Material group P1 for maintenance-free, dry-running applications
  • Material group P2 for low-maintenance, lubricated applications
For the advantages of each group and help deciding which material group is best for the relevant use, please refer to the information provided in the section cylindrical bushes, flange liners and thrust washers.
VSB-10 Steel + Bronze Powder + /Fibre Bushings

· Bushing material suitable for lubricated applications
· self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Anti-friction bearing suitable for linear, oscillating and rotating movements

Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.

Strusture


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Technical Data

Structure And Composition

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Lead

​

Microsection

Material For Port And Terminal Cranes Bushes

Sliding layer
+ Lead

Porous Bronze Sinter
Steel Backing

OPERATING PERFORMANCE
Dry Very Good
Oil lubricated Good
Grease lubricated Fair
Water lubricated Fair
Process fluid lubricated Fai


Bearing Properties

GENERAL

Unit

Value
Maximum load, p

Static
Dynamic

N/mm2
N/mm2

250
140
Operating temperature

Min
Max

°C
°C

- 195
280
Coefficient of linear thermal expansion Parallel to the surface 10-6/K 11
Normal to the surface 10-6/K 30

DRY
Maximum sliding speed, U m/s


2.0
Coefficient of friction 0.03 - 0.20 *

OIL LUBRICATED
Maximum sliding speed, U m/s


＞2.0
* Depending on operating conditions

Technical data

Max. load Static 250N/mm2
Dynamic 140N/mm2
Max. speed Dry 2m/s
Lubrication >2m/s
Max. PV (Dry) Short-time 3.6N/mm2*·m/s
Continuous 1.8N/mm2*·m/s
Temp. -195℃~+280℃
Friction coefficient 0.03~0.20
Thermal conductivity 42W (m·k)-1
Coefficient of thermal expansion 11*10-6k-1

Availability

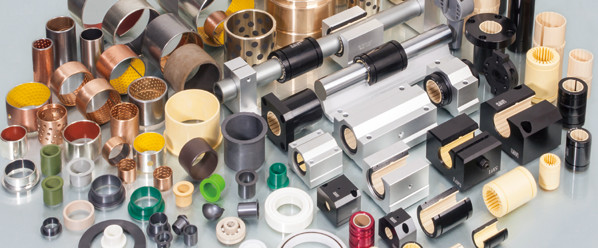

Bearing forms available in standard dimensions


· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates


Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs


Typical Applications


This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.

Material For Port And Terminal Cranes Bushes

Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
