Sliding PTFE Sleeve Bearing Bushing Self Lubricating DU Bearing
Sliding PTFE Sleeve Bearing Bushing Self Lubricating DU Bearing
Sliding PTFE Sleeve Bearing Bushing Self Lubricating DU Bearing
Sliding PTFE Sleeve Bearing Bushing Self Lubricating DU Bearing
Sliding PTFE Sleeve Bearing Bushing Self Lubricating DU Bearing
Sliding PTFE Sleeve Bearing Bushing Self Lubricating DU Bearing
Specifications
Brand Name :
Joyreap
Model Number :
ZR-017
Certification :
ISO,IATF16949
Place of Origin :
China
Description :
Brown PTFE DU Bush
Lubrication :
Brown PTFE
Advantage :
Long service Life
Applicatin :
Seats for Automotive
Name :
Metal Plain Bearing
Brand :
Joyreap
Description

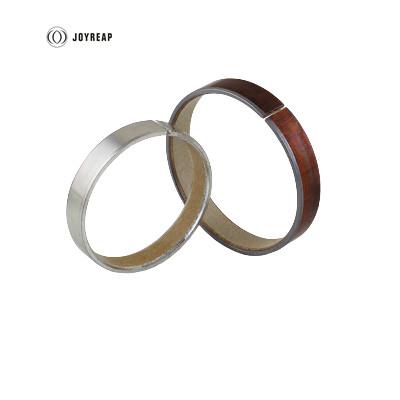

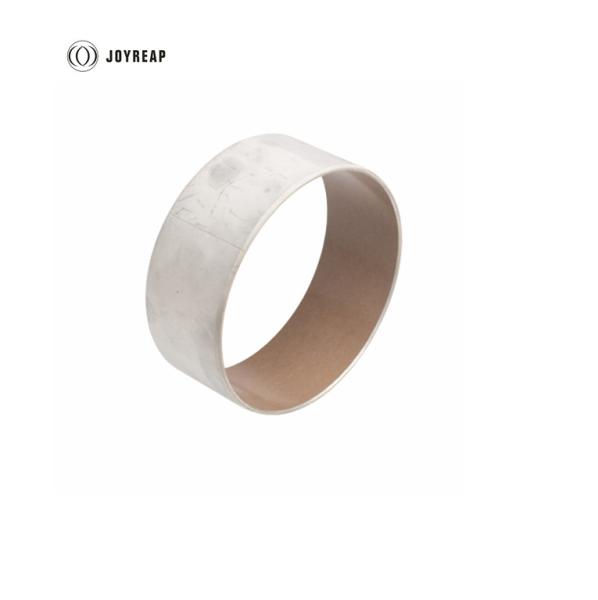

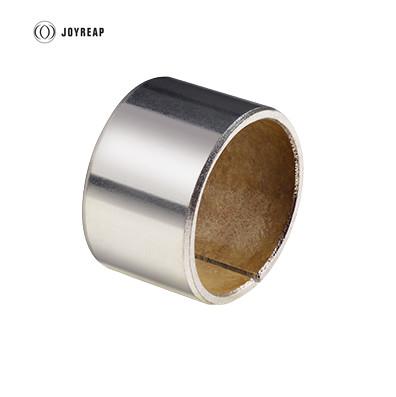

Brown PTFE Self Lubricating Metal Polymer Bushing Brown DU Sliding Sleeve Bearing

ZR-017 brown PTFE self lubricating DU bearing is made of steel back, special designed anti-wear layer and brown PTFE. This type of DU bushing is designed for ehicle seat adjustment mechanical condition. It was also called SF-1 dry sliding bearing, coated self lubricating bushing, Oil free bushing, metal ploymer composite plain bearing

Characteristics

  • Flexible rotation
  • Small friction factor
  • Smooth operation
  • Low noise

Availability

Standard cylindrical bushings, flanged bushings, thrust washers and strips are availabe

Special designs are produced at short notice

Application

ZR-017 Brown coated self lubricating bushing is widely used for vehicle seat adjustment

Technical Data

Max load pressure: 140N/mm²
Friction Coef. μ: 0.04-0.20
Applicable temperature : -195℃-280℃
Max allowable PV value (dry): 3.8N/mm²·m/s
Max sliding speed: 3m/s
Max allowable PV value (oil): 50N/mm²·m/s
