LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing
LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing
LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing
LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing
Specifications
Brand Name :
Joyreap
Model Number :
JDB-1U P10
Certification :
ISO,IATF16949
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 tons per month
Delivery Time :
30 days
Packaging Details :
Cartons+Wooden Pallets
Description :
Solid bronze bearing
Material :
C86300,SAE430B,CuZn25Al5
Lubrication :
Oil or Grease
Feature :
Anti-wear
Name :
Solid Bronze Bushing Brass bearing
Orign :
China
OEM Code :
11019120;11075398;11075556
Type :
Flanged, Collar
Advantage :
High Load, Oil lubricated
Application :
Volvo off Road
Description

LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing

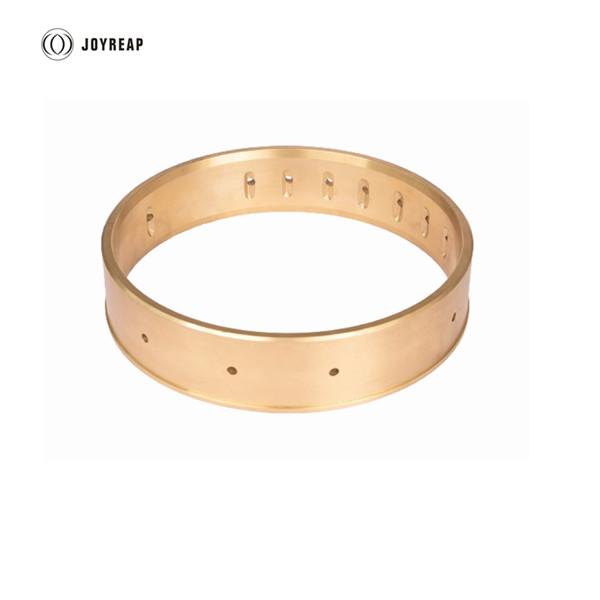

JDB-1U P10 Solid bronze bearing is made of high tensile brass with plain type or with oil grooves. This type of bushing is also called brass bushing bearing, C86300 solid bronze bearing, HTB1 CNC turned bronze bushing,SAE430B bronze sliding bearing and etc.

Material

CuZn25AI5Mn4Fe3

Material Chemical Composition
% Cu% Pb% Sn% Zn% Fe% Ni% Al% Mn%
Min. 60.00 0.00 0.00 22.00 2.00 0.00 5.00 2.50
Max. 66.00 0.20 0.20 28.00 4.00 1.00 7.50 5.00

Availability

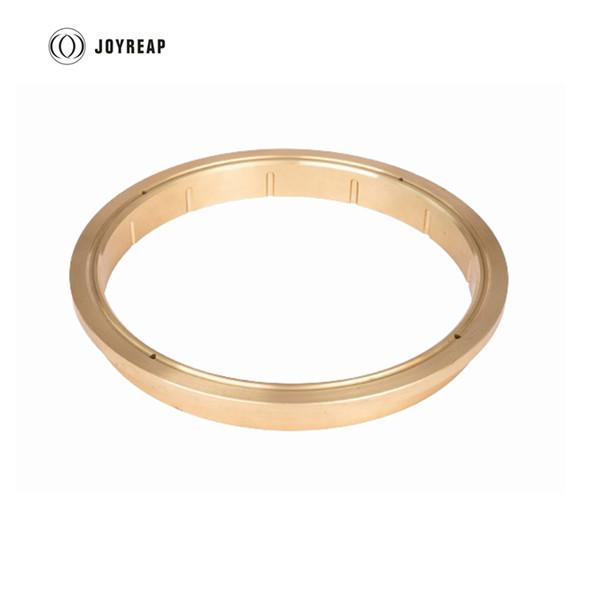

  • Cylindrical cast bronze bushing, flanged solid bronze bushing, bronze thrust washer
  • Special designs solid bronze bearing can be made according to your design.

Application

Volvo Off Road

L110E, L120C, L120D, L120E
L90C, L90C OR, L90D, L90D OR

Volvo BM
L120C, L90C, L90C OR

Technical Data

Material CuZn25Al5
Density 7.80
HB Hardness ≥210
Tensile Strength MPa ≥750
Yield Strength MPa ≥450
Elongation % ≥12
Thermal Expansion Coefficient 1.9x10*%/°C
Max. Operation Temp. -40~+300°C
Max. load MPa 50
Max. speed m/s(Dry) 0.5
Max. speed m/s(Lubricated) 1
Max. PV (N/mm² *m/s)(Dry) 1.65
Max. PV (N/mm² *m/s)(Lubricated) 3.25
OEM Code for Volvo

LRR-120 11019120
BU-398 11075398
LRR-556 11075556
BU-959 4717959
LRR-123 11019123
LRR-787 2815787
LR-996 15117996
LRR-996 11121016
