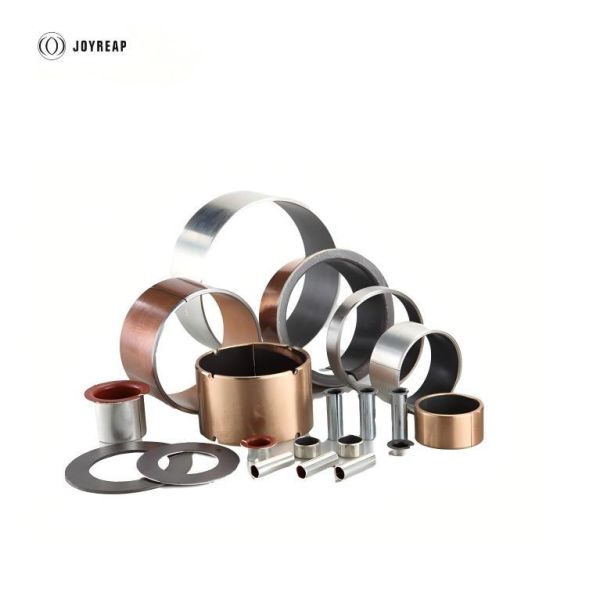

Bronze-Based Heavy-Duty Bushings
Bronze-Based Heavy-Duty Bushings
Bronze-Based Heavy-Duty Bushings
Bronze-Based Heavy-Duty Bushings
Bronze-Based Heavy-Duty Bushings
Bronze-Based Heavy-Duty Bushings
Bronze-Based Heavy-Duty Bushings
Bronze-Based Heavy-Duty Bushings
Specifications
Origin :
zhejiang, china
Certification :
ISO,IATF16949
Material :
Bronze back+Bronze powder+PTFE
Place of Origin :
China
Model Number :
ZR-011
Supply Ability :
5,000,000PCS/Month
PTFE Color :
Red, Black, Yellow, Blue
Type :
Sleeve, Flange, Thrust Washer, Wear Plate, Special-Shaped Bushing
Delivery Time :
30 days
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
Joyreap
Application :
Steel industry equipment, High-temperature furnaces, Heavy machinery
MOQ :
100
Packaging Details :
Cartons+Wooden Pallets
Lubrication :
Self-lubricating
Alternative Name :
DU BUSH, SF-1 Bush
Description
Bronze-Based Heavy-Duty Bushings
This bronze-based bearing uses tin bronze as the substrate, with sintered spherical bronze powder in the intermediate layer, and a surface rolled with PTFE and high-temperature resistant filler materials. It possesses a high safety factor and is particularly suitable for applications that require continuous operation without shutdown for repair, as well as high-temperature environments where oil lubrication cannot be applied. PTFE design is suitable for completely dry friction conditions. Multiple material varieties have been developed based on lubrication conditions, friction coefficient, and durability requirements. PTFE-metal composite materials provide optimal performance under the broadest range of load, speed, and temperature conditions, whether externally lubricated or unlubricated.

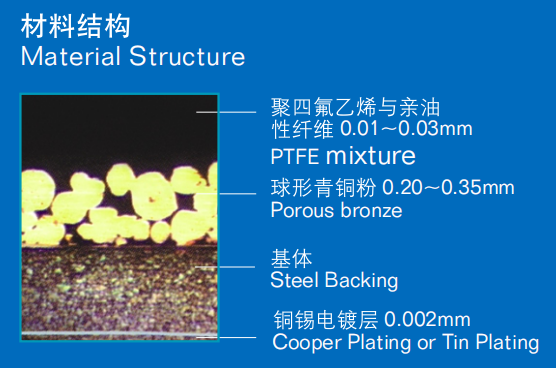

Material Structure
Bronze-Based Heavy-Duty Bushings
  • PTFE with cooper 0.01~0.03mm
  • Porous bronze 0.2~0.35mm
  • Steel backing 0.7~2.3mm
  • Tin-plating or copper plating 0.002mm
Characteristics
  • Exceptional thermal conductivity dissipates operational heat
  • Superior load capacity for heavy-duty applications
  • Excellent performance in high-temperature environments
Availability
  • Standard cylindrical bushing
  • Special designs are produced at short notice
  • Lead free type is also available
  • PTFE outside and PTFE inside are available
Application
Pump Truck, Construction machinery
Technical Data
Specific load capacity (static) ≤ 250 [N/mm]
Specific load capacity (dynamic) ≤ 140 N/mm at low speeds
Friction value 0.04 to 0.2
Temperature -200 to +280 [°C]
Max. sliding speed 12.5m/s
Max. Pv (dry) 3.6N/mm².m/s
Max. Pv (lubrication) 50N/mm².m/s
Tolerance Details
  • Housing Ø: H7
  • Bushing inner-Ø after mounting: H9
  • Shaft tolerance: f7 to h8
