JEF-20 Steel Back Boned PHB Modified PTFE Soft Strip Self Lubricating Bushing
JEF-20 Steel Back Boned PHB Modified PTFE Soft Strip Self Lubricating Bushing
JEF-20 Steel Back Boned PHB Modified PTFE Soft Strip Self Lubricating Bushing
JEF-20 Steel Back Boned PHB Modified PTFE Soft Strip Self Lubricating Bushing
Specifications
Supply Ability :
300,000PCS/Month
Brand Name :
Joyreap
Feature :
Anti Wear,Self lubricating
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T
Materail :
Galvanized Steel Bonded Wear-resistant PHB Modified
Model Number :
JEF-20
Certification :
ISO,IATF16949
Orign :
China
Packaging Details :
Cartons+Wooden Pallets
Description :
NORGLIDE Metal Back Composite Bushing
Delivery Time :
30 days
Application :
Sports Equipment, Automotive Door Hinges
Code :
JEF-20
Description

JEF-20 Steel Back Boned PHB Modified PTFE Soft Strip Self Lubricating Bushing

JEF-20 steel back bounded PHB Modified soft PTFE strip bushing is a kind of two layer bushing with adhesive. This type of self lubricating can be made as 0.5mm and 0.75mm wall thickness based on cutomer design.

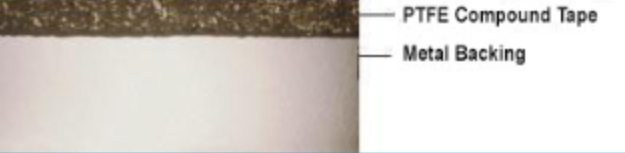

Material Structure

JEF-20 Steel Back Boned PHB Modified PTFE Soft Strip Self Lubricating Bushing

1.PHB Modified Soft Tape
2.Steel backing with Galvanized Plating

Characteristics

High dimensional accuracy
Light weight
Low friction factor
Good wear resistance
Long service life
Suits for working conditions of low load, medium speed and oilless lubrication

Availability

Standard cylindrical bushing, thrust washers and strips are available.
Special designs are produced at short time

Application

Bicycle front forks

Automotive Clutches

Technical Data

Specific load capacity (static) ≤ 200 [ N/mm ]
Specific load capacity (dynamic) ≤ 100N/mm²
Friction value 0.03~0.2
Temperature -200℃-260℃

Tolerance Details

  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8

Mouting Suggestion

  • Housing: Mounting bevel min. 1.5 mm x 15-45°

  • Shaft Material:Steel, hardened or untempered, surface roughness ≤ Rz 2-3

  • Shaft: Mounting bevel 5 mm x 15°, edges rounded

  • The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.
