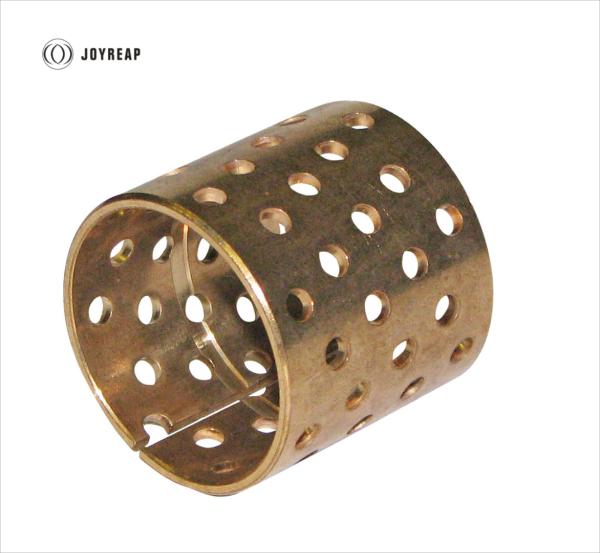

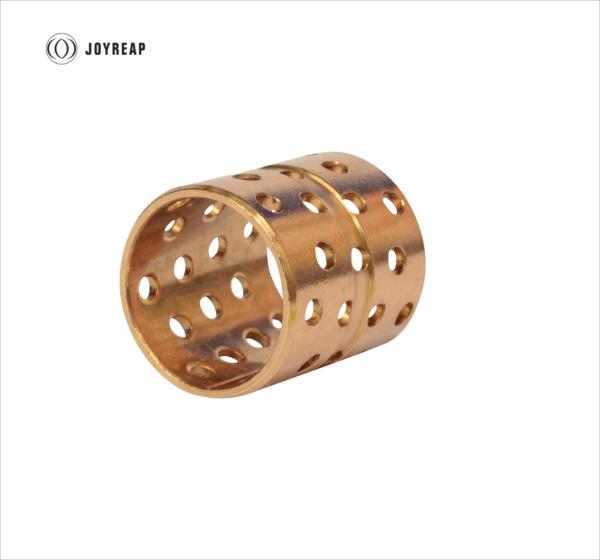

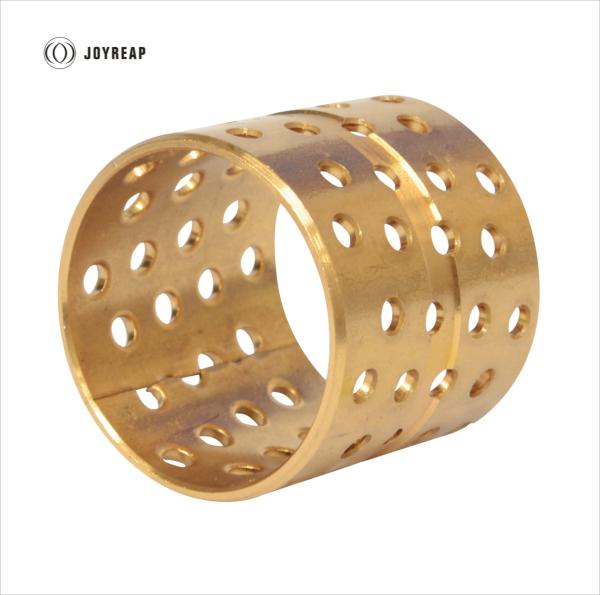

Bronze Bearing perfo 3008100H Sleeve Bronze Bushing
Bronze Bearing perfo 3008100H Sleeve Bronze Bushing
Bronze Bearing perfo 3008100H Sleeve Bronze Bushing
Bronze Bearing perfo 3008100H Sleeve Bronze Bushing
Bronze Bearing perfo 3008100H Sleeve Bronze Bushing
Bronze Bearing perfo 3008100H Sleeve Bronze Bushing
Specifications
Material :
CuSn8P, CuSn6P
References :
MBB-Palfinger: 1403367
Bush Type :
Perforated Sleeve bushing
Weight :
0.041kg
Brand Name :
PVB
Model Number :
ZR-092 Bronze Sleeve Bearing Bushing
Certification :
ISO9001;IATF 16949
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C,D/A,D/P,T/T,D/A,L/C,D/P,T/T
Supply Ability :
500,000PCS/month
Delivery Time :
15-25 days
Packaging Details :
cartons+wooden pallets
Lubricating :
Oil or grease
size :
25*29*31
Description :
Bronze Bearing with oil hole
Application :
MBB-Palfinger
Description
Bronze Bearing perfo 3008100H Sleeve Bronze Bushing
Product Overview

Rolled Bronze Bushing Sliding Bearing with Oil Hole and Oil Grooves, Special Designed Split Bronze Bearing

ZR-092 Bronze bushings are suitable for MBB-Palfinger. The bearings are manufactured of a cold formable homogenous bronze, which provides exceptional material properties. The standard sizes are fitted with holes dispersed in a special way over the whole bearing surface.

These holes with specially designed oil grooves serve as lubricant reservoirs to rapidly build up a lubrication film during startup, thereby reducing start friction.

Material Structure

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

Type Cu% Sn% P%
ZR-098 Bronze Bushing 91.3 8.5 0.2

Material chemical composition refers to the standard of DIN17662 ISO 4382-2:1991; CW453K. The actual composition proportion is allowed to vary within certain ranges based on standard specifications.

Characteristics
  • Surface can be incorporated with oil holes and oil grooves linear. Particularly suitable for oscillating bearings
  • High load capacity and long life
  • Wide temperature range
  • Easy to assemble
  • Works well in dirty environments
  • More cost-effective than traditional bronze bushings
Operation Performance
Performance Parameter Rating
Dry Operation Poor
Lubricated Operation Good
Greased Operation Good
Machinable Consult with Applications Engineer
RoHS Compliant Compliant
OEM Part Numbers
3008100H, 3008101H, 3008102H, 3008104H, 3008105H, 3008106H, 3008108H, 3008109H
Application

ZR-092 wrapped bronze bushing is widely used in forest and construction machinery, agricultural machinery, cranes, forklifts, hoisting equipment, and similar applications.

Technical Data
Max. Load Static 120 N/mm² Elongation 40%
Max. Load Dynamic 40 N/mm² Operation Temperature Range -100℃ to +200℃
Max. Speed (lubricated) 2 m/s Friction Coefficient 0.08-0.25
Max. PV 2.8 N/mm²*m/s Thermal Conductivity 58 W(m*K)⁻¹
Tensile Strength 450 N/mm² Coefficient of Thermal Expansion 18.5×10⁻⁶ K⁻¹
Alloy Hardness HB 110-150
Mounting Suggestions
  • Housing ØH7
  • Bushing inner-Ø after mounting H9
  • Shaft tolerance f7
  • Housing: Mounting bevel min. 1.5 mm x 15-45°
  • Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6
  • Shaft: Mounting bevel 5 mm x 15°, edges rounded
  • The application of an adequate force fitting mandrel is advisable
  • Grease lubrication of the outer surface may be necessary when mounting
  • Stick-in: Adhesive should not contact the sliding surface
