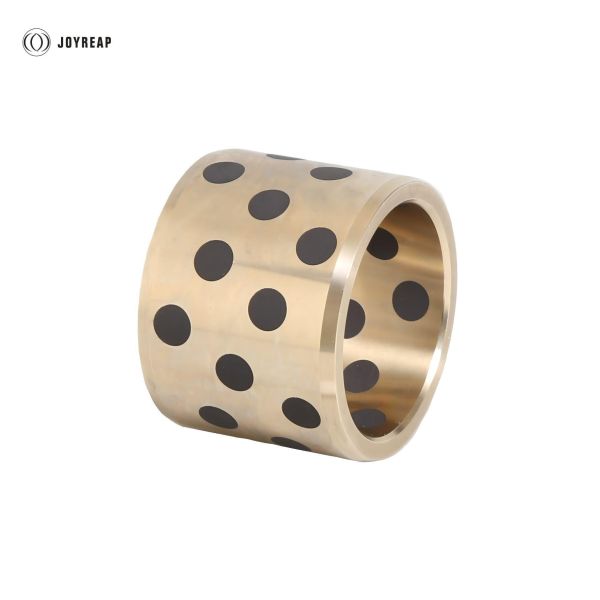

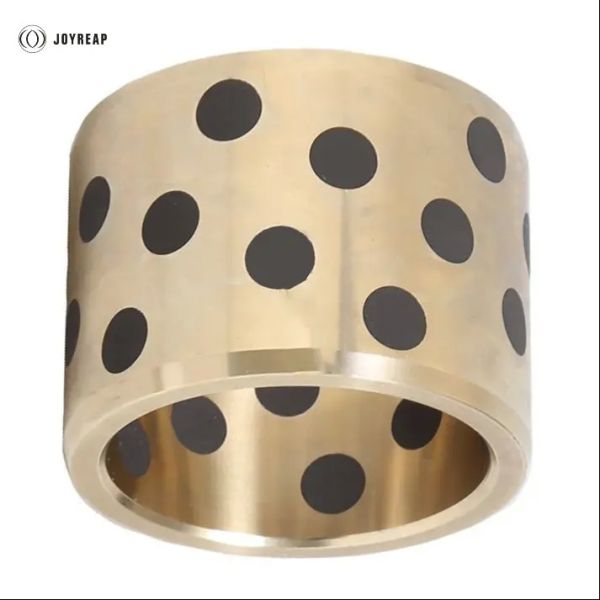

17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
Specifications
Type :
sleeve, flange, washer
Lubrication :
Graphite
Weight :
0.18kg
Brand :
Joyreap
Specification :
50*40.2*39.7
Feature :
high load
Base Material :
CuZn25Al6Fe3Mn3
Brand Name :
Joyreap
Model Number :
JDB-50
Certification :
ISO,IATF16949
Place of Origin :
China
MOQ :
50pcs
Supply Ability :
1000000pcs/month
Delivery Time :
25-30days
Packaging Details :
carton
Applciation :
Hydraulic Presses Machine
Description
17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
JDB-50 17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing based on CuZn25Al6Fe3Mn3 material. This bush is made of High-strength brass and graphite. This makes the bearing have good load-bearing performance and self-lubricating characteristics.
Material
CuZn25Al6Fe3Mn3+Graphite
Base Material Details
% Cu% Sn% AI% Pb% Zn% Fe% Mn% Ni%
Min. 60.00 0 4.50 0.00 0.00 2.00 1.50 0.00
Max. 66.00 0.20 7.00 0.20 the rest 4.00 4.00 3.00
Characteristics
  • Have incomparable performance under high load, low speed operation. Also performs well without lubrication
  • Excellent wear resistance in applications where oil film is difficult to form due to reciprocating, oscillating motions and frequent intermittent operations
  • Remarkable resistance to corrosion and chemical attack
  • Maintenance free and saves operating costs
Availability
  • Cylindrical oiless bushing, flanged oilless bush, thrust washer and slide plate are standard fabrication
  • Special designed solid metal bearing and material can be made according to your design
  • Other materials can be made based on your requirements
Application
Widely used in successive casting machines, mineral mountain machinery, shipping, steam turbines, and other industrial applications.
Technical Data
Material CuZn25Al6Fe3Mn3
Density 8
HB Hardness ≥210
Tensile Strength N/mm ≥750
Yield Strength N/mm ≥450
Elongation % ≥12
Coefficient of linear expansion 1.9x10⁻⁵/°C
Max. Operation Temp. -40~+300°C
Max. load MPa 100
Max Speed (dry) 15
Max Speed (lubricated) 2.5
Max. PV N/mm² *m/s (Lubricated) 200
