Specifications
Brand Name :
Brightsail
Model Number :
BSV
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
2900USD-30000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
25 work days
Packaging Details :
wooden case, wrapped films
Application :
food and pharmaceutical industry
Machine Type :
blender machine
Usage :
powder or granules mixing
Function :
powder mixing
Material :
SS304/316
Capacity :
depends
Motor :
1.1-11kw
Drive :
by electricity
Size :
depends
Name :
Brightsail Medicinal Powder Mixer, a mixer specially designed for mixing medicinal powders
Description

Brightsail Medicinal Powder Mixer, a mixer specially designed for mixing medicinal powders

Product introduction:

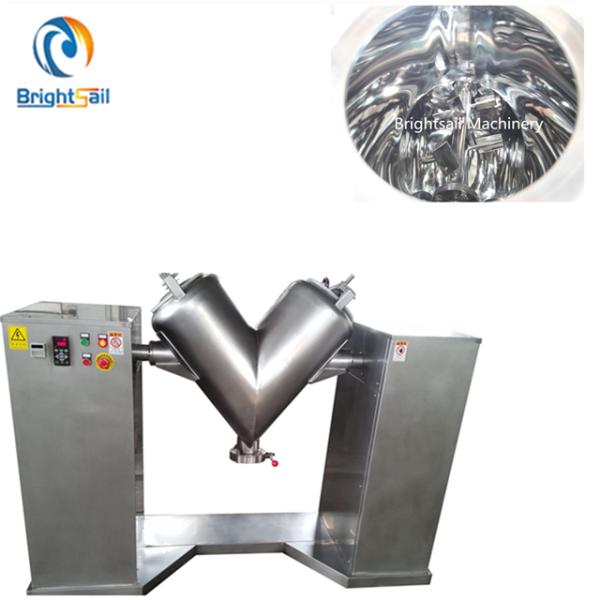

BSV V shape mixer is an efficient mixing equipment specifically designed for powders. During its rotation, it achieves rapid and uniform mixing through the continuous separation and convection movement of the materials. This equipment not only eliminates mixing dead zones but also significantly simplifies the cleaning and maintenance process. It demonstrates excellent applicability in various mixing procedures in fields such as pharmaceutical preparations, food additives, and chemical raw materials, and has become an indispensable key equipment in modern industrial production.

Main features:

This machine is suitable for the mixing of powdery or granular materials in industries such as chemical engineering, food, medicine, and feed. The equipment has a reasonable and simple structure, is operationally sealed, and is convenient for feeding and discharging. The cylinder is made of stainless steel, which is easy to clean. It is suitable for mixing powdery and granular materials with good fluidity and small differences in physical properties, as well as materials with low mixing degree and short mixing time. Due to the stable material flow within the V-shaped mixing container and the fact that it does not damage the original materials, the V-shaped mixer is also suitable for mixing fragile and wear-prone granular materials, or fine powder, block-like materials, and materials with a certain moisture content.

Medicinal Powder Mixing Machine

Technical data:

Model BSV-100 BSV-200 BSV-300 BSV-500 BSV-1000 BSV-1500 BSV-2000 BSV-2500 BSV-3000 BSV-4000
Total volume(L) 100 200 300 500 1000

1500

2000 2500 3000 4000
Work volume(L) 60 120 180 300 600 900 1200 1500 1800 2400
Mix time(min) 4-8 4-8 6-10 6-10 6-10 6-10 6-10 6-10 6-10 6-10
Motor(KW) 1.1 1.1 1.1 2.2 4 5.5 7.5 7.5 7.5 11
Overall size(L×W×H)(mm)

1840×

600×1430

2110×

600×1675

2280×

630×1780

2655×

1040×2250

3070×

1240×2490

3840x

1600x2980

3900x

1440x3100

4000x1

500x3225

4370x

2000x3560

4800x

2000x4000

Weight(kg) 230 290 400 550 850 1020 2040 2200 2500

2800

Medicinal Powder Mixing Machine

Company information:

Our company has been in the field of machine(mixer, grinder, packing machine) production for many years. To follow the changing need of different factory, we keep on the product development by using new material and technology. In the past few years, we have successfully sold machines to over 40 countries.

Medicinal Powder Mixing Machine

Best service:

Medicinal Powder Mixing Machine

Machine certificate:

Our v mixer machine has been certified by the European and International standarization organization. You can feel free to use the machine.

Medicinal Powder Mixing Machine
