Stainless steel Sugar Grinding Powder Machine Sugar Powder Machine with CE

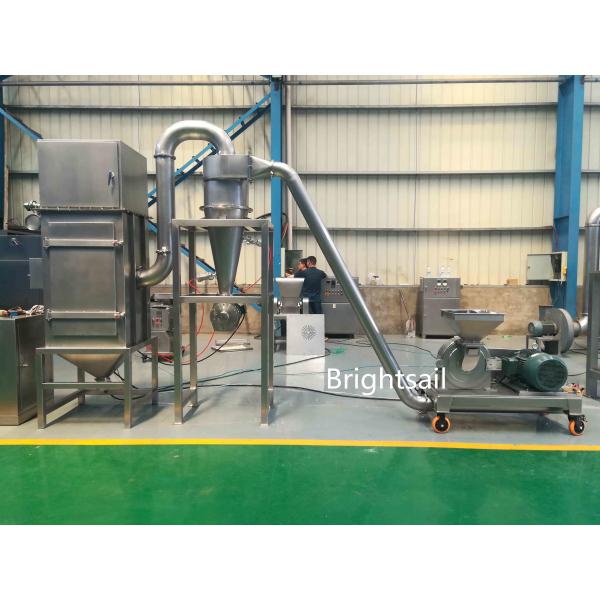

The BSG self-priming grinding unit produced by our company is composed of main machine, auxiliary machine, conveying pipe, electric control device, feeding device, etc. . The auxiliary machine has cyclone separator with bag filter and air collector. The main machine is equipped with active crushing disc device, which can change the direction of hammer head. In addition to crushing, it also has grading function and screening Centrifugal shearing function, and the size of particles can be controlled. After the material is crushed, it is sent to the air intake by negative pressure. Is the food, pharmaceutical, chemical and other industries ideal equipment.

Technical data:

Working method:

The material enters the grinding chamber through the hopper, is thrown into the fixed ring gear under the impact of the high-speed rotating disc/hammer head, and then is cut by bouncing. At the same time, under the alternating action of impact, cutting and grinding forces, the material is refined. Under the negative pressure of the fan and Impeller, the powder is absorbed into the cyclone separator and discharged through the screen Mesh and pipes. The pulse precipitator can collect a small amount of fine dust.

Main Features:

(1) The grinding chamber is equipped with water cooling system to effectively avoid product damage caused by high temperature during grinding.

(2) The screen is made of high-quality stainless steel. Special design. When you need another sieve size powder, you can easily change the sieve.

(3) The machine is also equipped with a dust collection system to collect the fine powder inevitable in the grinding process into the dust collector. This process ensures that the final powder discharge of our automatic rotary powder discharge device is more uniform.

(4) All stainless steel structures comply with GMP standards, food grade, chemical grade and pharmaceutical grade standards.

FAQ:

1. Q: Can the machine’s voltage be customized?

A: Yes, sure. Like 220V,400V, 480V, 600Hz....we can do it.

2. Q: Can the machine’s voltage be customized into single phase, and family use?

A: Most machines cannot, but some machine can, please contact us to check and confirm.

3. Q:Do you provide material test ? is it free or extra ?

A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
