Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade
Specifications
Price :
Negotiable
Materials :
cocoa, rice,chilli...etc
Output Product Name :
Powder Flour
Fineness :
60-2500 mesh
Payment Terms :
T/T, L/C
Model Number :
BSP
Place of Origin :
China
Packaging Details :
Container
Certification :
CE ISO
Work Voltage :
customized
Feature :
High Efficiency Easy Operation
Brand Name :
Brightsail
Supply Ability :
30 sets per month
Delivery Time :
30-35days
Productname :
Powder Grinder Machine
Advantage :
High Effieciency
MOQ :
one set
Port :
SHANGHAI CHINA
Description

Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade​

BSP Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade​

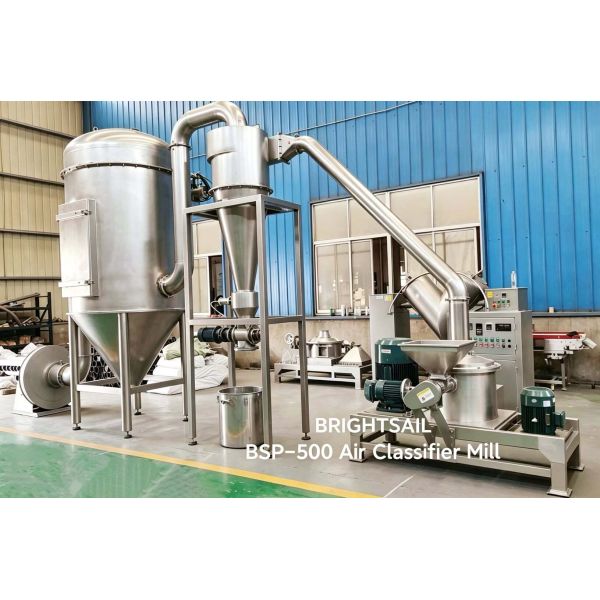

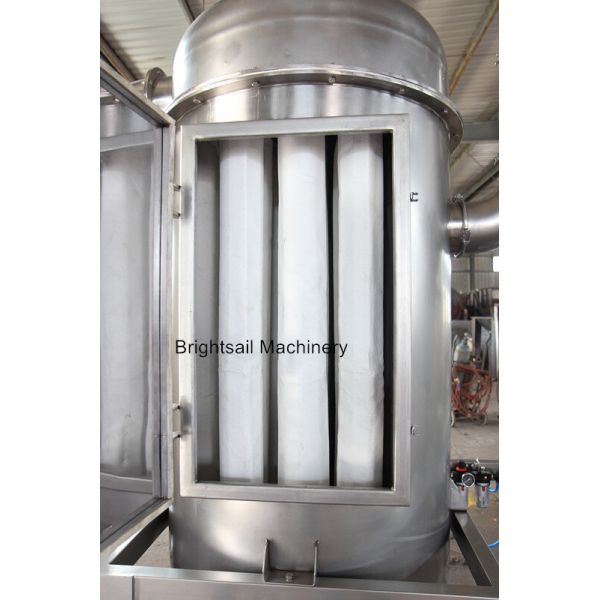

is made up of 5 parts: crusher part, cyclone part, pulse dust collecting box, blower and electric control box. It has the air classifer inside, can make very fine and even powder.

The production process goes on continuously, and no needs screens/sieves, final particle size can be changed by the inverter. BSP powder pulverizer can be used for food, pharmaceutical, chemical and mineral industries. It is suitable for grinding dry herb, grain, spices...etc.

Technical data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 30-2500 30-2500 30-2500 30-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) ~6500 ~5350 ~4600 ~3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100

Working method:

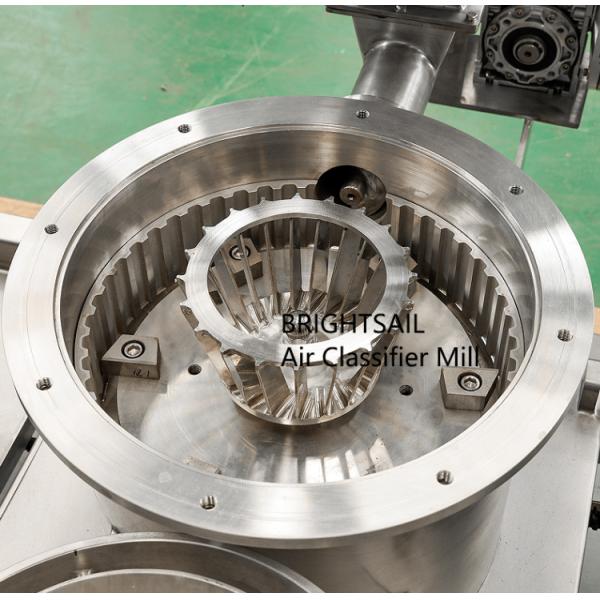

The machine uses a screenless air classifier mill design. cocoa materials are evenly fed into the grinding chamber by the screw feeder. Inside, the high-speed rotating grinding disc crushes materials through impact, shear and friction. The crushed materials are then carried by airflow to the classification zone: the high-speed classifier wheel allows qualified fine particles to enter the cyclone separator and bag filter for collection, while oversized particles are sent back for re-grinding. Adjusting the classifier wheel speed can precisely control product fineness (30-2500 mesh) for continuous production.

Main features:

1.Screenless Design & No Blockage: The innovative air classifier mill design avoids screen blockage, ensuring stable continuous production and higher efficiency.

2.Superior Ultra-fine Grinding: Can produce ultra-fine powder up to 2500 mesh, exceeding conventional hammer mills, ideal for high-value cocoa powder applications.

3.Precise Fineness Control: Adjust the classifier wheel speed to easily control product fineness (30-2500 mesh) and meet diverse needs.

Industrial Cocoa Powder Making Machine Ultra Fine Grinder for Food Grade

FAQ

Q: What is the warranty term?

A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.

Q: What is the material of the machine?

A: Stainless steel 304 is our standard material.

Sometimes,we also use SS316 as customer requests.

Q: Does the machine have GMP certificate?

A: Our machine can meet the requirements of GMP, but our machine is not food or pharmaceutical products, our machine doesn’t have GMP certificate.

But our machine can be applied in food and pharmaceutical’s production
