High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
Specifications
Certification :
CE ISO
Supply Ability :
30 sets per month
Material :
SS304/316
Price :
Negotiable
Brand Name :
Brightsail
Product name :
Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine
Capacity :
20-800 kg/h
Delivery Time :
25-30 days
Voltage :
220-480 v
Model Number :
BSU
Feed size :
<10mm
MOQ :
one set
Output size :
10-120 mesh
Place of Origin :
CHINA
Payment Terms :
T/T, L/C, Western Union
Description

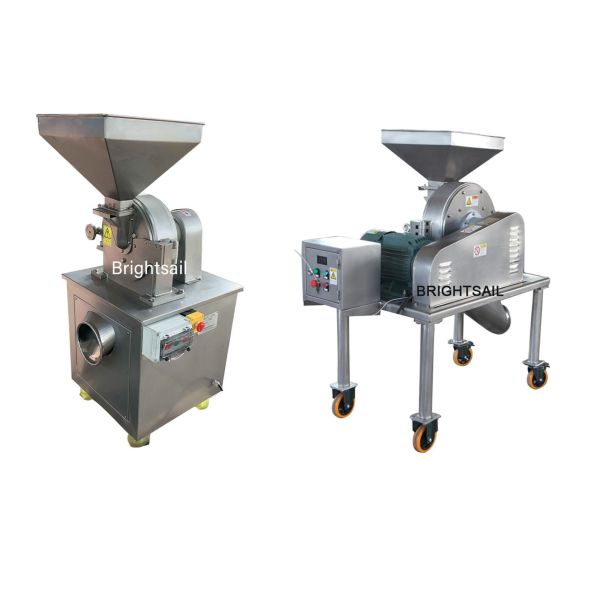

High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine

Advantages:

The BSU(turbine grinder) is ideal for grinding dried Jerusalem artichoke chips

because its high-speed turbine disc generates a powerful circulating airflow that quickly dissipates frictional heat within the grinding chamber, maintaining a low processing temperature.

It effectively prevents thermal deterioration such as material scorching, flavor loss and nutrient damage when processing heat-sensitive raw materials like dried vegetables, Jerusalem artichokes and spices, perfectly preserving their original color, aroma and nutrition.

In addition, the large airflow realizes negative-pressure conveying, ensuring smooth feeding without screen blocking or material sticking, which guarantees long-term stable continuous production.

High Speed Turbine Grinder Dried Jerusalem artichoke chips Grinding Machine


Main features:

1. Low Grinding Temperature

Strong circulating airflow effectively dissipates heat inside the crushing chamber, avoiding scorching, flavor and nutrition loss of heat-sensitive materials such as dried Jerusalem artichokes and dehydrated vegetables, perfectly retaining the original color and aroma of raw materials. Negative pressure conveying prevents material sticking and screen blockage for stable continuous production.

2.Wide Material Compatibility

Three interchangeable rotors are available to process most dry materials including grains, spices, herbs and dried vegetables.

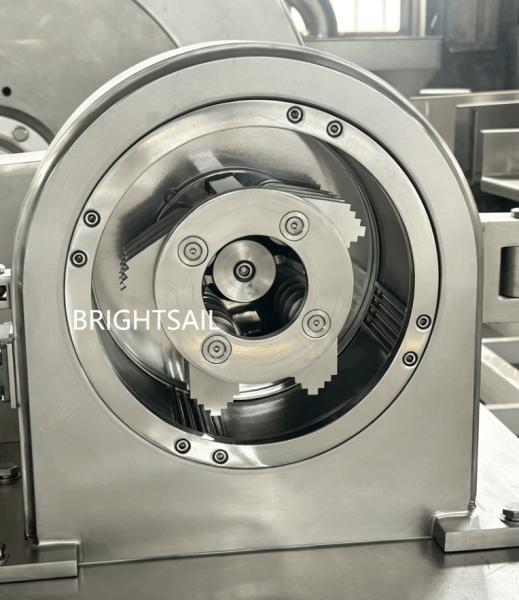

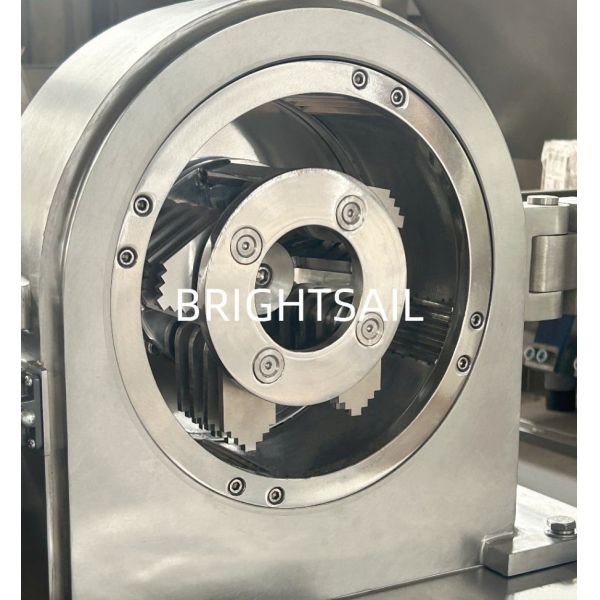

3.Simple Structure, Easy Disassembly & Cleaning

The turbo rotor can be quickly disassembled for thorough cleaning with no sanitary dead corners, complying strictly with food safety standards and preventing cross-contamination between different batches of materials.

Technical data:

Model BSU-20 BSU-30 BSU-40 BSU-60
Capacity(kg/h) 20-150 30-300 50-400 100-800
Size of input granules(mm) ＜6 ＜10 ＜10 ＜10
Size of output granules(mesh 20-120 20-120 20-120 20-120
Power(kw) 4 7.5 11 22
Speed of principal axis(rpm) 4650 3800 3400 2800
Overall size(LxWxH)(mm) 550*550*1200 650*650*1520 780*780*1600 950×950×2150
Weight(Kg) 230 330 430 900
