Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
Specifications
Type :
Grinder
Model Number :
BSP
Usage :
Grinding powders, spices, herbs
MOQ :
one set
Delivery Time :
30-35 days
Logistics Mode :
by ship, by train, by air
Payment Terms :
L/C, T/T, Western Union
Core Components :
Motor
Price :
Negotiable
Material :
Stainless Steel
Certification :
CE ISO
Work Voltage :
customized
Supply Ability :
20 sets per month
Port :
Shanghai
Brand Name :
Brightsail
Applicantion :
chemical, food and pharmaceutical line
Place of Origin :
China
Packaging Details :
Container
Description

Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified

1) Introduction of sorrel powder grinder

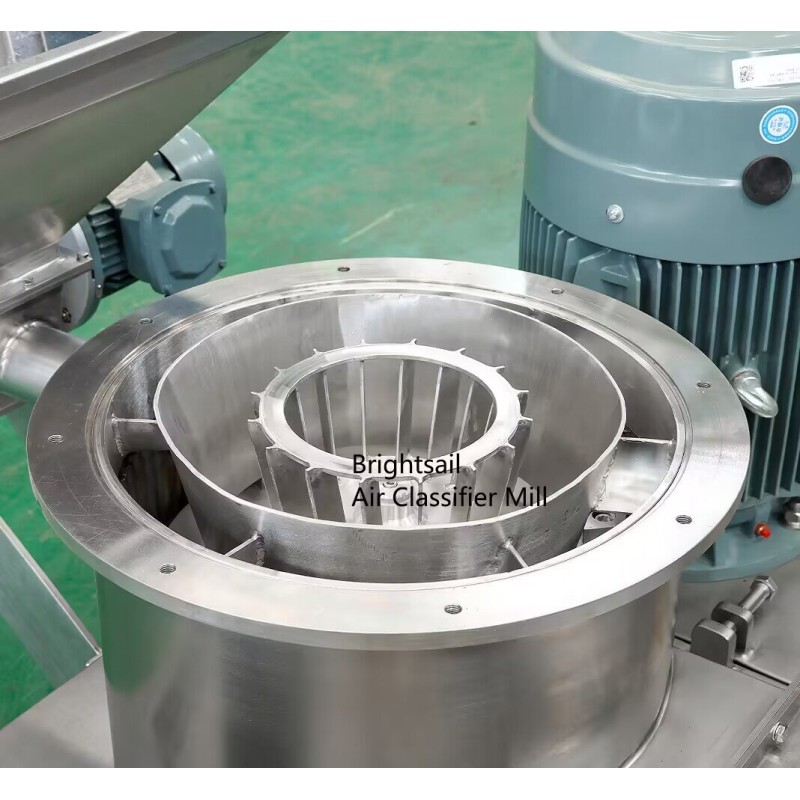

This machine adopts the air classifier mill (ACM) principle — high-speed rotating blades crush dried sorrel leaves through impact and shearing, while the built-in classifier wheel dynamically separates particles by size. Only powder reaching the target fineness passes through; oversized material recirculates for further grinding. Mesh size is controlled by adjusting the classifier wheel RPM, eliminating the need to swap screen meshes.

Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified

2) Technical data of sorrel powder grinder

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100

3)Application of sorrel powder grinder

Food industry: spice, grains, sugar, leaves, beans, plants, herbs, etc

Chemical industry: calcium carbonate, citric acid, zinc stearate, talc, bentonite,etc

Medical industry:Glucose, Vitamins, Protein, Baking Soda,Chinese herb,etc
