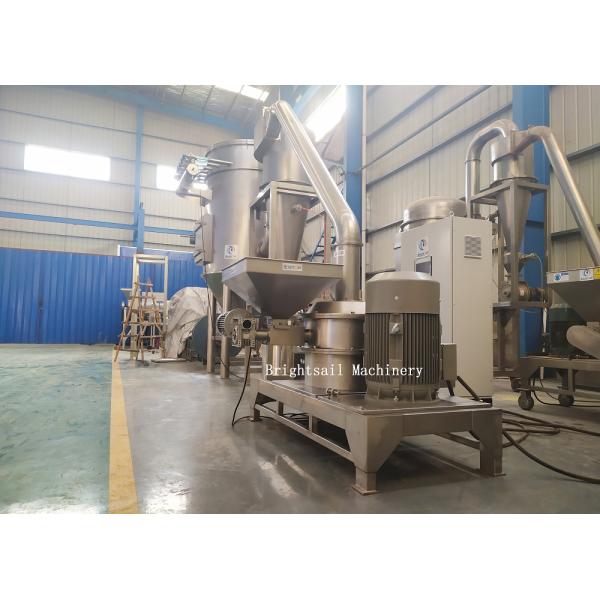

Automatic Air Classifier Mill Konjak Powder Processing Machine

Technical data:

Working method:

The material is sent to the air inlet bypass pipe by the feeding device controlled by the frequency converter, and then pneumatically conveyed to the classifier. After the material enters the mill, it is first sent to the classifier, and materials of any specification are directly sent to the product filter through the classifier. The coarse material removed by the classifier falls into the grinding zone between the rotor hammer and the surrounding grinding tracks. The particle size does not decrease until the particles are fine enough to be carried away by the airflow in the mill and sent to the classifier. This internal recirculation is repeated until the material is fine enough to pass through the classifier and exit the air classifier. The product is separated from the conveyed air in the filter. The product is discharged through the rotary valve, and the clean air enters the system fan and atmosphere through the filter element.

Advantages:

1. The design is compact and the structure is reasonable. There is a grading mechanism inside the material, which can be grinded and graded at the same time to reduce energy consumption.

2. Fan equipped with continuous heat dissipation, suitable for grinding of heat sensitive materials.

3. Strong adaptability, narrow particle size distribution. Product granularity is even, fineness can reach 80-320 Mesh.

4. The speed or air volume of the classifier can be adjusted without stopping the machine to obtain the product with uniform particle size distribution.

5. The top cover of the main engine is opened by pneumatic spring. The structure of the main engine can be opened to both sides so that there is no obstacle when cleaning and repairing the internal parts.

6. The main abrasive parts are made of high-quality alloy tool steel, which greatly prolongs the service life or replacement cycle of the wearing parts.

7. Bearing system adopts imported high-speed precision bearing, running smoothly, vibration, noise is small.

8. The pipeline adopts the quick disassembly and assembly structure, and the disassembly and cleaning are quick and convenient.

9. Equipped with cyclone separator and trap, the production process will not fly dust. Dust bag can effectively collect the fine powder in the air flow, meet the requirements of clean and environmental protection of exhaust gas emissions.

10. The fine powder collected by the dust removal cloth bag can be effectively recycled. To reduce material loss.
