High Rotary Speed 10mm Herbal Powder Machine Radix Liquiritiae Mill Grinding
High Rotary Speed 10mm Herbal Powder Machine Radix Liquiritiae Mill Grinding
High Rotary Speed 10mm Herbal Powder Machine Radix Liquiritiae Mill Grinding
High Rotary Speed 10mm Herbal Powder Machine Radix Liquiritiae Mill Grinding
High Rotary Speed 10mm Herbal Powder Machine Radix Liquiritiae Mill Grinding
High Rotary Speed 10mm Herbal Powder Machine Radix Liquiritiae Mill Grinding
Specifications
Brand Name :
Brightsail
Model Number :
BS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25-30 days
Packaging Details :
wooden case
Product name :
Radix Liquiritiae Mill Grinding
Applicated Fields :
foodstuff industry,chemical industry,medical industry
Warranty :
One year
Capacity :
3-300 kg/h
Fineness :
10-120 mesh
Feed size :
<10mm
Other Name :
glycyrrhiza crushing machine
Description

High Rotary Grinding Speed 3 To 300 Kg Per Hr Capacity Radix Liquiritiae Mill Grinding

BS high-speed hammer mill is mainly used for crushing chemical raw materials, Chinese medicinal materials containing wood roots, leaves, low-oil grains, and hard and brittle materials such as ginger, chili, chickpeas, moringa leaves, dried flowers, etc.

Technical Data:

Model BS-180 BS-250 BS-300 BS-350
Feed size(mm)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)

<10mm(granule)

<15*40*2(leaf)
Grind fineness(mesh) 10-120 10-120 10-120 10-120
Capacity(kg/h) 3-50 10-100 20-200 30-300
Grind chamber diameter(mm) 200 270 330 380
Rotor speed(rpm) 5900/8600 4200/6200 2600/5100 2200/4400
Motor(kw) 2.2 5.5 7.5 11
Overall size(L*W*H)(mm) 840*470*1020 930*600*1200 1000*650*1500 1150*700*1600
Weight(kg) 112 210 296 430

Working Method:

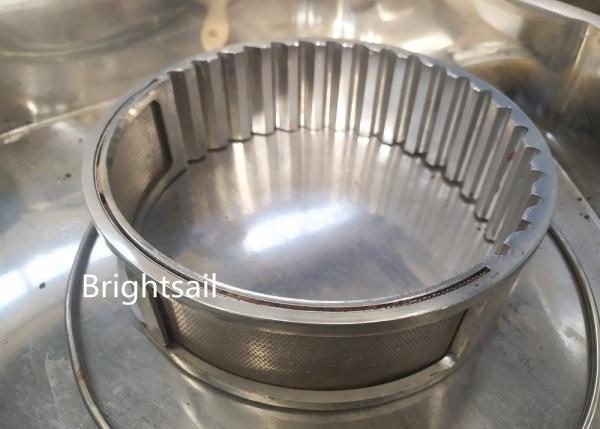

The crushed material can be discharged directly from the mill. There is a movable blade on the spindle. A fixed gear ring is arranged in the grinding cavity. Under the ring gear, there’s a screen. When the spindle is working at high speed, the movable cutter head is running together. The material is impacted, rubbed and cut by fixed tooth ring and movable hammer. Matter also collides with each other. Together, they are compressed into a powder.

Main Features:

1. The machine is easy to crush the target materials, the size of flour can be achieved by changing the screen Mesh.

2. The utility model has the characteristics of stable operation and high efficiency.

3. The crushed material is discharged directly from the grinding room of the main engine.

4. The whole machine is made of stainless steel with smooth inner wall to avoid the accumulation of power in the inner wall.

5. The machine produces medicine, chemical, food and other products in line with national requirements, in line with GMP standards.

Why Choose Us:
Over the years, we have exported machines to more than 70 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you don't need to worry about the export formalities, because we know all the formalities.

High Rotary Speed 10mm Herbal Powder Machine Radix Liquiritiae Mill Grinding

Please contact us if you have interests in our products.
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
