Seasoning Powder Industry 60 To 2500mesh Powder Making Ultrafine Pulverizer Set

Technical data:

Working method:

The raw materials are sent to the grinding chamber by the screw feeder through the hopper, cut by the high-speed cutter, and then sucked by the negative pressure to the cyclone separator and bag filter. The process meets the product requirements. This is why BSP superfine grinder can be made into superfine powder and can be used as a fine grinder.

Main components:

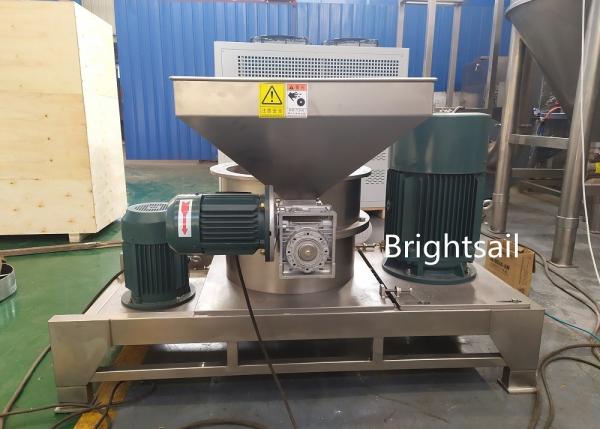

1. Crusher: The left motor is a crushing motor, and the right motor is a grading motor. Small screw feeder is used to ensure uniform and controllable feed speed.

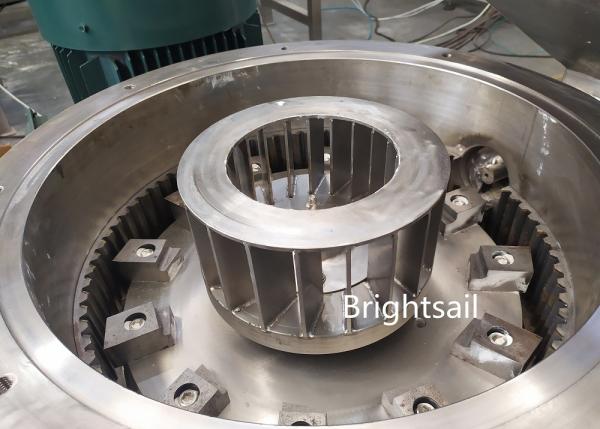

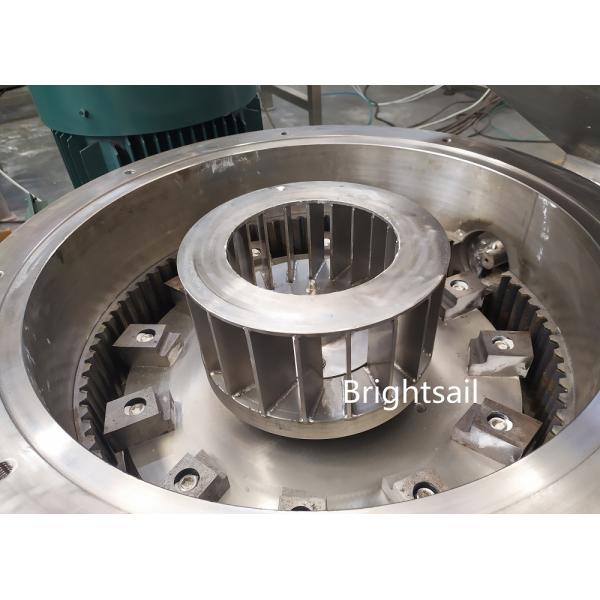

2. The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blades. The powder enters the classification chamber through the guide ring.

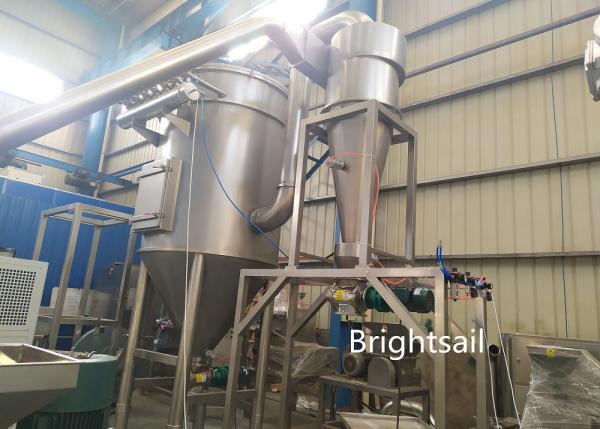

3. Cyclone separator: The cyclone separator can separate dust (particles). The rotary valve makes the powder output speed even, and it is also made of stainless steel. Easy to clean and disassemble.

4. Pulse dust collector: remove dust inside the dust collector. There are many dust-proof bags in the box, and the bag holder is also made of stainless steel, which is easy to disassemble.

Main features:

(1) The patented technology of the utility model has the advantages of simple structure and convenient installation and maintenance.

(2) It adopts world-class and famous brand motors, electrical components, bearings and operating components.

(3) There is no dust in the production process, and the dust can be collected in the dust collection box.

(4) Without screening, the particle size changes with the change of velocity.

(5) Cool the machine with a water jacket around the mill and bearings.
