Processing Customized 2800 Mesh Fine Powder Grinding Machine For Herbs
Processing Customized 2800 Mesh Fine Powder Grinding Machine For Herbs
Processing Customized 2800 Mesh Fine Powder Grinding Machine For Herbs
Processing Customized 2800 Mesh Fine Powder Grinding Machine For Herbs
Processing Customized 2800 Mesh Fine Powder Grinding Machine For Herbs
Processing Customized 2800 Mesh Fine Powder Grinding Machine For Herbs
Specifications
Brand Name :
Brightsail
Model Number :
BSP
Certification :
CE ISO
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30-35 days
Packaging Details :
Container
Product name :
Grinding Machine For Herbs
Application :
foodstuff industry,chemocal industry,medical industry
Material :
SS304/316
Capacity :
20-1800kg/h
Advantage :
final powder is superfine
Fineness :
60-2500 mesh
Discharge motor(kw) :
0.75-1.5
Voltage :
customized
Description

Processing Customized 2800 Mesh Powder Making Grinding Machine For Herbs

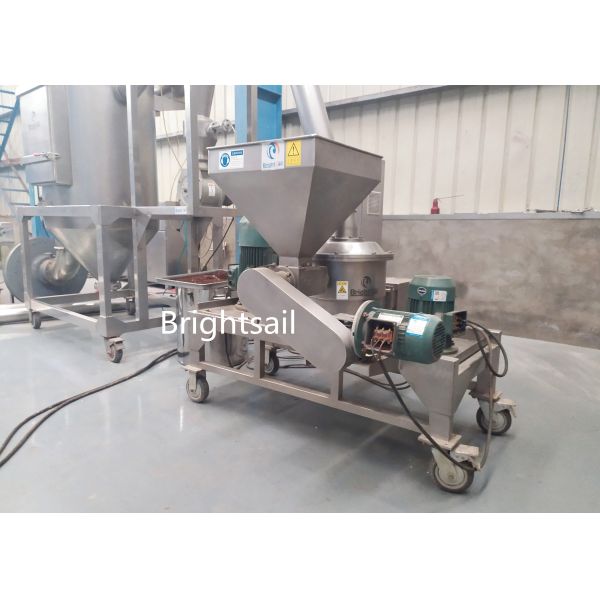

BSP industrial herb grinder is composed of crusher, cyclone separator, dust collector, blower, electric control box, etc. It has the functions of dust selection, no screen, no net, uniform particle size, continuous processing and so on. In line with the international advanced level, it is suitable for material crushing in pharmaceutical, chemical, food and other industries.

Technical Data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100

Working Method:

The raw materials are sent to the crushing chamber by the Spiral Feeder through the hopper, the high-speed cutting machine after shearing and pruning. The raw materials are sent to the cyclone separator and the bag filter by the negative pressure suction method, and the discharge meets the product requirements. This is why BSP ultrafine powder grinding machine can produce ultrafine powder, can be used as a fine grinding machine.

Main Components:

1. Pulse Dust remover: collect dust into the dust remover. A plurality of dust bags are arranged in the box, and the dust bag seat is also made of stainless steel, which is convenient for disassembly. Pulse spray cleaning, dust removal is very convenient.

2. Crusher part: Left Motor for the crusher motor, right motor for electromechanical. Small spiral feeder is used to ensure uniform and controllable feeding speed.

3. Materials enter the grinding chamber through a screw conveyor, where they are cut and ground by rapidly rotating blades. The powder passes through the guide ring into the classification chamber.

4. Cyclone separator: Cyclone separator can separate dust and powder (particles) . The Rotary Valve is made of stainless steel with uniform powder speed. Easy to clean and disassemble.

Main Features:

1. Simple structure, easy installation and maintenance.
2. There is a water-cooling sleeve around the grinding chamber, and the bearing can cool the machine.
3. Motors, electrical appliances, bearings and operating parts all adopt world advanced brands.
4. There is no dust in the production process, and the dust can be collected in the dust removal box.
5. Without changing the screening speed,
6. Particle size can be changed

Why us:
Over the years, we have exported machines to more than 30 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you don't need to worry about the export formalities, because we know all the formalities.
FAQ:
1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
