SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
Specifications
Place of Origin :
China
Brand Name :
BrightSail
Certification :
CE ISO, CE ISO
Packaging Details :
2019 SPICE pulverizer machine spice crusher spice powder grinding machines
wooden case or container
Supply Ability :
20 Set/Sets per Month
Price :
$2,700.00/Sets >=1 Sets
Output (kg/h) :
100 - 1500 kg/h
Output Size (mesh) :
20 - 150 mesh
Application :
Medicine Processing, Chemicals Processing, Food Processing
Condition :
New
Type :
Pulverizer
Product Type :
powder grinding machine
Voltage :
Customized, Customized
Dimension(L*W*H) :
Customizable, Customizable
Weight (KG) :
1000 KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Showroom Location :
None
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, PLC, Engine
MOQ :
1 Set
Usage :
food,spice,herbs,chemical
Keyword 1 :
powder grinding machine
material :
SUS304/SUS316L
Product name :
SPICE pulverizer machine spice crusher spice powder grinding machine
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
None
Port :
SHANGHAI
Description
Product Description

Product Application

This is our lastes advanced hammer mill set:


It features:
1) NO need screen or sieve in mill chamber, change powder particle size by changing speed;
2) Because it has no screen in mill chamber,when milling, there is no heat rising in mill chamber;
No need to worry power get stuck in the screens or product quality get affected by the heat from the mill. That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.
3) The mill part combines coarse crusher, middle fine milling area and fine milling area( it combines 3-stage grinding at one time) together, which means it can makes fine powder directly from big raw material, very effective.
4) It can save more power, its capacity is much bigger than other same motor traditional mill.

5) You can feed big raw material. (like complete ginger, complete turmeric,complete chilli directly into the mill chamber, it can grind them into fine powder directly.)

this machine has a very good effect for milling different kinds of food,like spice,herbs,milk powder and chemicals,feed...etc.

SUS316L Spice Pulverizer Machine Crusher Powder Grinder
Model
BSDF-450
BSDF-550
BSDF-650
BSDF-750
Production capacity (kg/h)
300~500
400-800
600-900
800-1300
Output size(mesh)
20~150
20~150
20~150
20~150
crush motor power(KW)
30
37
45
55
Rotor speed (rpm)
3300~4200
2900~3600
2400~3100
2100~2700
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
Detailed Images
SUS316L Spice Pulverizer Machine Crusher Powder Grinder

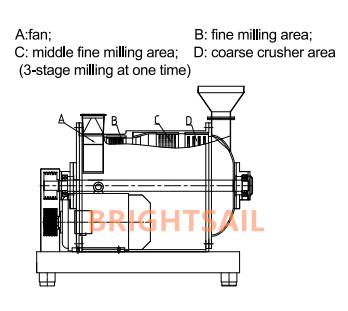

Crusher part

This is the mill part,
It combines corse crusher area, middle fine milling area, and super fine milling area together.

It can grind big raw material into fine powder directly.

(combines 3-stage grinding in one mill chamber)

Work method

1) From right to left,
they are coarse crush area,middle fine mill area and fine milling area and blast area.
Material fed in will be milled by the three areas to become fine powder directly.
2) change powder size by changing speed.

SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder

Cyclone part


(1) Cyclone can seperate dust from powder(granules)

(2) Rotary valve make powder discharge speed even

Rotary valve is also made of stainless steel

and to clean it and dismantle is convinient.

Pulse Dust Collecting box

(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.

SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder

TO MAKE SURE BETTER QUALITY

1) We use motor from ABB/Siemens/WEG

2) We adopts electrical control parts from Schneider/Delixi

3) We use bearings from SKF

If you need small capacity or if you don't need very fine spice powder............

If you need small capacity like 20 kg/hr, 50 kg/hr, 100 kg/hr....etc, we also have the machine.
and the price 2,700 USD on our website is the smallest machine's price of our company,if you need the big machine price
(BSDF-advanced hammer mill) above,please send inquiry to us.
SUS316L Spice Pulverizer Machine Crusher Powder Grinder

BS-high speed hammer mill,

It features small body, high rotor speed,easy to use,easy to clean.
SUS316L Spice Pulverizer Machine Crusher Powder Grinder

BSG-cyclone dust collect grinding set

If you need capacity ~100 kg/hr, this machine very suitable.
SUS316L Spice Pulverizer Machine Crusher Powder Grinder

BS-hammer mill unit

If you need medium fine powder, and medium capacity for spices, this machine is very suitable
Our Service
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
SUS316L Spice Pulverizer Machine Crusher Powder Grinder

Pre-Sales Service

* Inquiry and consulting support with 24 hours

* Sample testing support.

* View our Factory.

SUS316L Spice Pulverizer Machine Crusher Powder Grinder

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
Packaging
Size
Depends
Weight
Depends
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
SUS316L Spice Pulverizer Machine Crusher Powder Grinder
Packaging
Size
20 ft container; 40 ft container
Weight
denpends
Packaging Details
If machine is big, we will fix the machine inside container with steel wires and nails.
Machine won't move inside the container.
