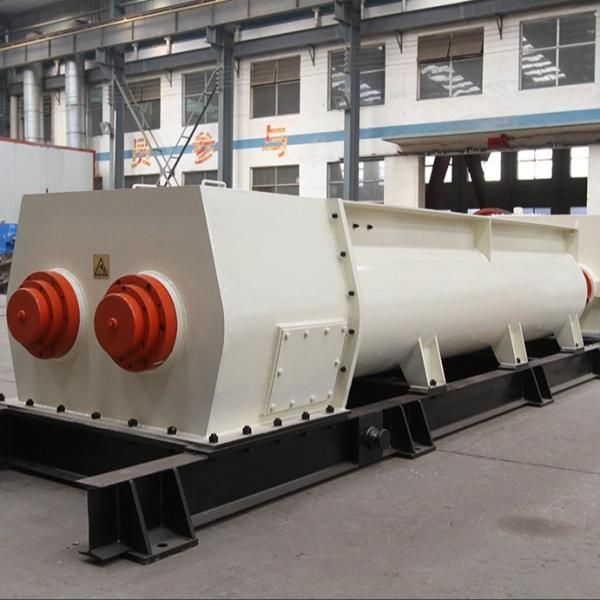

60-85 M3/hr Brick Production Line Double Shaft Mixer SJJ3600×520 Heavy Duty Mixer Ensuring Uniform Brick Material Mixing

Technical Parameters:

Product Description:

The SJJ Series Extruding Mixer is a key piece of equipment used to add water to crushed brick-making raw materials, followed by mixing, blending, and homogenizing. Through uniform water addition and intensive mechanical mixing, the plasticity, uniformity, and forming performance of the raw materials are significantly enhanced, greatly improving the appearance quality, density, and finished product yield of bricks and tiles. This machine is an indispensable core equipment for raw material preparation in brick and tile enterprises.

This series is mainly suitable for wet mixing and treatment of common brick-making raw materials such as clay, shale, coal gangue, and fly ash, especially for processes requiring high homogeneity and high plasticity.

Halstec provides two types of mixers for customer choice: SJ series and SJJ series.

Features:

• Product Name: SJJ Series Of Extruding Mixer
• Function: To Mix Raw Materials And Water Together
• Model: SJJ3600×520
• Design: Full Steel Structure
• Certificate: CE/ISO Certified
• Power: 160kw
• Feature: Double Shaft Mixer Clay Brick Making Machine for efficient mixing
• Type: Clay Brick Double Shaft Mixer ensuring uniform material blending
• Durability: Robust Clay Brick Double Shaft Mixer designed for heavy-duty use

Working Principle:

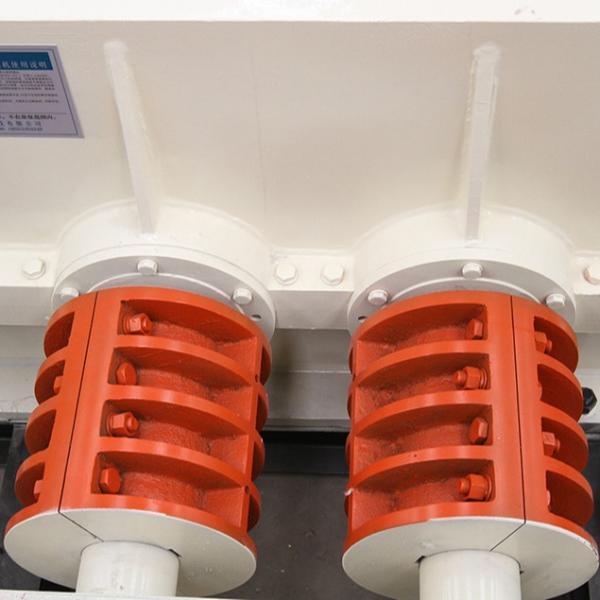

The machine consists of two main parts: the transmission & reduction mechanism and the working mechanism. For convenient transportation and installation, they are mounted on separate bases. During operation, the motor transmits power via a coupling to the active mixing shaft. Through a precision gear pair, the driven mixing shaft rotates in the opposite direction. Specially designed mixing blades are installed on both shafts. As they rotate in opposite directions, the blades create intense mixing, shearing, convection, and kneading actions on the material inside the chamber, ensuring thorough mixing and homogenization of raw materials with water. At the same time, the mixing blades also have conveying function, continuously pushing the processed material toward the extrusion section. The extrusion screw further compacts and uniformly extrudes the material, providing a stable and homogeneous material flow for subsequent forming processes.

Process Advantages & Application Value:

1. Significantly improves comprehensive material performance
Through intensive mixing and extrusion compaction, water is evenly distributed, particle gradation becomes more reasonable, and the plasticity index increases significantly. As a result, the formed green bodies have smooth surfaces, clear edges, no cracks, and greatly improved appearance quality and dimensional accuracy.

2. Improves finished product yield
Uniform raw materials directly reduce forming defects such as delamination, rough surface, and insufficient strength, resulting in significantly lower breakage rates after firing. Actual user data shows that using the SJJ series extruding mixer can increase finished product yield by 5%–10%, bringing considerable economic benefits.

3. Adaptable to various raw materials and ratios
Whether pure clay, shale, or high-proportion industrial wastes like coal gangue and fly ash, this machine achieves stable and efficient mixing and homogenization. For lightweight, easily airborne materials such as fly ash, the special mixing pattern effectively prevents material stratification and segregation.

4. Balances energy efficiency and high output
With 160 kW installed power matching a capacity of 60–85 m³/h, the specific energy consumption per unit output is at an industry-leading level. The optimized mixing and conveying structure reduces parasitic power loss, achieving both energy saving and high output.

Conclusion:

The SJJ3600×520 Extruding Mixer integrates mixing, blending, homogenizing, and extrusion into one unit. With advanced structure and reliable performance, it is an ideal choice for brick plants to improve raw material processing quality, increase yield, and reduce production costs. Halstec is always committed to providing efficient, durable, and intelligent raw material processing equipment and total solutions for the global brick and tile industry.
